Jdiag BT500: The Ultimate Multi-functional Car Battery Tester

Introduction to the Best Car Battery Tester Jdiag BT500

The Jdiag BT500 is a multi-functional car battery tester designed specifically for modern smart cars. This innovative car test tool not only measures battery health but also detects ambient temperature in real-time, ensuring accurate test results. With its wide range of testing capabilities, the BT500 is an essential device for any car owner or technician looking to maintain optimal battery performance.

Key Features of the Jdiag BT500 Car Battery Voltage Tester

Accurate Real-Time Testing

The Jdiag BT500’s ability to detect ambient temperature allows for more precise testing of battery conditions. This feature is crucial for diagnosing battery issues that may be influenced by temperature fluctuations.

Comprehensive Testing Functions

The BT500 supports a variety of tests, making it a versatile tool for vehicle maintenance. Here are the primary testing functions available:

Battery Test

The jdiag BT500 tester can perform a thorough battery test, evaluating the overall health and capacity of 12V and 24V lead-acid batteries ranging from 20-2000 CCA.

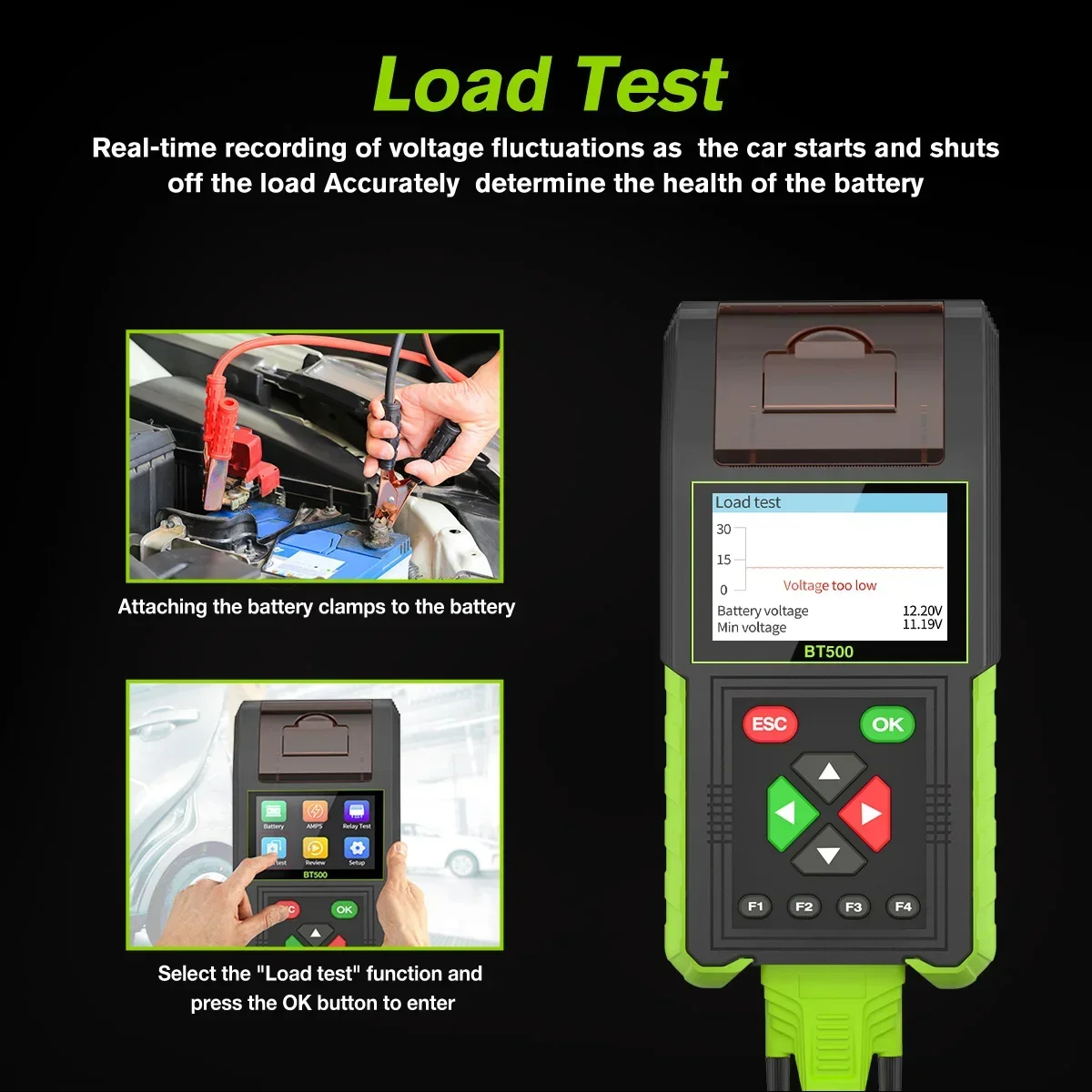

Load Test

This function assesses the battery's ability to handle a load, helping to identify potential weaknesses before they lead to failure.

Startup Test

The startup test evaluates whether the battery has sufficient power to start the engine, preventing unexpected breakdowns.

Charging Test

The charging system test ensures that the alternator is functioning correctly, providing insights into the vehicle's charging performance.

Relay Test

With the relay test function, users can verify the proper operation of relays, ensuring that they switch correctly and maintain continuity.

Leakage Test

The BT500 can detect battery leakage, helping to identify issues that may cause battery drain and affect vehicle performance.

How to Use the Jdiag BT500 Automotive Battery Tester

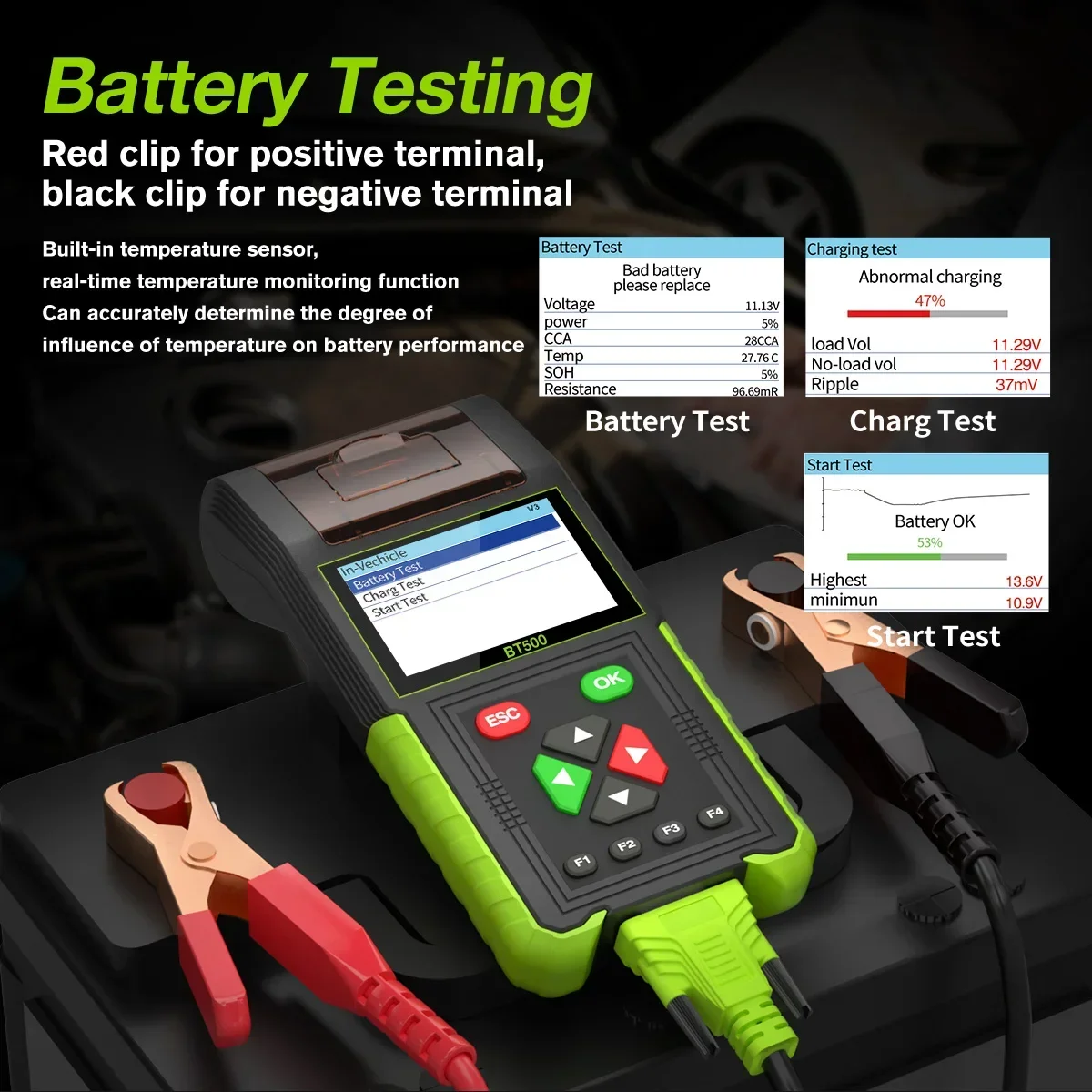

Connecting the Device

To begin using the jdiag BT500 battery tester, connect the battery clips to the battery terminals—red to positive and black to negative. If the clips are connected incorrectly, the device will not power on.

Performing a Battery Test

1. Select the Battery Test option on the device.
2. Press the OK key to enter the test menu.
3. Choose the appropriate test state and mode based on your situation.
4. Follow the on-screen prompts to complete the test.

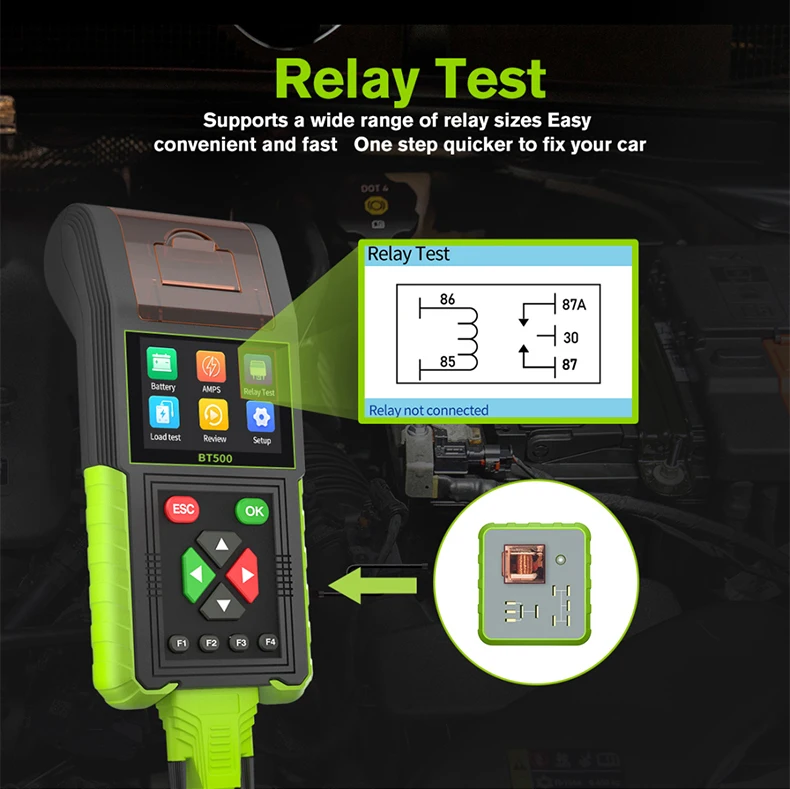

Conducting a Relay Test

1. Choose the Relay Test function from the menu.
2. Connect the main unit to the relay test box using a Type-C cable.
3. Activate the relay and check for proper contact switching and power flow.

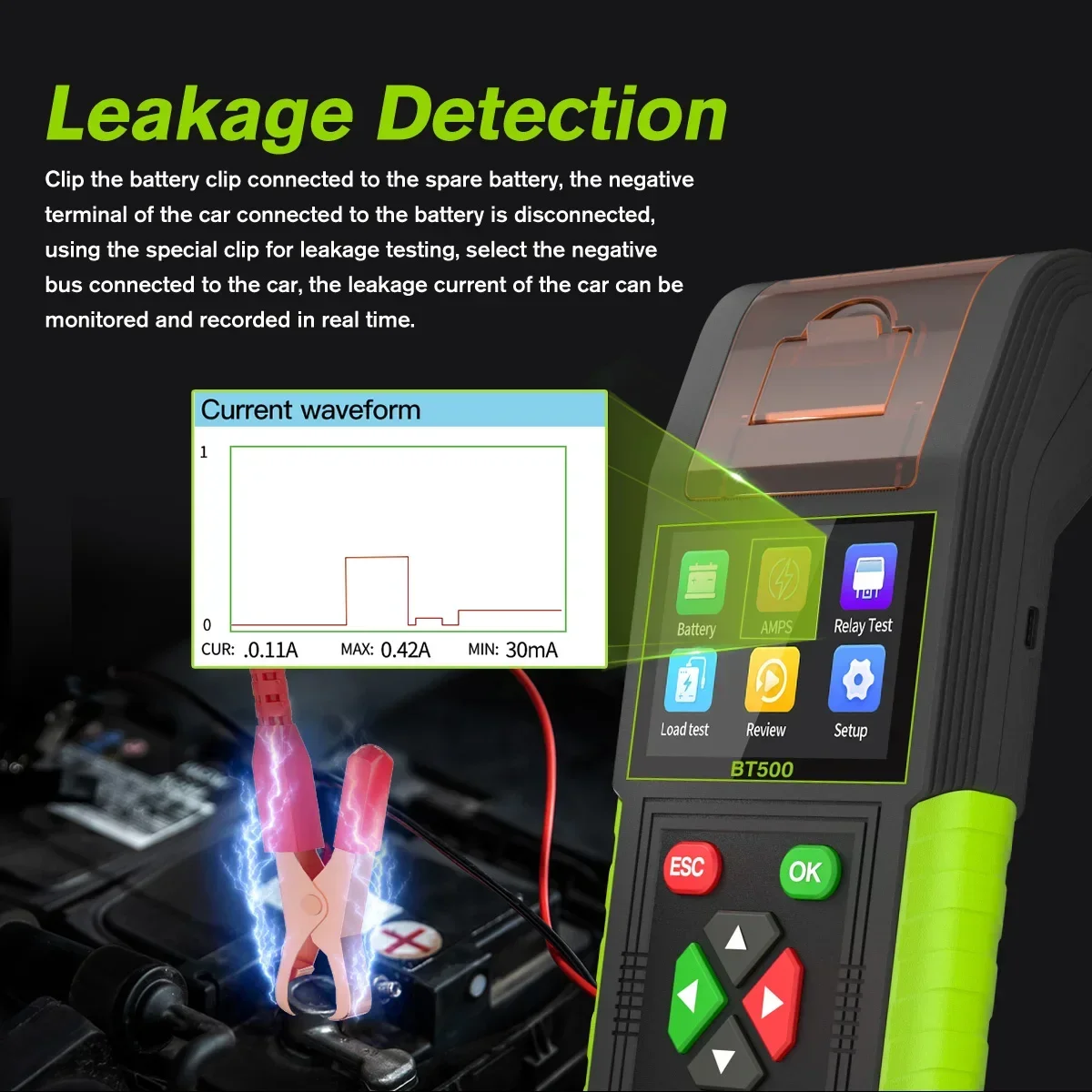

Detecting Leakage

1. Connect the power clamp to a backup battery, ensuring correct polarity.
2. Disconnect the car's negative terminal and connect it with a special leakage test clip.
3. Select Leakage Test, choose voltage or current, and monitor the current for any drops indicating potential leakage.

Charging and Startup Tests

For both charging and startup tests, follow similar steps:

1. Connect the battery clips.
2. Select the appropriate test function (Charging Test or Start Test).
3. Follow the prompts to assess the battery's performance.

One-Click Printing and Multi-Language Support

The Jdiag BT500 offers a one-click printing feature, allowing users to easily print test reports and vehicle data. Additionally, the device supports 15 languages, making it accessible for users worldwide. To change the language, navigate to the Setup function, select Language, and choose your preferred option.

Conclusion

The Jdiag BT500 is an professional automotive battery tester for anyone who wants to ensure their vehicle's battery is in top condition. With its comprehensive testing capabilities and user-friendly interface, it simplifies battery maintenance and helps prevent unexpected vehicle issues. Whether you're a car owner or a professional technician, the BT500 is a wise investment for maintaining battery health.
