Topdiag P50 Pro Car Circuit Tester Mini Oscilloscope Electrical Signal Testing DC AC voltage Detection

In the realm of automotive repair and maintenance, having the right tools at your disposal is crucial for effective diagnostics and repairs. The Topdiag P50 Pro stands out as a top-tier vehicle maintenance tool, combining the functionality of a mini oscilloscope with a versatile car circuit tester. This professional automotive circuit Tester is designed to simplify the process of diagnosing electrical systems in all types of vehicles.

Overview of Topdiag P50 Pro Circuit Tester

What is the Topdiag P50 Pro?

The Topdiag P50 Pro is a multi-functional mini oscilloscope and car circuit tester that excels in diagnosing circuit systems across various vehicles. It is particularly effective for testing 0-45V circuit systems, making it the go-to choice for electrical testing.

Key Features

• Signal Testing: Quickly detects signals from sensors, control units, and relays.
• DC Voltage Detection: Essential for testing automotive circuits powered by DC sources.
• Power Test Lamp: Checks power supply in different circuit parts.
• LED Test Light: Identifies malfunctioning LEDs in automotive lighting systems.

Functions of the Topdiag P50 Pro

1. Signal Testing

Signal testing is vital in automotive diagnostics. The Topdiag P50 Pro allows users to assess whether signals from various electronic components are functioning correctly. This capability is crucial for identifying faults and enhancing diagnostic efficiency.

2. DC Voltage Detection

Many automotive components operate on DC power sources. The Topdiag P50 Pro simplifies the process of testing for DC voltage in circuits, ensuring that all electronic components are functioning as intended. This feature is essential for maintaining the integrity of automotive electrical systems.

3. Power Test Lamp

The power test lamp feature enables users to check power supply across different parts of automotive circuits. By connecting the lamp to a circuit, it illuminates when current flows, indicating a normal power supply. This functionality is crucial for troubleshooting electrical issues in vehicles.

4. LED Test Light

The Topdiag P50 Pro includes an LED test light function, which is invaluable for testing LED lights in automotive lighting systems. This feature helps mechanics quickly identify malfunctioning or damaged LEDs, facilitating timely repairs and replacements.

Advanced Features of the Topdiag P50 Pro

Mini Oscilloscope

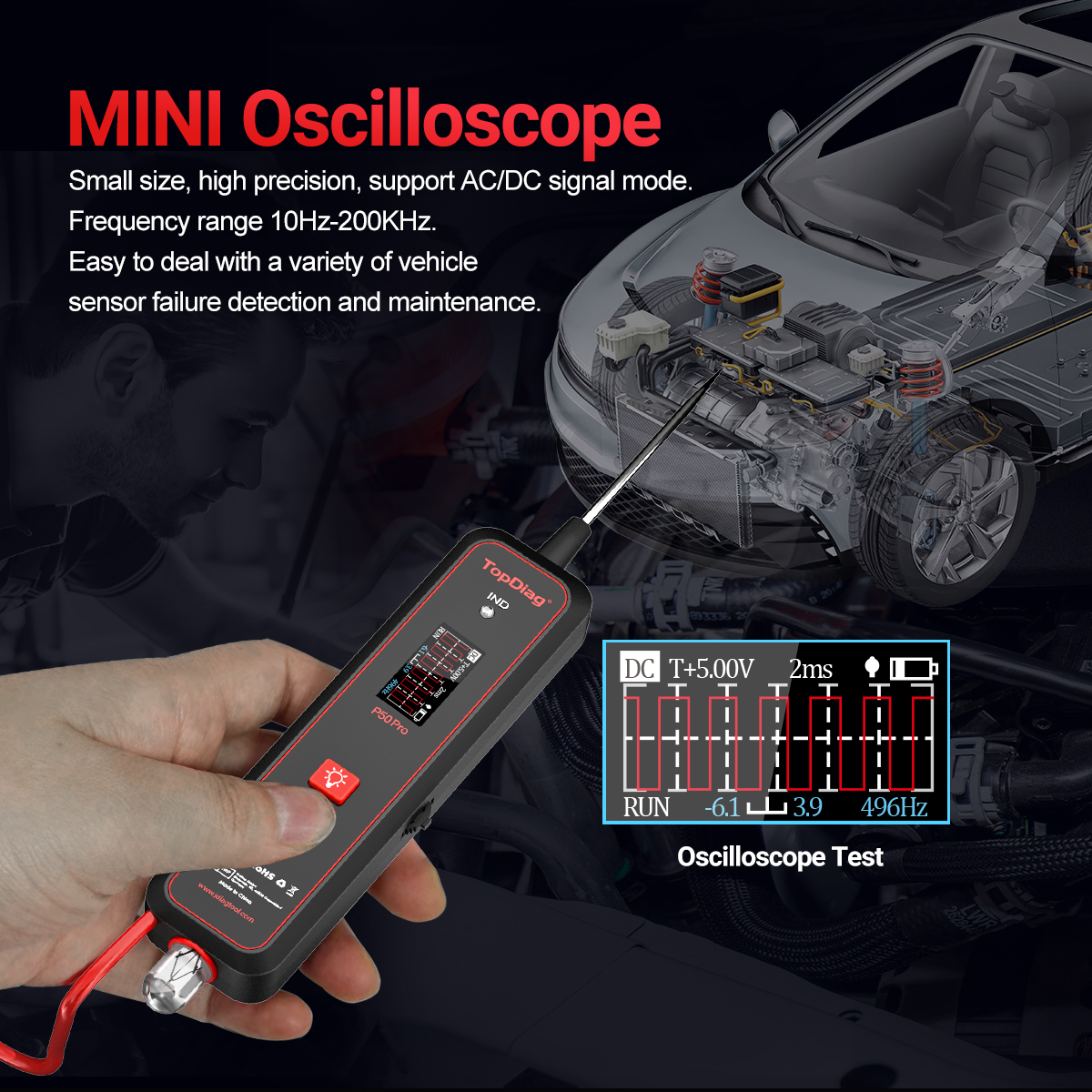

The Topdiag P50 Pro features a compact mini oscilloscope that supports both AC and DC signal modes. With a frequency range of 10Hz to 200KHz, it is adept at detecting sensor failures and conducting maintenance across various vehicle types.

Multi-Function Test Lamp

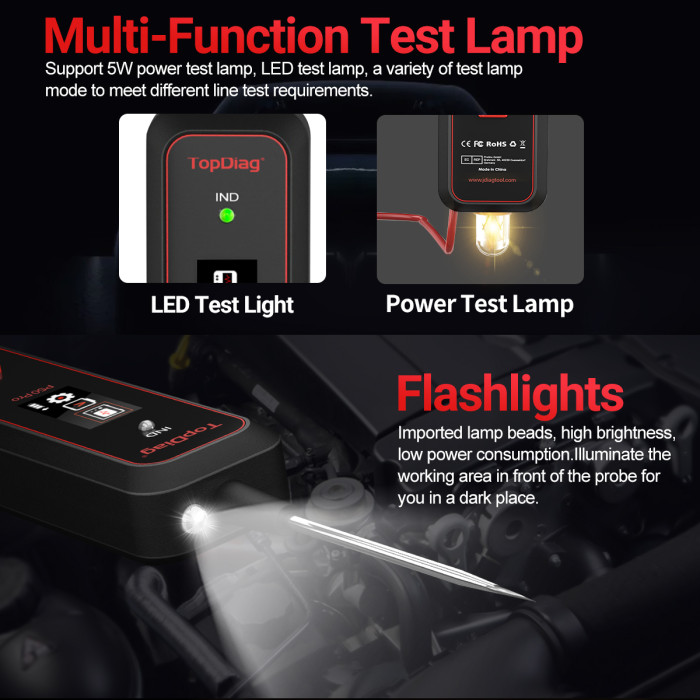

This car test tool topdiag p50 pro supports a 5W power test lamp and an LED test lamp, allowing for a variety of testing modes to meet different circuit testing needs. Its versatility makes it an essential tool for any automotive technician.

Integrated Flashlight

Equipped with high-brightness imported lamp beads, the Topdiag P50 Pro includes a built-in flashlight that illuminates the working area in front of the probe. This feature is particularly useful when working in dimly lit environments.

AC/DC Detection

The Topdiag P50 Pro supports both AC and DC voltage detection, allowing users to record maximum and minimum voltage values during measurements. This capability enhances convenience and accuracy during electrical diagnostics.

How to Use the Topdiag P50 Pro

Light Bulb Switch

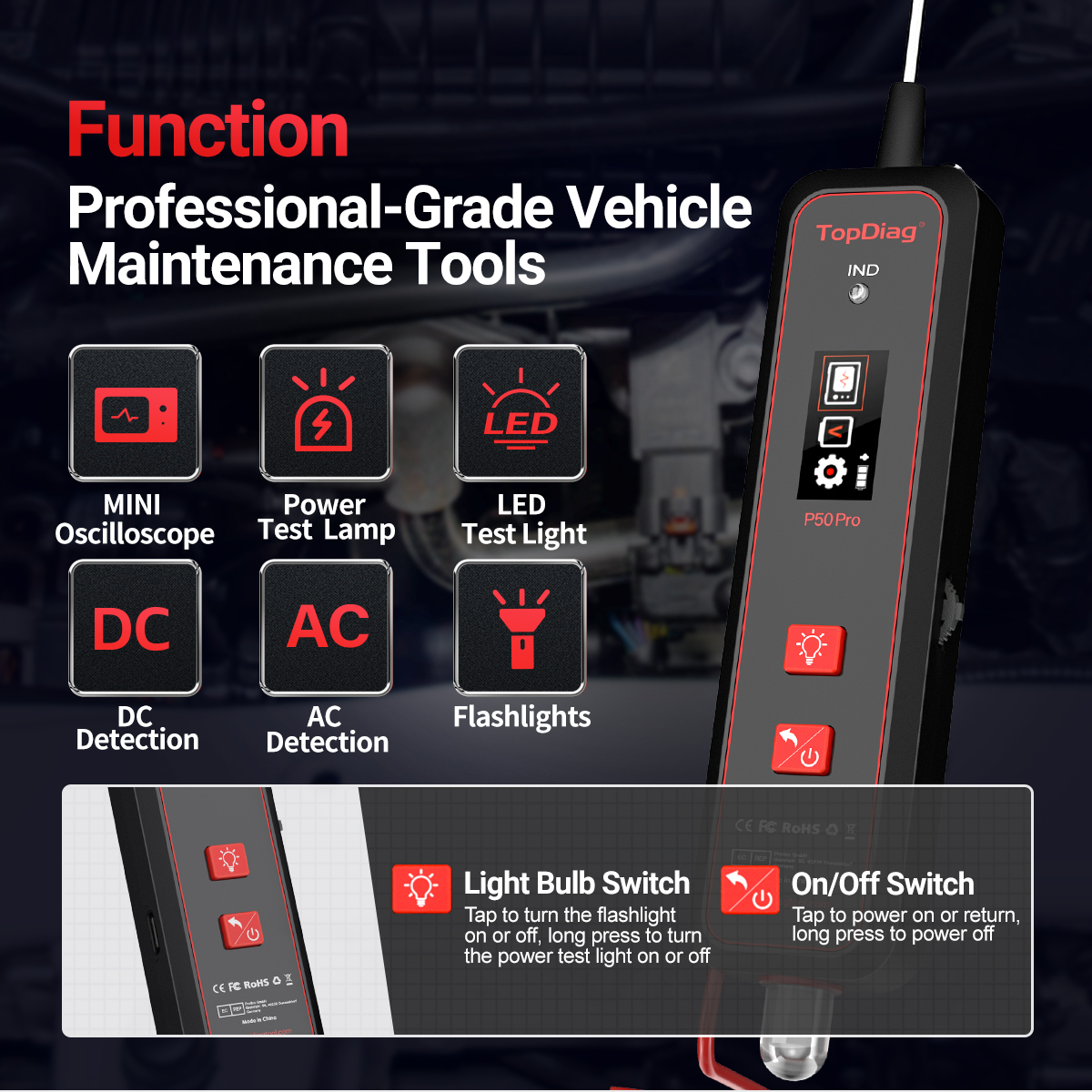

To use the flashlight function, simply tap to turn it on or off. A long press activates or deactivates the power test light.

On/Off Switch

To power on the device, tap the switch. To turn it off, press and hold the switch for a longer duration.

Specifications of the Topdiag P50 Pro

• Material Type: ABS
• Item Weight: 0.16 kg
• Dimensions: 20 inches (L) x 5 inches (W) x 3 inches (H)
• External Testing Certification: CE
• Model Name: ALicar P50 Pro
• Software Version: 2024
• Hardware Version: 2024
• Item Type: Electrical Testers & Test Leads

Conclusion

The Topdiag P50 Pro is an indispensable tool for automotive professionals and enthusiasts alike. Its combination of a mini oscilloscope and car circuit tester makes it a versatile solution for diagnosing and repairing electrical systems in vehicles. With its advanced features and user-friendly design, the Topdiag P50 Pro is set to elevate your vehicle maintenance capabilities.
