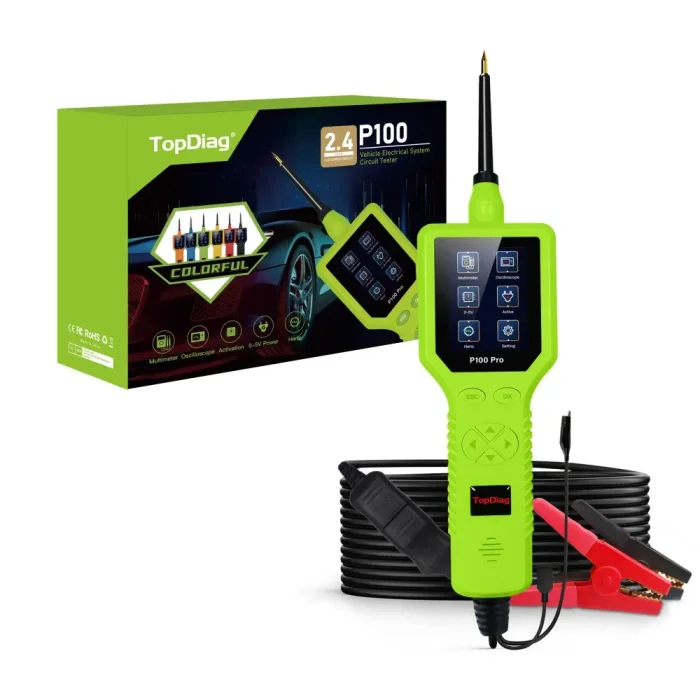

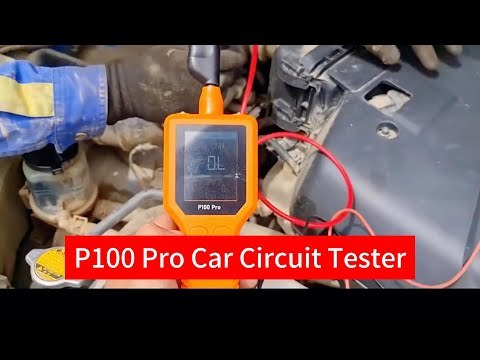

ALicar P100 Pro Car Electric Circuit Tester Automotive Battery Diagnostic Tool 12V 24V Car Truck
-
- Product Name: ALicar P100 Pro Car Electric Circuit Tester Automotive Battery Diagnostic Tool 12V 24V Car Truck
- Item NO.: 26685515
- Weight: 1.12 kg = 2.4692 lb = 39.5068 oz
- Category: ALicar Vehicle Tools > ALicar Circuit Tester
- Creation Time: 2024-06-25
- 1.Intelligent identification of voltage/resistance
- 2.Multimeter mode (measure voltage, resistance, diode, continuity)
- 3.Oscilloscope function
- 4.Frequency
- 5.Activation of vehicle components
- 6.0-5V adjustable power supply
- 7.Network online upgrade
- 8.Built in multiple languages
ALicar P100 Pro Power Scan Car Electric Circuit Tester 12V 24V Car Truck Electric Circuit Tester Probe Car Battery Tester Tool

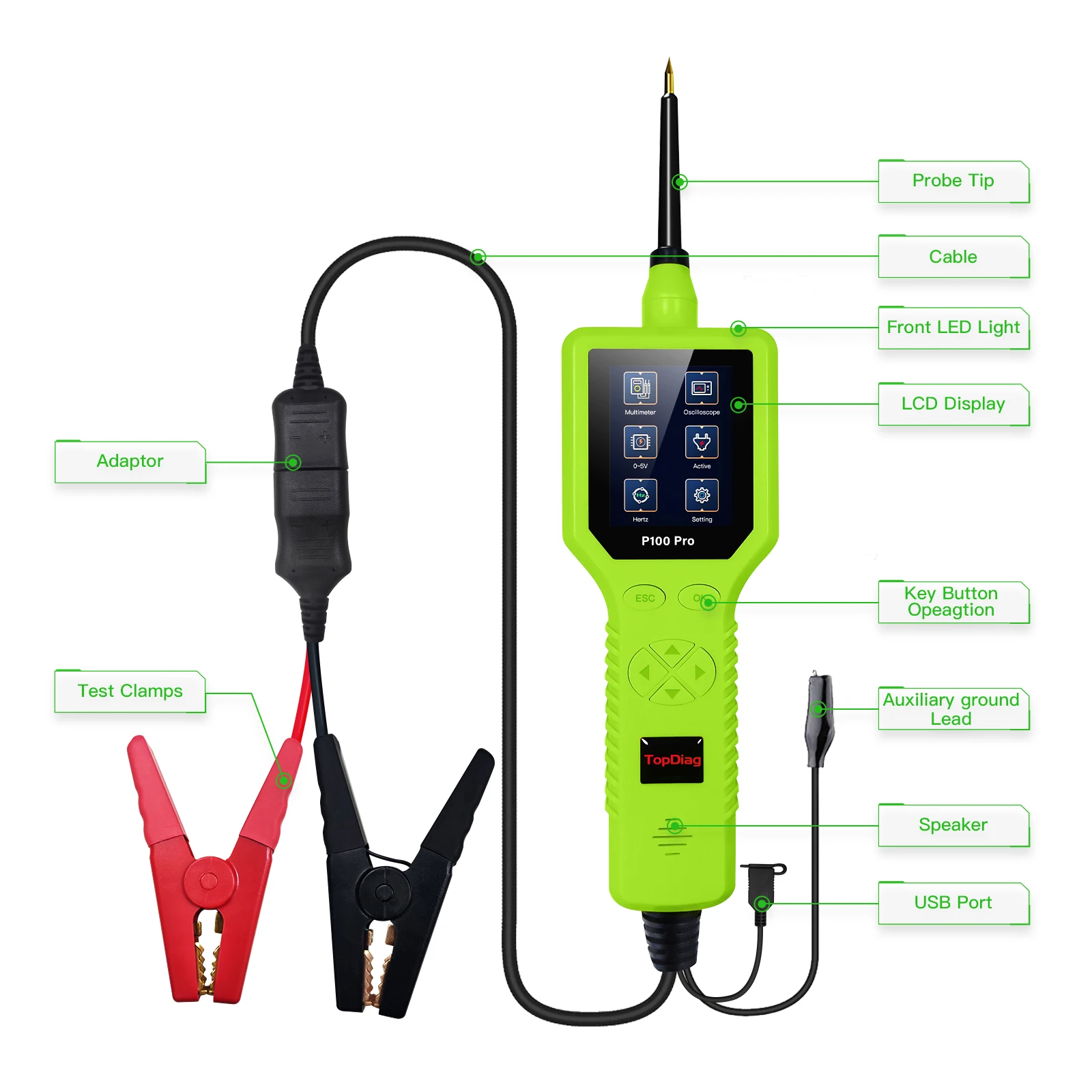

ALicar P100 Pro Features
ALicar P100 Pro, the latest generation intelligent electrical system car circuit tester featuring a spacious 2.4-inch LCD screen display. This advanced device is specifically engineered to effectively assess and diagnose a wide range of vehicle electrical systems operating within the 9V-30V range.
With the convenience of two front-end LED lights, the ALicar P100 Pro enables seamless testing for multiple services including power injection, precise measurement, thorough ground testing, quick polarity checks, comprehensive continuity testing, and efficient component activation.
A standout attribute of this tool is the innovative set point voltage alarm mechanism. If the voltage output of the circuit being probed deviates by 0.5 volts or more from the preset voltage level, an audible alarm is triggered. This alert system provides immediate notification of any anomalies in the output voltage, prompting swift action to investigate potential short circuits or other underlying faults.

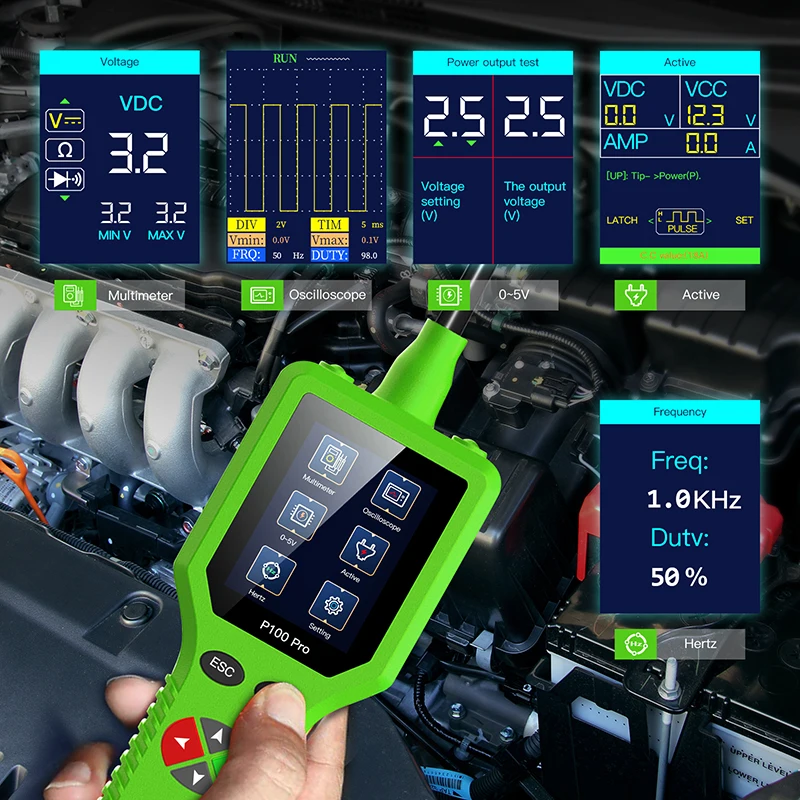

P100 Pro Car Circuit Tester Function
1.Intelligent identification of voltage/resistance
2.Multimeter mode (measure voltage, resistance, diode, continuity)
3.Oscilloscope function
4.Frequency
5.Activation of vehicle components

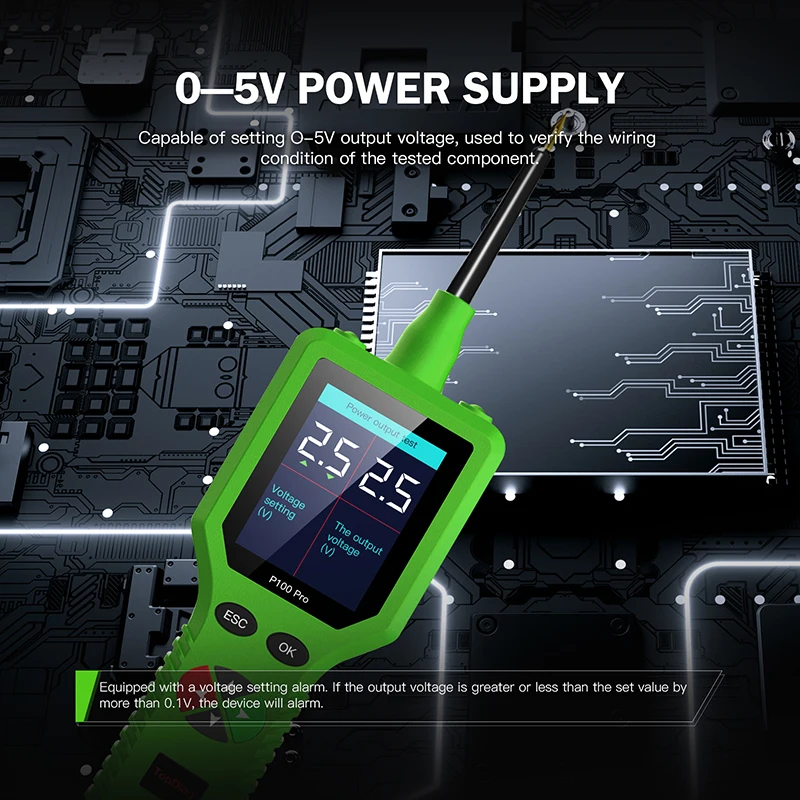

6.0-5V adjustable power supply
7.Network online upgrade
8.Built in multiple languages

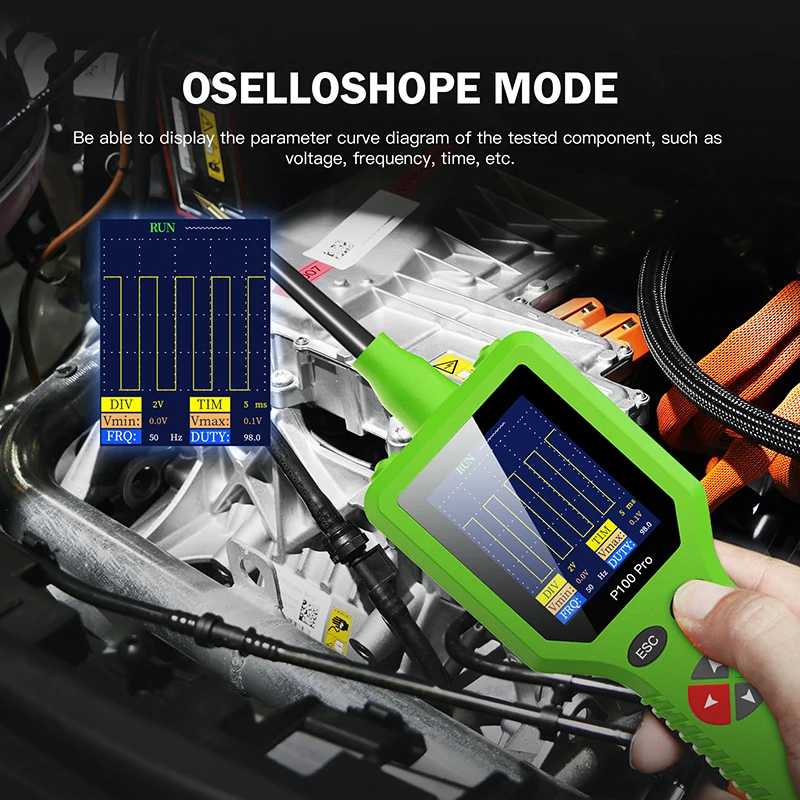

OSCILLOSCOPE MODE
Be able to display the parameter curve diagram of the tested component, such as
voltage, frequency, time, etc.

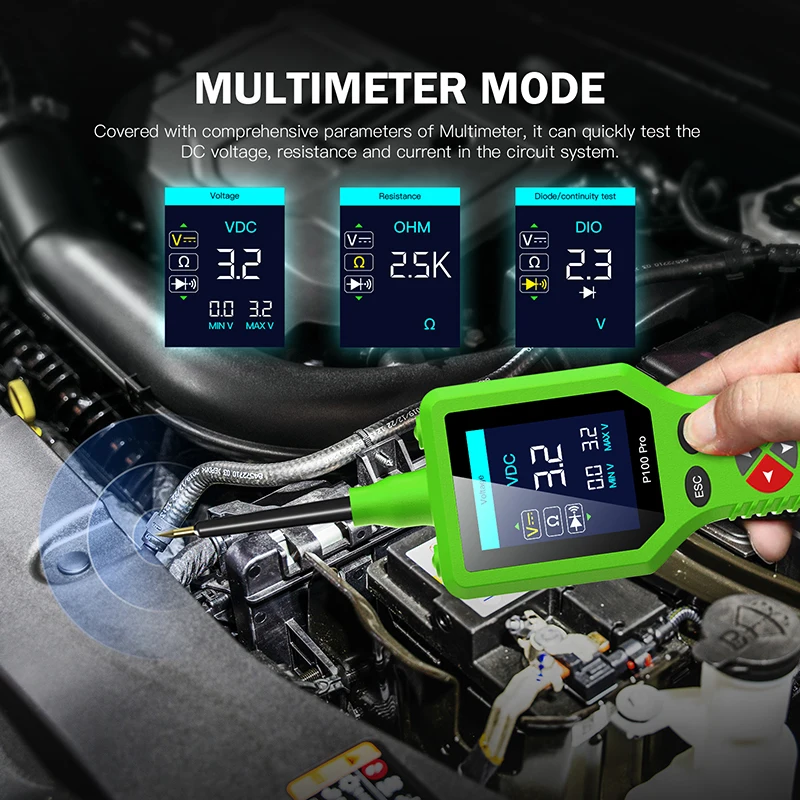

MULTIMETER MODE
Covered with comprehensive parameters of Multimeter, it can quickly test the
DC voltage, resistance and current in the circuit system.

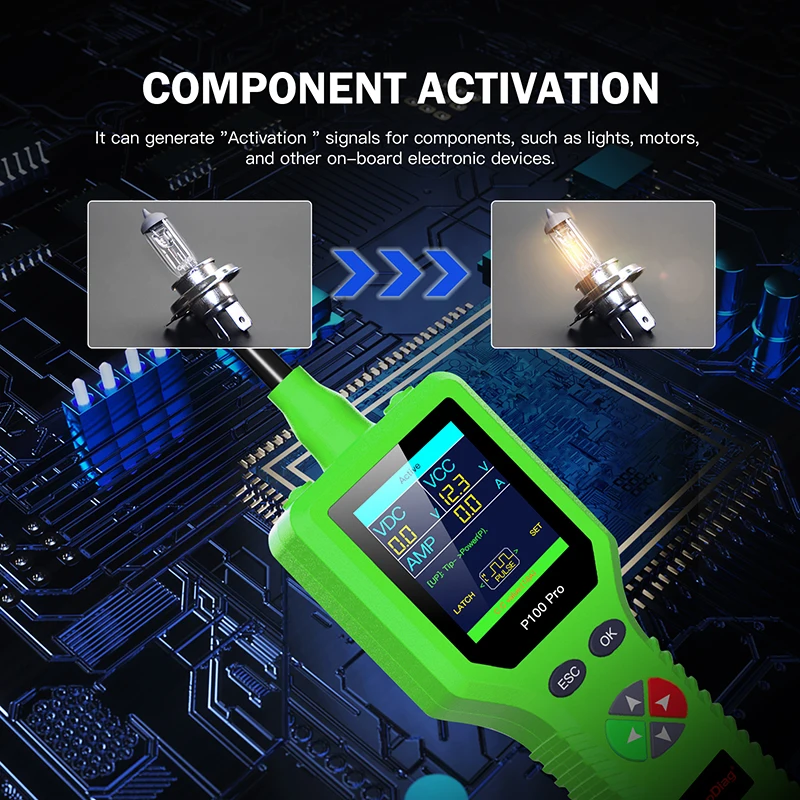

COMPONENT.ACTIVATION
It can generate "Activation " signals for components, such as lights, motors.
and other on-board electronic devices.

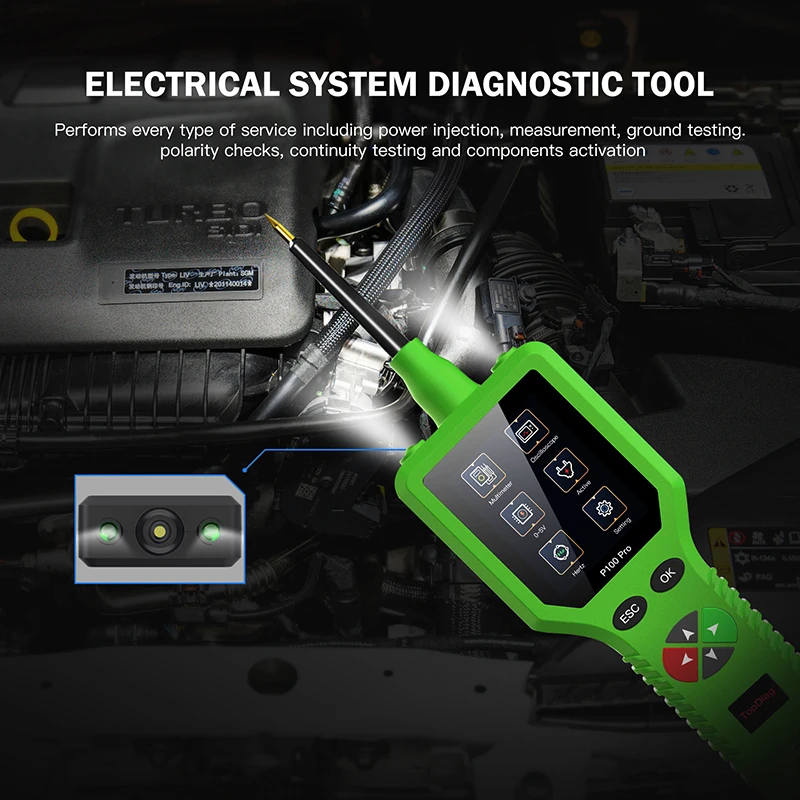

ELECTRICAL SYSTEM DIAGNOSTIC TOOL
Performs every type of service including power injection, measurement, ground testing.
polarity checks, continuity testing and components activation
ALicar P100 Pro Electric Tester Specifications
Color: black red orange yellow green blue
Display: 2.4 inches (320*240 DPI)
Working temperature: 0-60°C (32-140 F°)
Storage temperature: 40-70°C (-40-185 F°)
External power supply: 12V or 24V powered by battery
Minimum working voltage: 9V
Maximum working voltage: 30V
Maximum measuring voltage: 100V
Minimum measuring voltage: 0.1V
Resistance measurement range:1 ohm~200K ohm
Active Current measuring range: 0~18A
Maximum continuous current: 18A
Weight: 1070g
Size: 17.6 * 24.6 * 7.6 cm
P100 Pro Automotive Battery Diagnostic Tool Power Supply
Connection The Probe is powered by the vehicle battery . Connect the RED clip to the positive pole of the battery , and the BLACK clip to the negative pole of the battery . The probe will automatically start to the working interface , The front LED light will illuminate the test area , which is convenient for operation in the dark area.
ALicar P100 Pro Diagnostic Tool Support Languages
English,
Spanish,
German,
French,
Italian,
Portuguese,
Polish,
Russian,
Vietnam,
Thai,
Indonesian,
Filipino,
Malay,
Arabic,
Korean,
Japanese,
Traditional Chinese,
Simplified Chinese

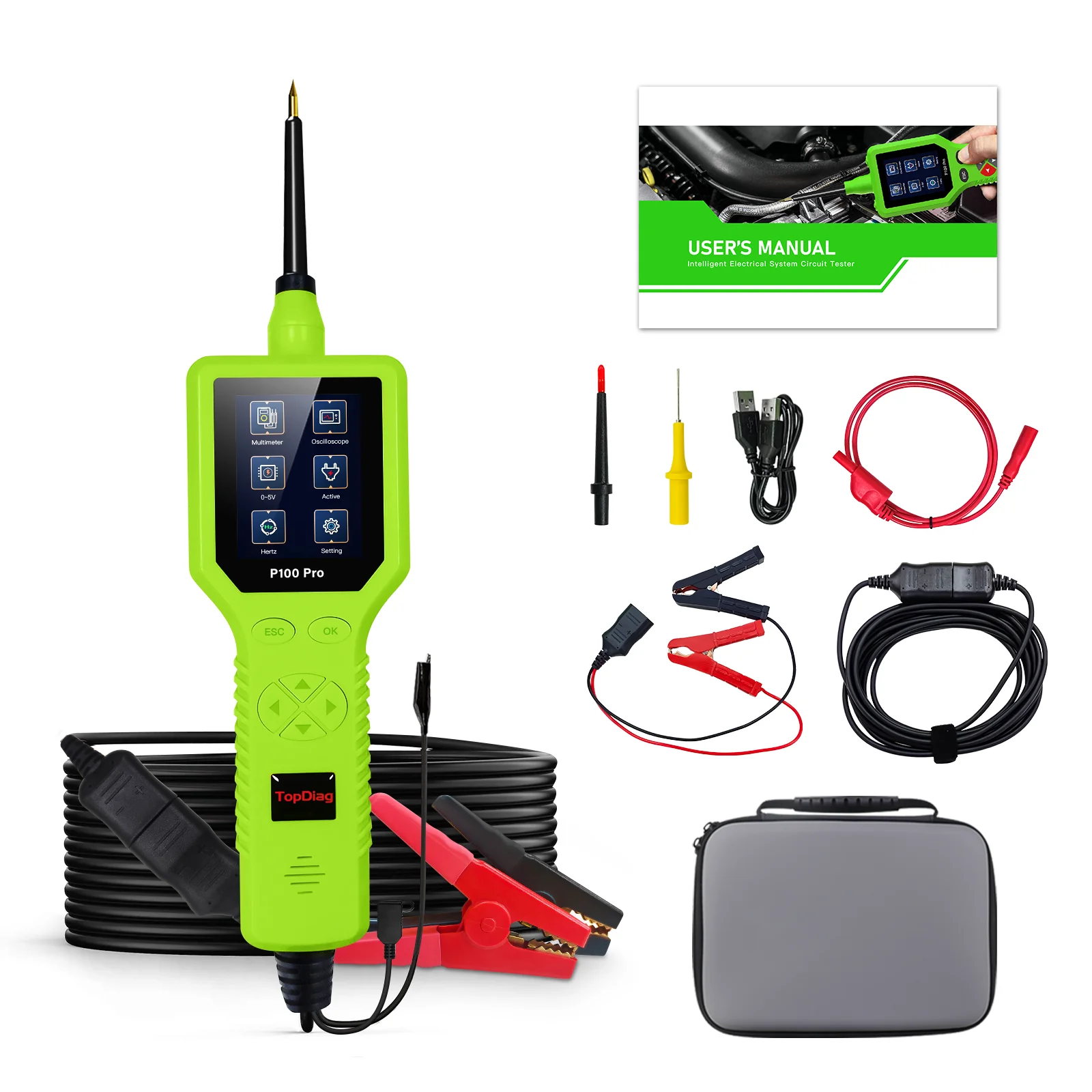

P100 Pro Package List
1 x ALicar P100 Pro Circuit Tester
1 x Alligator Clip Battery Cable
1 x Power Cable
1 x Relay Test Line
1 x Probe Adapter
1 x User Manual
1 x Packing Bag
