XPROG V5.84 ECU Programmer Chip Tuning Tool with USB Dongle Installation and Usage

XPROG M ECU programming tool Introduction

XPROG-M V5.84 is a version of the XPROG programmer, which is widely used for programming and reading various types of microcontrollers and EEPROMs. This programming tool is particularly popular in the automotive and electronics industries for tasks such as key programming, ECU tuning, and chip cloning.

Xprog new software free download click here: Xprog M V5.84

Top 6 Reasons to Get XPROG-M V5.84

1. Latest Software Version: The XPROG-M V5.84 features the most recent software updates, ensuring peak performance and compatibility with various chips.

2. No Activation Required: With the included USB dongle, there’s no need for activation, providing enhanced security and software protection.

3. New Authorizations: The software adds new authorizations for Renesas V850 and SuperH, allowing for broader support and functionality. (AUTH-0028-1 and AUTH-0028-2, added on 2017/10/9)

4. Multi-Language Support: The interface is available in English, making it user-friendly for a global audience.

5. Broad OS Compatibility: It works seamlessly on Windows XP, Windows 7, and Windows 8, providing flexibility across different systems.

6. Advanced Features: The latest version can decrypt newer versions for BMW/W CAS4, expanding its utility in automotive applications.

Installation Notice

To successfully install XPROG-M V5.84, ensure your Windows system meets the following requirements:

1. The system should be either Windows XP (32-bit) or Windows 7 (64-bit). All necessary patches for the operating system should already be installed, and it should function properly.
2. The system must have at least two partitions (excluding the CD-ROM) to function correctly.
3. The software cannot operate on a virtual hard disk.

XPROG-M V5.84 using tips:

How to Install Xprog M V5.84 Programmer Software

Note: Before opening Xprog V5.84, run the "5.84 registry" several times.

Xprog V5.84 Step-by-Step Installation:

1. Unzip the Software:

   • Extract the "New 5.84 software" zip file.

2. Install Adobe Reader:

   • Navigate to "New 5.84 software" > "5.84 AdbeRdr11000_mui_Std" and run the "Setup" to install Adobe Reader XI.

3. Read Documentation:

   • Open and read the "See before use.txt" file for important information.

4. Prepare the Registry:

   • Copy the "5.84 registry" file to your desktop.

5. Install Software:

   • Copy the "English 5.84 Software" folder and paste it into your C: drive.

6. Create Shortcuts:

   • Locate "XprogDesktop" and create a shortcut on your desktop.
   • Open "New XPProg" and create a shortcut for "Xprog-BOX drive" on your desktop.

7. Remove Unnecessary Files:

   • You can delete any remaining files that are not needed for the installation.

8. Driver Installation:

   • You may see a message stating "Device driver software was not successfully installed."
   • Right-click on "Computer" and select "Manage."
   • Go to "Device Manager," find "XProg," and choose "Update driver software."
   • Browse for the driver software on your computer and repeat this process until the Xprog 5.84 driver is recognized.

9. Merge Registry:

   • Right-click on "5.84 registry" and select "Merge," then confirm by clicking "Yes."
   • Repeat the merging process again.

10. Run the Software:

    • Right-click on the "Xprog Desktop - Shortcut" and select "Run as administrator."

11. Configure Settings:

    • Set the COM port to COM4 and select the Serial EEPROM options.

12. Test the Programmer:

    • Attempt to read the AT93C46 EEPROM from Atmel.

Done! Your Xprog M V5.84 Programmer Software should now be installed and ready to use.

Usage Tips for XPROG-M V5.84

1. The new dongle cannot be used to update older versions of XPROG to V5.84.
2. Disable all anti-virus software as it may interfere with the XPROG software.
3. Disconnect from the internet to prevent any potential damage to the hardware.
4. Ensure all previous versions of XPROG-M or XPROG BOX software are uninstalled before installing the new version; otherwise, you may damage the hardware and void the warranty.
5. Do not attempt online updates, as this may damage the hardware and result in a loss of warranty.

XPROG-M V5.84 Authorizations:

XPROG-M V5.84 Adapters:

ADP-0001 TMS370 PLCC28 programming adapter
ADP-0002 TMS370 PLCC44 programming adapter
ADP-0003 TMS370 PLCC68 programming adapter
ADP-0004 for Motorola HC05B/X PLCC52 programming adapter
ADP-0005 for Moto rola HC05B/X QFP64 programming adapter
ADP-0006 for S T M35080 in-circuit programming adapter
ADP-0008 TMS374 family in-circuit programming adapter
ADP-0009 MC68HC05V12 programming adapter
ADP-0010 TMS374 on-board programming adapter
ADP-0011 HC11EA9/E9 programming adapter
ADP-0017 HC(S)12 B DM / ARM Micronas in-circuit programming/bypass security adapter
Additional adaptor for 5M48H P-Flash
ADP-0019 Rev.A
EWS3 adaptor
EEPROM adaptor
QFP28 adaptor
QFP64 adaptor
QFP80 adaptor
QFP112 adaptor
QFP144 adaptor

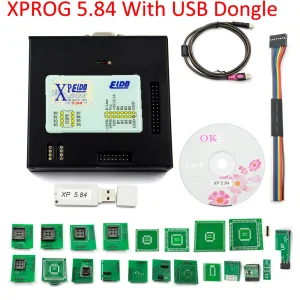

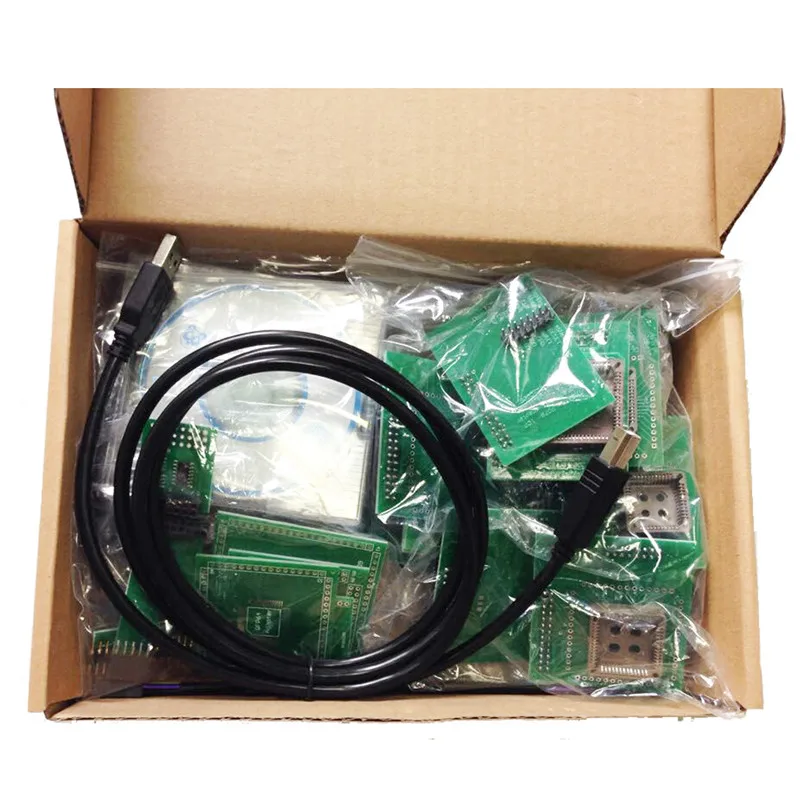

Xprog M Programmer Package List:

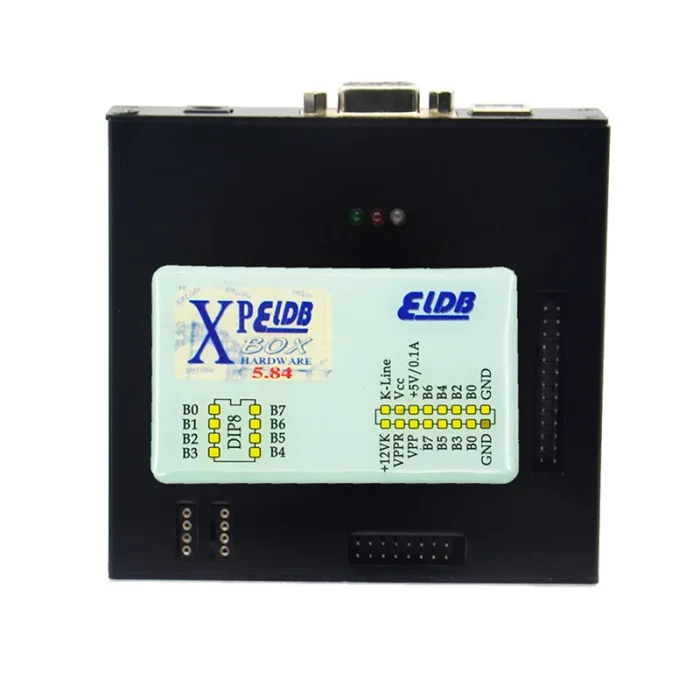

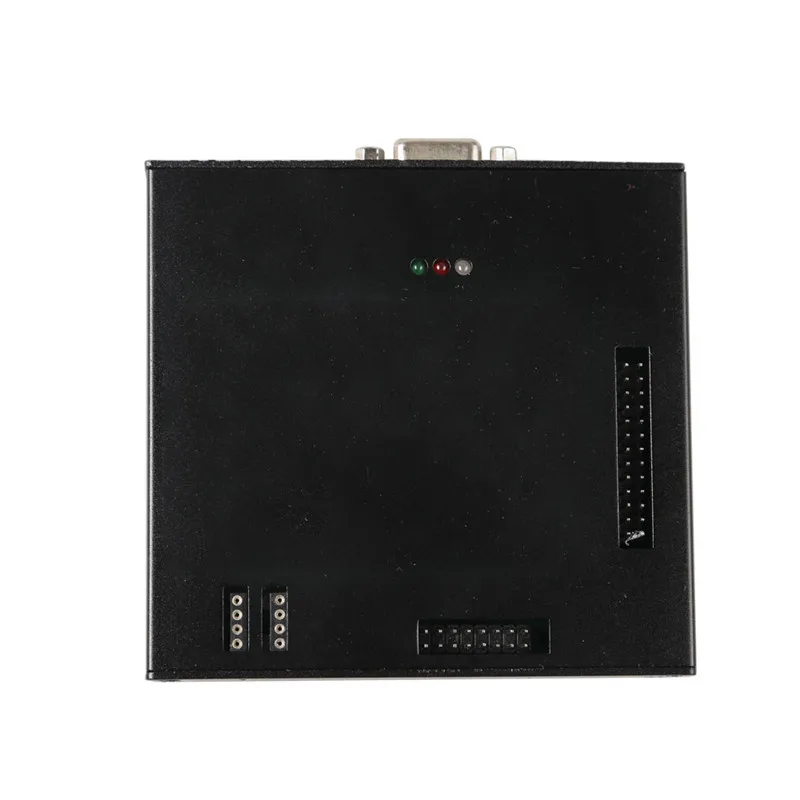

1  x  XPROG-Box Hardware (Aluminum Enclosure)
20x  Adapters Set
1  x  USB Cable.
1  x USB Dongle
1  x  CD Software V5.84

XPROG-M V5.84 and Xprog V6.12 FAQ

Q: Does XPROG V6.12 support reading 9S12DT256?
A: Yes, it does.

Q: Can the XPROG-M box support EEPROM functionality?
A: Yes, models such as XPROG-M V6.12, V5.84, and V5.74 all support EEPROM functionality.

Q: How is the XPROG V6.12 ECU programmer powered?
A: It powers automatically when connected to a computer via USB cable.

Q: Does the XPROG-M V5.84 require external 15V DC power? I connected it via USB but it won’t boot and there’s no indicator light.
A: No, it does not require external power. The indicator light only flashes during operation.

Q: Can the V6.12 XPROG-M connect to the internet?
A: Yes, but it will prompt you to update. Avoid connecting to the internet, as updating can damage the device.

Q: I have XPROG 5.55, and it couldn’t read the EEPROM without errors. I need to repair a BMW FRM3R with an MC9S12XEQ384 processor. Can I use V5.84 XPROG for this?
A: Yes, XPROG-M V5.84 supports that processor.

Q: I’m getting a message that the certificate has expired or is not validated for XPROG V6.12.
A: There’s no need to use XPROG software online. Connecting to the internet may prompt an update that can damage the hardware.

Q: What operating systems can I install the V5.84 XPROG software from the CD on? I want to keep my current setup.
A: Windows 7 (both 32-bit and 64-bit) has been tested and works 100%. You can also try other operating systems, but ensure the software opens and functions normally.

Q: When using XPROG V5.84, I detected a virus in the “.../English5.84Software/XProxDesktop.exe” file (Heuristic.HEUR/AGENT.1010493).
A: This may be due to the software being cracked. Disable or uninstall your antivirus program. If the software still doesn’t open, reinstall it.

Q: I received a “Device is silent. Timeout error” message when reinstalling XPROG V6.12 software.
A: This error may be caused by a loose cable or a chip issue. Try using a different chip to test.

Q: When running XPROG V5.84, I get an error message stating “Access violation at address 00478FC6 in module ‘XProgDesktop.dll’. Read of address 00000358.”
A: Check if you have antivirus software installed. If so, disable it, as it may interfere with the XPROG-M driver. If the issue persists, try unzipping the software again.

Q: I keep getting a prompt saying, “This program version requires updating the XPROG firmware. Do you want to update now?”
A: Ensure you are not connected to the internet. Do not attempt to update online, as this can damage the hardware and void your warranty.

Q: I cannot read the serial EEPROM with V5.84 XPROG. The EEPROM options are missing, and I receive a prompt to refer to the user manual.
A: The default software on the V5.84 CD does not support EEPROM capabilities. However, the updated V5.84 software has been modified to enable EEPROM reading.

V5.84 XPROG M programming tool Conclusion

XPROG V5.84 is a powerful ECU programming tool that meets the needs of automotive electronics and microcontroller professionals. With its latest software version, enhanced security features, and extensive authorizations, it's an invaluable asset for anyone in the field. By following the installation guidelines and usage tips provided, you will be well on your way to maximizing the capabilities of XPROG M V5.84. Get ready to enhance your programming experience!
