KTM JTAG PowerBox for Hitachi PCMflash ECU Tuning Programmer Via J2534 Works

Introduction to the KTM JTAG PowerBox

The KTM JTAG PowerBox is a cutting-edge tool designed specifically for ECU programming, offering unmatched versatility and compatibility in the automotive repair and tuning industry. With its advanced features, the PowerBox allows automotive technicians and enthusiasts to engage in efficient ECU diagnostics, reading, and writing operations that meet various programming needs.

Key Features of the KTM JTAG PowerBox

• Wide Protocol Compatibility: The PowerBox for KTM JTAG supports multiple programming environments, including BOOT-OEM12 (12 pin OBD-II) and L-LINE (15 pin OBD-II), making it suitable for a diverse array of vehicle models and years.

• Current Limiting Resistors: Built-in current limiting resistors enhance the reliability of the programming process by protecting crucial signal lines like RESET, BOOT, and CNF1.

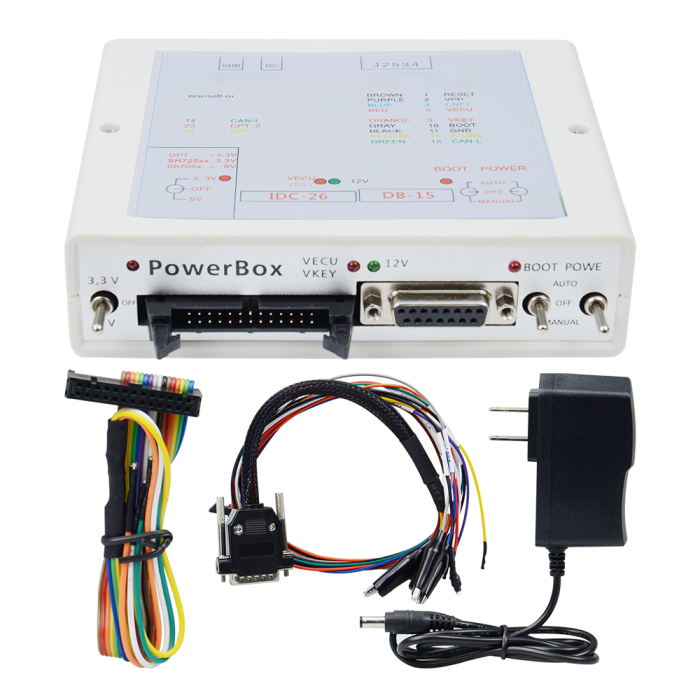

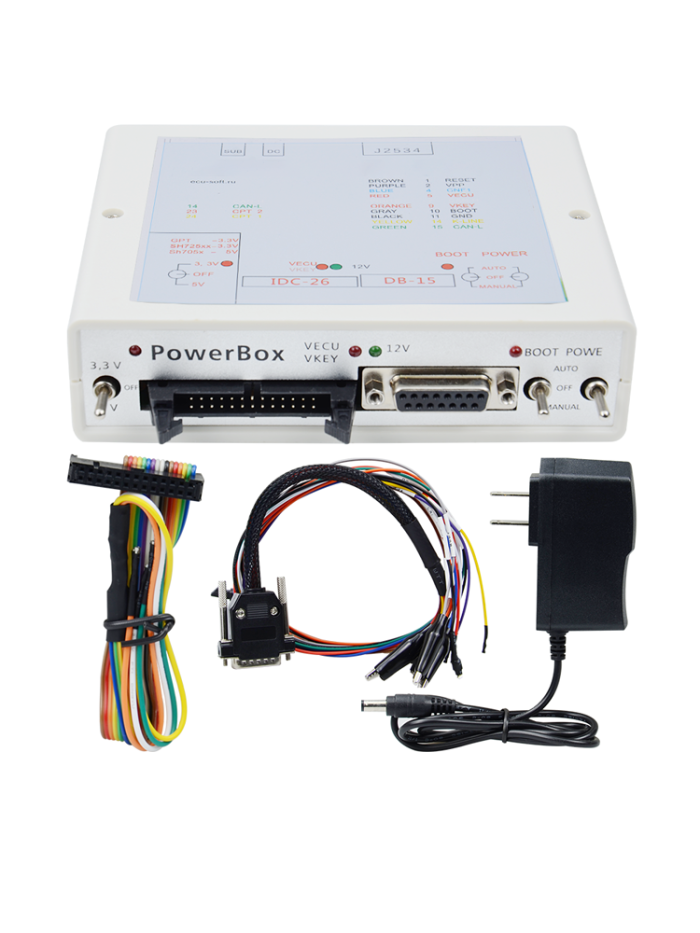

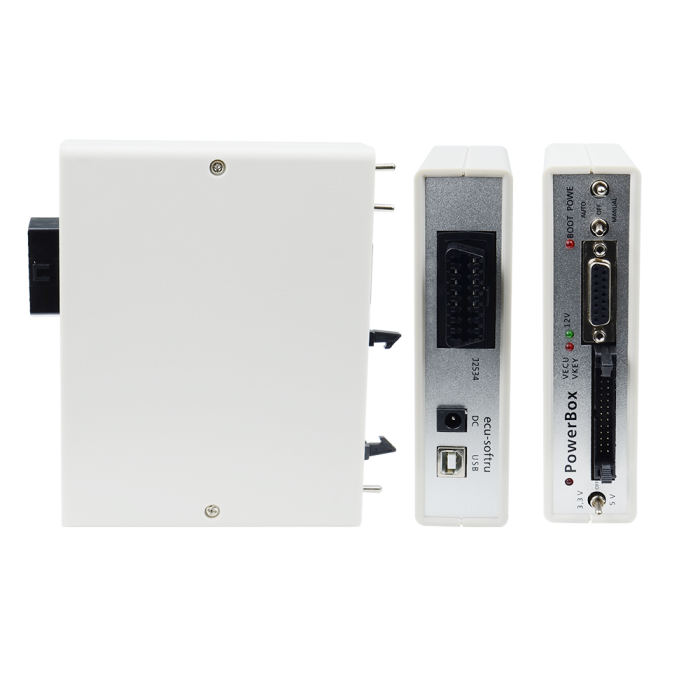

• Versatile Connectivity Options: Equipped with a range of multipurpose connectors including USB, DC, J2534 (OBD-II-F), DB-15, and IDC-26, the PowerBox offers flexible setups for various ECU connections.

Modes of Operation

POWER Modes

The KTM JTAG PowerBox features three operational power modes to ensure efficient and safe ECU management:

1. OFF: Completely disables power and signal connections from IDC-26 and DB-15 connectors.
2. MANUAL: Allows users to supply power to VECU and VKEY terminals based on specific requirements.
3. AUTO: Automatically regulates power through the programming sequence, utilizing the L-Line signal via the 15 pin OBD-II connector.

Boot Control Features

The PowerBox includes a comprehensive boot control system with three modes:

• OFF: No control signals emitted from the DB-15 connector.
• MANUAL: Controls RESET and BOOT signals while providing voltage to CNF1.
• AUTO: Automatically manages the interface signals through the loading program, supporting both 12 pin and 15 pin OBD-II.

GPT Control for Specialized Programming

The GPT (General Purpose Timer) functionality is tailored for Renesas and Tricore CPUs, allowing expert-level ECU programming with appropriate voltage settings (5V for SH705x CPUs and 3.3V for others).

Advantages of the KTM JTAG PowerBox

Unmatched Vehicle Coverage

One of the key advantages of the KTM JTAG Power Box for Hitachi is its ability to support an unlimited range of vehicle models and years. This allows technicians to perform read and write operations directly from the bench, without being constrained by vehicle specifics.

Flexible and Robust Design

The PowerBox for PCMflash switching device design offers outstanding flexibility with various connectivity options and operational modes, making it a perfect fit for a wide range of automotive applications, including ECU flashing and diagnostics.

Efficient Reading and Writing Capabilities

While some specific operations may require disassembly of ECUs, chips, and gearboxes, the PowerBox enables effective and reliable programming, making it a valuable tool for both professionals and serious hobbyists.

Conclusion

The KTM JTAG PowerBox stands as a leader in the realm of ECU programming tools. Its extensive compatibility with automotive protocols, innovative power management features, and adaptable connectivity options make it an indispensable ally for anyone engaged in automotive repairs and tuning.

Package Contents

Inside the package, you can expect:

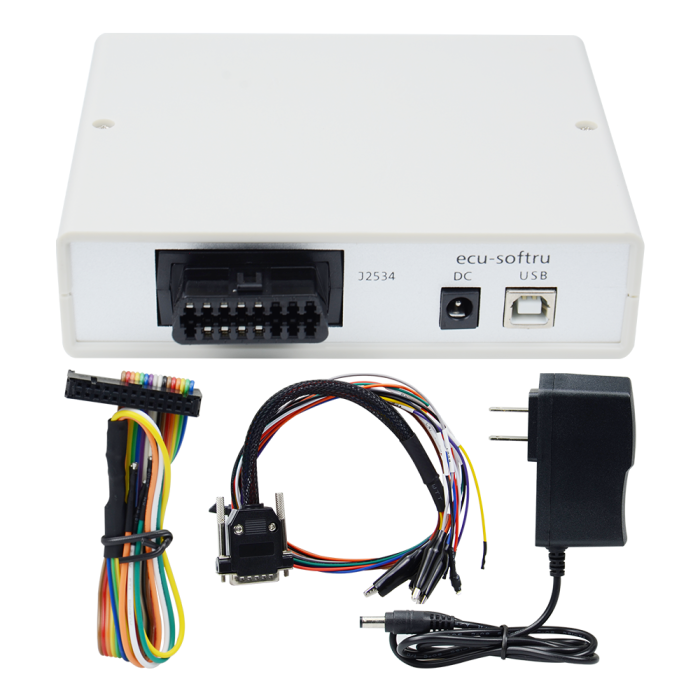

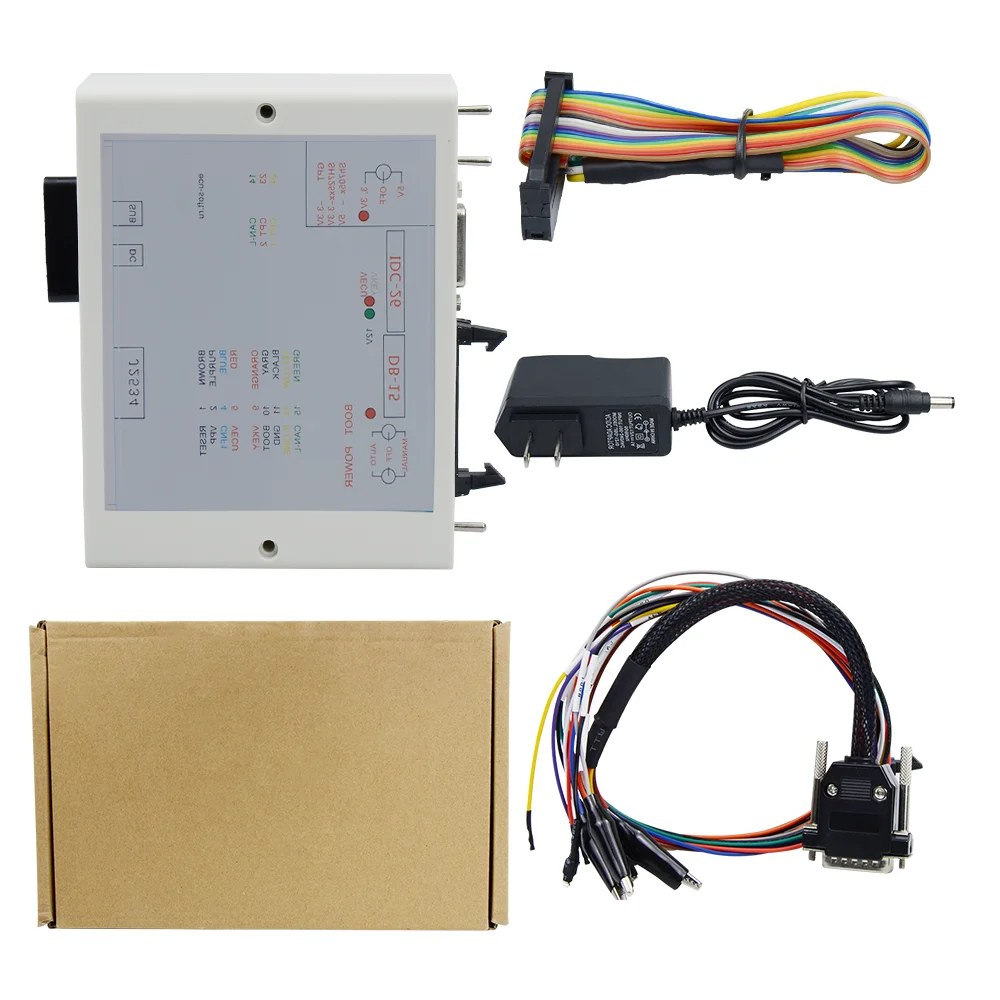

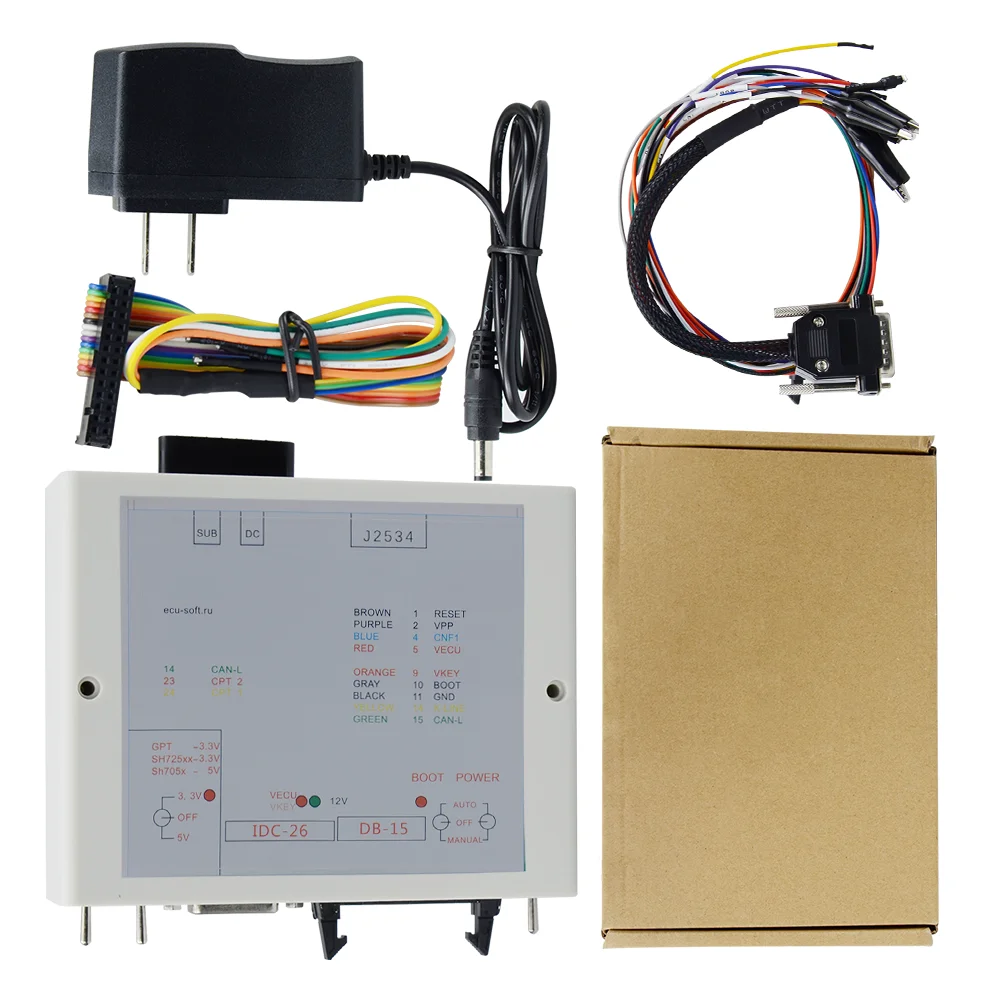

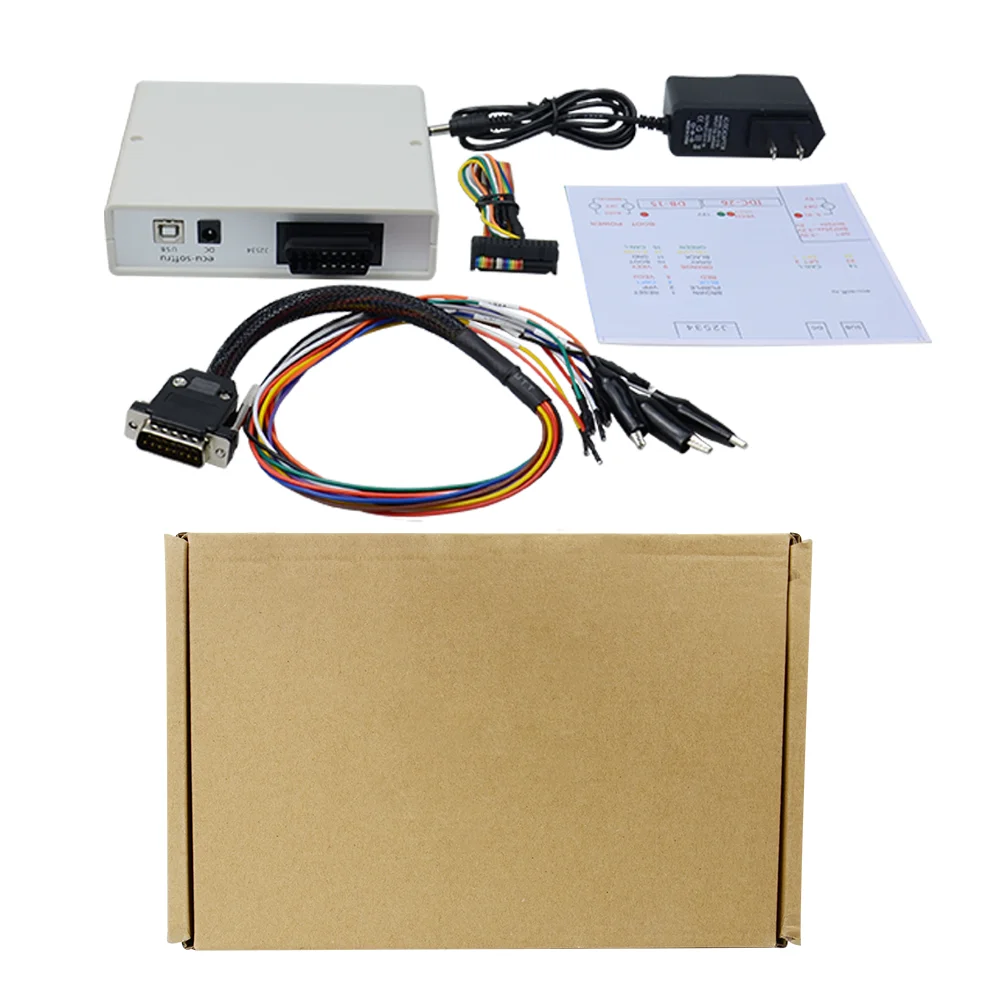

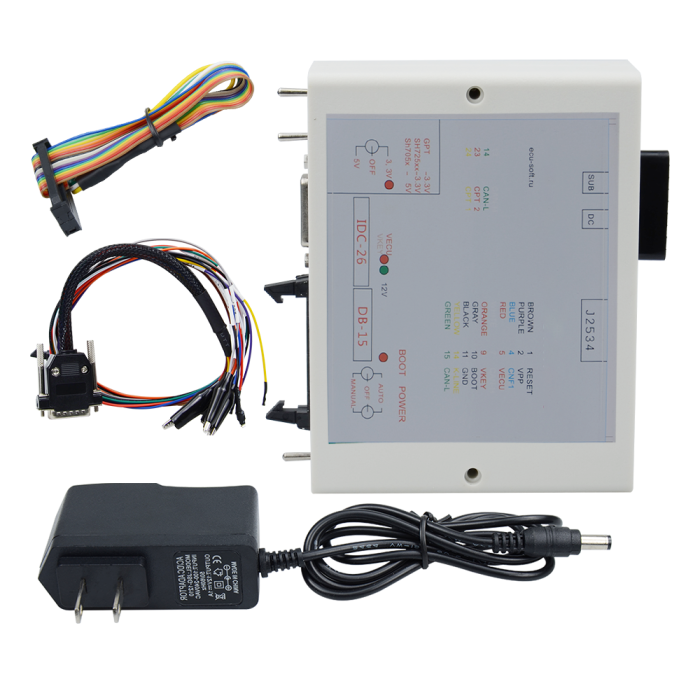

• 1 x KTM JTAG PowerBox for ECU Flashing
• 1 x Color Wire Diagram for easy setup
• 1 x GPT Color Cable for specialized connections
• 1 x Charger Plug for powering the device
