MPPS V21 MAIN+TRICORE+MULTIBOOT ECU Programmer INKL Checksum Auto Chip Tuning Tool

MPPS V21 is an ECU chip tuning tool used primarily for automotive applications. It is designed to facilitate the reading and writing of data from vehicle engine control units (ECUs).

MPPS V21 Supported Functions

The MPPS V21 allows for read and write operations of microcontrollers, flash memory, and EEPROMs without the use of a BDM programmer. Below are the supported vehicles and specific details:

MPPS V21 Support Fiat Models

• Fiat 6F3: Full read/write of micro, flash, and EEPROM over K-line and CAN.
• Fiat 6JF: Full read/write of micro and EEPROM over K-line.
• Fiat 8DF: Full read/write of micro and EEPROM over K-line.
• Fiat 8F2: Full read/write of micro and EEPROM over K-line and CAN.
• Fiat 8F3: Full read/write of micro and EEPROM over K-line and CAN.
• Fiat 8GM: Full read/write of micro and EEPROM over CAN.
• Fiat 8GS: Full read/write of micro and EEPROM over CAN.
• Fiat 5SF3:
  • Full read/write of flash and EEPROM over CAN.
  • Full read/write of EEPROM over K-line.
• Fiat 5SF8: Full read/write of flash and EEPROM over K-line and CAN.
• Fiat 5SF9: Full read/write of flash and EEPROM over CAN.
• Fiat ME7.9.10: Full read/write of micro over CAN.
• Fiat ME7.6.3: Full read/write of micro over CAN.

MPPS V21 Support Oper Medels

• Opel 6O2: Full read/write of micro, flash, and EEPROM over K-line and CAN.
• Opel 6O3: Full read/write of micro, flash, and EEPROM over K-line and CAN.
• Opel 6JO: Full read/write of micro and EEPROM over K-line.
• Opel EDC16C9/39, PSG16: Read and write via CAN OBD.
• Opel Corsa: Successfully read/write Marelli 1.3CDTI (run as administrator on Windows 7).
• Opel Astra H: Read/write 1.7CDTI (98002895 Z17DTR DENSO) via OBD (CAN).
• MJD 6JF: Read/write micro and EEPROM via K-line (MPC555 + 95320).
• Opel Signum PSG16 2.2CDTI: Read as a Zafira via OBD.
• Opel Astra 2.0 16V CDTI: Read/write Bosch PSG16 with auto checksum.

MPPS V21 Support PSA Models

• PSA MEV17.4 TC1766: Successful read/write via boot mode using pinouts from FGTech Galletto documentation.
• EDC16:
• Peugeot Partner 1.6 HDI – read/write OK (ensure running as administrator on Windows 7).
• Peugeot 207 EDC16C34 – read/write OK via CAN.
• Ducato EDC16C39 – read/write OK.

Mpps v21 car list download on Mega:
Mpps v21 car list

Other Supported Vehicles

• Land Rover: Read/write TD5, tricore read/write EDC17C10, and unlock Siemens PCR2.1 ECU successfully.
• Ford: SID206 read/write OK.
• BMW: Tested EDC16C31 – read/write OK on Windows 8 (64-bit).
• EDC15P: Boot mode recovery – read/write via K-line, 100% success.
• MED17.x.x: Works perfectly; all modules are open including tricore.
• Bosch ME7.9.10: Successfully read from Fiat Punto T-JET 1.4 turbo via OBD with multiboot function.
• PSG16: Read/write flash works fine; direct writing to the pump is supported via OBD.

MPPS V21 Advanced Diagnostic Features

The MPPS V21 is a powerful tool that enhances functionality and usability for ECU diagnostics and programming. Key features include:

• Automatic ECU Detection: The device automatically identifies the ECU and processor type, eliminating the need for manual selection and simplifying the user experience.

• Memory Read/Write Support: It supports reading and writing of various memory types, including EEPROM, IROM, and XROM (where applicable), ensuring comprehensive coverage for Vehicle ECUs.

• Boot Mode Support: Essential for working with controllers featuring Tricore processors, making it versatile for different ECU architectures.

• Checksum Correction: This feature ensures data integrity during read and write operations, particularly for MEDC17 models, which is crucial for reliable ECU programming.

• OBD Flashing Patch Function: Allows for flashing of TPROT ECUs, currently focused on VAG vehicles, facilitating advanced tuning capabilities.

• TPROT/DS Check: A unique feature that tests whether TPROT is active without needing to open the ECU, aiding in diagnostics.

• Recovery Functions: The MPPS V21 can recover ECUs that may be unresponsive to other programming tools, making it a valuable asset for technicians.

• Compatibility: Supports Bosch ECUs up to TP12 and Siemens ECUs (for those without password protection), along with unlocking capabilities for VAG Simos PCR and Simos 8.

New Features in MPPS V21 Tricore

• Volvo Support:

• • ME7 CAN R/W/Cks (Bench only)
  • EDC15C11 CAN R/W/Cks (Bench only)

• Bentley Support:

• • ME7.1.1 CAN R/W/Cks

• VAG Support:

• • All TDI Bosch EDC17 X UDS, including EDC17C46 and EDC17C64 (must be unlocked first using an MPPS container file).

• Tricore Boot:

• • Multi ECU flashing capabilities with MPPS container file.
  • New file checksum utility supporting:
    • (M)EDC Flash checksum
    • (M)EDC EEPROM checksum
    • Simos PCR
    • Simos 8
    • Simos SID305

• VAS FRF File Utilities:

• Create MPPS container files for firmware updates, OBD unlocks, full read unlocks, and BIN files from FRF files.

Compatibility:

• Tested 100% working on Windows 7 (32-bit and 64-bit, American English).

How to install MPPS V21 Software on Windows 7 64bit:

1. Download and Extract:

   • Extract EU MPPS V21.rar to disk C.

2. Driver Installation:

   • Open Device Manager.
   • Navigate to Other Devices > AMT Flash.
   • Right-click and select Update Driver Software.
   • Browse to C:/MPPS/Device Driver and follow the prompts to install.

3. Running MPPS:

   • Navigate to C:/MPPS and open the MPPS application.
   • Create a shortcut on the Desktop for easy access.
   • Launch the application and read the ECU ID (e.g., Renault Megane 15 (106hp) DCi Siemens SID304 CAN).

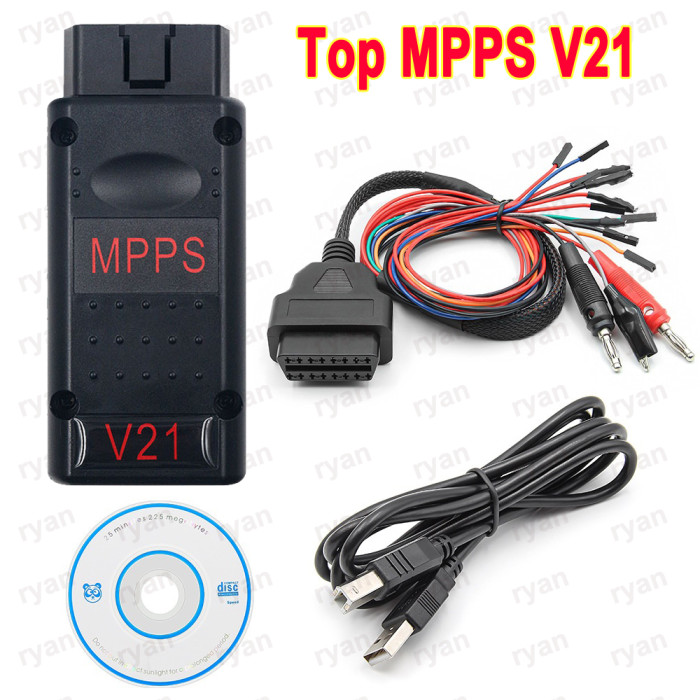

MPPS V21 Package Contents

The MPPS V21 package includes:

• 1pc x MPPS: The main diagnostic tool for reading and writing ECU data.

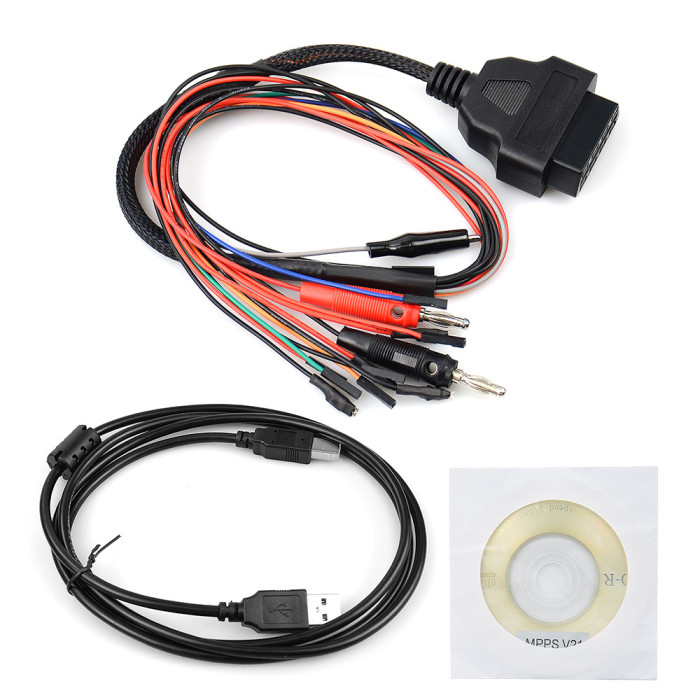

• 1pc x Breakout Tricore Cable: Necessary for interfacing with Tricore ECUs.
• 1pc x CD Software: Contains all the required software to operate the MPPS V21.

Conclusion

The MPPS V21 Breakout Tricore Cable is a powerful diagnostic and programming tool ideal for automotive professionals. With its extensive read/write capabilities for key Fiat and Opel models, along with advanced features like automatic detection and checksum correction, it is designed to make ECU programming efficient and reliable.
