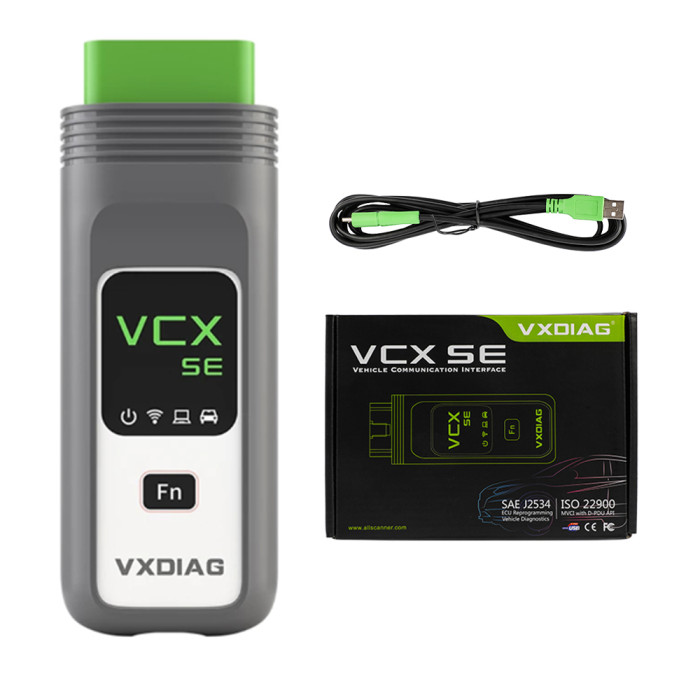

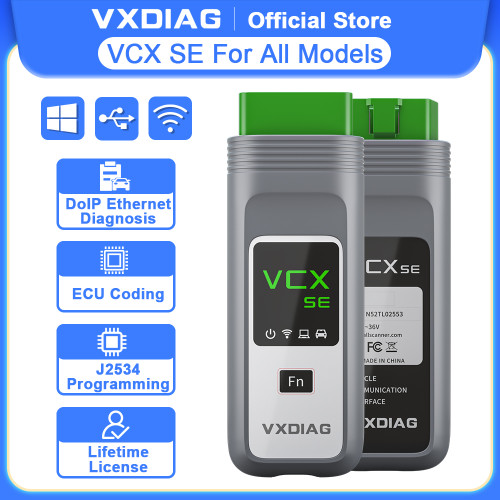

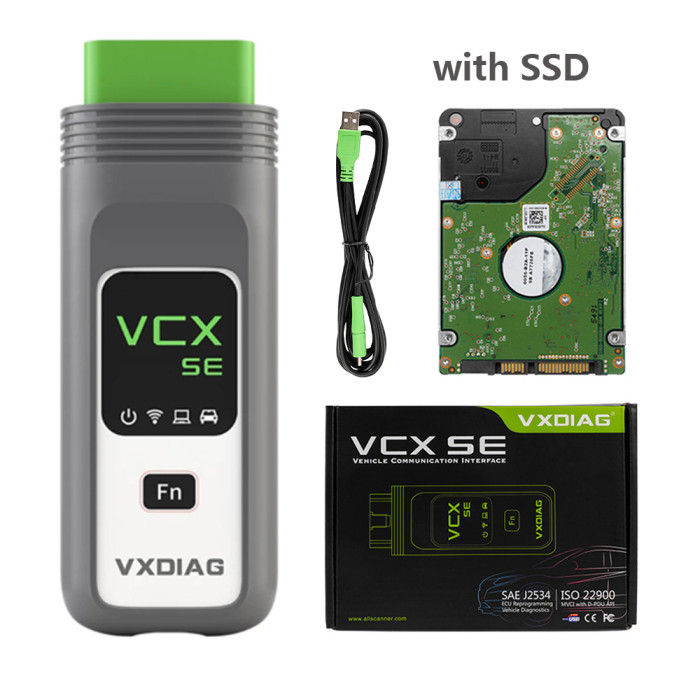

VXDIAG VCX SE DoIP 13 in 1 Car Diagnostic Tool for All Models ECU Coding J2534 Programming

Key Functions of VXDIAG VCX SE 13 in 1 Diagnostic Tool

The VXDIAG VCX SE is packed with essential functionalities that make it indispensable for technicians:

1. ECU Programming and Installation: Program and install new Electronic Control Units (ECUs) such as PCM, ABS, instrument clusters, airbag systems, fuel pumps, and more.
2. Live Data Stream: Record and playback live data streams for major ECUs, providing insights into vehicle performance and diagnosing issues.
3. Diagnostic Trouble Codes (DTCs): Effortlessly read and clear DTCs to ensure accurate assessments of vehicle health.
4. Speed Governor Adjustment: Set, adjust, or remove speed governors as needed.
5. Automatic Vehicle Recognition: Quickly identify vehicle models and specifications to facilitate efficient diagnostics.
6. Software Re-flash: Update and re-flash existing software for ECUs, ensuring they remain up-to-date with the latest functionalities.
7. Dealer Functions: Perform all essential dealer functions that many other diagnostic tools may not offer.
8. Steering Angle Reset: Reset the steering angle sensor for accurate vehicle handling.
9. Guided Fault Finding: Use guided fault-finding features to identify potential issues more quickly.
10. DPF Regeneration: Carry out Diesel Particulate Filter (DPF) regeneration to maintain optimal engine performance.
11. Brake Bleeding: Safely bleed brakes to ensure proper hydraulic function.
12. Injector Coding: Code new injectors into the ECU for precise fuel delivery.

Vxdiag VCX SE Has ECU Coding Capabilities

One of the standout features of the VXDIAG 13 in 1 tool is its ECU coding functionality. Every automobile actuator has a unique code stored within the ECU, which serves as the basis for vehicle operation. The VCX SE allows users to modify preprogrammed options in the software, enabling faster customization of vehicles as needed.

After replacing faulty actuators or certain parts, it's essential to use the ECU coding function to create new codes and recognize the new components. This tool not only helps unlock hidden features and deactivate annoying functions but also enables optimal coding for personalized vehicle settings. Features include:

• Flashing Hidden Functions
• Teach-in Programs
• Component Adaptation
• Adjusting LED Brightness
• Changing the Color of Interior Lights
• Start & Stop Button Coding
• Remote Window Control Unlocking
• Activating Auto Side Mirror Folding Function
• Switching On/Off Auto Hold
• Air Conditioning Setting Memory
• ABS Module Coding
• Custom ADS Settings

These capabilities provide solutions for drivability issues, power loss, fuel efficiency improvements, and overall vehicle performance enhancement.

Note: Not all ECU coding options are available for all models or model years.

Vxdiag VCX SE Also Has ECU Programming Functionality

The VXDIAG 13 in 1 VCX SE offers robust solutions for ECU programming across all models. This feature allows users to replace existing software or firmware in the electronic control unit, program new ECUs, and address software-controlled driving performance and emission issues effectively.

Please note that users will need an online account to access coding and programming functions, as this service is not provided with the tool.

Multi-Service Capabilities

The VXDIAG VCX SE provides comprehensive solutions for various scheduled maintenance services, catering to workshops, auto technicians, advanced DIY enthusiasts, garages, car dealers, used car dealers, auto repair shops, and automotive engineers. The following maintenance services are included:

• Maintenance Light Reset
• Throttle Learning
• Steering Angle Learning
• Brake Pad Reset
• Tire Pressure Reset
• ABS Exhaust
• Battery Matching
• Gear Information Learning
• Injector Coding
• DPF Regeneration
• Headlight Matching
• Gearbox Learning
• Suspension Matching
• Sunroof Initialization
• A/F Adjustment
• Electronic Pump Start
• Release Transportation Mode
• Tire Modification
• Door and Window Calibration
• Urea Reset
• NOx Reset
• Start-Stop Setting
• Language Setting
• Seat Calibration
• Shielding Failure

Additionally, it supports remote diagnostics through a free Donet license, allowing users to connect the device to their car and perform diagnostics from home or have an engineer assist from a different location.

Connectivity and Compatibility

• Support for J2534 Protocol: The VXDIAG VCX SE is standard OBD2 automotive diagnostic tool that supports both SAE J2534 and ISO 22900 PDU protocols.

• WiFi/USB Connection: This device operates through a laptop and can connect via USB or WiFi, enabling the transmission of vehicle data using diagnostic software.

• Free Updates: The device includes a license for all models without additional fees. Users can update their license and firmware through the VX-Manager app when needed.

• DOIP Support: The VXDIAG VCX SE includes enhanced DOIP functionalities, resulting in faster diagnosis response times and shorter data transfer durations.

VXDIAG VCX 13IN1 Diagnostic Tool Full OBD2 Functions

The VXDIAG VCX SE also delivers full OBD2 functionality, which includes:

• Reading Codes
• Erasing Codes & Resets
• I/M Readiness Status
• Live Data Stream Monitoring
• Viewing Freeze Frame Data
• O2 Sensor Testing
• On-Board Monitor Testing
• Reading Vehicle Information

Active Testing Capabilities

The VXDIAG VCX SE is specifically designed as a bi-directional scan tool, allowing users to conduct active tests (also known as component tests). This includes controlling various subsystems or components such as:

• Turning the fuel pump on/off
• Cycling the A/C clutch on/off
• Performing EVAP tests
• Monitoring windows, doors, sunroofs, and wipers

These features help determine the integrity of components, monitor operations, and quickly locate faults.

Supported Models and Years

The VXDIAG VCX SE supports a wide range of vehicle models, making it a versatile option for professionals. Here’s a breakdown of the compatible vehicles:

• Toyota: 2000 - 2021
• VW: 2001 - 2023
• Ford: 2005 - 2020 (Note: Some F-Series models prior to 2010 may have compatibility issues)
• Mazda: 2005 - 2021
• JLR SDD: 2007 - 2016
• JLR Pathfinder: 2016 - 2022
• GM: 2000 - 2020
• Honda: 2005 - 2020
• Mercedes Benz: 2005 - 2023
• BMW: 2004 - 2023
• Porsche:
  • Porsche 2: 2005 - 2016
  • Porsche 3: 2005 - 2021
• Subaru: 2005 - 2020

All Systems Diagnostics

With complete capabilities to read, clear codes, and graph live data, the VXDIAG VCX SE accesses and performs OE-level diagnostics on all vehicle modules. It covers major electronic systems such as:

• Engine Control Module (ECM)
• Transmission Control Module (TCM)
• Airbags
• Immobilizer
• Key Coding
• ABS
• Cruise Control
• Tire Pressure Monitoring System (TPMS)
• And much more

The VXDIAG VCX SE stands as a powerful solution for any automotive technician looking to enhance their diagnostic capabilities and streamline their workflow. With its extensive features and broad compatibility, this 13 in 1 tool is an essential addition to any workshop.
