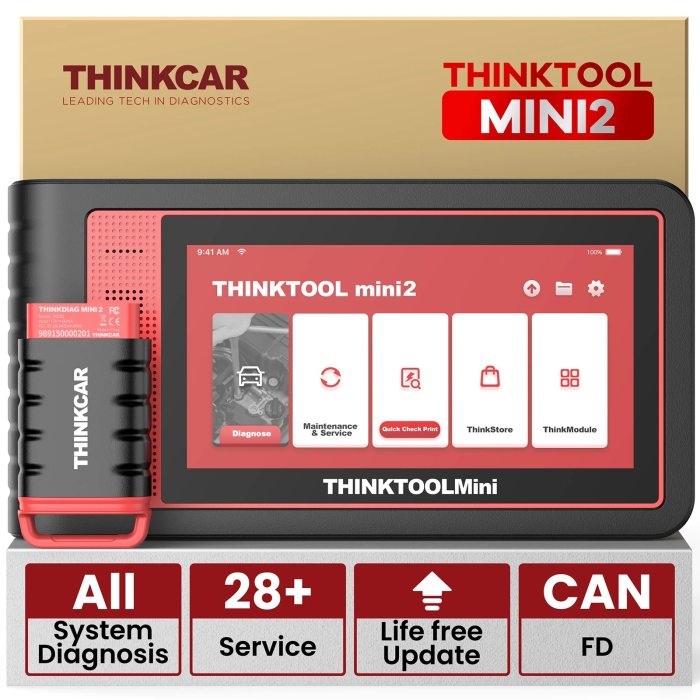

THINKCAR THINKTOOL MINI 2 Car Diagnostic Tool CANFD Full System 28 Reset Action Test

In the realm of automotive diagnostics, the THINKTOOL series has gained popularity for its efficiency and advanced features. This article outlines the key differences between the THINKTOOL Mini and the THINKTOOL Mini 2, highlighting the incredible enhancements introduced in the newer model.

Key Features of Thinkcar THINKTOOL Mini OBD2 Scanner

1. Support for CANFD Protocol

One of the most significant advancements in the THINKTOOL Mini 2 is its support for the CANFD protocol. This protocol enhances the communication efficiency of system information by accommodating more data, increasing the frame size from 8 to 64 bytes. This results in faster data transmission, reducing the risk of undetected errors and greatly enhancing the user experience.

2. Enhanced Vehicle Compatibility

The THINKTOOL Mini 2 offers support for a broader range of vehicles, particularly those from Chrysler and GM. Here are some of the specific models it supports:

For Chrysler:

• 2021-2024 Grand Cherokee (WL)
• 2022-2024 Grand Wagoneer

For GM:

• 2020-2021 Onix
• 2021 Tracker
• 2021 Escalade
• 2021 Escalade ESV
• 2021 Suburban
• 2021 Tahoe
• 2021 Yukon
• 2021 Yukon XL

The thinkcar thinktool mini diagnostic device is compatible with most vehicles that support the OBDII protocol after 1996, including:

American Brands: Buick, Chrysler, Cadillac, Chevrolet, Dodge, AU Ford, Brazil Fiat, Brazil GM, Ford, GM, Jeep, Lincoln, SGM.

European Brands: Aston Martin, Audi, Alfa Romeo, Abarth, BMW, Bentley, Bugatti, Citroen, DR, Dacia, EU Ford, Ferrari, Fiat, GAZ, Iveco, IZH, Jaguar, Land Rover, Lamborghini, Lancia, Mercedes, Maserati, Maybach, Mini, Opel, Opel (South Africa), PAZ, Peugeot, Porsche, Renault, Rover, Rolls-Royce, SAAB, Seat, Skoda, Smart, Sprinter, UAZ, VAZ, Volvo, Volkswagen, Vauxhall, ZAZ.

Asian Brands: Acura, Daewoo, Daihatsu, AU Holden, Honda, Hyundai, Ikco, Isuzu, Infiniti, Kia, Luxgen, Lexus, Mahindra (India), Maruti (India), Tata (India), Mahindra, Maruti, Mazda, Mitsubishi, MVM, Nissan, Nissangtr, Perodua (Malaysia), Proton (Malaysia), Perodua, Proton, Renault Samsung, Saipa, Ssangyong, Subaru, Suzuki, Toyota, Tlisuzu, United Pakistan.

Note: Japanese cars compatible with the JOBD protocol are not supported.

Why Choose Thinkcar THINKTOOL Mini Diagnostic Scanner?

1. Lifetime Free Full System Diagnostics

The THINKTOOL Mini 2 provides lifetime free full system diagnostics, enabling users to troubleshoot various systems without incurring additional costs.

2. Extensive Reset Functions

The device supports 28 types of reset functions, all available for free throughout the product's lifetime. Here’s a brief overview of some key reset services:

• Oil Reset: Resets the oil maintenance light after service.
• Brake Reset: Resets the brake system after replacement of pads or sensors.
• BMS Battery Reset: Clears fault codes and re-matches after battery replacement.
• DPF Regeneration: Clears accumulated soot in the Diesel Particulate Filter.
• SAS Steering Angle Reset: Initializes the steering angle after maintenance.
• TPMS Tire Pressure Reset: Resets tire pressure warnings after service.
• IMMO Key Matching: Matches new keys or control modules.
• ABS Bleeding: Bleeds the ABS system after component replacement.
• Injector Coding: Ensures proper function after replacing injectors.
• Airbag Reset: Clears airbag fault indicators in supported models.

This extensive list allows technicians to perform vital adjustments and resets, ensuring vehicles operate correctly after service.

3. Thinktool mini 2 Support ECU Coding

The ECU Coding function allows users to re-flash vehicle control modules. It is essential for reprogramming adaptive data after repairs or replacements of vehicle parts. This feature provides solutions for issues related to drivability, fuel efficiency, power loss, fault codes, and mechanical part durability. Additionally, it enables users to bypass limitations and unlock hidden features of the vehicle, such as changing chimes, adjusting one-touch signal flickers, and remembering settings for start/stop systems.

4. Support for Active Test (Bi-Directional Control)

The THINKTOOL Mini 2 supports active testing, allowing users to control various actuators without using the vehicle's controls. This feature significantly boosts diagnostic effectiveness and can be used for tasks such as:

• Turning on the radiator fan
• Modulating the throttle
• Opening/closing windows
• Operating mirrors
• Turning on/off lights
• Activating/deactivating the sound horn
• Testing door locks

5. Subscription for Special Functions

The device offers a subscription service for special functions at a cost of $49.95 per year per brand, providing access to advanced features and functionalities.

6. Real-Time Diagnostics

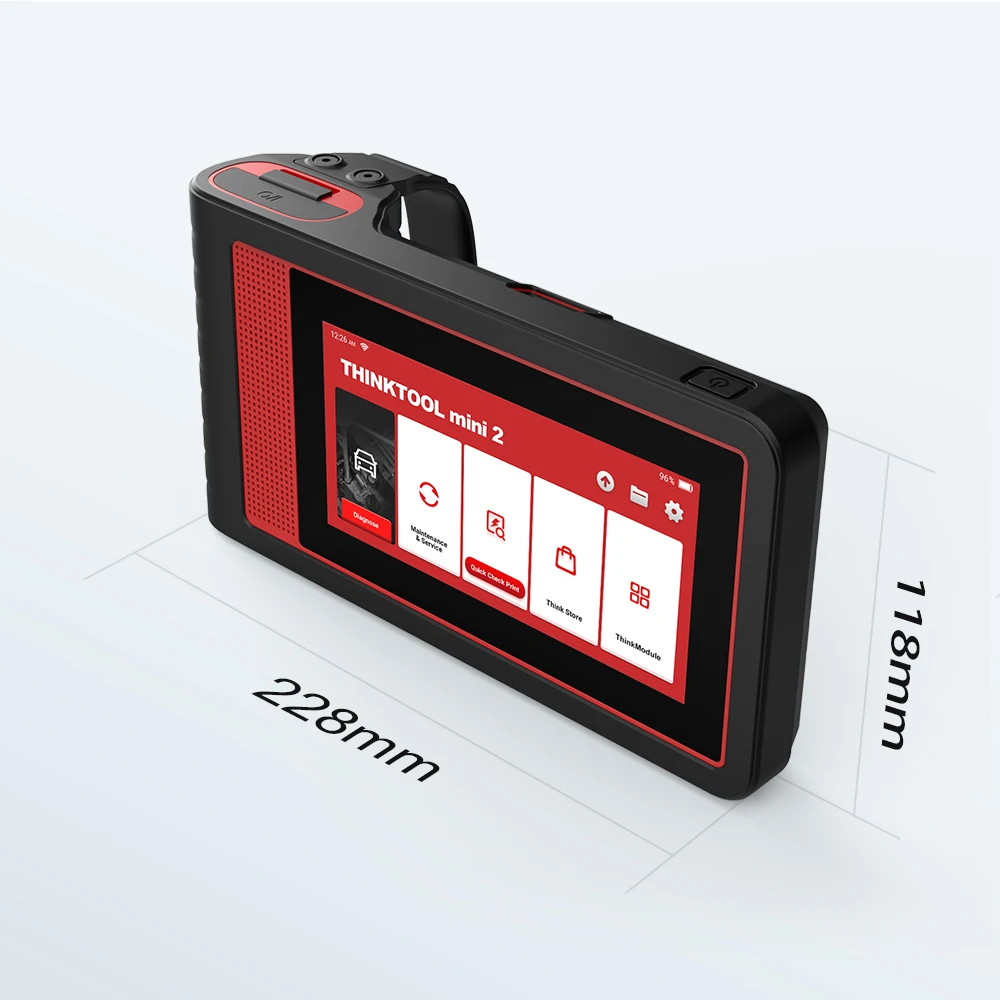

Equipped with a 5.99-inch display, the THINKTOOL Mini 2 facilitates real-time vehicle diagnostics, ensuring that technicians can analyze and address issues as they arise.

7. Advanced Storage and Connectivity

With 2GB RAM and 32GB storage, paired with Bluetooth and Wi-Fi support, the THINKTOOL Mini 2 is designed for seamless and effective diagnostics.

8. User-Friendly Android System

Running on Android 10, this model can be easily updated online, providing users with the latest features and enhancements.

9. Multilingual Support

The THINKTOOL Mini 2 supports 16 languages, including English, French, Spanish, German, Russian, Italian, Portuguese, Japanese, Polish, Hungarian, Arabic, Greek, Slovak, Traditional Chinese, and Korean, making it accessible to users across different regions.

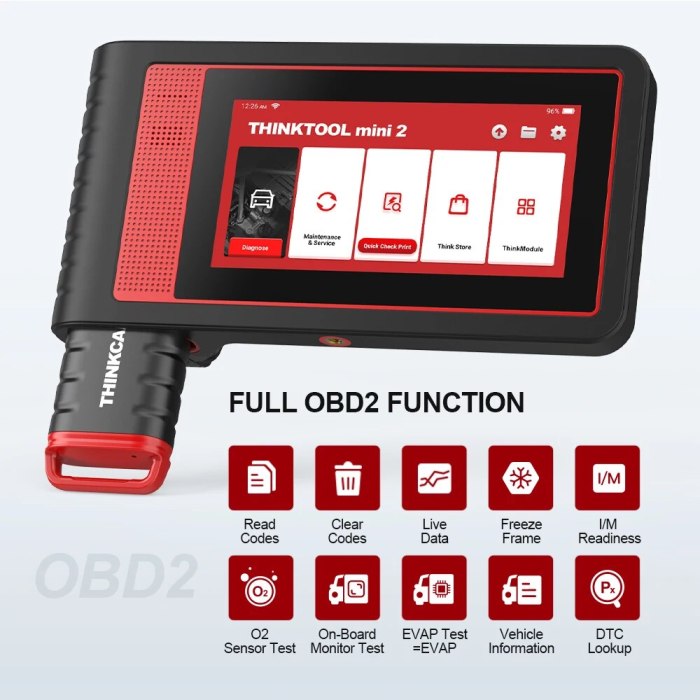

Free Full OBD2 Functions for Thinktool Mini Scanner

The THINKTOOL Mini scanner offers a range of free full OBD2 functions that are essential for vehicle diagnostics:

• Read extensive current, pending, and permanent codes in the OBD system quickly.
• Clear detected fault codes and turn off the Check Engine Light efficiently.
• View graphical live data of vehicle's computer module(s) for easy analysis.
• View the vehicle's operating parameters at the moment a DTC is detected.
• Read I/M readiness status to have a vehicle inspected for state emissions compliance.
• Perform O2 sensor tests to check fuel efficiency and vehicle emissions.
• Read the results of on-board diagnostic monitoring tests for specific components/systems.
• Retrieve vehicle information including VIN, CINs, and CVNs completely.
• Perform component tests by initiating a leak test for the vehicle's EVAP system.

4-in-1 Scientific Data Management

The THINKTOOL Mini 2 features a 4-in-1 scientific data management system, enhancing the diagnostic process:

1. Live Data Stream Graph: The car diagnostic tool can graph live data in real-time, allowing for important diagnostic information to be visualized effortlessly.
2. Record Data & Diagnosis Playback: Users can record diagnostic data and playback the sessions, which is crucial for detailed analyses and troubleshooting.
3. Freeze Frame Storage: Important diagnosis information can be instantly stored in the memory, including readings of fault codes and real-time data streams.
4. One-Click Report Generation: After completing a diagnosis, users can generate a comprehensive diagnostic report with a single click, facilitating quick resolutions and preventing unnecessary repairs.

Conclusion

The THINKTOOL Mini 2 represents a significant upgrade from its predecessor, the THINKTOOL Mini, especially with its support for the CANFD protocol and advanced diagnostic capabilities. For automotive technicians seeking a reliable and powerful obd2 diagnostic tool, the THINKTOOL Mini 2 is an excellent choice that streamlines the diagnostic process and reduces maintenance time.
