GODIAG GT105 ECU IMMO Prog Adapter OBD II Break Out Box ECU Connector

Introduction to the GODIAG 105 ECU IMMO Prog Adapter

The GODIAG GT105ECU IMMO Prog Adapter is an invaluable car programming tool for automotive maintenance technicians, anti-theft matching specialists, and ECU programming engineers. Designed to enhance vehicle maintenance capabilities, this special connection adapter facilitates the short-circuiting of OBD2 systems in vehicles, making it ideal for anti-theft activation matching, ECU diagnosis, and programming connections. Furthermore, it can draw power from the vehicle’s battery, providing a reliable source for outdoor on-site vehicle maintenance.

Key Features of the Godiag GT105 Adapter

Advanced Connectivity Options

The GT105 Adapter is equipped with multiple communication indicators, which include:

• PWM (PIN2)
• CANH (PIN6)
• CANL (PIN14)
• K-line (PIN7)

These features allow users to quickly assess the communication status between the adapter and the vehicle, as the corresponding protocol indicator will flash during data communication. This functionality ensures that technicians can determine whether their diagnostic programming device can successfully communicate with the vehicle.

Reliable Power Supply for Outdoor Work

One of the standout features of the GT105 ECU IMMO Adapter is its ability to provide a 12V DC power supply sourced directly from the car battery. This is particularly useful for outdoor work, allowing technicians to power diagnostic equipment, program keys, or perform ECU maintenance without the need for an external power source.

Highlights of the Power Supply

• OBD2 Independent Connections: Features such as PIN 4 for body ground and PIN 5 for signal ground facilitate special programming tasks for various modules.
• Durable Construction: The pure copper female seat supports repeated use, ensuring longevity and reliability over time.
• Environmentally Friendly Design: The battery clips are treated with an environmentally friendly salt spray coating, enhancing corrosion resistance.
• Safety Features: The DC connector includes a resettable 7A fuse, providing additional protection for both the adapter and connected devices.

Core Functions of the Godiag GT105 Adapter

IMMO Functionality and Key Programming

The GT105 ECU connector is particularly noteworthy for its capabilities in IMMO functions. After 2016, it is capable of handling scenarios where all smart keys have been lost for Ford vehicles, in cooperation with VVDI equipment (such as OBDSTAR and AUTEL). It can perform various key programming tasks, including:

• All Keys Lost Matching: The adapter can wake up the vehicle’s meter or anti-theft ECU, facilitating key programming for brands including:
  • VAG (4th and 5th gen anti-theft)
  • Toyota ECU synchronization
  • Mitsubishi key learning
  • Porsche Cayenne anti-theft key learning

Communication Status Indicators

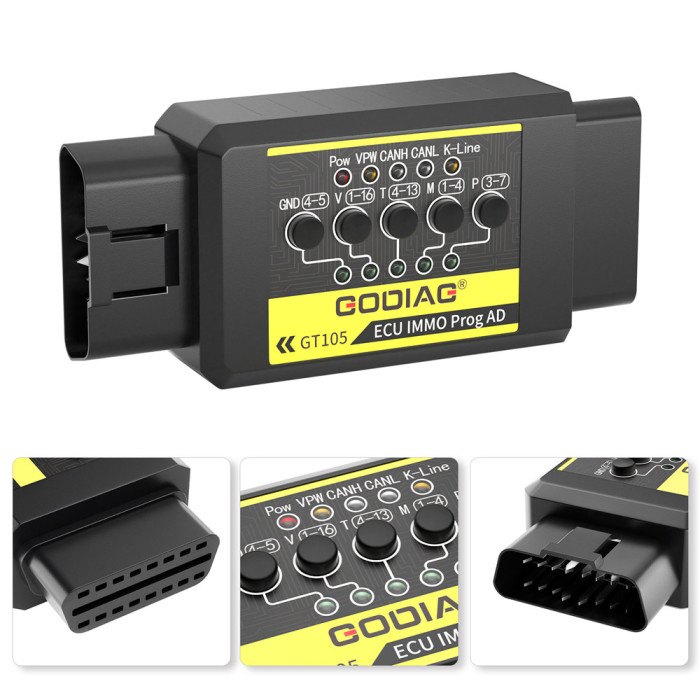

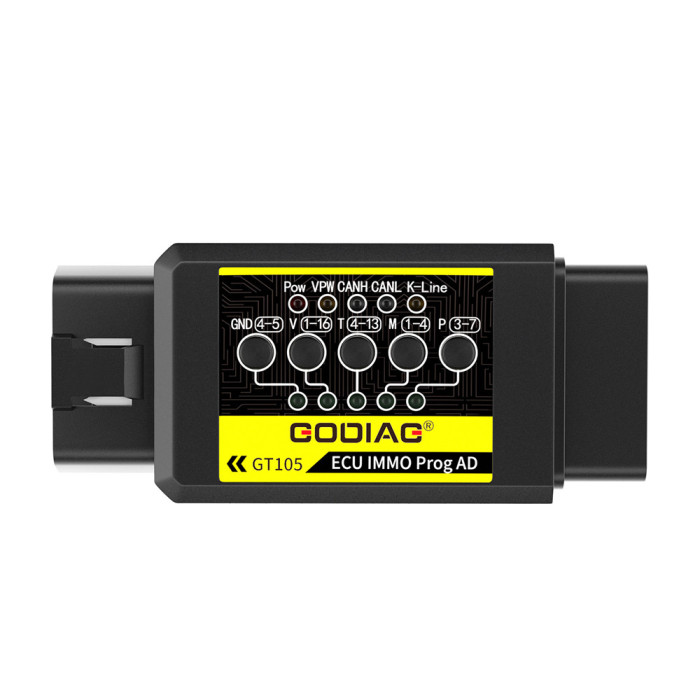

The godiag GT105 OBD2 Break Out Box Adapter features LED indicators for VPW, CANH, CANL, and K-Line signals. These indicators allow technicians to easily assess the communication status between the vehicle and their diagnostic tools, ensuring a smooth and efficient programming process.

Versatile Equipment Compatibility

The godiag GT105 Adapter provides 12V power supply to various automotive tools, such as:

• Xhorse Key Tool Plus Pad
• VVDI Prog
• CGDI Prog
• IM608

This capability is essential for reading data from anti-theft ECUs, such as those found in BMW and Mercedes vehicles, enabling effective on-site maintenance and troubleshooting.

Uninterruptible Power Supply during Battery Replacement

Another critical function of the GT105 ECU programming Adapter is its ability to serve as an uninterruptible power supply during battery replacement, preventing data loss and key re-matching issues that may arise due to power interruption.

Conclusion

The GODIAG GT105 ECU IMMO Prog Adapter is a vital tool for automotive professionals, combining advanced connectivity, reliable power supply, and versatile functionality. Whether it’s for ECU programming, anti-theft matching, or routine maintenance, the GT105 programming tool enables technicians to work efficiently and effectively, ensuring the highest level of service for their clients.

Indicator Light Meaning:
