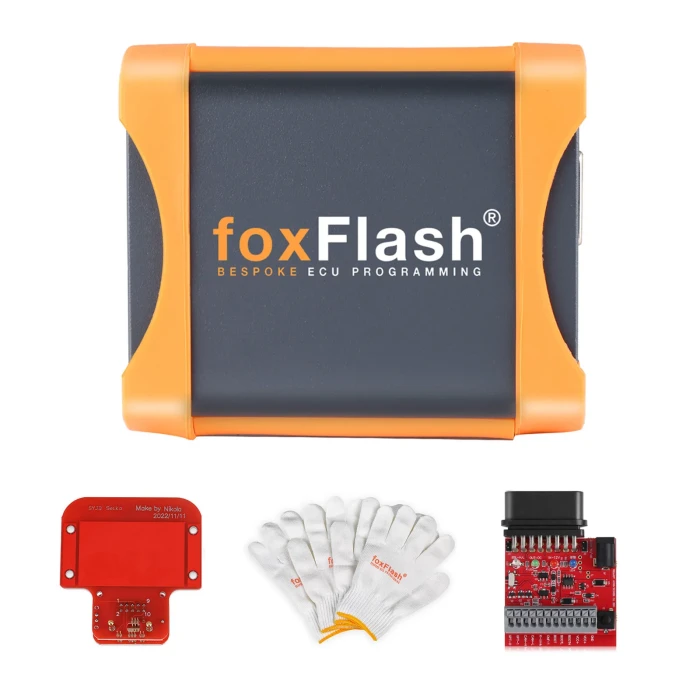

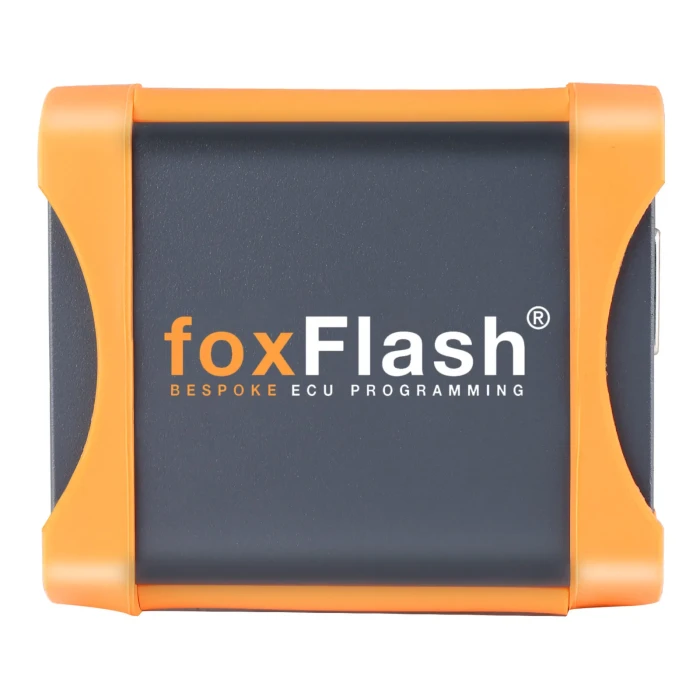

FoxFlash Master Version Chip Tuning Tool ECU TCU Clone with OTB 1.0 Expansion Adapter

Introduction to FoxFlash Chip Tuning Tool

The FoxFlash Master Version is a groundbreaking solution tailored for professional chiptuners, calibration engineers, and ECU (Engine Control Unit) and TCU (Transmission Control Unit) repair shops. This innovative chip tuning tool offers an expansive range of diagnostic and programming functions, making it an essential asset for anyone working with various vehicle models.

Key Features of FoxFlash Master Version V1.4.2

Master Version with Complete Protocol Access

The FoxFlash ecu programmer provides full access to all protocols, ensuring that users can efficiently perform various tuning operations. This feature is vital for professionals who need flexibility and comprehensive capabilities in vehicle diagnostics.

Advanced Programming Capabilities

FoxFlash ecu programmer is designed with multi-method control unit programming for tuning, allowing chiptuners to enhance their services. The tool's capability to restore ECUs to their original state after potential damage from poor tuning is a significant advantage, ensuring reliability and safety.

Free Updates and Customer Support

Users can benefit from free online updates without any subscription or annual fees, supported by a two-year warranty. Technical support is readily available, providing assistance through an effective help desk and tuner account.

Wide Language Support

The foxflash programming tool accommodates users across the globe with support for multiple languages, including Italian, English, Dutch, French, Spanish, Polish, Portuguese, Romanian, Czech, and Turkish.

Foxflash ECU Programmer Supported Models

OTB Coverage and Model Search

Users can explore the OTB coverage by searching the Foxflash ECU/TCU Driver List on the official website: Dfb Technology Driver List.

To find models that support OTB, log in to the browser at the above address and search for "OTB" to view the compatible models. If the query mode does not display when opened, please clear your browser cache and reopen the website to ensure proper functionality.

Operating Modes of FoxFlash ECU Programmer

The FoxFlash tuning tool comes equipped with several operational modes, enhancing its versatility for different tasks:

1. OBD Mode

In OBD mode, data can be read directly from the vehicle's diagnostic port, allowing quick access to information without needing to remove the ECU or TCU. This mode also includes original file downloads from the server for seamless operations.

2. BENCH Mode

Bench mode enables users to clone or back up ECU data efficiently. By reading internal and external flash memory along with EEPROM data, this mode saves costs on ECU cloning and chip tuning.

3. JTAG Mode

Certain models, like Denso ECUs, may require JTAG mode for reading and writing data, enabling a direct connection through wiring or adapters for enhanced performance.

4. Boot Mode

With boot mode, users can back up all data, reading flash and EEPROM to preserve ECUs that may suffer from failed OBD writes or other issues.

5. Full System Mode

This mode allows users to read and write data by pinout for a vast majority of ECUs and TCUs, enhancing the tool's comprehensive functionality.

6. BDM Mode

For ECUs that require specific handling, BDM mode enables direct reading and writing using an adapted connection method for superior reliability.

Supported Vehicle Types

The FoxFlash master programming tool is compatible with a wide range of vehicles, including:

• Cars
• Trucks
• Motorbikes
• Tractors
• Boats

Additionally, an automatic transmission TCU package is available for enhanced versatility.

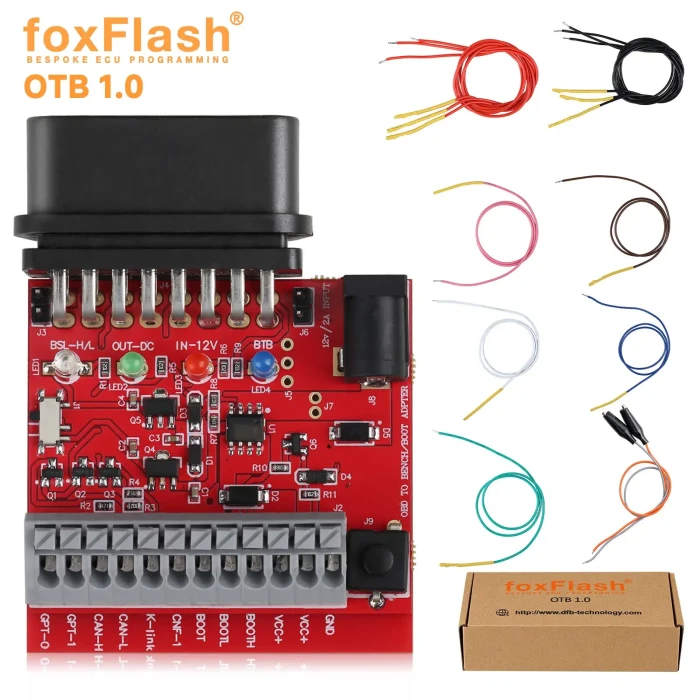

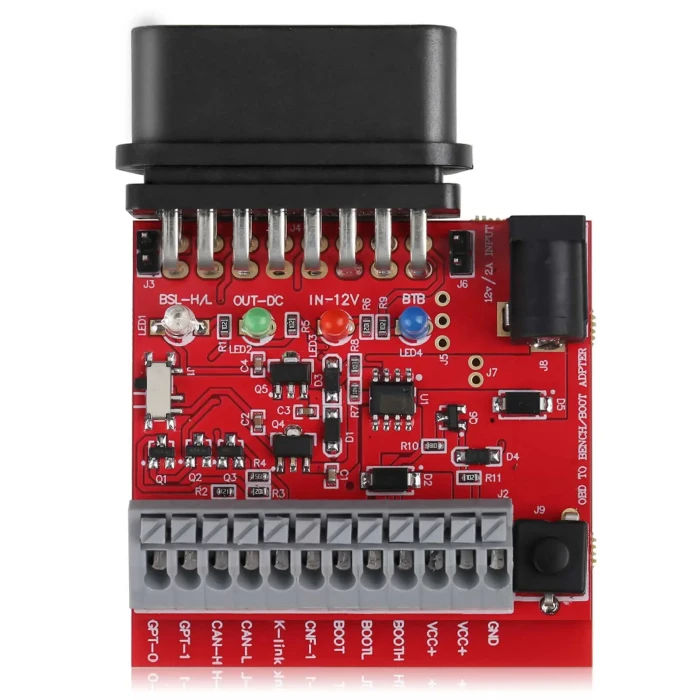

OTB 1.0 Expansion Adapter

The OTB 1.0 Expansion Adapter is specifically designed for extended application with FoxFlash, accommodating engine and transmission computers as well as ACM (Airbag Control Module) and DCM (Diesel Control Module).

Supported Functions of OTB 1.0 Adapter

1. Dual-channel high-speed CAN communication
2. Three-way BOOT functionality
3. Dual VCC power supply
4. GPT encryption and decryption
5. Adaptive resistance management
6. Adaptive CNF signal adjustment

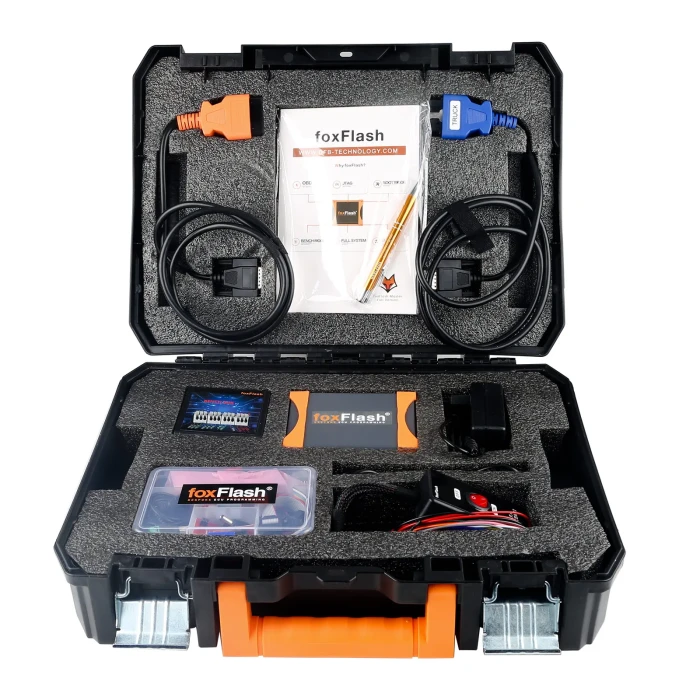

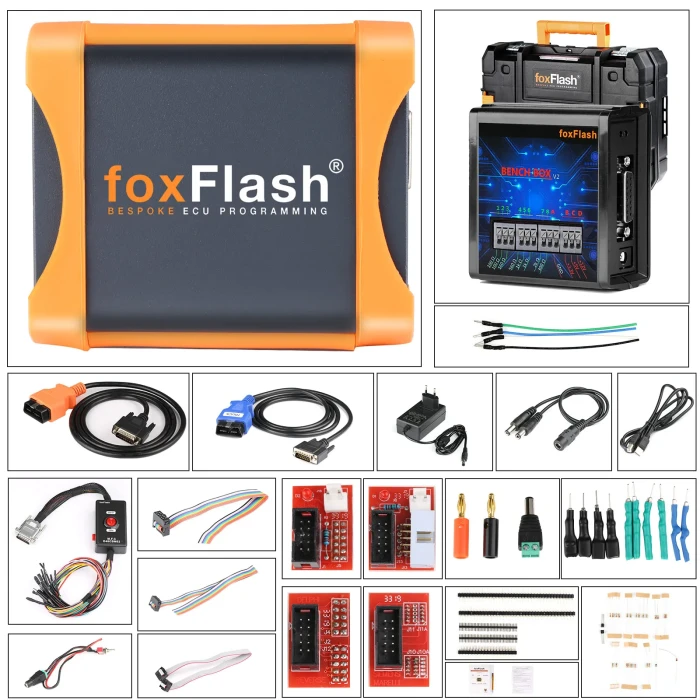

Package List

The FoxFlash ecu programmer package includes the following essential components to ensure optimal functionality:

• 1pc x Master machine
• 1pc x Fox bench box
• 1pc x USB cable
• 1pc x Power adapter
• 1pc x Fox box (stores over 10 adapters)
• 1pc x JTAG and BDM cables
• 1pc x Pen
• 1pc x Notebook
• 1pc x Suitcase
• 1pc x Function cable for boot, bench, K-Line links
• 1pc x Truck OBD cable
• 1pc x Car OBD cable
• 1pc x Paper box
• 1pc x Installation guide
• 1pc x OTB 1.0 expander
• 1set x OTB 1.0 conversion cable
• 1pc x Carton

Conclusion

The FoxFlash Master Version combined with the OTB 1.0 Expansion Adapter is an unparalleled diagnostic tool, empowering automotive professionals with advanced programming and diagnostic capabilities. With its user-friendly interface, extensive support, and robust performance features, investing in FoxFlash is a strategic choice for enhancing your vehicle tuning operations.

For more information and to download the latest software, visit the official website: Dfb Technology.
