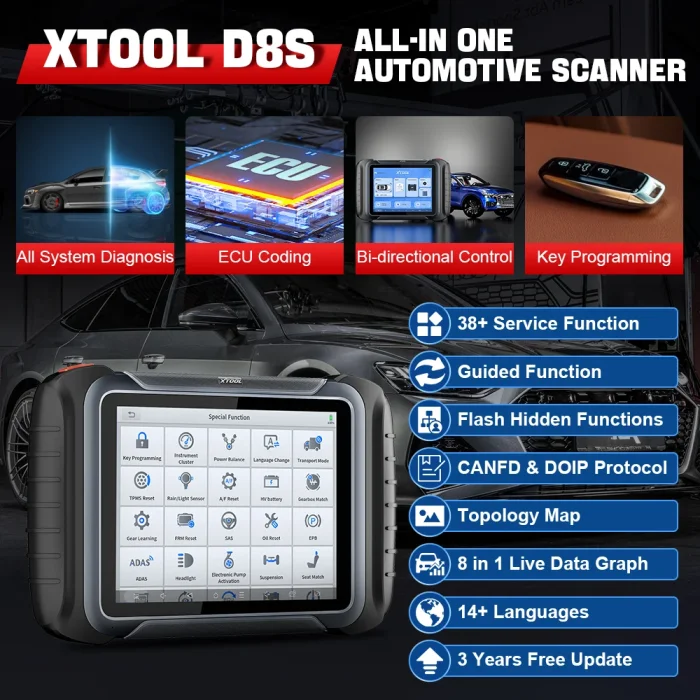

XTOOL D8S Online ECU Coding Car Diagnostic Scanner VAG Guided Topology Map ADAS Car Tools

As automotive technology advances, the complexity of modern vehicles' electronic systems has increased, making professional diagnostic tools essential for car owners and technicians alike. Today, we will delve into the XTOOL D8S, a powerful and high-performance automotive diagnostic scanner. Whether for routine maintenance or in-depth diagnostics, the D8S is designed to meet all your needs.

---

Core Features: Why Choose the XTOOL D8S?

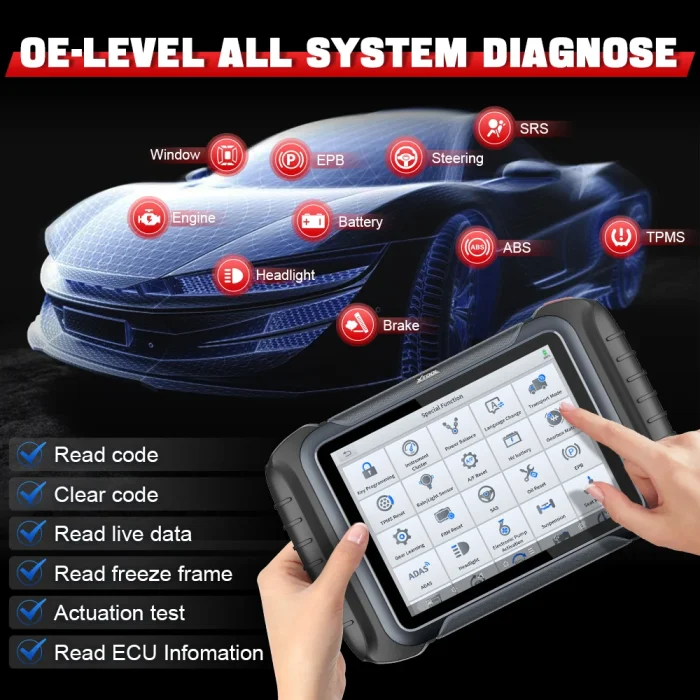

1. OE-Level All System Diagnostics

The XTOOL D8S supports OE-level diagnostics across all vehicle systems, including the engine, transmission, ABS, air conditioning, and entertainment systems. With this device, users can:

• Read and clear fault codes: Quickly identify the source of issues to avoid unnecessary repair costs.
• View live data: Monitor vehicle performance metrics such as engine speed, oil pressure, and temperature.
• Freeze frame data: Analyze the specific conditions present when a fault occurred.
• Retrieve ECU information: Access detailed data from the vehicle's electronic control units for deeper diagnostics.
• Perform active tests: Actively test components to verify system functionality without relying on vehicle controls.

2. 38+ Service Functions

The D8S is more than just a diagnostic tool; it offers a wide range of service functions, including:

• Oil Reset: Reset oil change indicators after maintenance.
• ABS Bleeding: Perform ABS system bleeding to restore normal function.
• Injector Coding: Adapt new injectors for optimized engine performance.
• Electronic Parking Brake (EPB) Calibration: Address issues with the electronic parking brake system.
• Diesel Particulate Filter (DPF) Regeneration: Clean and unclog the DPF to reduce emissions.
• TPMS Reset: Relearn tire pressure monitoring sensors after tire changes.
• Battery Management System (BMS) Reset: Optimize battery performance and extend its lifespan.

3. Advanced ECU Coding & Guided Functions

For vehicles from the Volkswagen Group (Volkswagen, Audi, Skoda, Seat), the D8S offers online ECU coding for advanced customization and functionality. Additionally, guided functions simplify complex diagnostic and repair tasks for V.A.G vehicles.

4. VW-Specific Help Function

The D8S includes a dedicated help function for VW vehicles, enabling users to:

• Read matching channel numbers
• Access repair information
• View channel information
• Retrieve coding information
• Read fault codes

5. Programmable Module Installation (PMI)

When replacing or initializing a module for Ford, Lincoln, or Mazda vehicles, the D8S allows users to copy data from the original module and transfer it to the new one, ensuring a seamless replacement process.

6. Module Topology Mapping

The D8S scans and displays the health status of all vehicle modules in a tree map, illustrating communication between modules. This feature helps technicians identify faults faster and improves repair efficiency.

7. Support for CANFD & DOIP Protocols

The D8S supports the latest communication protocols, including CANFD (for GM models 2020 and newer) and DOIP (for BMW E/F/G chassis, Jaguar, and Land Rover vehicles), ensuring compatibility with modern vehicles.

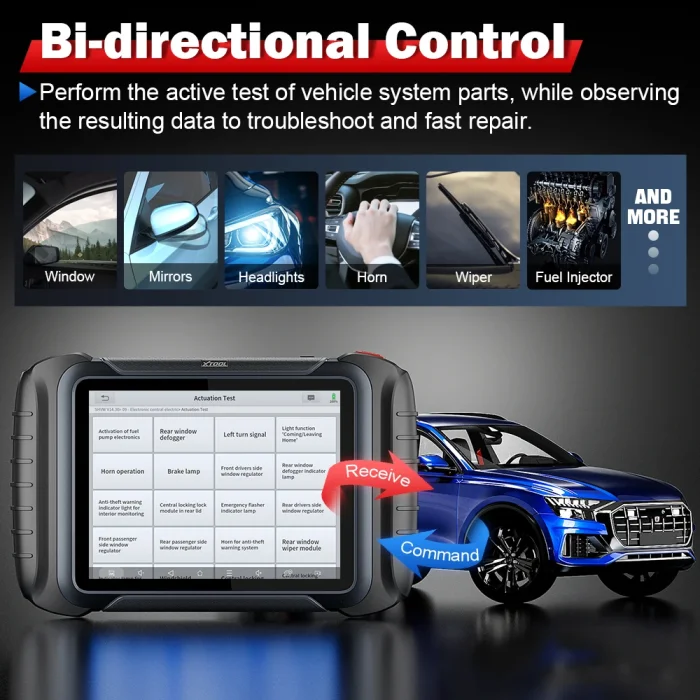

8. Bi-Directional Control/Active Testing

Perform various active tests to evaluate the integrity and operational conditions of vehicle systems or components without using the vehicle's controls.

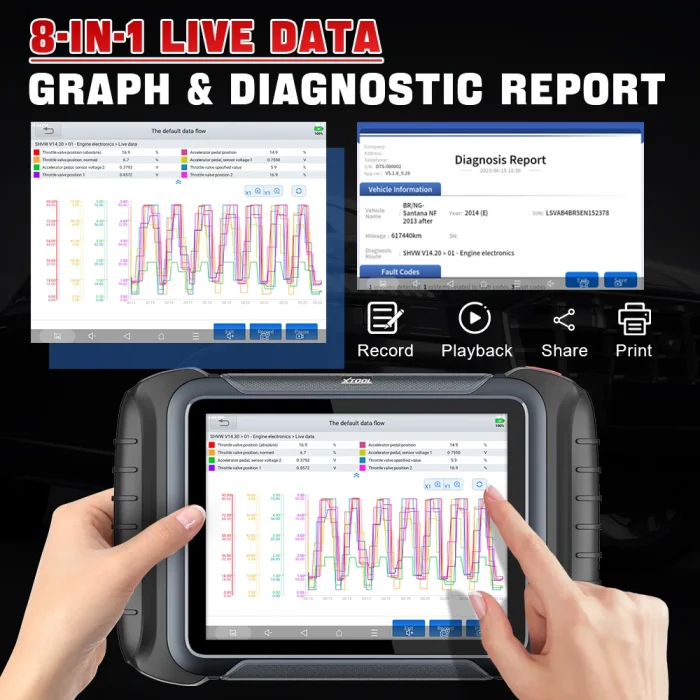

9. 8-in-1 Live Data Graphing

Export live data to track vehicle performance over time. The D8S allows users to graph up to 8 sensors simultaneously, providing a detailed overview of key metrics.

10. Auto VIN Scan & Quick Diagnosis

The device supports automatic VIN recognition, quickly identifying vehicle information and initiating the diagnostic process for efficient troubleshooting.

11. Report Printing & Sharing

Generate PDF diagnostic reports and print or share them with customers or professionals for comparison before and after repairs or for expert advice.

12. 3-Year Free Updates

The D8S comes with 3 years of free software updates, ensuring the device stays up-to-date with the latest features and expanded vehicle coverage.

13. Multi-Language Support

This scanner supports 15 languages, including English, Spanish, Portuguese, French, Japanese, German, Polish, Russian, Italian, Korean, Arabic, Finnish, Vietnamese, and Traditional Chinese, making it accessible to users worldwide.

14. Electronic User Manual

The D8S includes an electronic user manual for offline access, helping users master the device's features at their convenience.

---

High-Performance Hardware: Elevating Your Experience

The XTOOL D8S is equipped with Android 10 OS, a quad-core 1.50GHz processor, and 4GB RAM + 64GB ROM, ensuring smooth operation. Key hardware features include:

• Display: 8-inch high-resolution screen (1024×768 pixels) for crisp visuals.
• Connectivity: Supports Wi-Fi 2.4GHz/5GHz for seamless software updates and data transfers.
• Camera: 8MP rear camera for high-quality imaging.
• Battery: Large 10000mAh battery for extended use without frequent recharging.

---

Why Choose the XTOOL D8S?

1. Comprehensive Diagnostics and Services

From full-system diagnostics to advanced service functions, the D8S covers all aspects of vehicle maintenance and repair.

2. Premium Hardware for Seamless Performance

With its high-end hardware and optimized software, the D8S ensures fast response times and smooth operation.

3. Global Compatibility and Multi-Language Support

Supporting multiple languages and covering a wide range of global vehicle brands, the D8S is a versatile tool for users worldwide.

4. Long-Term Free Updates

Enjoy 3 years of free updates to stay current with the latest software enhancements and expanded vehicle coverage.

---

Compatible Vehicles and Target Users

The XTOOL D8S is compatible with major global automotive brands, including Volkswagen, Ford, GM, BMW, Mercedes-Benz, Audi, Jaguar, and Land Rover. Whether you're a professional technician or a car enthusiast, this scanner is tailored to meet your diagnostic needs.

1. OE-Level All System Diagnostics

The XTOOL D8S supports OE-level diagnostics across all vehicle systems, including the engine, transmission, ABS, air conditioning, and entertainment systems. With this device, users can:

• Read and clear fault codes: Quickly identify the source of issues to avoid unnecessary repair costs.
• View live data: Monitor vehicle performance metrics such as engine speed, oil pressure, and temperature.
• Freeze frame data: Analyze the specific conditions present when a fault occurred.
• Retrieve ECU information: Access detailed data from the vehicle's electronic control units for deeper diagnostics.
• Perform active tests: Actively test components to verify system functionality without relying on vehicle controls.

Enhanced Diagnostic Capabilities: Pre-Scan, Post-Scan, and Diagnostic Report 2.0

The XTOOL D8S introduces advanced diagnostic features designed to streamline the inspection and repair process:

Pre-Scan Inspection

• Comprehensive Vehicle Inspection: Conduct a thorough inspection of the vehicle prior to any repair to identify existing fault codes and assess the status of all systems, including the engine and transmission.
• ECU Status Reading: Obtain insights from the Electronic Control Unit (ECU) to understand potential problems before they escalate.
• Baseline Data Recording: Capture initial system data to provide a reference point for evaluating the effectiveness of subsequent maintenance and repairs.

Post-Scan Inspection

• Verification of Repairs: Confirm that issues have been resolved by rechecking fault codes after repairs.
• System Performance Monitoring: Ensure all systems are functioning normally and that no new fault codes have been introduced.
• Customer Reporting: Generate detailed reports to demonstrate the effectiveness of maintenance work to vehicle owners.
• Data Archiving: Store diagnostic data for future reference, allowing for tracking of the vehicle's maintenance history and repair records.

Diagnostic Report 2.0

• Advanced Reporting: Create up to four types of comprehensive diagnostic reports with customizable layouts.
• System Icon Display: Visualize the status of main systems with icons for quick understanding.
• Customizable Layout: Personalize reports with your store’s logo for professional documentation.

2. Advanced ECU Coding & Customization

The XTOOL D8S offers advanced ECU coding and customization capabilities, enabling users to optimize vehicle performance, adapt new components, and unlock hidden features. This feature is particularly useful when replacing or upgrading vehicle modules, as it ensures proper integration with the vehicle's systems.

Key Features of Advanced ECU Coding:

• Recode Changed Modules: Adapt new modules to ensure proper system communication and functionality.
• Optimize Vehicle Performance: Adjust settings to improve fuel efficiency, reduce power loss, and enhance mechanical durability.
• Re-Flash Hidden Functions: Unlock or enable features not activated by default, such as customizable settings or advanced driver-assistance systems.
• Renew ECUs Coordination: Synchronize electronic control units for seamless operation.
• Reprogram Adaptive Data: Adjust adaptive learning data, such as transmission shift points or electronic throttle response.
• Improve Fuel Efficiency: Fine-tune engine and transmission settings for better mileage.
• Reduce Power Loss: Optimize engine performance to minimize power loss during acceleration or load changes.
• Improve Mechanical Part Durability: Adjust parameters to reduce wear on engine and transmission components.

Important Notes:

• The ECU Coding function is currently supported for Volkswagen, Audi, and Skoda vehicles only.
• Flash Hidden Function (Customization) is available for a wider range of vehicles, including BMW, Toyota, Lexus, Mazda, Ford, and Lincoln.
• Guided Functions, which provide step-by-step on-screen instructions for complex tasks, are also limited to Volkswagen, Audi, and Skoda vehicles only.

---

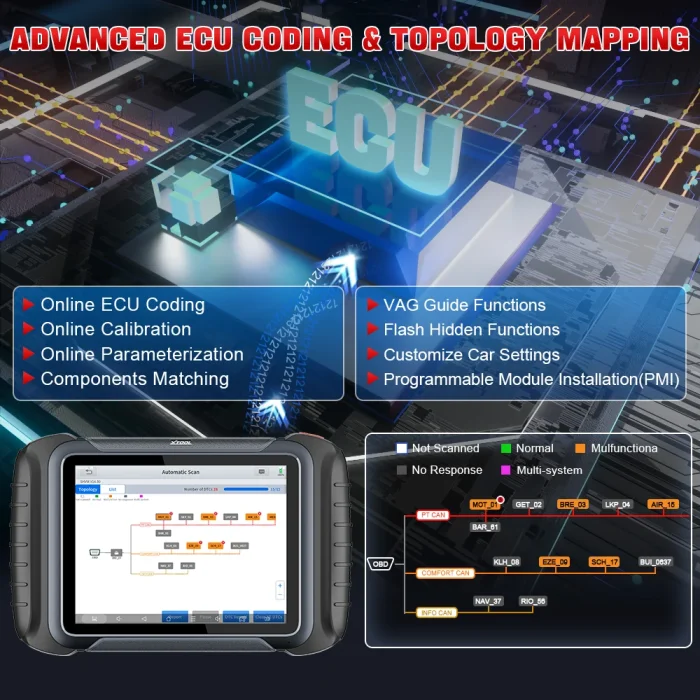

3. Intelligent Topology Mapping

The XTOOL D8S is equipped with Intelligent Topology Mapping, a visual diagnostic tool that simplifies troubleshooting by displaying the communication structure between vehicle modules. This feature provides:

• Color-Coded Module Status: Quickly identify healthy and faulty modules with color-coded indicators for faster diagnostics.
• Communication Structure: View the interaction between modules to pinpoint communication issues.
• One-Click Access: Directly access fault codes and enter system-specific diagnostic functions with a single tap.

Supported Vehicles for Topology Mapping:

This feature is compatible with a wide range of vehicles, including:

• GM, Chrysler, Jeep, Dodge, Ford, Toyota, Nissan, Honda, BMW, Mercedes-Benz, Hyundai, Mazda, and more.
• Additional vehicle brands will be supported soon. Contact us for compatibility details.

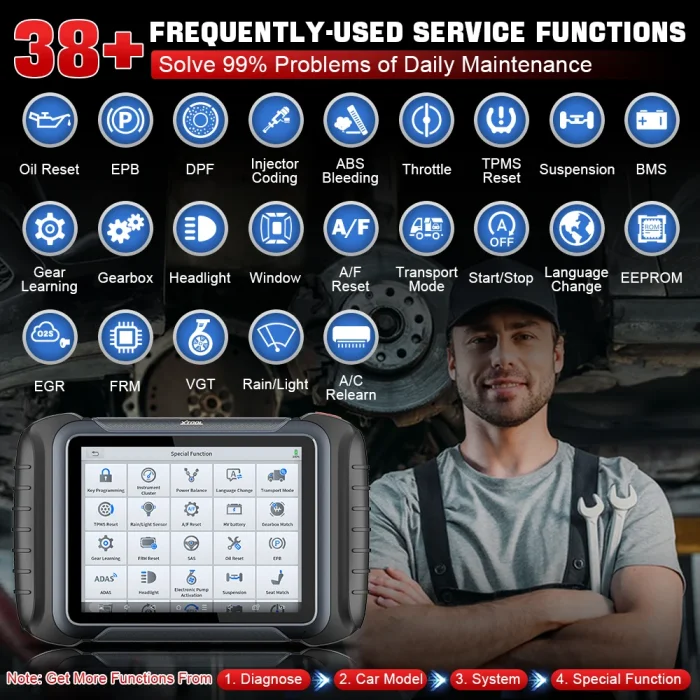

4. 38+ Frequently-Used Service Functions

The XTOOL D8S comes with an extensive suite of 38+ frequently-used service functions, designed to meet 90% of car maintenance needs. These functions streamline routine maintenance and repair tasks, providing users with a comprehensive toolkit to keep their vehicles running smoothly.

---

Key Service Functions:

• Oil Light Reset:

  • Reset the oil service light and update the service mileage and interval after an oil change.

• EPB Reset:

  • Reset the electronic parking brake (EPB) to ensure safe braking functionality.

• Throttle Relearn:

  • Reset throttle actuators to maintain smooth idling and acceleration.

• TPMS Reset:

  • Relearn TPMS sensors so new tire pressure monitors are recognized by the ECU.

• ABS Bleeding:

  • Remove air from the ABS system to ensure firm brake pads.

• Immobilizer:

  • Disable lost or stolen keys and add new keys for enhanced vehicle security.

• DPF Regeneration:

  • Clean the Diesel Particulate Filter (DPF) to restore performance and reduce emissions.

• Injector Coding:

  • Code new fuel injectors for precise fuel control and improved efficiency.

• SAS Calibration:

  • Erase faulty steering angle sensor memories and perform recalibration.

• BMS Reset:

  • Register a new battery in the ECU after replacement.

• Rain/Light Sensor:

  • Re-match and recalibrate rain/light sensors after replacement.

• A/C Relearn:

  • Reset and recalibrate the air conditioning system for optimal performance.

---

Additional Service Functions:

• Window Initialization
• Gearbox Match
• Headlight Calibration
• Air Suspension
• Gear Learning
• EEPROM Adapter
• Airbag Repair
• Seat Calibration
• Electronic Pump Activation
• Transportation Mode
• Power Balance
• ECU Configuration
• Tire Upgrade
• A/F Setting
• Stop/Start Reset
• Language Change
• Reset Control Unit
• HV Battery
• VGT Relearn
• FRM Reset
• EGR Relearn
• SRS
• Clutch Adaptation
• Speed Limit
• ADAS Calibration

---

Important Note:

The availability of these service functions varies by vehicle model, year, and VIN. Please contact us with your vehicle details to confirm compatibility before purchasing.

Key Features:

1. Bi-Directional Control/Active Testing:

   • Enables sending commands to vehicle modules to test components like the radiator fan, fuel pump, and door locks, aiding in effective diagnostics.

2. 8-in-1 Live Data Graphing:

   • Displays real-time data from up to eight sensors simultaneously, including engine RPM, fuel temperature, and oxygen sensor data. Data can be exported as CSV files for further analysis.

3. Diagnostic Report Generation:

   • Allows creation of reports that can be printed or shared via PDF, useful for record-keeping and customer communication.

4. Extensive Vehicle Coverage:

   • Supports over 85 brands across Europe, America, Asia, Australia, and China, with ongoing updates ensuring coverage remains current.

5. Multi-Language Support:

   • Available in 15 languages, with English as the default. Activation of other languages requires providing the device's serial number.

6. Software Updates:

   • Includes three years of free updates, ensuring access to new features and vehicle coverage without additional cost.

Considerations:

• User-Friendliness and Learning Curve: The tool may require some technical knowledge, potentially posing a challenge for less experienced users.

• Compatibility: While it covers many brands, verifying specific model compatibility before purchase is crucial, as not all functions may work universally.

• Hardware Specifications: The device's compatibility with various protocols (e.g., OBD-II) and its durability are important factors to consider.

• Support and Resources: Availability of customer support and resources can significantly impact the user experience, especially when encountering issues.

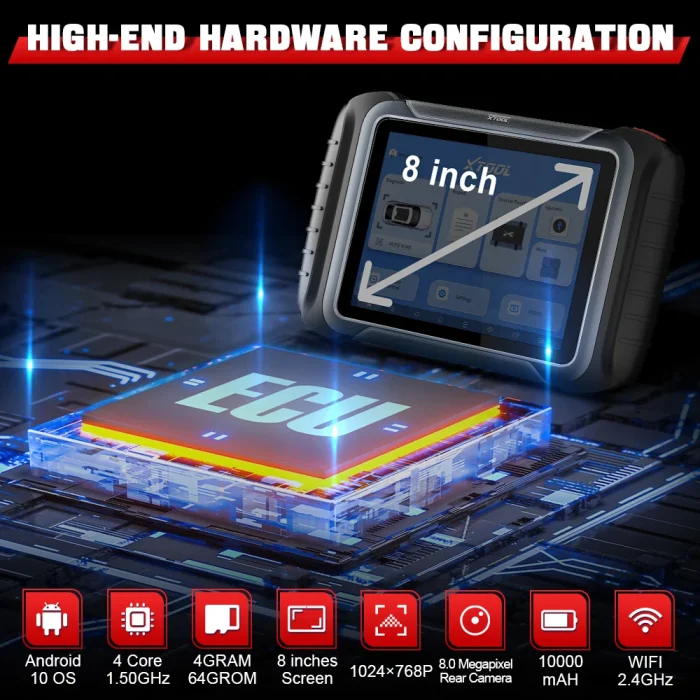

Xtool D8S OBD2 Scanner High-end Hardware Configuration:

Operating System：Android 10

Processor：4 Core 1.50GHz

Memory：4G RAM, 64 ROM

Display：8-inch capacitive touch screen with 1024×768P resolution

Communication Method：Wired

Connectivity：WIFI 2.4/5G | DB15 to VAG USB

Camera：Rear camera, 8.0 Megapixel, AF with Flashlight

Sensors：Gravity Accelerometer, Ambient Light Sensor

Auto Input/Output：Microphone, Speaker

Battery：10000mAh, 3.7V lithium-polymer battery

Working Voltage：3.6 to 4.2V

Power Voltage：DC 12V

Operating Temperature：-10 to 40℃

Storage Temperature：-40 to 60℃

Humidity：<90%

Dimension (L×W×H)：274.0×175.0×33.8 mm

Protocol：CANFD, DOIP

Xtool D8S Scanner Package Included:

1 * D8S tablet

1 * Tool kit

1 * Certificate of Quality

1 * Packing List

1 * Quick Start Guide

1 * Carton

1 * Power adapter

1 * US power cable

1 * EU power cable

1 * UK power cable

1 * USB cable

1 * OBDII-16 Adapter

1 * DB15 Main Cable
