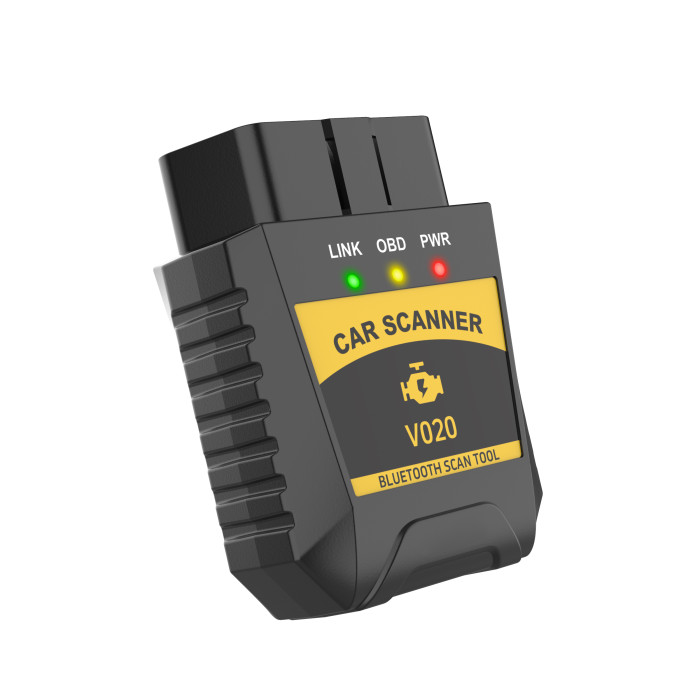

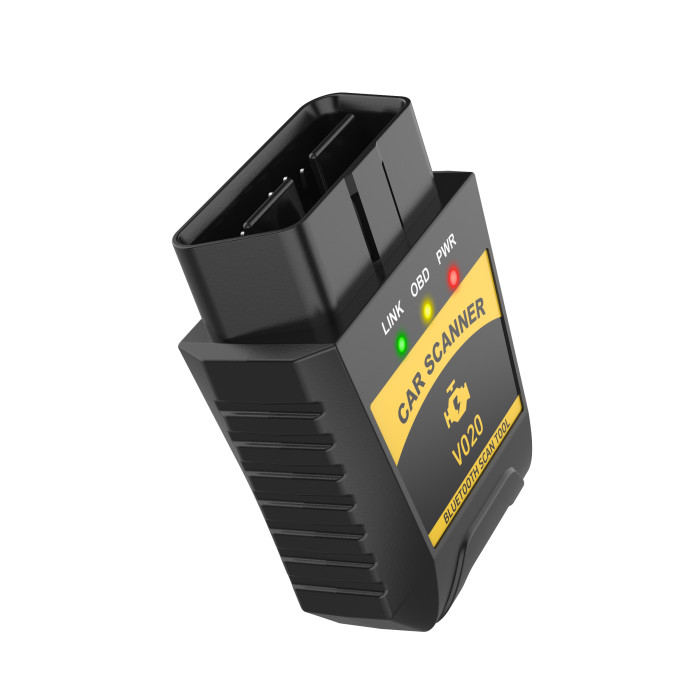

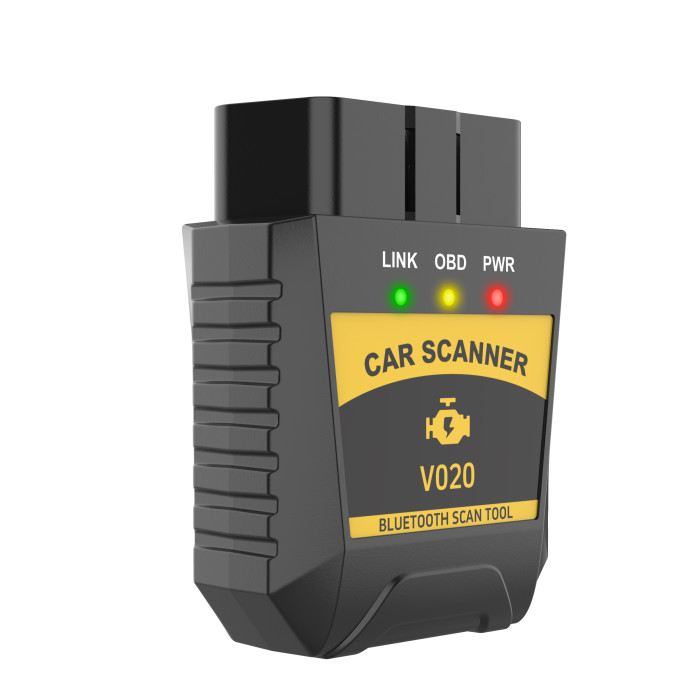

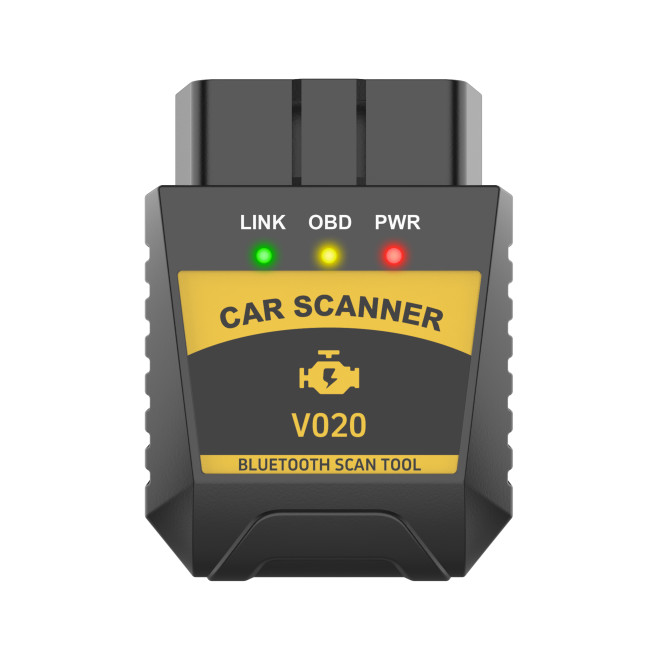

V020 OBD2 Car Scanner bluetooth Scan Tool Automotive fault diagnosis compatible with all OBDII standard

V020 is an on-board intelligent vehicle diagnostic OBD2 Car Scanner based on Bluetooth communication, which can provide automotive fault diagnosis, vehicle data reading, performance testing and other services for the majority of car owners through the APP client.Product plug and play without binding to fill in personal information, compatible with all OBDII standard 9 agreement models.

Key Features and Specifications

Communication Methods

The V020 supports both Bluetooth 2.0 and Bluetooth 4.0, ensuring seamless connectivity with your mobile device.

Main Control Chip

Equipped with the powerful BAT32G137GH48FA LQFP48 main control chip, the V020 delivers efficient performance.

Working Voltage and Current

Designed to handle various vehicle power conditions, the V020 operates within a voltage range of DC 9V - 16V and a current range of 28mA - 42mA. Its standby current is 25mA.

Operating and Storage Temperatures

This vo20 scanner can function in temperatures ranging from -20°C to 60°C and can be stored within the same temperature range, ensuring reliability in diverse environments.

Supported Systems

The V020 is compatible with iOS, Android, and Windows operating systems, making it accessible to a wide range of users.

Supported Protocols

It supports a variety of protocols, including SAE J1850 PWM, SAE J1850 VPW, ISO 9141-2, ISO 14230-4 KWP, and ISO 15765-4 CAN, ensuring compatibility with most OBDII standard models.

Supported Vehicle Data

• Reading and clearing error diagnosis codes to keep your vehicle in top condition.
• Monitoring engine RPM, calculated load value, coolant temperature, and fuel system status.
• Assessing speed, short-term and long-term fuel situations, intake manifold pressure, and fuel injection lead time.
• Measuring intake air temperature, air flow velocity, and the absolute position of the throttle valve.
• Analyzing oxygen detection voltages associated with short-term fuel states and fuel pressure.
• Monitoring fuel consumption and much more.

Product Functions

Seamless Connection and Convenient App

With Bluetooth functionality and a dedicated app, you can quickly and easily connect to your vehicle for seamless diagnostics and monitoring. If you need assistance, our support team is always ready to help you drive safely and efficiently.

Quick Access to Trouble Codes

Instantly access and view engine trouble codes to quickly diagnose issues affecting vehicle performance. Our V020 OBD2 scanner provides detailed information about the engine's current status, helping you identify specific faults. With just a few clicks, you can clear trouble codes and easily reset the system, ensuring smooth vehicle operation.

Real-Time Monitoring of Vehicle Systems

Our V020 scan tool delivers comprehensive data streams, monitoring engine performance, fuel efficiency, and sensor readings in real-time. This feature helps you gain insights into your vehicle's condition, allowing for timely identification of potential issues and ensuring that your vehicle operates at its best.

Accurate Assessment of Key Metrics

The V020 car scanner can test acceleration, braking performance, and total distance driven. By analyzing these key performance metrics, you can understand how your vehicle performs under various conditions, enhancing its safety and reliability.

Battery Health Monitoring

Real-time battery voltage readings help you assess whether the battery is operating normally. Timely identification of potential issues like insufficient battery power or faults ensures your vehicle starts reliably and maintains overall performance.

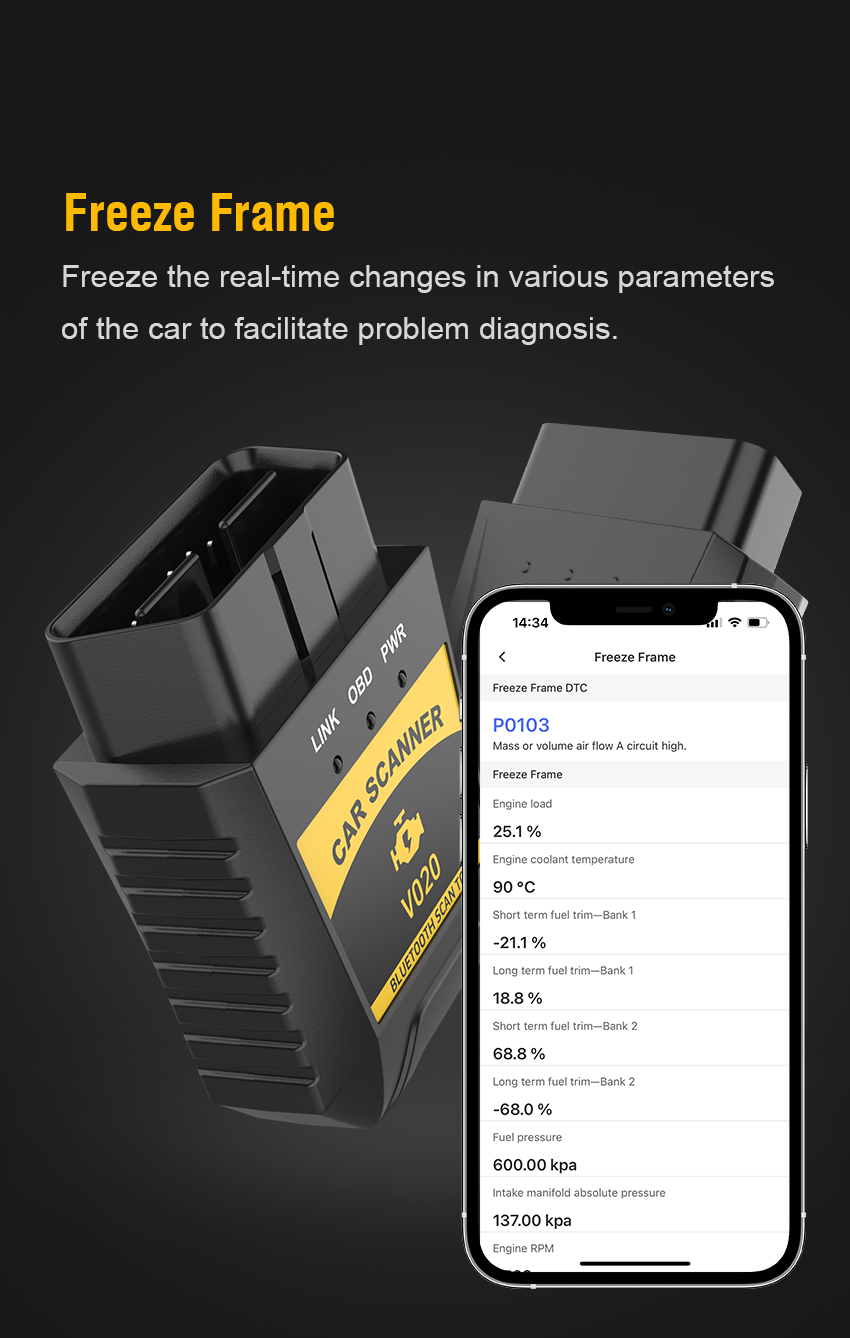

Capturing Fault Event Data

Utilize the freeze frame feature to capture real-time data snapshots of the vehicle when a trouble code is triggered, recording key indicators like engine temperature, speed, and RPM. This detailed view during a fault event aids in precise problem diagnosis.

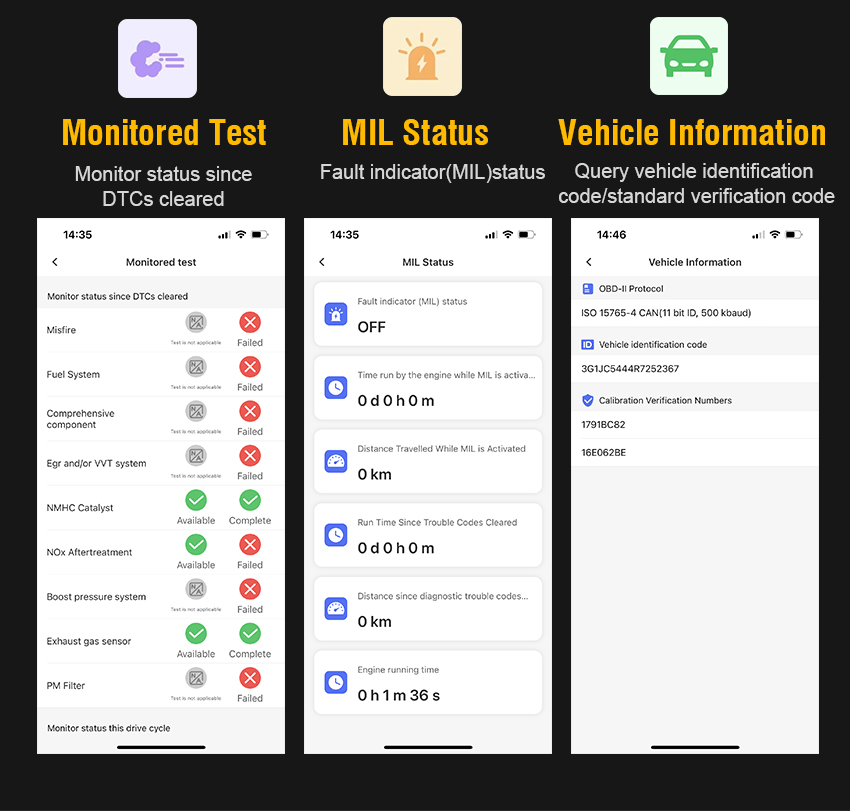

Checking the Malfunction Indicator Light Status

Real-time monitoring of the Malfunction Indicator Light (MIL) status allows you to confirm whether it is currently illuminated. This feature helps you quickly identify ongoing engine or system issues, ensuring that potential faults are addressed promptly to maintain vehicle health.

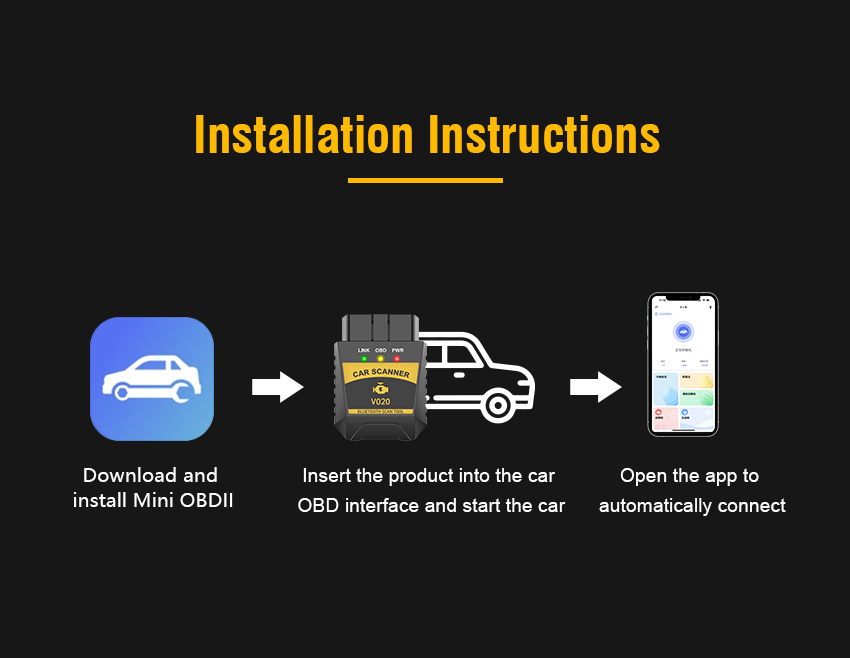

Software Platform and Connection Modes

FAQs

• Q: Why can't the engine fault be cleared?

•
  A: Try turning off the engine and clearing it when it is powered on.

• Q: Failed to connect to the v020 device?

•
  A: 1. Confirm whether the vehicle has started.
  2. Check if the mobile phone Bluetooth is enabled.
  3. Ensure that the location information permission is allowed.

• Q: Scanning the QR code can not download?

•
  A: Use the mobile browser to scan and download.
