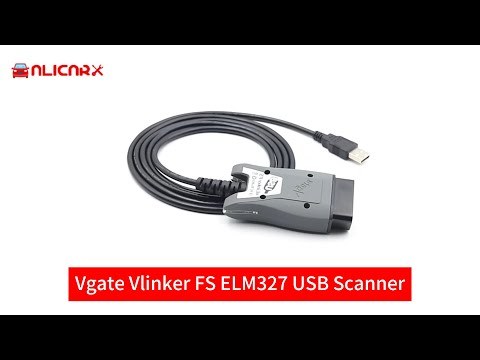

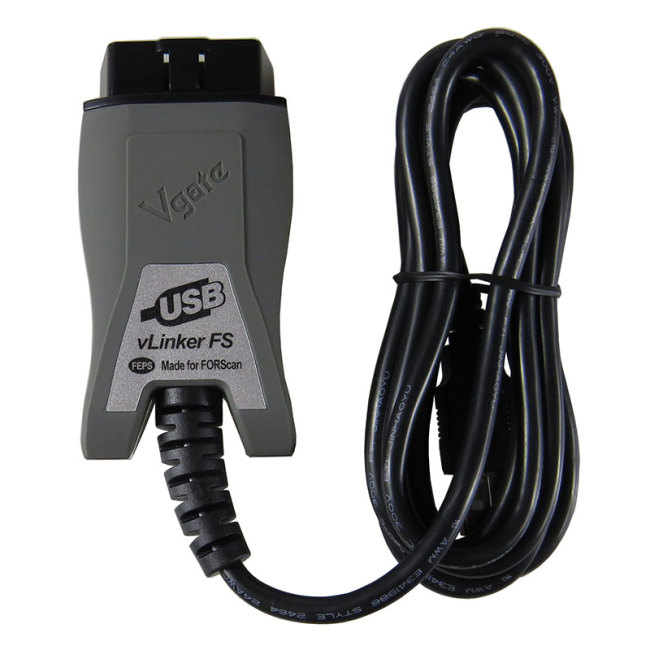

Vgate vLinker FS ELM327 Automotive OBD2 Scanner For Ford FORScan Car Diagnostic Tool

The Vgate vLinker FS is an advanced diagnostic tool specifically designed for Ford and Mazda vehicles. This OBDII scanner supports both 12V and 24V automotive voltage systems and automatically recognizes HS-CAN and MS-CAN protocols, making it easy to connect and communicate seamlessly with your vehicle's systems.

Key Features of Vgate vLinker FS Elm327

1. Broad Compatibility

   The Vgate vLinker FS is compatible with a vast range of Ford, Mazda, Lincoln, and Mercury models manufactured after 1996, supporting 99% of vehicles from 2000 onwards. Note that certain functionalities may be limited for newer models produced after 2021.

2. Endorsed by FORScan Team

   This vlinker FS usb tool is highly recommended by the FORScan team, ensuring that its high-quality hardware allows for faster and more stable diagnoses, programming, and resetting.

3. FEPS 18V Voltage Programming Support

   The vLinker forscan supports programming at FEPS 18V, unrestricted operation at transmission speeds up to 3 Mbps, with OBD request bytes of up to 4128 bytes, and a serial buffer of 8192 bytes.

4. Automatic Electronic Switching

   Enable FORScan to access all CAN buses simultaneously, facilitating access to advanced functions without manual intervention.

5. Reliable USB Connection

   Experience a robust USB connection with no risk of packet loss, data corruption, or network interference.

6. Custom-Designed for FORScan

   Specifically designed for compatibility with FORScan, the Vgate vLinker FS  usb adapter automatically recognizes HS-CAN and MS-CAN protocols, removing the need for manual changes while programming.

7. Multi-Operating System Support

   The device is compatible with various Windows operating systems, including Windows 2000, Vista, 7, 8, 8.1, and 10, both 32-bit and 64-bit versions.

Comprehensive Functions of Vgate vLinker FS

The Vgate vLinker FS obd2 tool offers a wide variety of functionalities that can differ based on vehicle models and software versions. Key features include:

• Automatic Locking
• Speed Alarm
• Emergency Brake Flashing Lights
• Horn Locking Feature
• Xenon Lamp Mode
• One-Click Sunroof Control
• Tire Pressure Monitoring System
• Snowflake Logo Display
• Cruise Control Functionality
• Digital Compass
• Instantaneous Fuel Consumption Monitoring
• ECO Mode for Energy Saving
• Steering Power Adjustment

Setup and Usage of Vgate vLinker FS

Step-by-Step Installation Guide

1. Download Driver and FORScan Application

   Visit forscan.org to download and install the FORScan application for Windows.

2. Connect to Your Laptop/PC

   Connect the Vgate vLinker FS to your laptop or PC. Insert the USB connector; the red light will blink once while the blue light will remain on.

3. Connect to the Vehicle's OBD Port

   Insert the Vgate vLinker FS into the vehicle's OBD port. Both the blue and green lights should remain on.

4. Ignite the Vehicle

   Turn the ignition to the ON position. For push-button start vehicles, press the start button twice without pressing the brake pedal.

5. Launch the FORScan Application

   Open the FORScan application and click the connect button. Your Vgate vLinker FS is now ready for use.

FORScan Application Operation Steps

1. Download USB Driver and FORScan Software

   Download the FTDI driver from FTDI Chip, selecting the appropriate version for your operating system.

2. Configure FORScan Settings

   Open the FORScan application, navigate to Settings → Connection → Connection Type → FTDI → Baud Rate → 115.2 Kbps, and ensure Auto-Increase is selected.

What’s Included in the Package

• 1 x Vgate vLinker FS
• 1 x User Manual

Conclusion

The Vgate vLinker FS is an essential car diagnotic tool for Ford,Mazda,Lincoln and Mercuryowners who seek efficient and accurate diagnostics. With its extensive compatibility, robust design, and advanced features, it is the ultimate solution for maintaining optimal vehicle performance.
