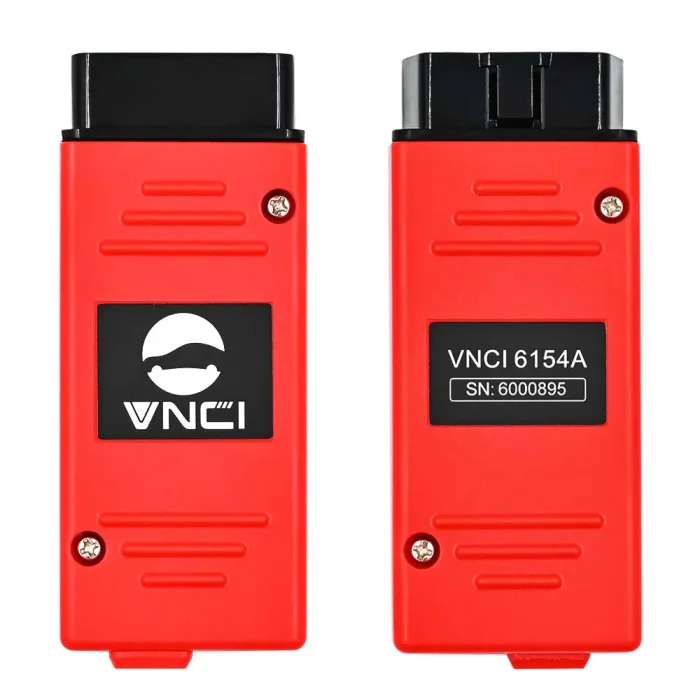

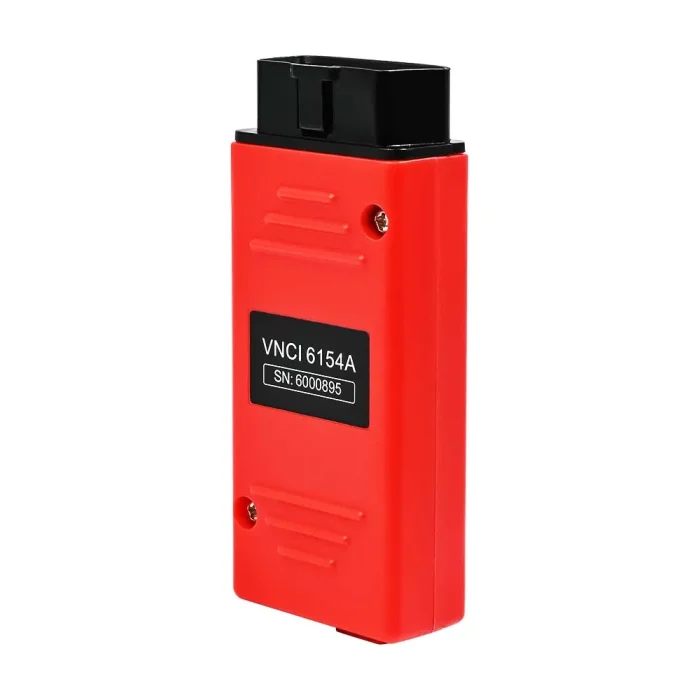

VNCI 6154A Diagnostic Tool V23.05 Original Driver Support CAN FD DoIP Cover All VAG Models

Name: VNCI 6154A Diagnostic Tool V23.05 Original Driver Support CAN FD DoIP Cover All VAG Models
SKU: 27832985
Price: 199 USD
Availability: InStock

US$ 199.00

Add to Cart

Estimate Shipping Cost

Share:: >

Adding to cart succeed

VNCI 6154A Diagnostic Tool V23.05 Original Driver Support CAN FD DoIP Cover All VAG Models

color:red,size:xxl

Subtotal: US$ 0

View My Cart

Checkout

Detail

- Product Name: VNCI 6154A Diagnostic Tool V23.05 Original Driver Support CAN FD DoIP Cover All VAG Models
- Item NO.: 27832985
- Weight: 1 kg = 2.2046 lb = 35.2740 oz
- Category: Car Diagnostic Tools > For VW/Audi/Skoda/Porsche
- Creation Time: 2025-03-07
VNCI 6154A S V23 E V17 Diagnostic Tool With V23.0.1 Software 32G USB Flash Drive

Key Features

Bundle Package: Comes with a USB flash drive for easy software installation.

Plug and Play: Works with original drivers, no need for third-party software or additional driver managers.

Full Factory Support: 100% supports all original factory functions.

License Included: Free license valid until 2030.

Wide Compatibility: Covers all VAG group vehicles from 1995 to 2023.

Flexible Connectivity: Supports WiFi, WLAN, and USB connections.

Switching Capability: Features a base station/hotspot mode switching button.

Offline and Online Programming: Supports online and offline programming (requires an online account, not provided).

Advanced Features:

Flashing of hidden features.

Supports all service and engineer functions.

No additional license required for VNCI; use normal software installation with a launcher.

Software & Hardware Versions

Software Version: V23.0.1

Compatible with:

S V9.1.0, V10.0, V11.0, V23

E: V14.1/V15.0/V16.0/V17.01

Hardware Version: 1.1.2.8

Newly added CAN trace function for improved stability and USB connectivity.

System Requirements

Operating System: Windows 10/11 (64-bit).

Memory: Minimum 4GB RAM.

Storage: At least 50GB free space on the C drive.

Additional Notes

Software Download: Available for Windows 10/11 (64-bit).

Device Manager: Free download available (V2.5).

WiFi Password: Default password is "12345678".

What’s Important to Know

The VNCI 6154A is not a J2534 PassThru device due to its updated firmware.

It supports the latest service software and can operate continuously for 8 hours.

Compatible with CANFD DOIP protocol for advanced diagnostics.

VNCI 6154A DOIP Covered model:

For VW: 1995Y-2023MY+
For Audi: 1995MY-2023MY+
For Seat: 1995MY-2023MY+
For Skoda: 1995Y-2023MY+
For Bentley: 1995MY-2023MY+
For Lamborghini: 1995MY-2023MY+
For MAN: 1995MY-2023MY+

Red VNCI 6154A DOIP VW Diagnostic Tool Features:

FULL Multilanguage edition covered 22 languages: English (GB), English (US), French (FR), German (DE), Spanish (ES), Russian (RU), Greek (GR), Danish (DK), Croatian (HR), Italian (I), Hungarian (HU), Netherlands (NL), Polish (PL), Portugal (PT), Romanian (RO), Slovenian (SLO), Finish (FI), Swedish (SW), Turkish (TR), Czech (CZ), Japanese (JP), Chinese (CN), Korean (KO).

Fully compatible with original driver: VNCI 6154A is perfectly compatible with original driver, supports the latest version of
oftware, and can be compatible with different versions of software in the same computer system.

Support for DoIP and CAN FD protocols: VNCI 6154 supports DoIP and CAN FD protocols, as well as online functionality, ensuring
you can perform efficient online diagnostic operations.

Plug and play, no third-party software required: With VNCI 6154A, you do not need to replace the original driver file or install
third-party software, you can simply plug it into your device and use it immediately without affecting the use of the original
6154AAs device.

Affordable: The VNCI 6154A is less than one-tenth the price of the original device, giving you the same superior diagnostic
performance in a more economical way.

Multi-functional applications: The VNCI 6154A performs diagnostic, programming and anti-theft matching operations for V-A-G
vehicles to meet your various needs in terms of vehicle repair and integrated services.

Three connection modes: The VNCI 6154A offers three connection modes, including USB connection mode, AP hotspot connection mode
and LAN connection mode, giving you a more flexible operating experience.
* USB Connection Mode: Connect via the USB cable.

* AP Direct Connection Mode: Connects to a computer via the built-in WIFI of VNCI 6154A, similar to Bluetooth connection.

* Base station Connection Mode: Connect the VNCI 6154A device and the computer to the same local area network.

* AP connection mode and station connection mode can be switched through the device button.
VNCI 6154A DOIP Functions:
Online function
Clear fault codes
Flashing of hidden features
Coding and programming
Covering most of the models under Volkswagen Group's automotive brands
Support service V9.10/V10.0/V11.0+/V23.0.1
Support Engineer V14.1/V15.0/V16/V17.01+
100% Support DoIP protocol
100% Support CAN FD protocol
Support KWP2000/UDS/CAN/K-Line......etc protocol
100% support all protocols
Vehicle diagnosis
Online/Offline programming
Flashing of hidden features
Support all service and engineer function
etc...

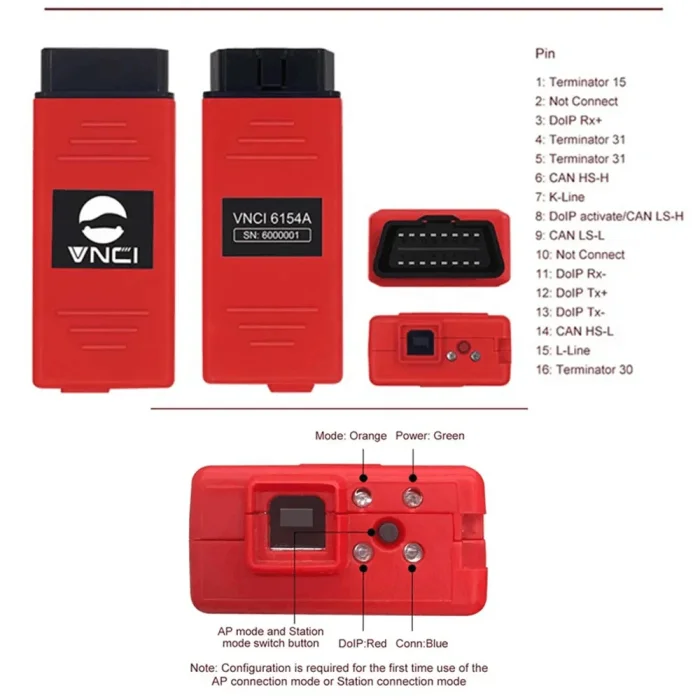

LED light instructions:
Orange: Mode
Green: Power
Red: DoIP communication
Blue: Connection status
Button: AP connect mode and Station connect mode switch button
New Type SVCI 6154A (Red VNCI 6154A) Fixed some bugs:

1. Fixed that Interface heats up after long time use (lost firmware)
2. Fully Supported CAN FD and Doip protocols
3.Compatible with Original all versions driver(Old 6154 only compatible with Original V24 Driver)
4. Upgrade to support S 9.1/10.0/V11.0 and E V14.1/V15.1/V16
5. Directly use with original software and no need for Driver Manager

Why you choose the NEW 6154A VNCI DOIP Version?
* DOIP 6154 can support DOIP diagnosis, especially it can do 2018 to 2020 new cars,

* DOIP 6154 supports more protocols (CAN FD and DoIP) than the old 6154.

You don't need any program or manager to run this VCI.
The VCI loads the firmware very stable.
It works with WLAN and also with USB.

VNCI 6154A Power Supply Methods:

OBD port 12V power supply
USB port 5V power supply

Customer Questions & Answers

1. What ODIS software can it support?

Answer: The Latest Version is ODIS V11.0, compatible with ODIS Engineer: V14.1/V15.0/V16.0.

2. Is there a CD driver included in the package?

Answer: No, there is no CD included. The VNCI 6154A works with the original driver, so no driver manager is needed.

3. Does it provide connection to 2023 and 2022 model vehicles?

Answer: Yes, the VNCI 6154A covers all Volkswagen Group models from 1995 to 2023 and beyond.

4. How can I connect the VNCI 6154A?

Answer: The VNCI 6154A supports WiFi, WLAN, and USB connections.

5. What operating system can be used for the VNCI 6154A?

Answer: The VNCI 6154A is compatible with the following operating system:

Windows 10 64-bit Professional Edition

Minimum 4GB RAM

At least 100GB free space on the C drive

6. Can I use a voltage converter from 24V to 12V for MAN diagnostics?

Answer: Yes, the VNCI 6154A supports this configuration.

7. How can I use the VNCI 6154A for MAN diagnostics? Does it support 12V and 24V systems?

Answer: The VNCI 6154A supports 12V MAN diagnostics. To use it for MAN diagnostics, please switch the ODIS software to the MAN license and try again.
