V521 OBD2 Scanner EOBD Code Reader Auto Engine System Diagnostic Lifetime Free

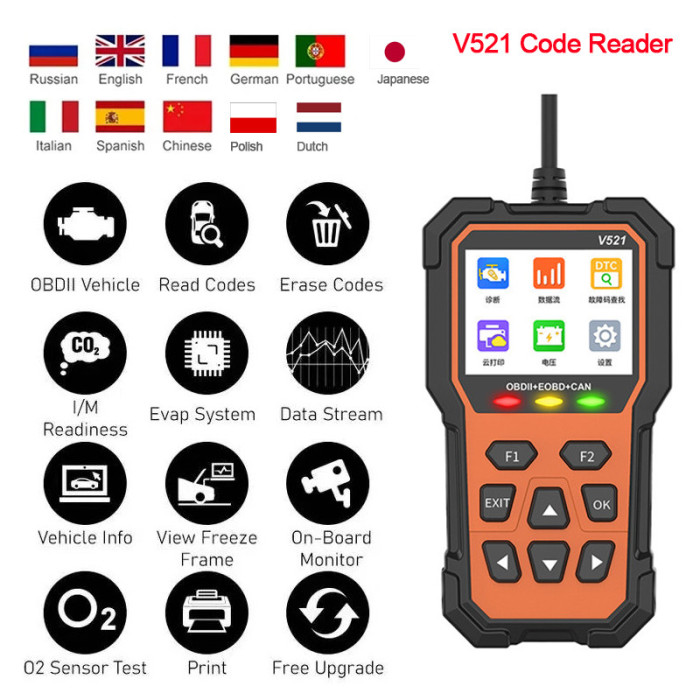

V521 is an essential code reader scan tool for car owners and mechanics alike, designed to diagnose and troubleshoot engine issues efficiently. This article explores the supported languages, extensive vehicle coverage, technical specifications, and key functionalities of the V521 scanner, ensuring you can make informed decisions about your vehicle's health.

V521 Scanner Supported Languages

V521 obd2 scanner is user-friendly and accessible to a wide range of users, supporting the following languages:

• English
• German
• French
• Spanish
• Italian
• Russian
• Dutch
• Chinese
• Japanese
• Portuguese
• Polish

V521 Scanner Vehicle Coverage

The V521 scanner is compatible with a variety of vehicles across different regions. Below is a detailed overview of the vehicle coverage:

America Car List

To use the V521 scanner in America (including Brazil), vehicles must meet the following criteria:

• OBD2 Standard: Required
• Release Years: 2001 to present

Europe Car List

For European vehicles, the V521 scanner supports:

• OBD2 Standard: Required
• Release Years: 2004 to present

Asia Car List

In Asia (including Australia), the V521 scanner is compatible with:

Japanese Cars

• OBD2 Standard: Required
• Release Years: 2006 to present

Chinese Cars

• OBD2 Standard: Required
• Release Years: 2011 to present

Russia Car List

For vehicles in Russia, the V521 scanner supports specific models:

Product Specifications

The following table outlines the technical specifications of the V521 scanner, highlighting its operational parameters and physical characteristics:

What is the V521 Code Reader Scanner Functions?

The V521 scanner offers a range of features to enhance vehicle diagnostics:

1. Engine Fault Code Management

• Scan and Clear Codes: Quickly identify and clear engine fault codes, with access to over 3,000 code definitions to help diagnose issues effectively.

2. Engine Data Display

• Current Engine Data: Monitor key parameters, including:
  • Engine RPM
  • Coolant temperature
  • Fuel pressure
  • Oxygen sensor voltage
  • Fuel system status

3. Data Logging and Monitoring

• Data Chart Display: Log and view real-time data for fuel consumption and other critical metrics.
• Freeze Frame Data: Access historical data snapshots to aid in diagnostics.

4. Compatibility

• The V521 scanner is applicable to most vehicles in the United States from 1996 onwards, and in Europe and Asia from 2000 onwards, covering both household and imported cars.

5. Check Engine Light Diagnostics

• I/M Monitor Ready: Easily determine the cause of the check engine light, reset the MIL (Malfunction Indicator Lamp), and view freeze frame data for further insights.

V521 Scanner Technical Features

1.Automobile engine fault diagnosis
2.Automotive engine fault removal
3.Automobile performance test
4.I Automobile Fault Freeze Frame
5.Vehicle information reading
6.Car I/M readiness status
7.Car battery voltage reading
8.Oxygen sensor test
9.EVAP test
10.Real-time curve
11.Real-time data flow reading
12.Fault code inquiry
13.Color screen display 2.8 inches
14.Mode 6
15.Mode 8
16.Fault code library 4w+
17.Support 55 brands of supplier-specific codes
18.Cloud printing

V521 Scanner Supported Protocols

1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

What's the Difference Between V521 and V519

Feature	V519	V521
Hardware Storage ROM	4M	32M
OBD Cable Length	80 cm	90 cm
Cable Head Type	Standard	Rubber coated male head
Packaging	Regular aircraft box	Black adhesive drawer box + black storage bag
Weight	323 g	440 g
Fault Codes Supported	35,501	40,000
Supplier Specific Code Brands	48	55
Supported Languages	10	11 (Polish added, improved second-level language)
Printing Function	Wired printing (no data cable included)	Cloud printing (QR code generation for fault codes, data streams, and frozen frames)
Performance Testing Function	Not supported	Supported (acceleration, brake testing, distance testing, etc.)

Conclusion

The V521 scanner is a versatile and powerful tool for diagnosing and troubleshooting vehicle issues across a wide range of makes and models. With its extensive language support, robust vehicle coverage, and comprehensive specifications, it is an invaluable asset for both car owners and professionals.
