Fgtech Galletto 4 Master V54 ECU Programmer Chip Tuning Tool

The FGTech Galletto 4 Master V54 is a cutting-edge chip tuning tool designed for automotive enthusiasts and professionals. This versatile device supports various vehicles, including cars, trucks, motorcycles, and marine vessels. Its advanced features allow for quick and secure chip tuning through BDM, Tricore, and OBD protocols, making it one of the leading solutions in the market.

Key Features of FGTech Galletto 4

1. High-Speed Technology

The FGTech Galletto 4 is equipped with USB2 technology, ensuring high-speed data transfer and reliable connections. This allows users to perform programming tasks swiftly and efficiently.

2. Multi-Language Support

With support for multiple languages—including English, Italian, German, French, Spanish, Portuguese, Czech, and Turkish—the FGTech Galletto 4 is accessible to a wide range of users regardless of their native language.

3. Comprehensive Vehicle Coverage

This tool is designed for a broad spectrum of vehicles:

• Cars (12V)
• Trucks (24V)
• Motorcycles
• Marine Applications

4. Ready to Use

The FGTech Galletto 4 comes with an unlock version, allowing users to utilize the tool right out of the box without the need for activation.

5. Boot Mode Functionality

The device supports multiple Boot Mode operations, making it compatible with various hardware and protocols. This feature is vital for accessing and programming different ECU types.

6. Compatibility with Operating Systems

The FGTech Galletto 4 is supported on Windows XP and Windows 7 (32-bit) systems, offering flexibility for users with older computers.

Boot Mode System Breakdown

The Boot Mode system of the FGTech Galletto supports:

• Sak TC1766
• Sak TC1767
• Sak TC1792
• Sak TC1796
• Sak TC1797

These capabilities allow seamless communication with different ECU architectures, including:

• Freescale MPC series
• Motorola MC series
• Delphi DCM and more.

FG Tech Master Version Capabilities

Advanced Functions

• Recovery Mode for troubleshooting
• DTC Erasing to clear diagnostic trouble codes
• Real-Time Battery Voltage Monitoring to check vehicle power levels
• Automatic Checksum Calculations for various protocols, ensuring precise tuning

FGTech Galletto V54 Automatic Checksum

1. Protocol Support:

   • The tool supports a wide range of older ECU protocols from various manufacturers, including Bosch, Marelli, Siemens, Delphi, Lucas, and Denso.
   • This indicates its versatility in working with a multitude of vehicles and ECU types.

2. Boot Mode Compatibility:

   • Lists specific microcontroller families and models that the tool can work with in boot mode, such as C167x, ST10, Infineon Tricore, and various Motorola MC683xx series parts.
   • This suggests the tool can access deeper functionalities for programming and diagnostics through boot modes, which are often used for secured or advanced vehicle systems.

3. Voltage and Vehicle Types:

   • Indicates that the tool can operate with car and industrial vehicles using a voltage range of 5-30V, making it suitable for a variety of machinery beyond just passenger cars.

4. Communication Protocols:

   • Details communication protocols and interfaces:
     • L-Line/K-Line (KWP) and CAN bus for diagnostic communications.
     • Supports CAN Bus version 2.0 with a baud rate range of 50 Kb to over 1000 Kb.
     • Lists specific automotive communication protocols like J1850 (VPW and PWM used primarily by Ford).

5. Automatic Setup Features:

   • Describes automatic setup capabilities for pull-up resistors on K-Line and termination resistors for CAN bus connections, enhancing the ease of use and ensuring proper communication without manually configuring these settings.

Comparing the Top Three ECU Programmers: KESS Ksuite V2 Master, Ktag Master, and Fgtech Galletto V54:

The KESS Ksuite V2 Master is designed for cars and trucks, supporting protocols like OBD2, CAN, and EDC17, as well as BDM and Motorola connections through a CD. It offers 60 tokens, with an option to acquire 500 more via the j-Link tool for free.

The Ktag Master also supports various vehicles, including cars and trucks, utilizing protocols such as EDC17 and MED17. It allows ECU programming through both OBD2 and CD connections, similar to KESS, providing a robust solution for a range of programming needs.

On the other hand, the Fgtech Galletto 4 master is versatile, supporting cars, trucks, motorbikes, and marine vehicles with protocols like JTAG, BDM, and Motorola. It effectively works with both OBD2 and BDM methods, and while it does not require tokens for updates, it is particularly well-regarded for its OBD capabilities and anti-lock module features.

All three programmers are multi-language compatible, making them user-friendly for various regions. Each device has its own strengths, with KESS and Ktag excelling in OBD functionalities, while Fgtech shines in BDM programming and handling newer encrypted vehicles.

FGTECH Galletto V54 Performance Summary

Successful Read/Write Operations:

• VAG ECUs:

  • EDC16U34, EDC16U1, MED9.1, EDC16P, EDC15V, EDC17CP14 (03L906022G) - All read/write operations successful via OBD.
  • Audi ME 7.1.1 (3.0 V6) - Read successful; awaiting flash.

• Fiat Multijet:

  • MJD 6F3 - Read/write operations successful.

• Renault:

  • Siemens S3000 and EDC15C13 - Read/write successful in both K-line and boot mode.

• Ford:

  • EECV 1.8 TDDI - Read/write operations successful.

• Mercedes:

  • Various models including W211 (EDC16C3) and W203 (EDC16CP31) - Successful read/write operations via OBD.

• BMW:

  • EDC16C31, EDC16C35, and EDC17 in boot mode - Successful read/write operations.

• Peugeot/Citroen:

  • Multiple ECUs including EDC16C34 and DCM 3.4 - Successful read/write operations.

• Other Brands:

  • Successful operations reported for various models from Mazda, Mitsubishi, and Volvo.

Notable Failures:

• Mercedes W211 2.2 CDI (EDC16C3): Read/write failed via OBD but was successful via BDM.
• Opel Astra J (Denso): JTAG read/write not successful, although Ktag performed well.
• BMW E90 (EDC17): Read successful, but write failed in OBD mode; successful in boot mode.

General Observations:

• The FGTECH V54 demonstrates strong performance with a wide range of ECUs, particularly for VAG, Fiat, and Renault vehicles.
• It excels in OBD read/write operations but faces challenges with certain models, especially those with advanced security features or protection mechanisms like Tricore.
• The galletto master supports both OBD and BDM methods, providing versatility for various ECU types.
• Users have reported a high success rate with many common ECUs, making it a reliable choice for locksmiths and automotive technicians.

Installation Guide for FGTech Galletto 4 V54 on Windows 7

Step-by-Step Installation

1. Change the Computer Date: Set the date to 01.01.2013.
2. Install Drivers: Use the designated driver folder located in C:\FgTech\fgtech_new_driver.
3. Install Galletto Software: Follow the instructions to install the FGTech Galletto program.
4. Power Up: Ensure the FGTech tool is connected to a vehicle with 12V voltage.
5. Run Software: Start the Galletto software to begin programming.

Package Contents

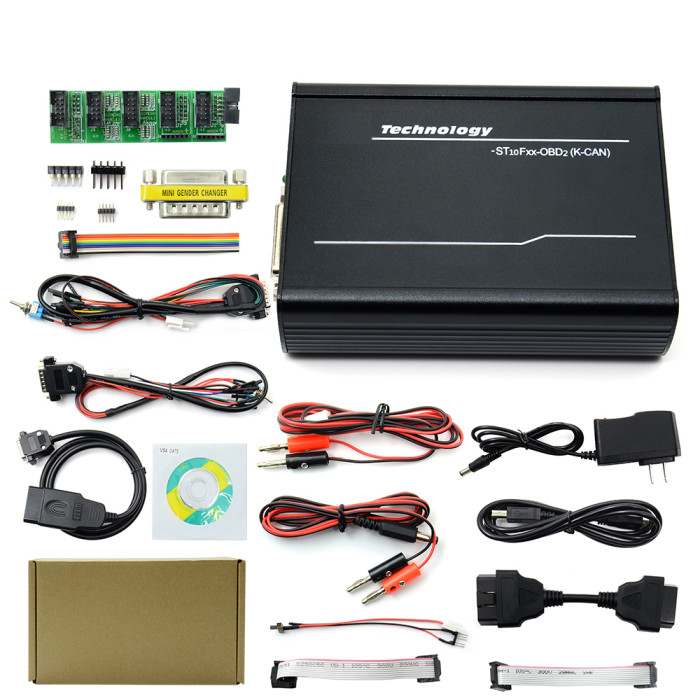

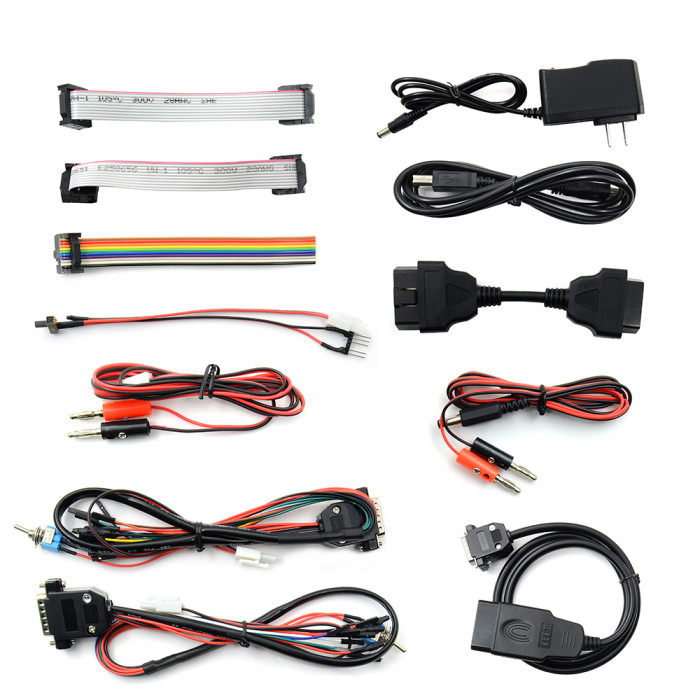

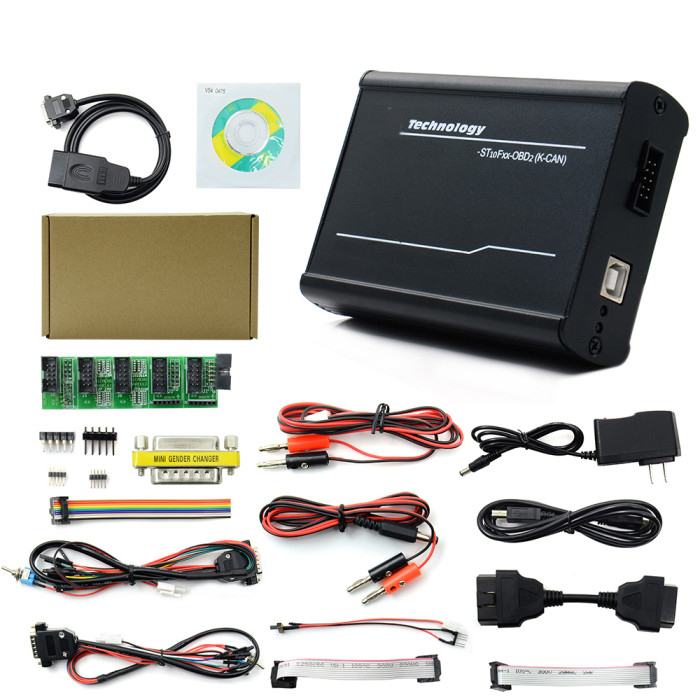

When purchasing the FGTech Galletto 4 Master V54, you will receive:

• 1 x Main Interface
• 1 x ECU Cable for Boot
• 1 x BDM to CMD Adapter with BDM Cables
• 3 x BDM Adapters
• 6 x BDM Connectors
• 2 x Power Cables
• 1 x OBD2 Cable
• 1 x USB Cable (1.5 meters)
• 1 x Software CD (2012 Version SW - Master, Documents PDF, Pictures, etc.)

Conclusion

The FGTech Galletto 4 V54 is an essential tool for automotive professionals involved in chip tuning and ECU programming. Its extensive range of features and functionalities makes it a top choice for those looking to enhance the performance of multiple vehicle types. Whether you're a technician or a car enthusiast, the Galletto 4 offers reliability and efficiency for all your ECU programming needs.
