Autel MaxiDiag MD806 Pro OBD2 Scanner All System Auto Scan Fault Code Reader

Introduction to MaxiDiag MD806 Pro

The MaxiDiag MD806 Pro is a obd2 scan tool designed to elevate your vehicle diagnostic experience. With its extensive features, including oil service reset, battery registration, and advanced system access, the autel MD806 Pro is an essential tool for both professional mechanics and DIY enthusiasts.

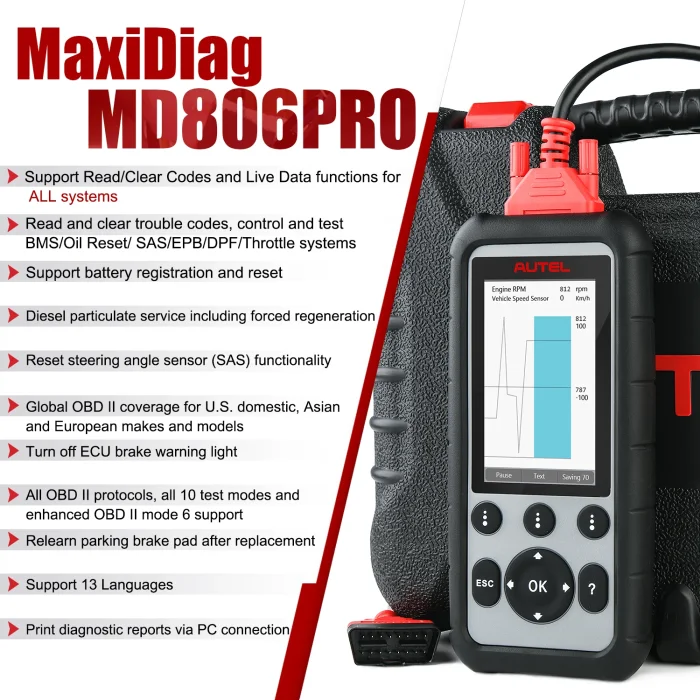

Key Features of MaxiDiag MD806 Pro

Comprehensive Diagnostic Capabilities

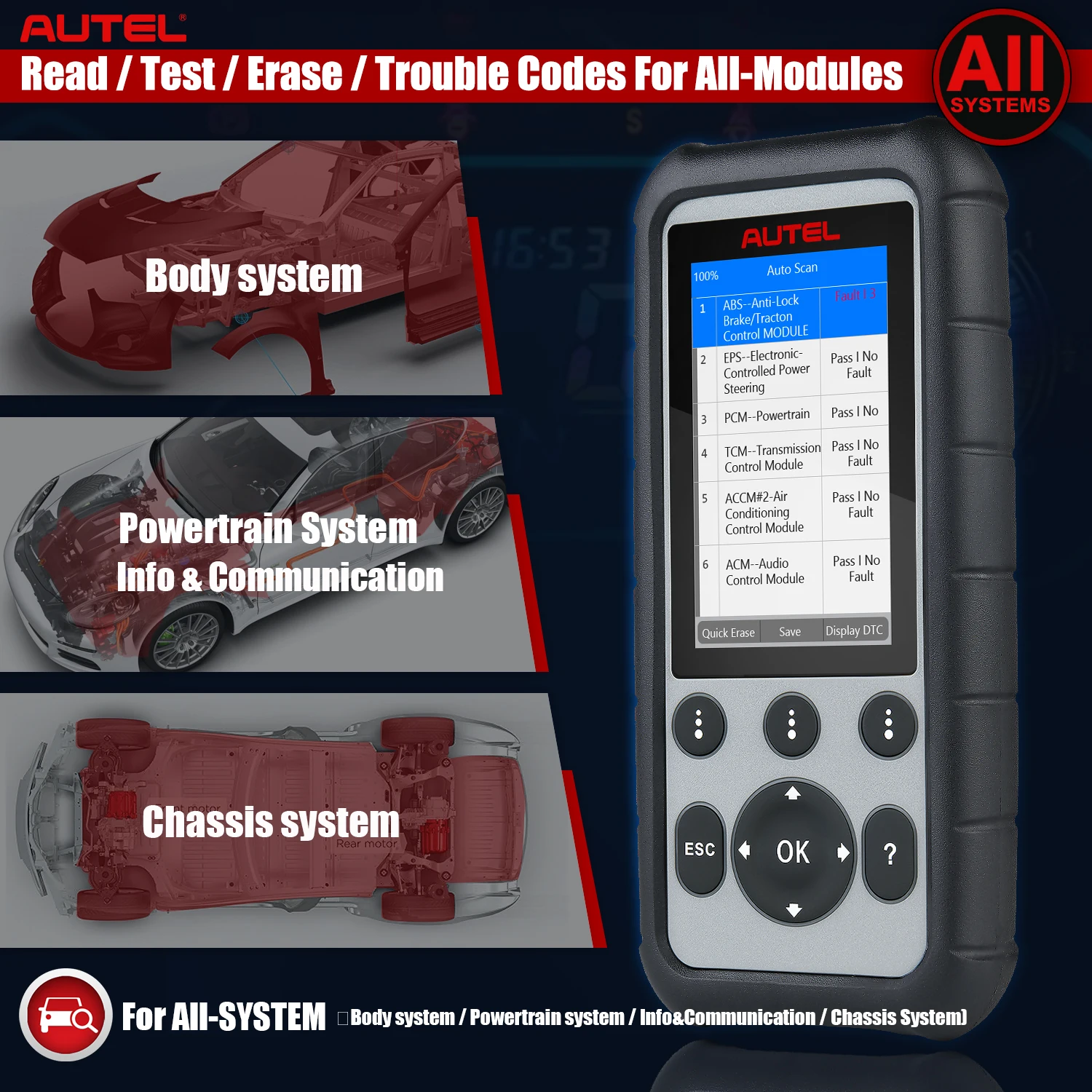

The MD806 Pro scanner supports reading and clearing trouble codes across ALL systems, including:

• Engine
• Transmission
• ABS
• SRS (Airbag)
• Powertrain

This tool allows you to read live data, access ECU information, and analyze freeze frame data to ensure your vehicle is running optimally.

Full OBDII Functions

Equipped with full OBDII capabilities, the MaxiDiag MD806 Pro enables quick and accurate diagnostics. Key functions include:

• Reading OBDII data
• Erasing trouble codes
• I/M readiness checks
• O2 sensor tests
• On-board monitor tests

These features make it an invaluable tool for passing emission tests and ensuring compliance.

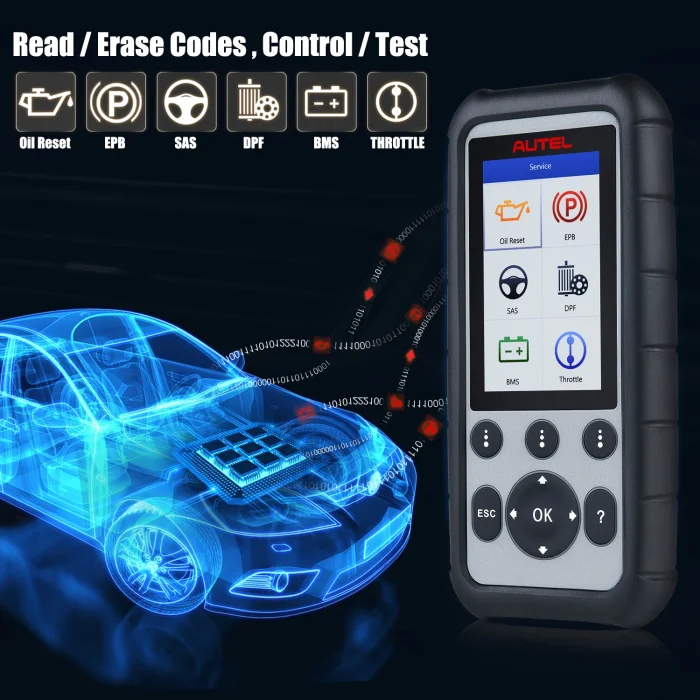

Advanced Service Functions

Seven Essential Reset Services

The MD806 Pro scan tool includes seven commonly used reset services:

1. Oil Reset
2. Electronic Parking Brake Release
3. Steering Angle Sensor Calibration
4. Diesel Particulate Filter Service
5. Battery Management System Service
6. Throttle Matching
7. Air/Fuel Ratio Adjustment

These services enhance your ability to maintain and service vehicles effectively.

Auto VIN Scan and DTC Lookup

The Auto VIN technology identifies the vehicle's make, model, and year, streamlining the navigation process. Additionally, the DTC Lookup feature allows for better interpretation and analysis of retrieved trouble codes, making diagnostics more efficient.

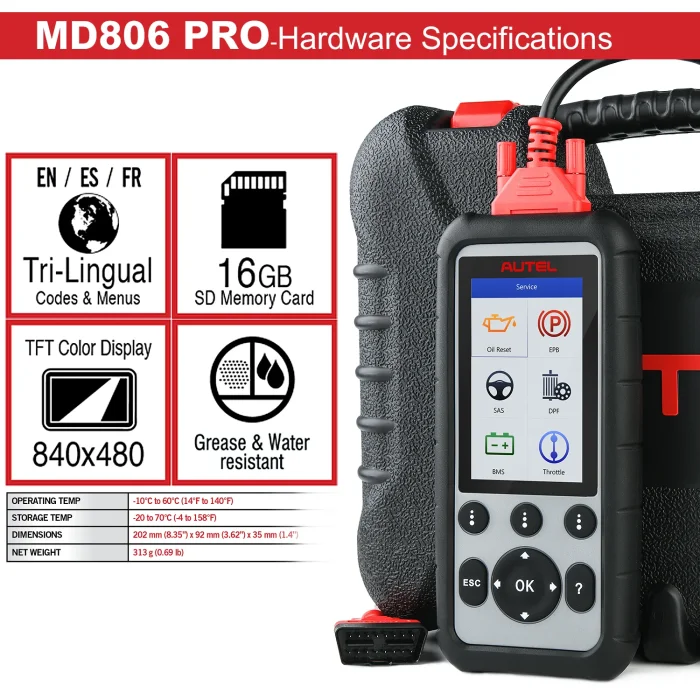

Technical Specifications

• Processor: ARM® Thumb® Processor running at up to 400 MHz
• Memory: 32MB, 166 MHz
• Display: 4.0 inch LCD with 800x480 resolution
• Connectivity: Mini USB 2.0, Micro SD Card (16GB)
• Operating Temperature: -10°C to 60°C (14°F to 140°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Dimensions: 202 mm x 92 mm x 35 mm (8.35" x 3.62" x 1.4")
• Weight: 313 g (0.69 lb.)

Compatibility and Coverage

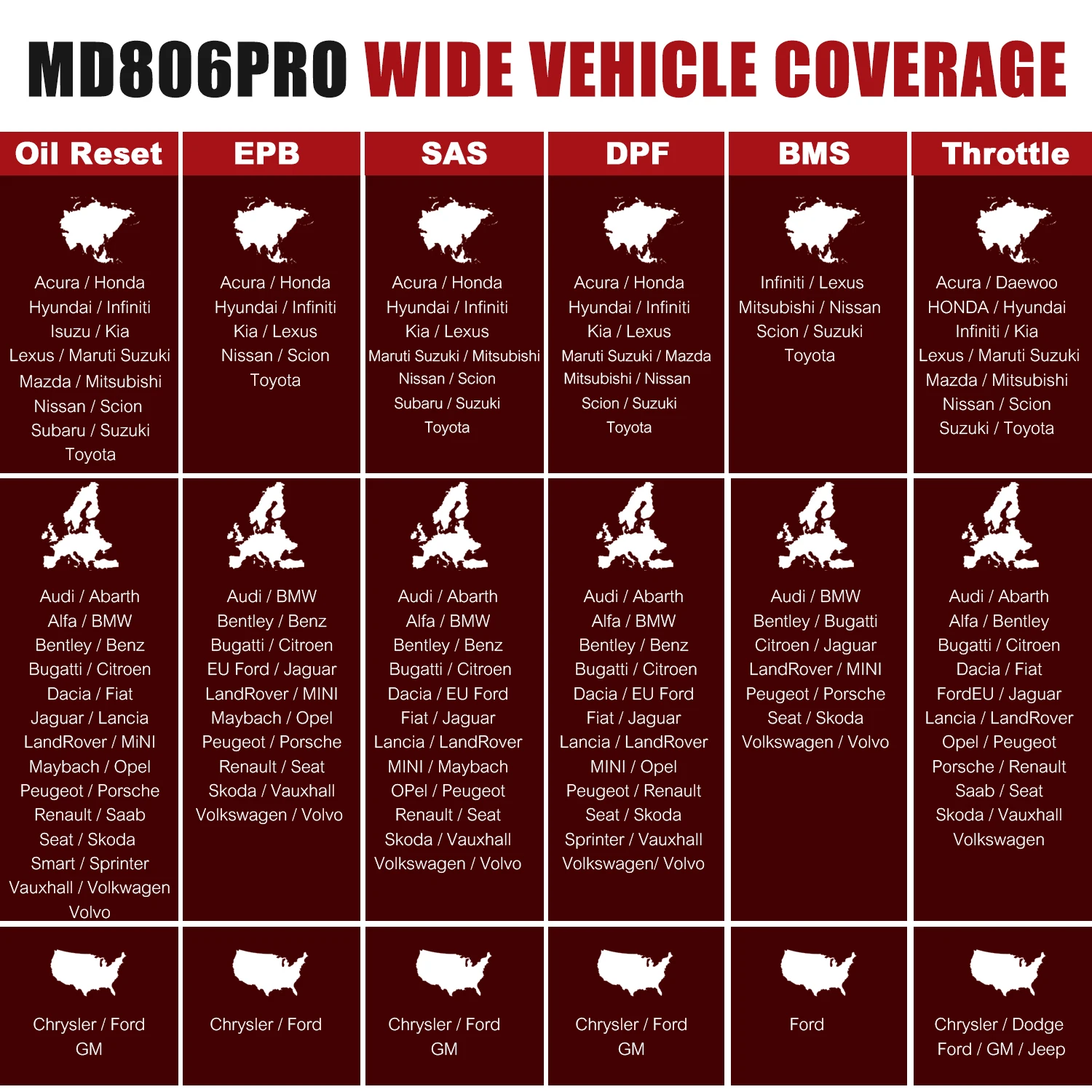

The MaxiDiag MD806 Pro is compatible with over 10,000 vehicle models across 58 brands, covering OBD1, OBD2, EOBD, and JOBD vehicles manufactured after 1996. This extensive coverage ensures that users can diagnose a wide range of vehicles effectively.

Conclusion

The MaxiDiag MD806 Pro stands out as a powerful and versatile diagnostic tool, making it an excellent choice for anyone looking to enhance their vehicle maintenance and repair capabilities. With its comprehensive features and user-friendly design, it is a must-have for both professionals and car enthusiasts.
