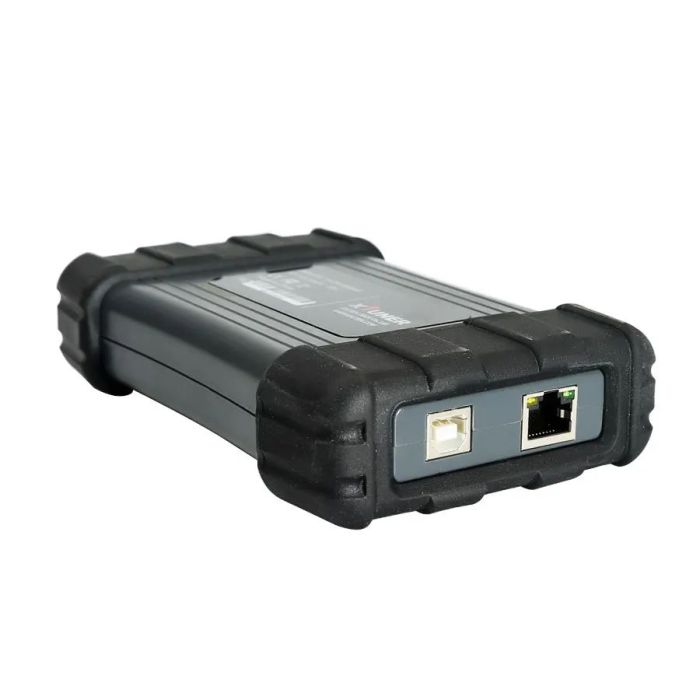

XTUNER T1 Truck Diagnostic Tool Heavy Duty Bus Excavator Truck OBD2 Diagnostic Scanner

Introduction to XTUNER T1

The XTUNER T1 is a cutting-edge truck diagnostic tool. With its extensive features and future language support, it streamlines vehicle maintenance and troubleshooting.

Key Features of XTUNER T1

Wide Vehicle Coverage

The XTUNER T1 supports an impressive range of 29 truck brands and models, including light trucks, heavy-duty vehicles, buses, and excavators, ensuring versatility in diagnostics across different vehicle types.

Comprehensive Functions

This tool boasts a suite of diagnostic capabilities:

• DTC Reading
• DTC Freeze Information
• Live Data Monitoring
• Actuation Tests
• Special Functions
• Professional Data Replay

Protocol Support

The XTUNER T1 is compatible with essential industry protocols, including:

• J1939
• J1708
• J1587

User-Friendly Connectivity

The device offers dual connectivity options: USB and WiFi, allowing for seamless communication with the vehicle's ECU.

Easy Updates

Stay current with the latest software developments through online updates available at TD Intel.

Adaptable Connectivity

The XTUNER T1 comes equipped with an OBDII connector and ten additional connectors for comprehensive diagnostic capabilities.

Durable Design

The innovative hardware design of the XTUNER T1 enhances stability and reduces interference, making it a reliable tool for intense diagnostic tasks.

Overvoltage Protection

Enjoy peace of mind with built-in overvoltage protection that safeguards both the tool and the vehicle from accidental damage during use.

Temperature Resilience

This device performs reliably in extreme temperatures, ensuring accurate diagnostics in various environmental conditions.

Versatile Operating System Compatibility

Compatible with multiple Windows operating systems, including Windows XP, 7, 8, and 10, the XTUNER T1 ensures stable performance and a wider field of application.

---

Advantages of the XTUNER T1

Broad Language Support

The XTUNER T1 currently supports English, with plans to add more languages in the future.

Comprehensive OBD/OBD2 Functionality

With complete diagnostic capabilities for vehicles from 1996 onward, this diagnostic tool is ideal for modern fleet management.

One-Key Update and Reporting

The tool features one-key updates and logging capabilities, making it simple to maintain and report on diagnostic activities wirelessly.

Intuitive User Interface

The easy-to-use touch screen interface allows for intuitive control and navigation.

Cost-Effective Solution

The XTUNER T1 provides a budget-friendly alternative to traditional repair shops and compares favorably to similar diagnostic tools in the market.

---

What Can the XTUNER T1 Do?

The XTUNER T1 can perform a wide range of functions, including:

• Reading ECU Information
• Reading and Erasing DTCs
• Clearing Learning Values
• Data Streaming
• Component Actuations
• Reading and Writing VINs
• Basic Resets and Control Unit Adaptations

Special Functions of the XTUNER T1

The XTUNER T1 also supports special functions, such as:

• DPF Reset
• Nozzle or Injector Calibration
• Fuel Pump Adjustments
• EGR and ECM Functions
• Vehicle Speed Control
• Turbo Control Adjustments

---

XTUNER T1 Hardware Requirements

To run the XTUNER T1, your system should meet the following hardware specifications:

• Operating System: Compatible with Windows laptops, PCs, or tablets
• CPU Speed: Minimum requirement of 1.0 GHz
• Memory: At least 1 GB RAM
• Disk Space: Minimum of 32 GB
• Communication Port: WiFi or USB

Warranty and Support

The XTUNER T1 comes with a one-year warranty, and the software is updated free of charge within one year from the date of product activation.

---

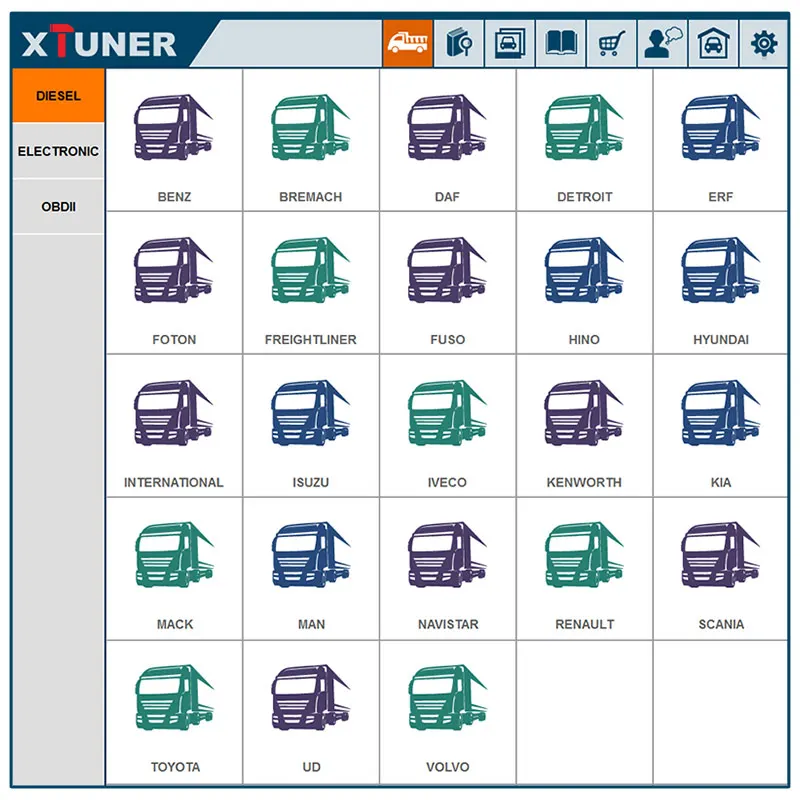

Vehicle Coverage of the XTUNER T1

The XTUNER T1 is designed to cover a wide array of brands, including:

• ALLISON
• BENZ
• DAF
• FREIGHTLINER
• HINO
• MACK
• VOLVO
• SCANIA
• ISUZU
• And many more.

Electronic Control Systems Supported

Additionally, the XTUNER T1 works effectively with BENDIX and CUMMINS electronic control systems, along with standard Diesel OBD protocols.

XTUNER System Coverage

The XTUNER T1 provides extensive coverage for various systems in heavy-duty trucks, including:

• ABS (Anti-lock Brake System)
• After Treatment System
• Airbag System
• Air Conditioning System
• ATA Anti-Theft Alarm System
• ATA (Auxiliary Heating System Air-to-Air)
• AUS (Audio System)
• BMS (Brake Management System)
• Body Control System
• Bosch DENOX AdBlue System
• Brake Control System
• EBS (Electronically Controlled Brake System)
• Engine Management System
• Instrumentation System
• Lane Departure Alarm System
• SRS (Supplemental Restraint System)
• TPM (Tire Pressure Monitoring System)
• Vehicle Control System
• And many more specialized systems.

This comprehensive coverage ensures that the XTUNER T1 can effectively diagnose and troubleshoot a wide variety of vehicle systems.

---

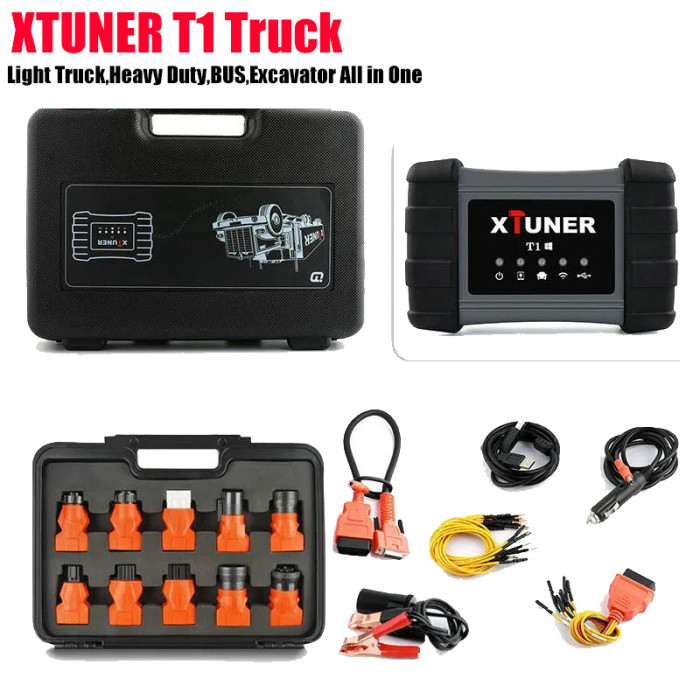

XTUNER T1 Package List

The XTUNER T1 package includes everything you need to get started:

• 1 PC x XTUNER T1 VCI
• 1 PC x Main Test Cable with OBDII Connector
• 1 PC x BENS-14 Connector
• 1 PC x CAT-9 Connector
• 1 PC x DENSO-12 Connector
• 1 PC x DIESEL-6 Connector
• 1 PC x DIESEL-9 Connector
• 1 PC x ISUZU-3 Connector
• 1 PC x ISUZU-20 Connector
• 1 PC x IVECO-30 Connector
• 1 PC x OBD-16 Connector
• 1 PC x VOLVO-8 Connector
• 1 PC x Universal Cable

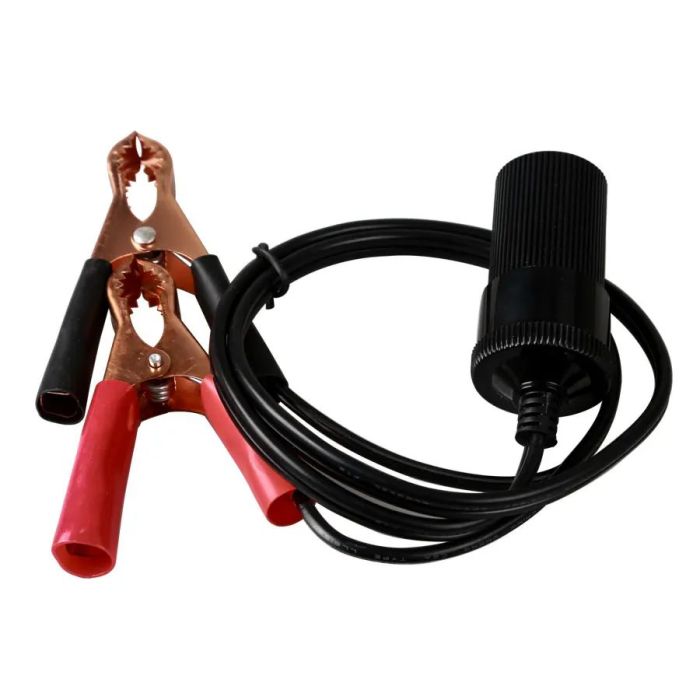

• 1 PC x Battery Cable
• 1 PC x Cigar Lighter Cable
• 1 PC x USB Cable
• 1 PC x Quick Start Guide
• 1 PC x Password Envelope

---

Conclusion

With its robust features, broad compatibility, and user-friendly design, the XTUNER T1 Heavy Duty Trucks Auto Intelligent Diagnostic Tool is an invaluable asset for anyone involved in the maintenance and repair of heavy-duty vehicles.
