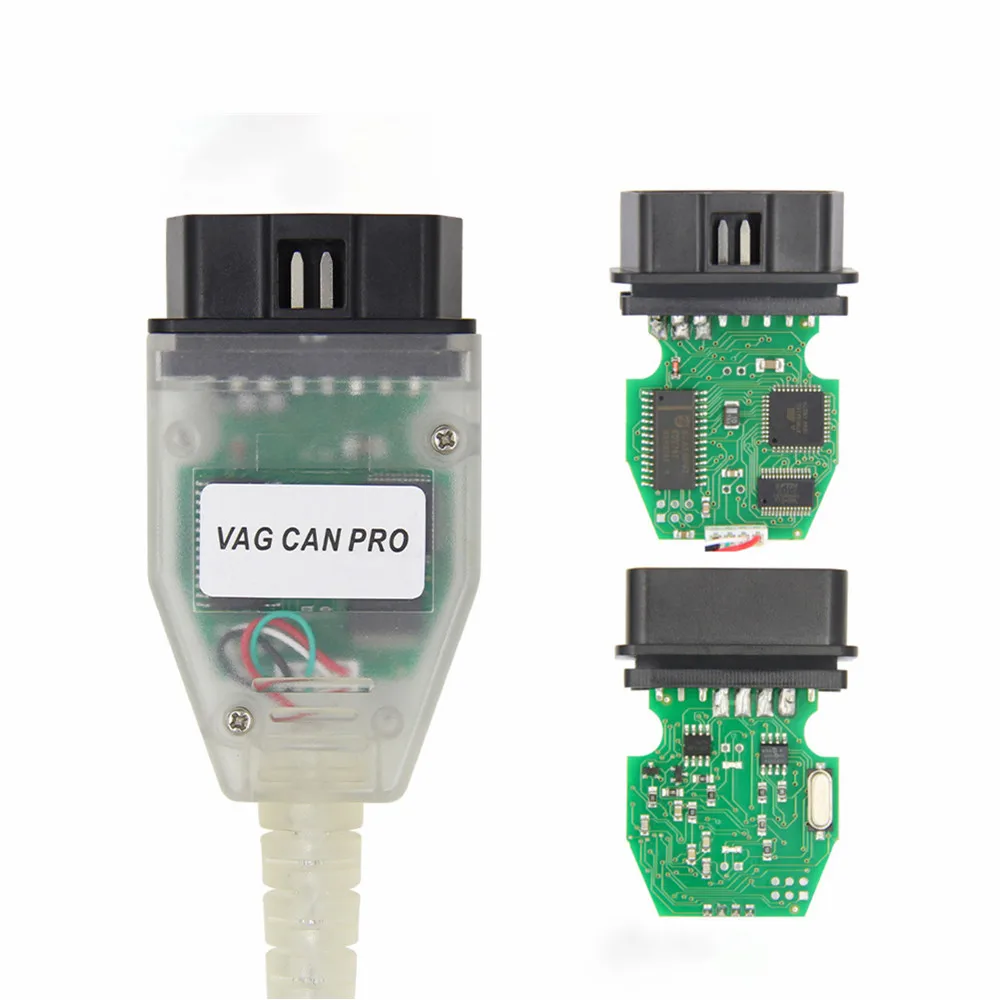

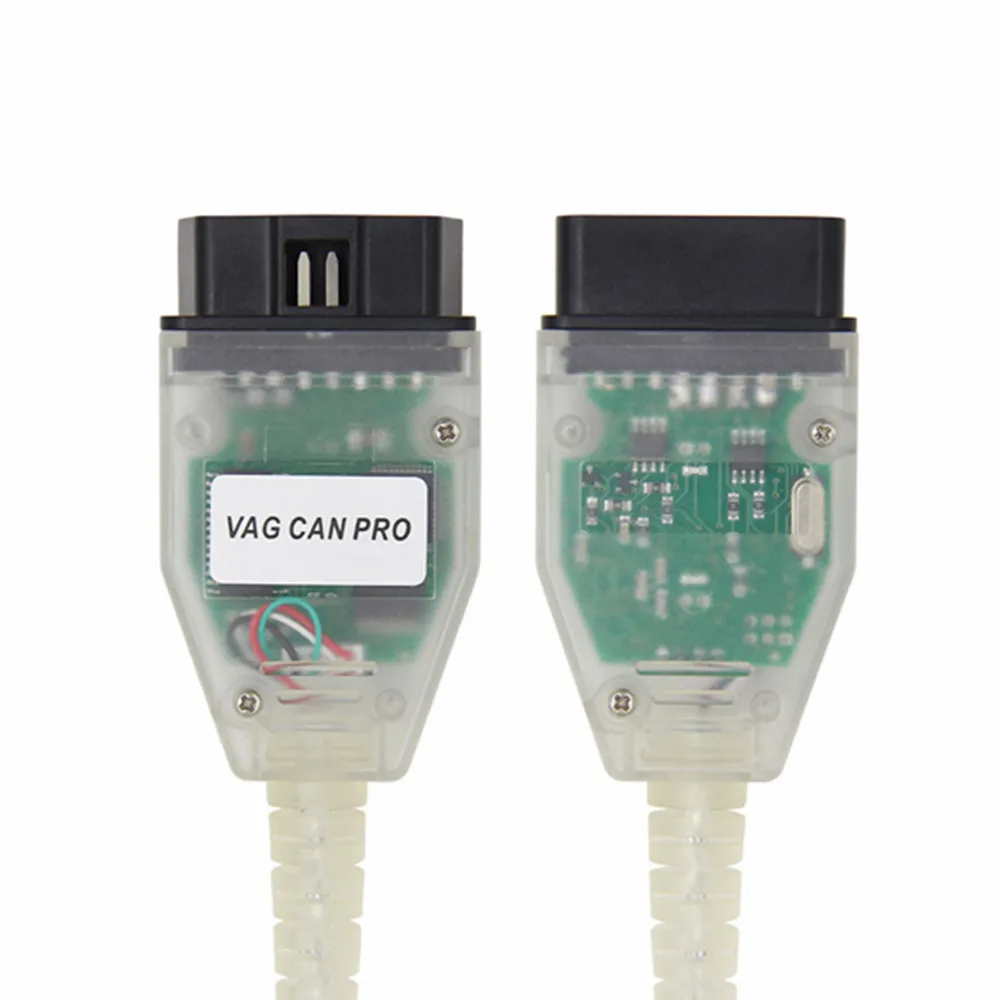

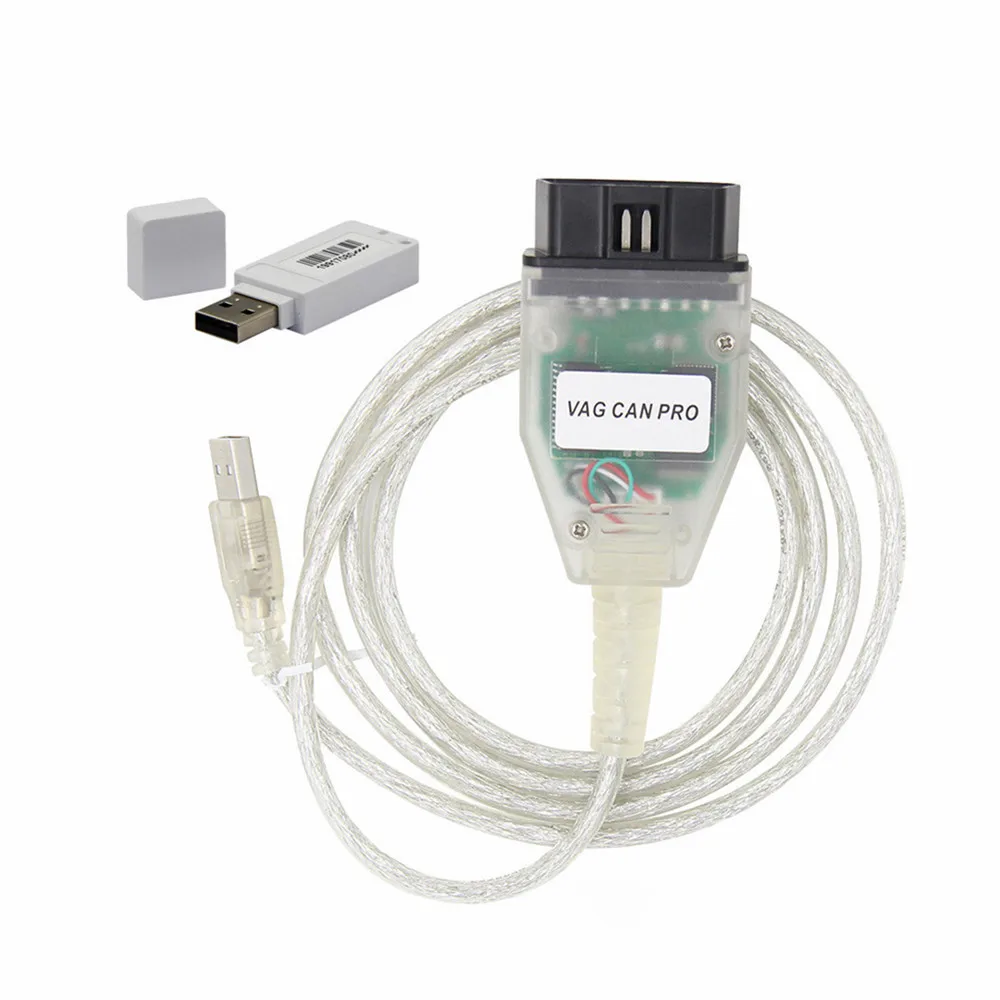

VAG CAN PRO VCP Auto Diagnostic COM Interface Scanner With Dongle For VW/Audi/Seat/Skoda

The VAG CAN PRO VCP is a powerful car diagnostic tool specifically designed for the Volkswagen Auto Group (VAG), including Volkswagen, Audi, Seat, and Skoda vehicles manufactured from 1990 to 2015. This versatile device supports various communication protocols, allowing mechanics and car enthusiasts to perform diagnostics and programming efficiently. This article delves into the main features of the VAG CAN PRO VCP, how to install it, and its advantages over other diagnostic tools.

Main Features of VAG CAN PRO VCP

The VAG CAN PRO comes equipped with unique features that make it a valuable asset for automotive professionals:

Unique Service Procedures

• OCLF Service Procedures (One-Click-Function): Simplifies the process of performing complex service tasks with just a single click.

Cost-Effective Solution for Flashing

• Inexpensive Flasher for VAG: It provides a budget-friendly alternative for flashing firmware in VAG vehicles.
• Support for UDS Controllers: This feature ensures compatibility with the latest UDS controllers.

Advanced Functionalities

• ZDC Loading Containers: Allows for the loading of zero data containers (ZDC) in electronic components.
• Unlock Video in Motion (VIM): Enables video playback while the vehicle is in motion.
• Coding Controllers for PR-Codes: Facilitates the coding of control modules according to manufacturer specifications.
• Login Finder Feature: Scans and finds login credentials for various CAN controllers using UDS protocols.

Extensive Compatibility

• Supports Newer Models: The vagcan pro is compatible with newer models like the 2014 Polo facelift and the Passat B8, as well as Audi TT-3 on the IBC platform and Skoda Fabia III.

Recent Updates in Version 5.5.1

• This version includes support for new addresses in the MLB-Evo platform and an updated database for ODX that encompasses all models up to 2015.

Why Choose VAG CAN PRO VCP?

Unique Features

The VAG CAN PRO VCP is recognized as the first third-party budget-friendly flasher for VW and offers several unique benefits:

• First Third-Party Flasher Supporting UDS: This feature expands the range of applications for the tool.
• ESP MK60EC1 Offline Coding Solution: Enables efficient offline coding, a distinct advantage for repairs and tuning.
• Full MQB Support: Designed to work with modern platforms such as Golf VII and Audi A3 Mk3.
• Parameter (ZDC) Upload: Allows for easy parameter uploads, enhancing the tool’s versatility.
• Discover Pro and MMI-MQB VIM Solution: Provides capabilities that are typically reserved for dealer-level tools.

Functionality of VAG CAN PRO VCP

Comprehensive Diagnostics

The vcp vag can enables full system diagnostics by scanning and erasing diagnostic trouble codes (DTCs) across all control modules.

EEPROM Read & Write Functions

With support for EEPROM reading and writing, you can easily manage crucial parameters, calibrate DSG gearboxes, and replace mechatronic modules.

PR Coding Tool

The vcp vag tool simplifies the activation of new features without needing extensive coding, making it user-friendly for mechanics of all skill levels.

ECU Flasher

The VAG CAN PRO vcp can import original .sgo flash files, ensuring that vehicles are updated with the latest firmware for optimal performance.

Installation Guide for VAG CAN PRO V5.5.1

Pre-Installation Requirements

• Operating System: Windows XP, Windows 7, or Windows 8 is required for optimal performance.

Installation Steps

1. Download and Prepare Files:

   • Download the VAG CAN PRO vcp 5.5.1 patch from here:VCP DOWNLOAD LINK.

2. Copy Drivers:

   • Open disk E: VCP6, copy the folder “Driver VCP,” and paste it on your desktop.

3. Unzip and Patch:

   • Unzip the folder “vcp6” and execute the sp275 patch on your desktop, replacing the existing PSA.dll and SCard.dll files in C:\VCP6.

4. Driver Installation:

   • Install the drivers found in VCP6\Driver VCP\ folder.
   • For 64-bit Windows, run dpinst-amd64.exe; for 32-bit, use dpinst-386.exe.
   • Follow the prompts to install the USB Serial Converter and USB Serial Port.

5. Final Steps:

• Connect the VAG CAN PRO cable, and launch the software.

VAG CAN PRO VCP Supported Cars:

1.  For Audi

A2 2009-
A3 8P 2003-
A3 - platform MQB-
A4 model 8E wariant B7 (Engine, transmission, airbags, ABS, park) 2005-
A4 model 8K wariant B8 (UDS + TP2.0) 2008-
A5 model 8K (UDS) 2007-
A6 model 4F 2004-
A8 model 4E 2003-
Q3 (UDS) 2010-
Q5 (UDS) 2008-
Q7 (TP2.0 + UDS) 2006-
S5 model 8K
(R)S6 model 4F
R8 (UDS)
TT model 8J 2007-

2.  For Mercedes

For Sprinter (VW Crafter) - - Only the engine and immobilizer

3.  For Seat

For Altea

For Leon MQB 2013-
For Leon model 1P 2005-
For Toledo model 5P 2004-
For Exeo 2008- (Engine, transmission, airbags, ABS, park)

4.  For Skoda

octavia model 1Z 2004 -
octavia platform MQB -
superb II B6 2008-
fabia model 5J 2007-
yeti 2009-

5.  For Volkswagen

For Crafter (immobilizer, engine)
For Caddy model 2K 2005-
For Eos
For Golf V model 1K
For Golf VI model 5K
For Golf VII platform MQB
For Golf Plus
For Jetta II model 1K
Transporter / Multivan (Only after the CAN-BUS drive for storing data)
Multivan/Transporter GP model 7E (UDS) 2009-
For Passat B6 model 3C 2005-
For Passat CC-
For Phaeton GP 2007-
For Polo model 6R 2009-
For Polo FL MQB 2014-
For Scirocco III-
For Touran-
For Tiguan-
For Touareg GP 2007-
For Touareg NF 2010

6. K-line ( KWP1281, TP/KWP2000)

For VW Golf III, IV
For VW Passat 3B
For VW Bora
For VW Transporter T5
For VW New Beetle
For VW Polo II,III,IV
For Skoda Octavia I
For Skoda Fabia i i II
For Seat Leon I
For Seat Toledo II
For Seat Alhambra
For Seat Ibiza II, III, IV

For Audi A2,A3,A4,A6 K-Line

What's the Difference Between VCP VAG CAN Pro and HEX V2 Cables?

VCP VAG CAN PRO VS. VCDS HEX V2
Item name	VCP VAG CAN PRO	VCDS HEX-V2
Software version	V5.5.1	Latest version
Supports Language	English, Czech, Danish, German, Hrvatski, Italian, Dutch, Polish, Russian, Spanish, Chinese	English, French, German, Chinese, Russian, Italian, Czech, Hungary, Spain, Portugal, Sweden, Netherlands,(Need to use loader to run other languages except English)
Supports System	Windows XP and Windows 7	Windows 7 or Newer
Supports Vehicle	VW, Audi, for Seat, for Skoda	VW, Audi, for Seat, for Skoda etc.
Car Year	1990-2015	1999-The lastest
Feature	with USB Dongle/without USB Dongle	support update online lifetime no need activation need loader
Functions	1. ESP MK60EC1 decision coding blocks 2. Diagnosis MQB platform 3. Unlock video in motion (VIM) on the MQB platform (Discover Pro and MMI-MQB) 4. Coding controllers for PR codes; 5. Scan and logins in to the CAN controllers UDS 6. Support for the new Polo in 2014 Facelift 7. Support new Passat B8 8. Full support of Audi TT3 on the platform of the IBC 9.Full support for Skoda Febia III	1. Gain factory-level access to all systems in cars 2. Scan for and clear DTCs with 19,000+fault codes decoded into plain text. 3. Alter settings through module coding accessible only by factory-level tools 4. Perform various country-specific modifications to your car 5. Reset service reminder 6. Perform built in tests and calibrations normally reserved for factory-level tools 7. Diagnose real failures instead of swapping parts!

Conclusion

The VAG CAN PRO VCP is an indispensable tool for anyone involved in the maintenance and repair of VAG vehicles. With its rich feature set, wide compatibility range, and affordability, it empowers users to perform professional-level diagnostics and programming. By following the installation instructions outlined in this guide, automotive technicians can maximize the benefits of this powerful diagnostic scan tool.
