V1.5 Elm327 USB Diagnostic Scanner PIC18F25K80 CH340 forFord forscan Elmconfig scanner elm327 usb 1.5 HS CAN/MS CAN Switch

The ELM327 V1.5 USB Diagnostic Scanner is an advanced and essential tool for diagnosing and troubleshooting Ford, Mazda, Lincoln, and Mercury vehicles. This versatile OBD2 scanner allows users to access proprietary features unavailable to standard OBD2 tools, making it the perfect choice for enthusiasts and professionals alike.

Key Features of ELM327 V1.5 USB

1. Latest Version for Enhanced Compatibility
   The ELM327 V1.5 provides improved compatibility with Ford vehicles, ensuring a seamless connection and effective diagnostics.

2. Dual CAN Bus Support
   One of the standout features of this scanner is its ability to switch between HS CAN and MS CAN buses. This modification allows users to communicate with a wider range of modules, enabling the retrieval of unique trouble codes and parameters that standard scanners cannot access.

3. FORScan Software Compatibility
   Designed specifically for use with FORScan software, this diagnostic scanner is capable of performing extensive diagnostic tasks including reading and clearing fault codes and running service procedures that are not available to other tools.

4. Multiple Software Compatibility
   In addition to FORScan, the ELM327 scanner is compatible with various software vendors, including Elmconfig (limited to a baud rate of 34800), FF2, and FoCCCus, expanding its functionality and usage.

5. User-Friendly Design
   The USB interface is designed for easy connection to vehicles via the OBD-II connector. With provided drivers and instructions, setup is straightforward, making it accessible even for those less familiar with diagnostic tools.

Technical Specifications

• Switch Configurations:

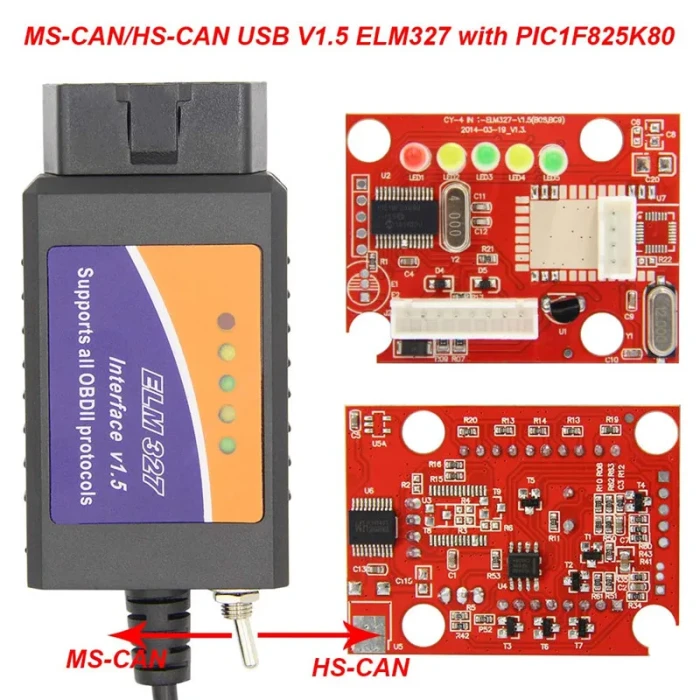

  • HS CAN: Occupies pins 6 and 14
  • MS CAN: Occupies pins 3 and 11

This design allows seamless switching based on the vehicle's requirements.

Supported Vehicles

The ELM327 V1.5 is compatible with a wide range of Ford and Mazda vehicles, including models equipped with MS CAN since approximately 2003-2004. Key models include:

• Ford Focus (2006-2016)
• Ford Kuga (2013-2015)
• New Ford Focus (2012-2015)

Conclusion

The ELM327 V1.5 USB Diagnostic Scanner is a reliable and powerful tool for anyone needing comprehensive diagnostics on Ford, Mazda, Lincoln, and Mercury vehicles. With its advanced capabilities, including dual CAN bus support and compatibility with essential diagnostic software, it is an invaluable addition to any automotive toolkit. Whether you're a professional mechanic or a DIY car enthusiast, the ELM327 V1.5 is designed to meet all your diagnostic needs.
