Reault Can Clip For V234 Reprog Can Clip Support After 2012 Auto Diagnosis Interface
![](https://us03-imgcdn.ymcart.com/86888/2024/05/16/2/3/2365ad080c334528.jpg?x-oss-process=image/quality,Q_90/auto-orient,1/resize,m_lfit,w_300,h_300)
-
- Product Name: Reault Can Clip For V234 Reprog Can Clip Support After 2012 Auto Diagnosis Interface
- Item NO.: 1005005211013455
- Weight: 1.1 kg = 2.4251 lb = 38.8014 oz
- Category: Car Diagnostic Tools > For Volvo/Renault/Nissan/Mitsubishi
- Creation Time: 2024-05-15
- Support vehicle diagnostic protocol
- ISO-9141 K-Line
- ISO-14230 K-Line
- ISO-15765 CAN
- J1850PWM
- CAN-M
- 1. See all the information relating to the vehicle
- 2. Computer test
- 3. Automatic test of all computers
- 4. Airbag test
- 5. Ccantool (OBD tests)
- 6. Base Doc (access to Technical Notes)
- 7. Physical measurements
- 8. Antipollution
Reault Can Clip Diagnostic Tool can detect and diagnose the electronic system faults of Renault vehicles, including reading fault codes, clearing fault codes, conducting dynamic data stream monitoring, computer programming matching, and component testing, etc. It is capable of communicating with the electronic control unit (ECU) of the vehicle.
It can test ENGINE (engine), automatic transmission, air conditioning system, SRS, ABS, ASR, MPL, GM, anti-theft system, KEYZESS GO system and its OBD-II system, etc.
Please do Install The Software Come From Us. DO Not use With Others Software!
If the software DVD broken, or you laptop no dvd room, you can contact us give you link to downlaod it.
Reault can clip diagnostic tool Software require computer OS : Windows 10 pro,(not support windows 7) please close your computer antiviru program and firewall before you install software, otherwise it will kill the software files with exe.
If you have installation problem, please contact us in time.

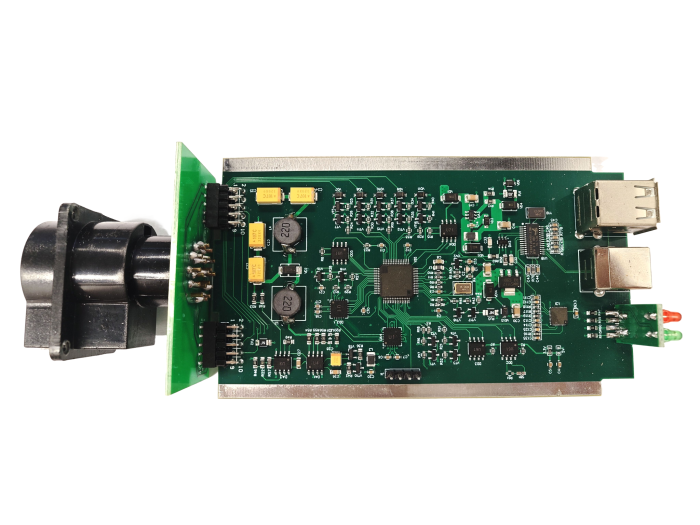

Reault can clip diagnostic toolReally PCB photo
Reault can clip diagnostic software Version: V234
Reault can clip diagnostic tool support vehicle diagnostic protocol
-
ISO-9141 K-Line
ISO-14230 K-Line
ISO-15765 CAN
J1850PWM -
CAN-M
Reault can clip diagnostic toolSupport Multi-Language:
English,
German,
Danish,
Spanish,
Finnish,
French,
Italian,
Norwegian,
Dutch,
Portuguese,
Romania,
Swedish
Reault can clip diagnostic tool functions
1. See all the information relating to the vehicle2. Computer test3. Automatic test of all computers4. Airbag test5. Ccantool (OBD tests)6. Base Doc (access to Technical Notes)7. Physical measurements8. AntipollutionCan Clip 12 Pin Cable Connection Picture.
Can Clip OBD Cable Connection Picture :

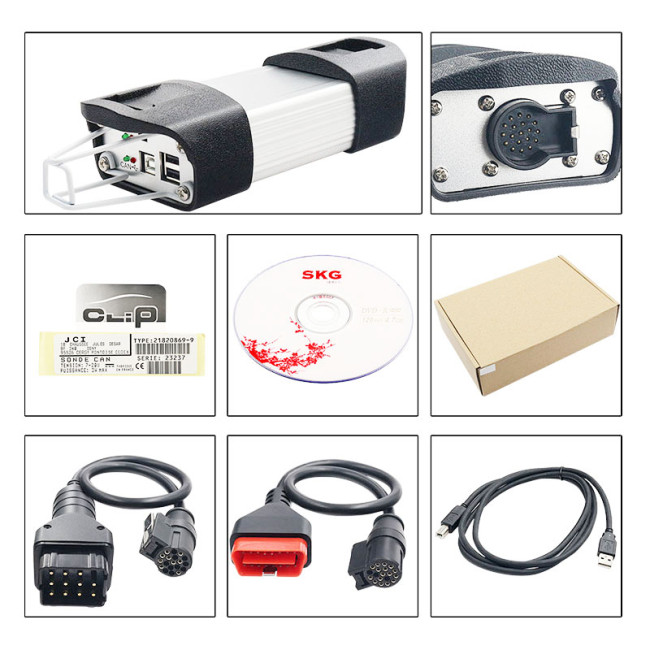

CAN CLIP DIAGNOSTIC TOOL Picture:Packing List:
1 x can clip interface
1 x 12pin cable1 x OBD II 16pin cable1 x USB Cable1 x CD
various questions and answers related to the Renault CAN Clip diagnostic tool:
1.If all four indicator lights flash but there is an issue establishing connection when entering the diagnosis menu, try installing the software on a laptop without connection to power. If the issue persists, consider returning the tool for a check.
2.To change the language from English to French, uninstall the software and reinstall it, selecting French during the installation process.
3.If the Can Clip CD appears empty when opened on different computers, check for carving traces at the back of the CD or a broken CD boot sector.
4.If prompted with error 5800, ensure the power supply is connected and the red connection indicator light flashes. If issues persist, check the software compatibility with your computer system or try a different USB interface.
5.CAN Clip for Renault supports analyzing and testing Renault Megane II from 2003 onwards, including testing electric window switches.
6.The CAN Clip can support Renault cars before 1996, including 1995 models. Provide detailed car information for further assistance.
7.If encountering the "SPX CLIP Registration Client" error during software installation, follow the provided instructions carefully and install the software on a computer running the XP operating system with the American English Professional version.
Renault CAN Clip supports diagnosing Renault Megane 2 Phase 2 models from 2008 to 2010 but does not have the capability to make keys.
