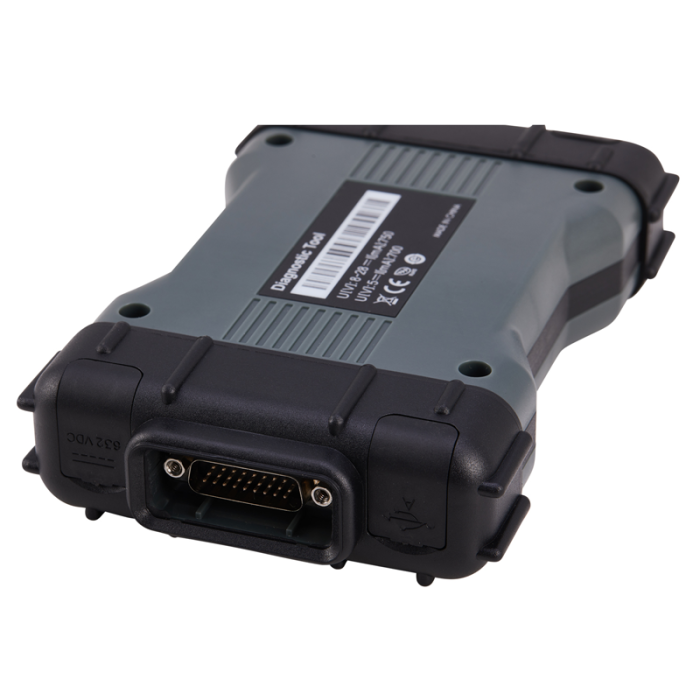

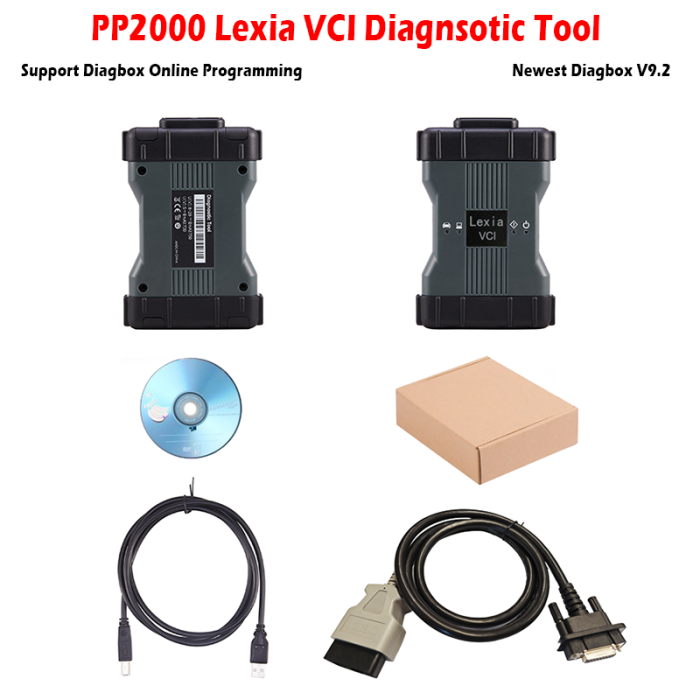

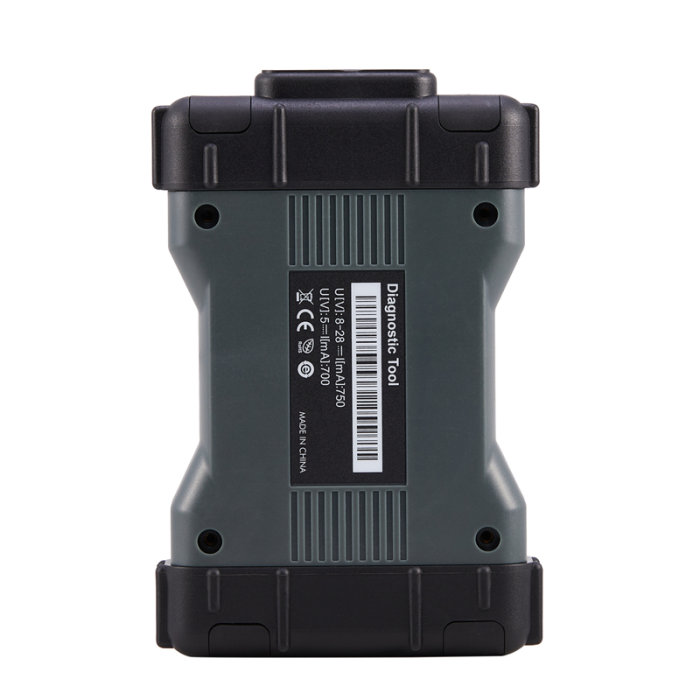

PP2000 Lexia 3 Dianostic Tool with Newest Software Diagbox V9.2 Support Online Programming

The PP2000 Lexia 3 Diagnostic Tool paired with the latest Diagbox V9.2 software is a powerful solution for diagnosing and repairing Citroen and Peugeot vehicles produced after 2010. In this guide, we’ll explore the features, compatibility, and advantages of using this diagnostic tool.

Overview of Lexia 3 Diagnostic Tool

Lexia 3 is a dealer-grade diagnostic tool designed for comprehensive diagnostics of Citroen, Peugeot, and other car brands. It allows users to perform a wide range of functions that are typically available at authorized service centers.

Key Features of Lexia 3

• Direct Installation: The latest Diagbox V9.2 software can be installed directly on the computer's C drive, eliminating the need for a virtual machine.
• Multi-Language Support: The software supports various languages, making it user-friendly for non-English speakers.
• Comprehensive Diagnostics: Capable of diagnostic, reset, adaptation, and telecoding functionalities for Citroen, Peugeot, DS Automobiles, and more.

Key Functions of Lexia 3 Diagnostic Tool

1. Diagnose Identification

   • Displays complete identification of control units, including part number, software/hardware version, and manufacturer information.

2. Scan and Read Vehicle Fault Codes

   • Shows all stored and pending fault codes with complete descriptions (e.g., "Rail pressure - too low"). Supports report printing and copying to clipboard.

3. Clear Vehicle Fault Codes

   • Allows users to clear all stored fault codes and other diagnostic information.

4. Auto-Scan (Complete Car Scan/Test)

   • Detects all ECUs installed in the vehicle and reads all diagnostic fault codes.

5. Measured Values

   • Displays live data such as engine speed, battery voltage, and coolant temperature. It can present values in graph form or list form and supports logging for offline analysis.

6. Actuator Test

   • Activates particular actuators (e.g., fuel pump, door locks) for testing and diagnostics.

7. Programming Functions/Adaptation

   • Essential for systems like engine control units, immobilizers, airbags, and alarms, requiring reset or programming after repairs or replacements.

8. Control Unit Compatibility

   • Requires minimum hardware (Intel Celeron/Pentium III 400 MHz, 128 MB RAM) and software (Windows 98 SR2/2000/XP).

Why Choose Lexia 3 Diagbox V9.2?

1. No Activation Required

With Diagbox V9.2, there’s no need for activation. Users can install it directly without hassle.

2. Multi-Brand Compatibility

This tool works not only for Citroen and Peugeot but also for Opel and FengShen vehicles, expanding its utility for multiple car owners.

3. User-Friendly Operation

The software is designed to be fast and efficient, with successful installations reported on Windows 10 Pro systems.

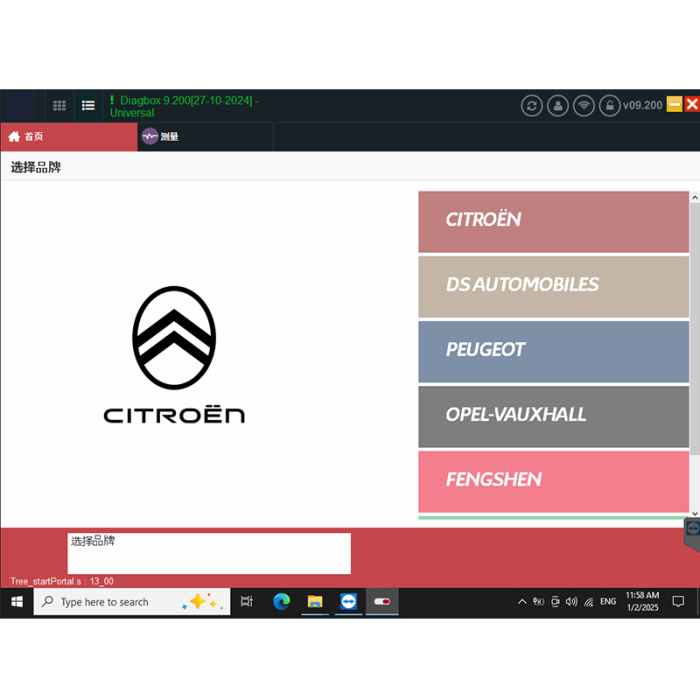

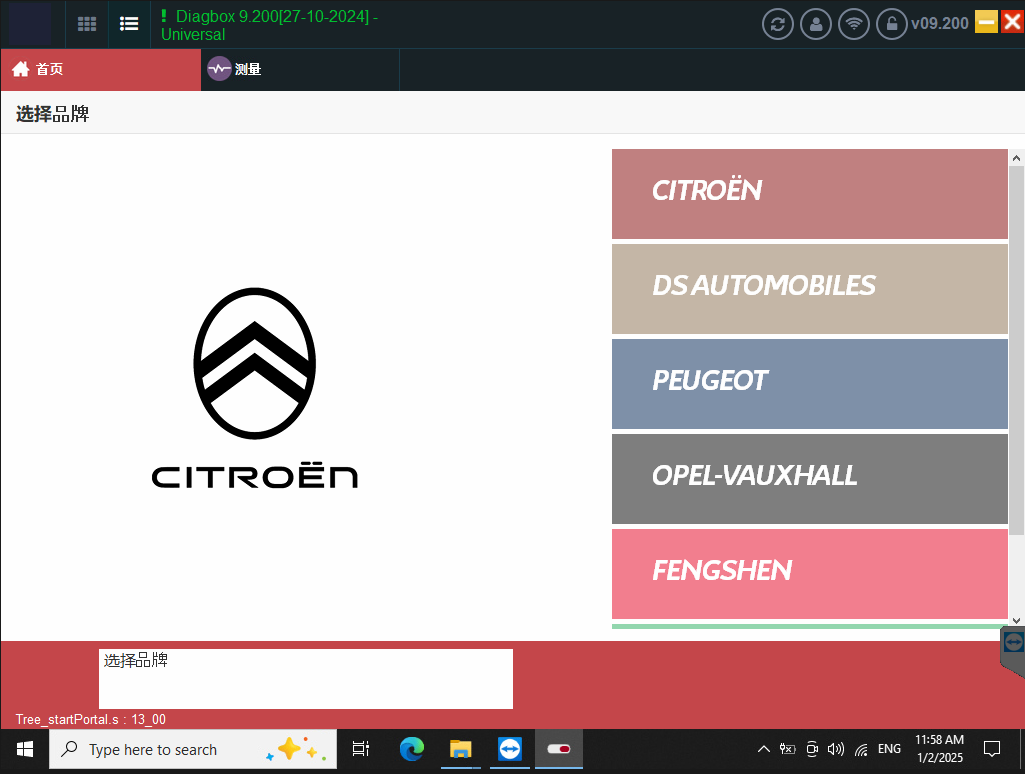

4.Support Diagbox Online Programming

The new lexia 3 VCI diagnostic tool supports diagbox online programming capabilities. If you have a diagbox online account, you can use it to connect your car to your computer for diagbox online programming. If you don't know how to program or no diagbox account, you can also contact us to provide you with remote programming services. It is also the second tool in addition to pp2000 that can support online programming

Installation Instructions

Step-by-Step Installation

To ensure a smooth installation and operation of the Lexia 3  VCI and Diagbox V9.2 software, follow these guidelines:

1. Operating System Requirements:

   • PP2000 and Lexia software should only be installed on Windows 10. Diagbox software V9.2 is also compatible exclusively with Windows 10.

2. Separate Installations:

   • Do not install Lexia and PP2000 software alongside Diagbox V9.2 on the same computer, as Diagbox encompasses both functionalities and needs to be installed individually on a laptop.

3. Disable Antivirus and Firewall:

   • Before installation, disable your antivirus software and firewall to prevent interference that could damage the software.

4. File Management During Updates:

   • Cut the file "C:\AWRoot\bin\fi\APPDIAG.SYS" before performing an update. After the update, paste it back to its original location to avoid activation problems.

Attention Points

• Diagbox V9.2 is independent and cannot use network functions.
• Use the tool post-2010 vehicles for optimal results, as it may not work well with earlier models.

Compatibility with Citroen and Peugeot Models

Citroen Coverage

The Lexia 3 tool supports a wide range of Citroen models, including:

• C-Zero, C1, C2, C3, C3 Picasso, DS3, C-Elysee, C4, C4 Cactus, C4 Picasso, DS4, DS5, C5, C6, C8, C-Crosser, C4 Aircross, Nemo, Berlingo, Jumpy, Jumper, AX, Saxo, BX, ZX, Xsara, Xantia, XM, Evasion, C15, and others.

Peugeot Coverage

For Peugeot vehicles, the Lexia 3 diagnostic tool is compatible with models such as:

• iON, 107, 108, 206, 207, 301, 307, 308, RCZ, 407, 508, 607, 807, 1007, 2008, 3008, 4007, 4008, 5008, Bipper, Partner, and several others from 1995 onwards.

Conclusion

The Lexia 3 Diagnostic Tool with Diagbox V9.2 is an excellent choice for performing in-depth diagnostics and repairs on Citroen and Peugeot vehicles. Its extensive functionalities, combined with easy installation and maintenance, make it a preferred tool for both professional mechanics and automotive enthusiasts. Always confirm your vehicle's compatibility to ensure optimal performance and results.
