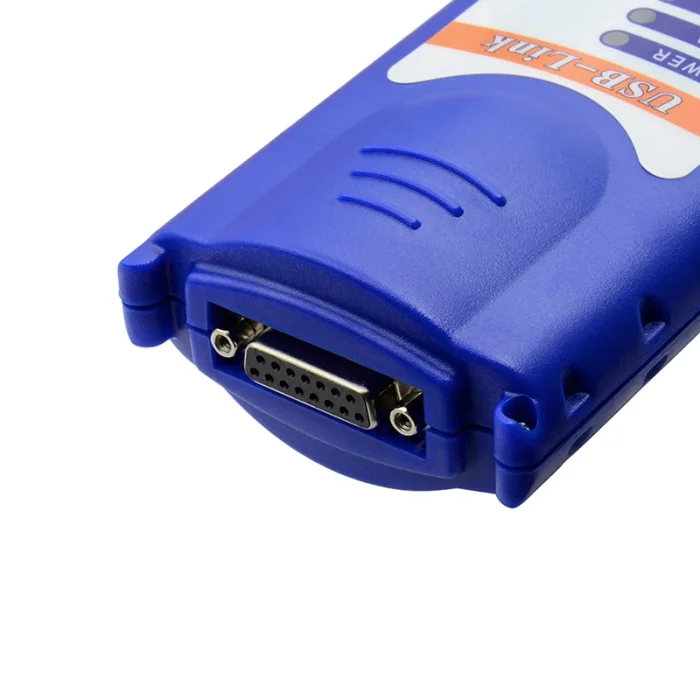

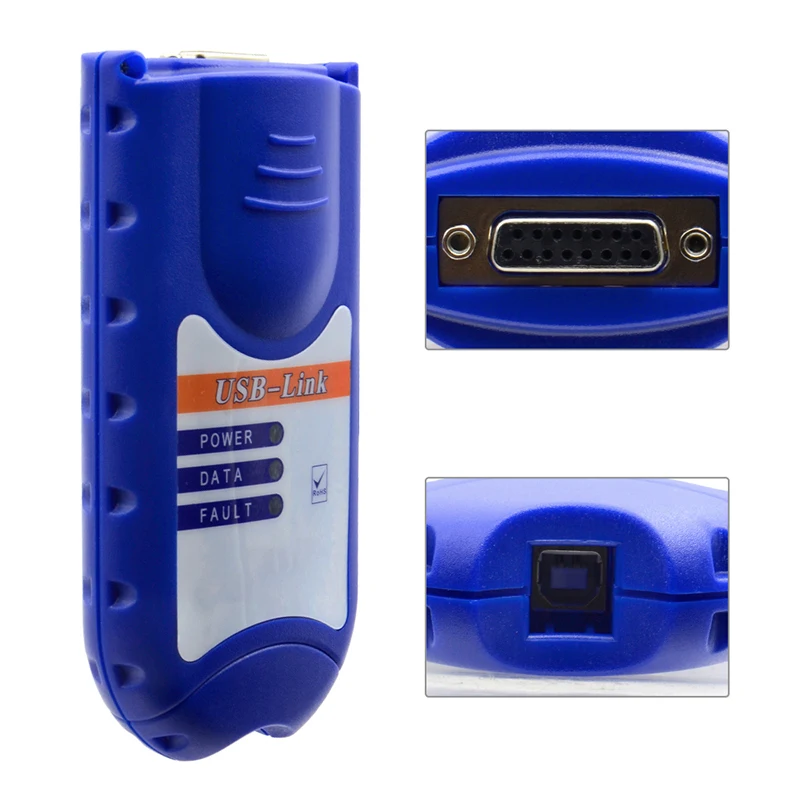

Nexiq USB Link 1 Original 125032 Diesel Truck Interface OBD2 Diagnostic Tool

The Nexiq USB Link 1 is a highly regarded obd2 diagnostic tool specifically designed for heavy-duty trucks, buses, and other commercial vehicles. It is essential for communicating effectively with the Engine Control Module (ECM) of these vehicles, providing service technicians and fleet managers with the reliability they need for effective vehicle maintenance.

Overview of the Nexiq USB Link 1

The Nexiq USB Link 1 original connects to a computer via USB, granting access to a wide range of diagnostic software including Nexiq Technology’s own Diag Tool and other popular brands. This versatility makes it a preferred choice within the trucking and commercial vehicle industry.

Key Features of the Nexiq USB Link 1

1. Support System Compatibility: The device supports systems using Windows XP and Windows 7. Specifically, software for brands like Volvo, Hino, Perkins, Cat, and Nissan must be installed on Windows XP. Other vehicle software is compatible with Windows 7 (32-bit).

2. Performance Equivalent to Nexiq: The Nexiq USB Link 1 performs as effectively as the Nexiq diagnostic tools, ensuring high-quality service and diagnostics.

3. Application Compatibility: It is compatible with applications that diagnose essential systems, including engines, transmissions, ABS, and instrument panels.

4. Efficient Reprogramming: A direct USB connection significantly reduces reprogramming times, improving overall efficiency during maintenance.

5. Mixed Fleet Capabilities: The device accommodates mixed fleets with its broad protocol support, allowing access to various manufacturers' systems.

6. Quick Access to Vehicle Data: Enables immediate access to critical vehicle data, essential for maintenance and management reports.

7. User-Friendly Design: The Nexiq USB Link 1 quickly attaches to the vehicle's diagnostic connector for efficient operation.

8. Portability: Its portable design increases flexibility, allowing it to be used with both desktop PCs and laptops seamlessly.

Important Usage Notes

To ensure proper functionality and avoid damaging the multiplexer, here are some important notes for users:

1. No Updates Allowed: The Nexiq USB Link 1 cannot be updated; doing so may damage the device.

2. Software Installation Guidance: For software related to Volvo, Hino, Cat, and Nissan, installation must occur on Windows XP. Other vehicle software can be installed on Windows 7.

3. Time Changes: Changing the time on your laptop can lock the Cummins Inline software. To unlock it, download the file “how-to-unlock-cummins-inline.”

4. System Reinstallation: A complete reinstallation of your computer’s operating system is necessary before installing the Nexiq software CD; failure to do so may result in device damage.

NEXIQ USB Link 1 Heavy Duty Truck Diagnostic Tool Support System

The NEXIQ Link 1 is compatible with Windows XP and Windows 7. The support for various brands ensures a comprehensive diagnostic solution.

Compatible Software and Applications

The NEXIQ 125032 USB Link 1 comes packed with a variety of useful software applications, including:

• Allison (Included!)
• Bendix 6.3.8.0 (Included!)
• Detroit Diesel DDDL 7.05 (Included!)
• Detroit Diesel DDCT (Included!)
• Detroit Diesel Calibration Tool (Included!)
• Eaton Service Ranger 3.2 (Included!)
• International DLB (Included!)
• International ICAP, IPTS, NETS, IPC (Included!)
• International Master Diagnostic (Included!)
• Meritor and Wabco Diagnostics (Included!)
• Cummins Insite 7.5 (Included!)
• Hino 2.0.2 (Included!)
• Caterpillar 2.0.1.0 (Included!)
• Perkins EST 2010B (Included!)
• V Macks 2.6.12 (Included!)
• V Macks Dealer Pro (Included!)
• Volvo VCADS 2.35.10 (Included!)
• Toyota Techstream for car (Included!)

These compatible software packages enhance the functionality and diagnostic capabilities of the Nexiq USB Link 1.

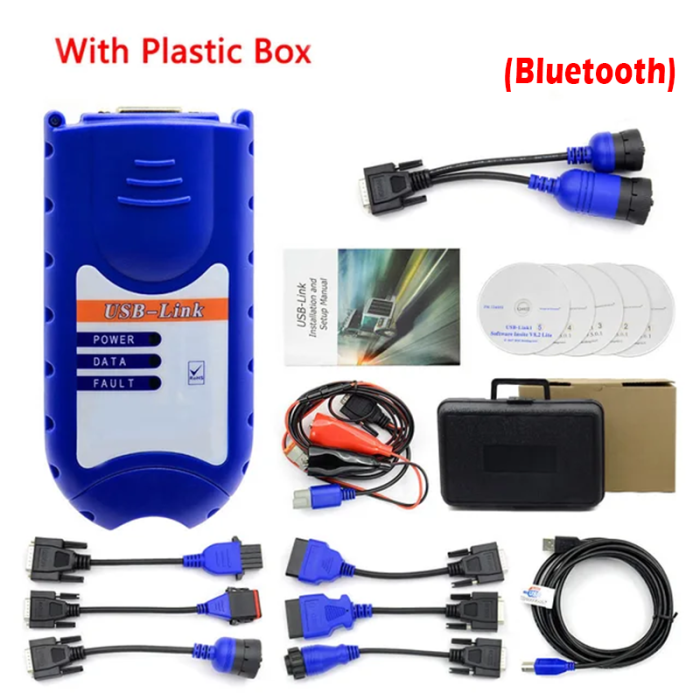

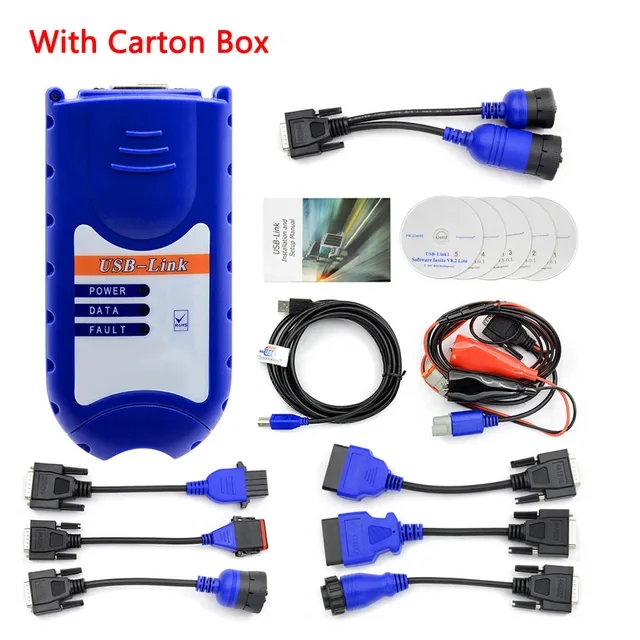

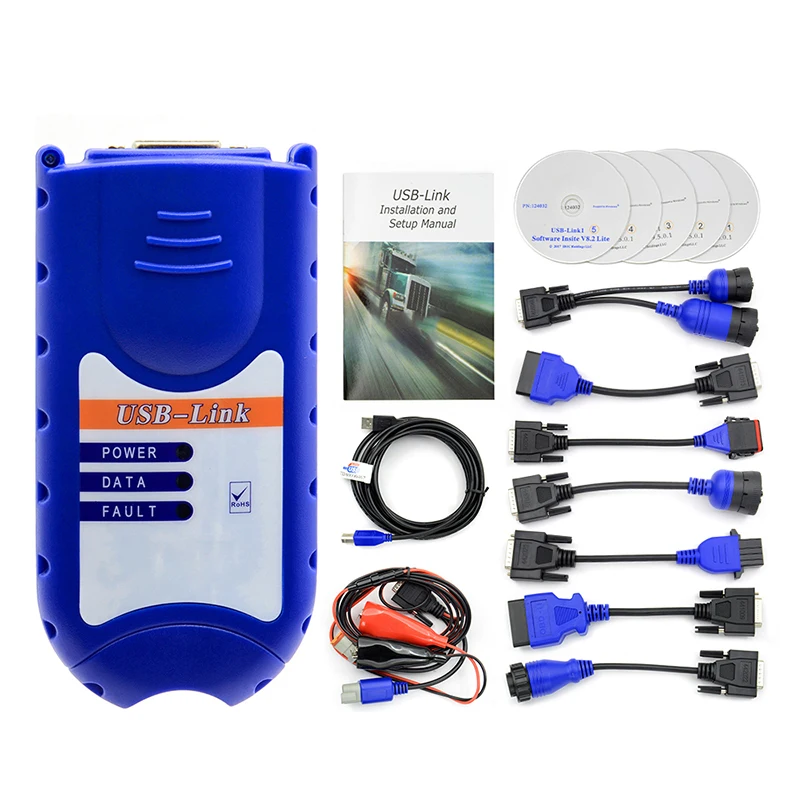

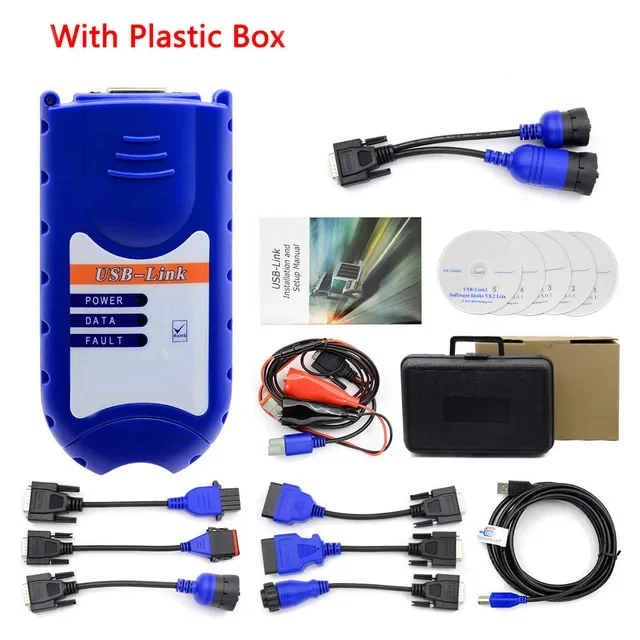

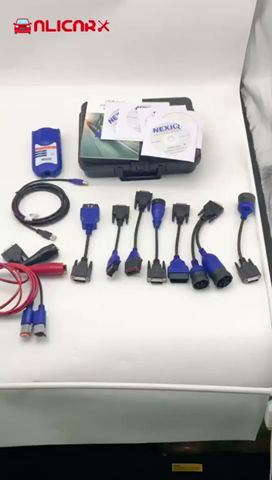

NEXIQ 1 USB Link Adapter Packing List

When purchasing the Nexiq USB Link 1, the following items are included in the packing list:

• 1 x USB-Link Main Interface

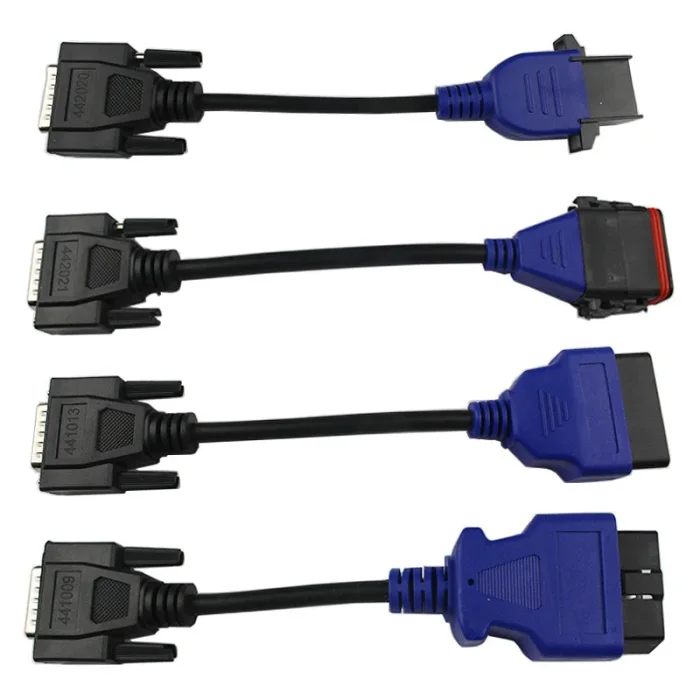

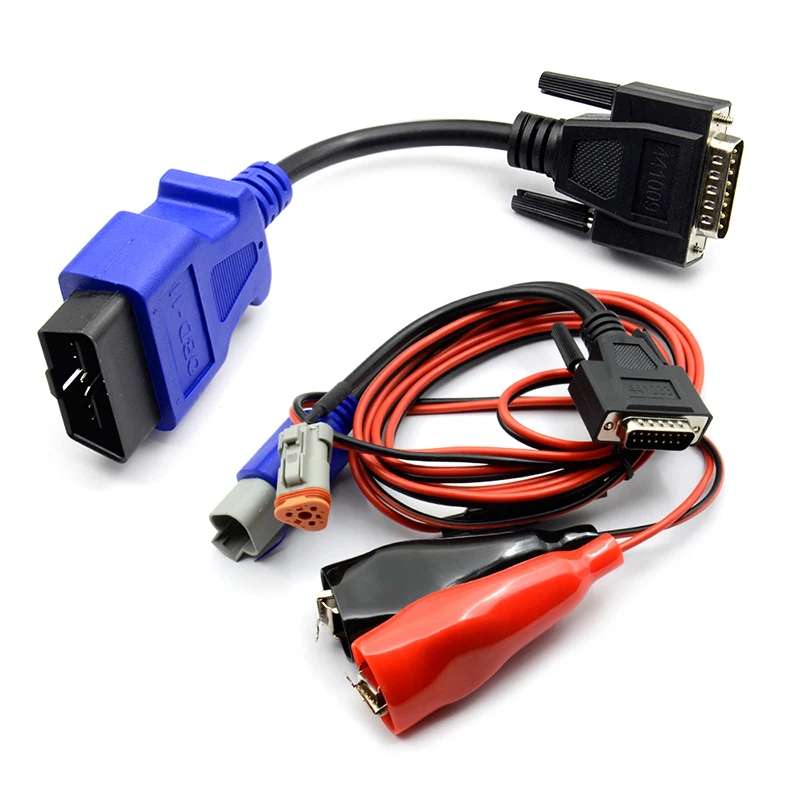

• 1 x 441013-OBD II Adapter
• 1 x 444009-J1962 OBD II Adapter

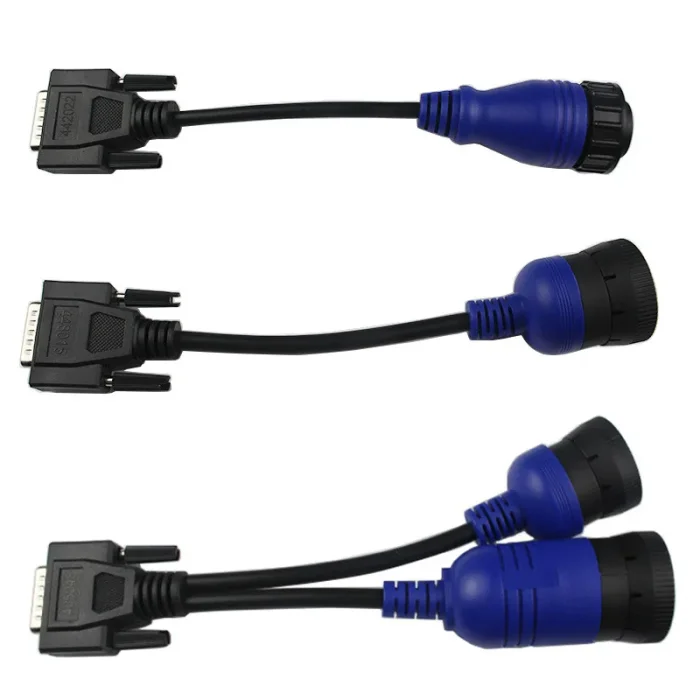

• 1 x 402048-6- and 9-pin For Deutsch Adapter
• 1 x 442022-For V 14-Pin Adapter
• 1 x 442020-For V 8-Pin Adapter
• 1 x 442021-For Komatsu 12-pin Adapter
• 1 x 448015-For CAT 9-Pin Adapter
• 1 x 441033-3-pin For Deutsch Adapter (with male and female connector)

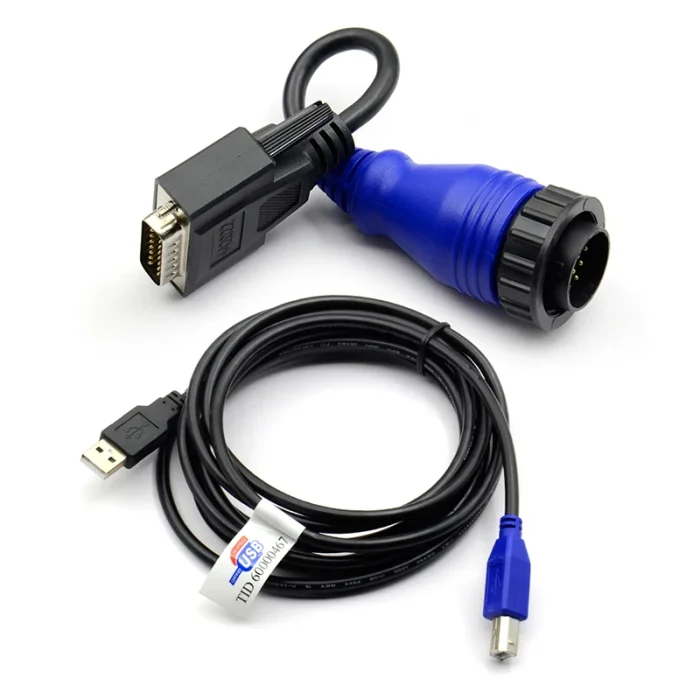

• 1 x USB Cable
• 1 x Configuration Utility CD and Manuals

Conclusion

In conclusion, the Nexiq USB Link 1 is an invaluable tool for anyone in the heavy-duty trucking industry. Its compatibility with various diagnostic software, wide-ranging protocol support, and ease of use make it an essential device for effective vehicle maintenance and management. Whether you're a service technician or a fleet manager, the Nexiq Link 1 will enhance your diagnostic capabilities and improve operational efficiency.
