Lexia3 PP2000 Diagbox Online Programming Account Remote Login Service For Peugeot/Citroen/DS

Remote Programming Project Details for Diagbox

The specific content of the remote programming project is divided as follows:

---

Required Configuration/Telecoding

a. Original Parts:

1. Online Coding
2. Online Software Programming

b. Used Parts:

1. Online Coding:

   • a. No software correction required for online coding
   • b. Software correction required for online coding

2. Online Programming (Simple Programming):

   • a. No software correction required for online programming
   • b. Software correction required for online programming

---

Replacement Parts Requiring Online Programming for Matching (DIAGBOX Execution of Replacement Process)

a. New Parts from Dealerships

b. Used Parts:

1. The used part is compatible with the vehicle and can be matched with normal online programming.
2. The used part is not compatible with the vehicle and requires software correction for online programming.

---

Important Notes:

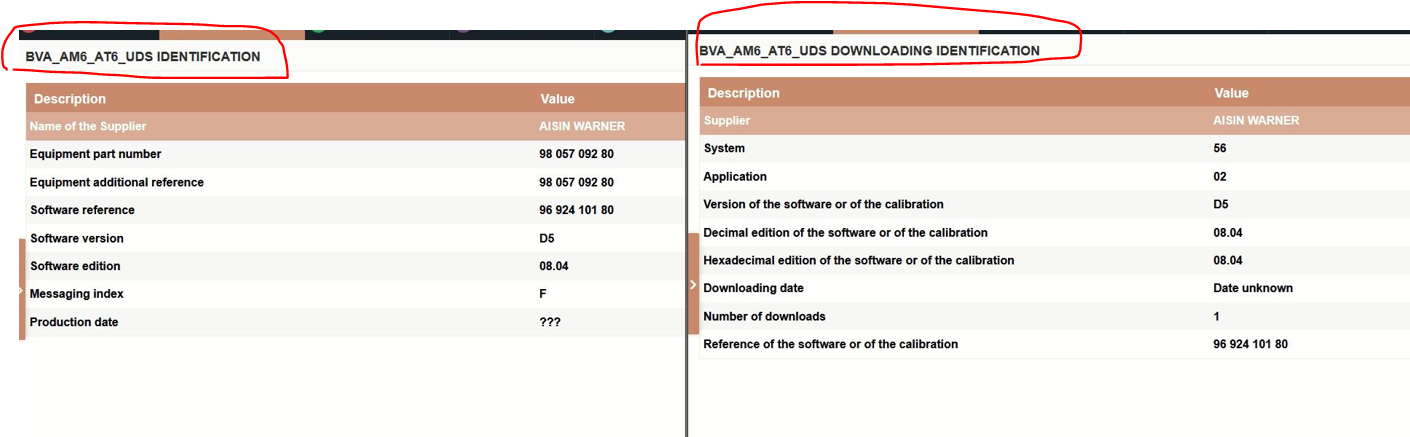

1. For used parts business, please provide the download identification information of the original and used parts read by DIAGBOX before purchasing the service. This information will be used to determine if software correction is required.
2. For all services that require the use of a PIN code, please ensure the PIN code is prepared in advance.
3. Online coding is based on the functional configuration of the vehicle's production specifications.

lexia3 pp2000 diagbox Online programming account remote login service For Peugeot/Citroen/DS

Peugeot/Citroen/DS vehicle online services:

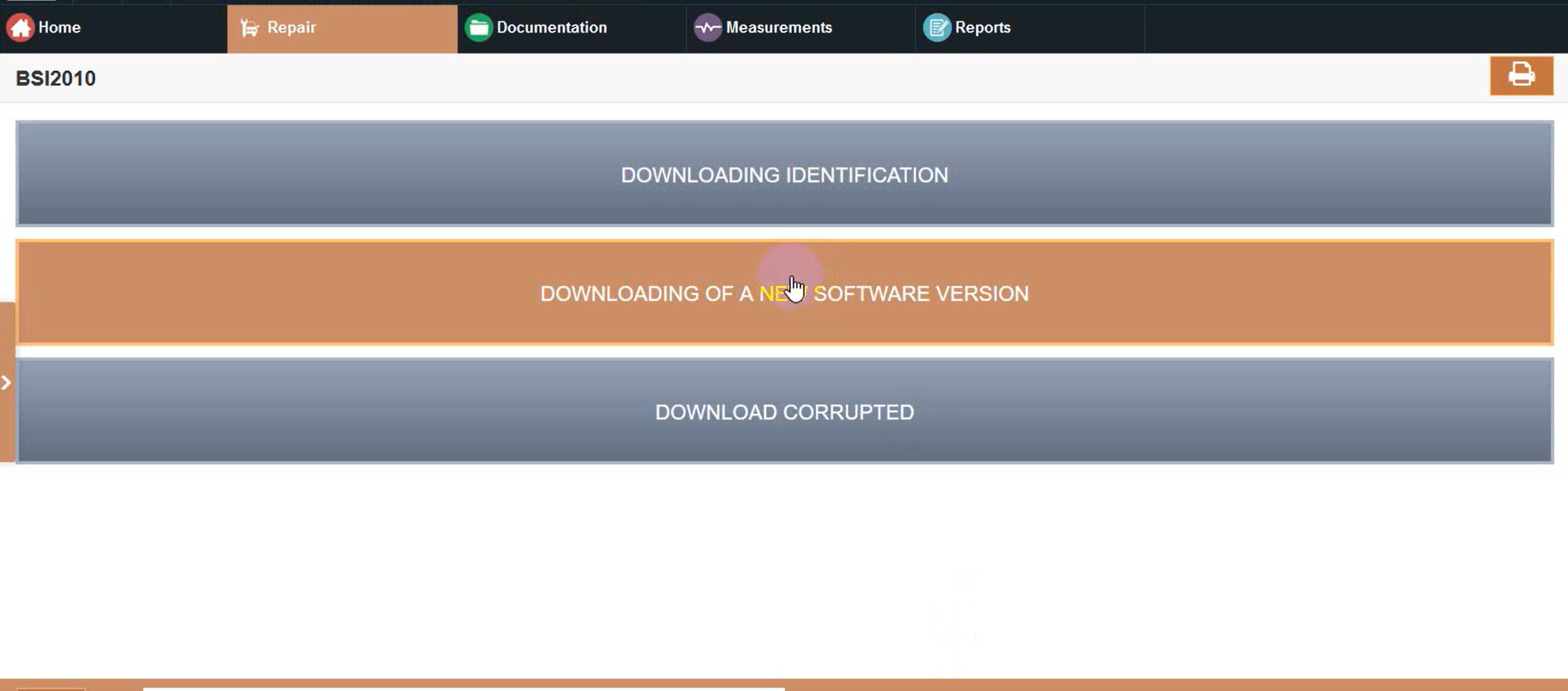

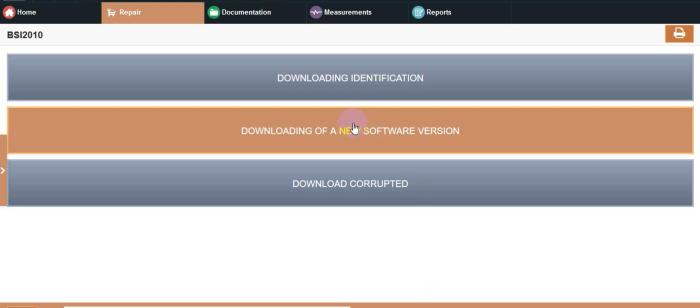

1.Vehicle control unit software online programming;

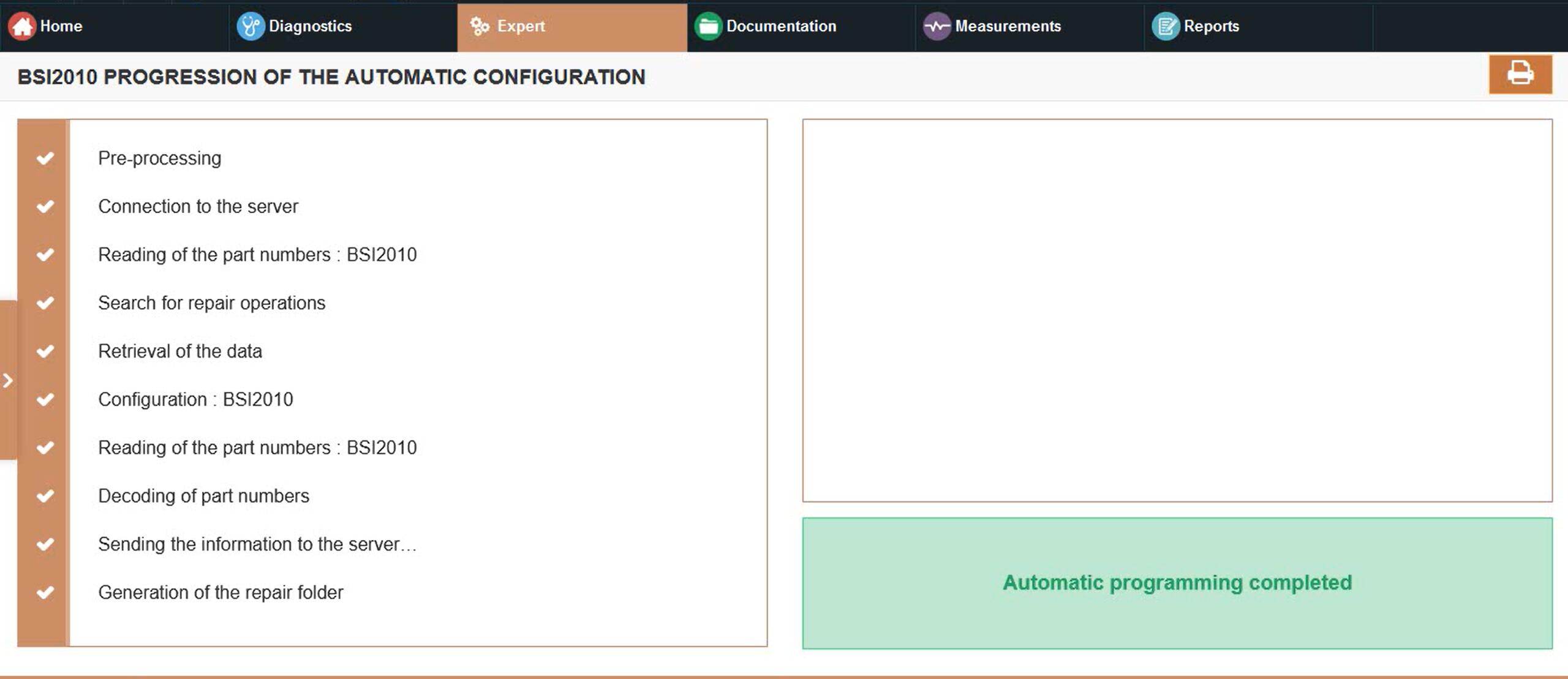

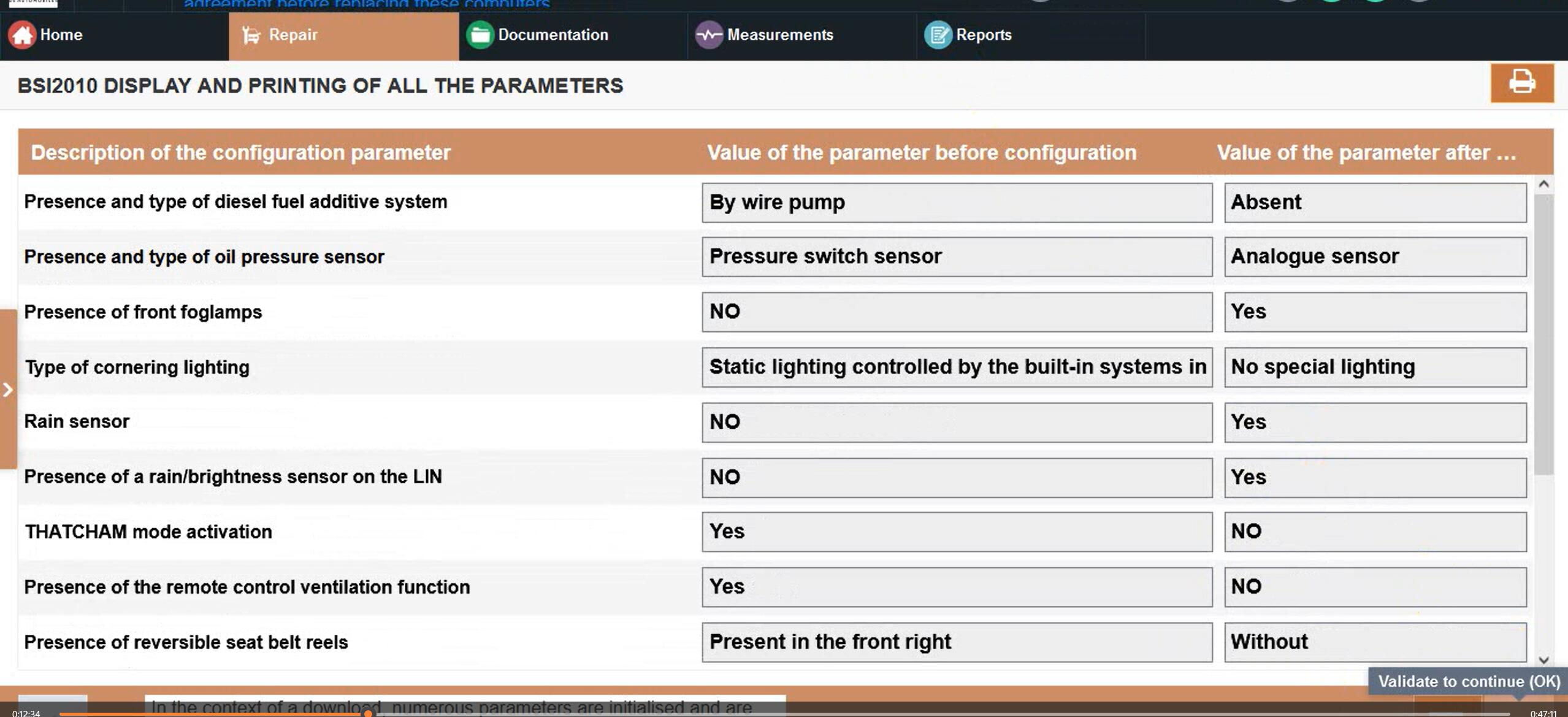

2.Vehicle control unit software online automatic configuration (telecoding);

Diagbox Online Programming Service Use cases:

1.Control unit software updates;
2.Data misconfiguration repair after power loss;
3.Control unit replacement;
4.Reset services after certain repairs.


Diagbox Online Programming Service Applicable vehicles:
Peugeot, Citroën, DS, all vehicles after 2015/16, excluding the OPEL brand.

Diagbox Online Programming Service Required hardware:

1.ACTIA XS-Evolution（LEXIA-3 , PP2000）

 - genuine or cloned version. Special attention should be paid that some cloned versions will be blocked by PSA when doing online and cannot be carried out online.

2.PSA VCI Core XS

- Citroën’s latest diagnostic instrument.

How to Provide Online Programming Services

Provide you with two service methods for you to choose from:

Online Service Way 1

USB device sharing, suitable for areas with very good networks. The client does not need to install the genuine Diagbox software, but the following software needs to be used:

1. Anydesk
2. USB NETWORK Gate
3. Radmin

Online Service Way 2

Install the genuine Diagbox software remotely on the client through Anydesk. After the service is completed, the software will be uninstalled.

Requirements for the computer on which the software is installed:
WIN10 OS 64-bit;
Reserve 10G of space on the C drive

Special matters:

1. When online programming or automatic configuration, the server will compare the actual installed hardware and software numbers on the vehicle. Therefore, second-hand accessories or accessories of other vehicle models may not be recognized by the background server and cannot be carried out online.
2. Due to the time difference, it is recommended to extract the reserved service time.

3. Online services do not include fault diagnosis.

Note on PP2000 Diagbox Online Remote Issues

1. IMMO Parts

When dealing with new or second-hand IMMO parts, such as the ECU, BSI, SDCM, AVL, or AXN8, it's important to note the following:

• PIN Code Requirement: If these parts are empty (i.e., their IMMO data has not been processed), you must provide a PIN code for the car matching process.

2. Second-Hand Parts

• No Need for PIN: If you have already processed the IMMO data for second-hand parts, you do not need to empty the data again. You can match these parts directly without providing a PIN code.

3. Error Messages and Compatibility

• If the used IMMO part does not match the vehicle, an error message will appear when you log in to your Diagbox online account, indicating that the remote task cannot be completed. This issue arises only when logged into Diagbox online.

4. Starting Issues

• Even if the used IMMO parts have been successfully matched to the vehicle, there is still a possibility that the car may not start due to unresolved issues.

5. Non-IMMO Parts

• For non-IMMO parts, there is no requirement for emptying.

When is a PIN Required?

The PIN code is essential for anti-theft matching, which is necessary to use new IMMO parts or to match any used part after it has been emptied. This matching process binds the IMMO parts to the vehicle's VIN, rendering them unusable in other vehicles.

• Difference from Programming: Anti-theft matching is distinct from programming. The matching process may involve online programming and coding.

Programming Code Requirements

• For parts such as ECU, BSI, SDCM, AVL, and AXN8, you generally do not need to provide a PIN code for simple programming. However, second-hand IMMO data must be emptied before proceeding.

Common Diagbox Online Remote Services

• Peugeot BSI Programming / Peugeot BSI Code
• Peugeot ECU Update
• Peugeot ECU Programming
• Citroen ECU Programming
