JLR Diagnostic Tool | Comprehensive Guide for 2005-2023 Models Support Online Programming

In the world of automotive diagnostics, the JLR Diagnostic Tool stands out for its exceptional capability and extensive vehicle coverage. Specifically designed for Jaguar Land Rover (JLR) models from 2005 to 2023, this auto diagnostic tool is essential for both professional mechanics and DIY enthusiasts. The JLR DoIP VCI (Vehicle Communication Interface) ensures that owners and technicians can perform comprehensive diagnostics, programming, and troubleshooting for a wide range of JLR vehicles.

Key Features of the JLR Diagnostic Tool

1.


   Broad Compatibility:

   The JLR Diagnostic Tool works with all Jaguar and Land Rover models manufactured after 2005. Whether you own a classic model or the latest SUV, this tool is equipped to handle your diagnostic needs.




2.


   Support for New Architectures:

   The tool is compatible with the newest vehicle architectures, starting from the 2017 models, including the Range Rover and Range Rover Sport. It leverages the advanced Pathfinder software for enhanced diagnostics.




3. Multiple Software Support:

   • Pathfinder for vehicles from 2017 onward offers extensive diagnostics and programming.
   • SDD (Symptom Driven Diagnostics) for models prior to 2017 ensures that older vehicles are not left out.

4.


   Diagnostic & Programming Protocol Support:

   The JLR Diagnostic Tool supports all diagnostic and programming protocols for both SDD and Pathfinder, allowing for comprehensive vehicle analysis.




5.


   Offline Services:

   The tool supports offline activation services for Pathfinder, enabling diagnostics even without an internet connection.




6. Flexible Connectivity:

   • USB & Wi-Fi Support: The device connects directly to the vehicle’s OBDII port using a USB cable and supports Wi-Fi connections for convenience.
   • Easy Updates: Regular updates can be applied to keep the tool functioning with the latest software improvements.

How to Update the JLR DoIP VCI

Keeping your jaguar land rover diagnostic tool updated is crucial for optimal performance. JLR periodically releases updates for drivers and software, which can be installed through the diagnostic test application. Users should ensure that the latest updates are downloaded and installed to avoid any functional issues.

JLR Vehicles Coverage

While the JLR Diagnostic Tool excels with newer models, it also provides some legacy coverage. However, it doesn't support flash programming of Engine Control Modules (ECMs) on XJS and pre-2003 XJ and XK models. It will also not allow simultaneous logging on certain 2006 models.

FAQs about the JLR Diagnostic Tool

Q1: Do I need a JLR online dealer account to use this tool?
A1: Yes, an online dealer account is necessary for full functionality.

Q2: Which laptop is recommended for the JLR DoIP VCI?
A2: There is no specific laptop required. However, higher configuration models are recommended for better performance.

Q3: Does the tool come with multiple software options?
A3: Yes, it includes Pathfinder software for vehicles after MY2018 and SDD software for MY2014-2018.

Package Contents

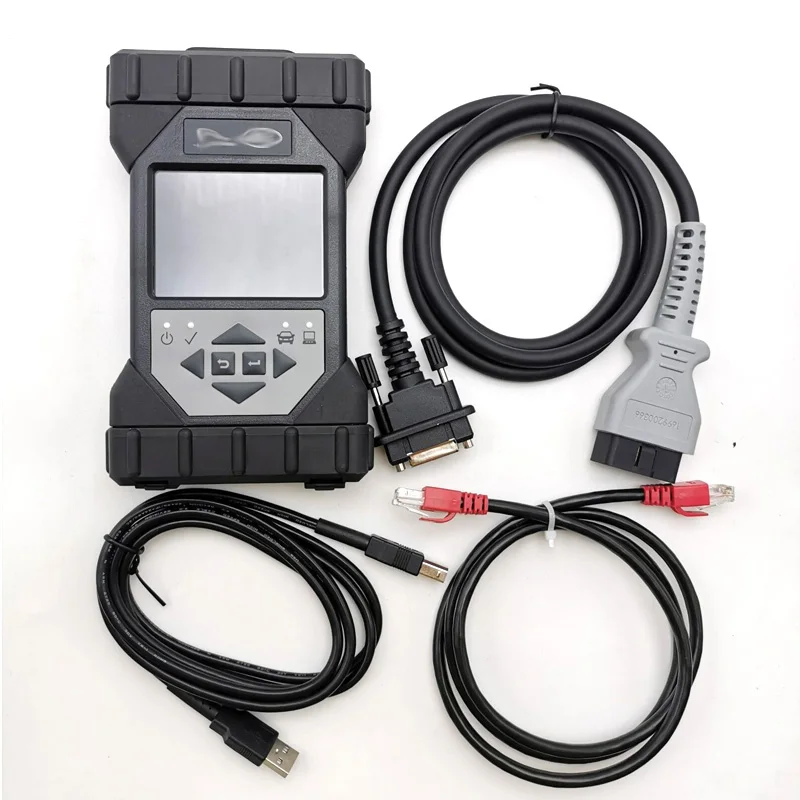

When you purchase the JLR Diagnostic Tool, you will receive:

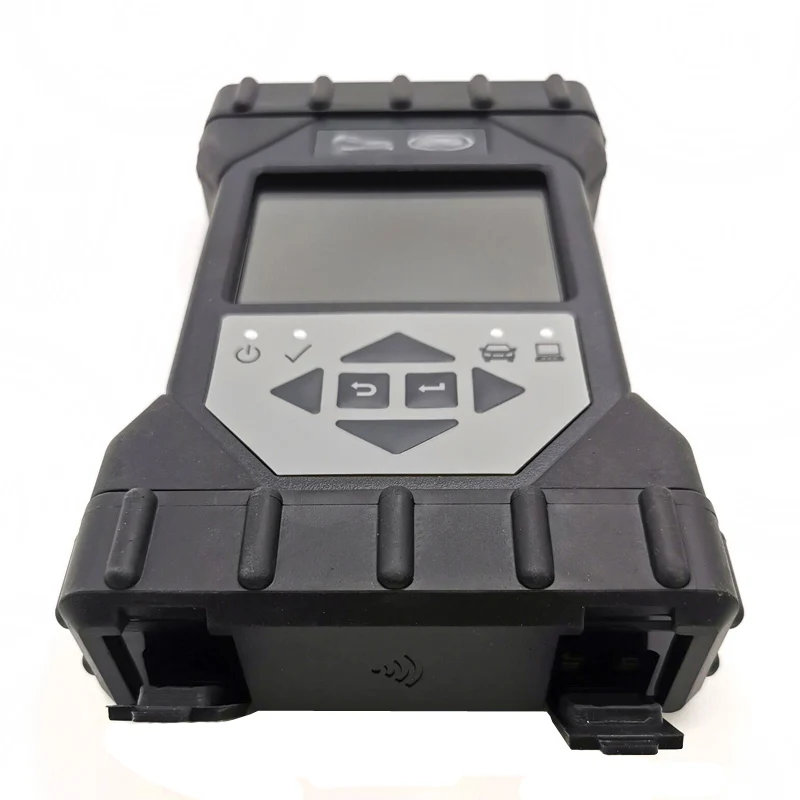

• 1 x DoIP VCI Main Unit
• 1 x USB Cable
• 1 x Diagnostic Manual
• 1 x Ethernet Cable

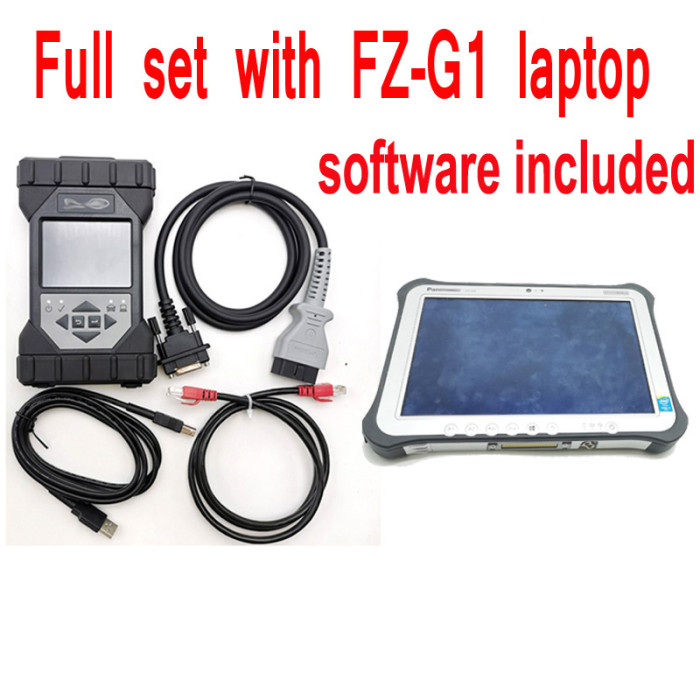

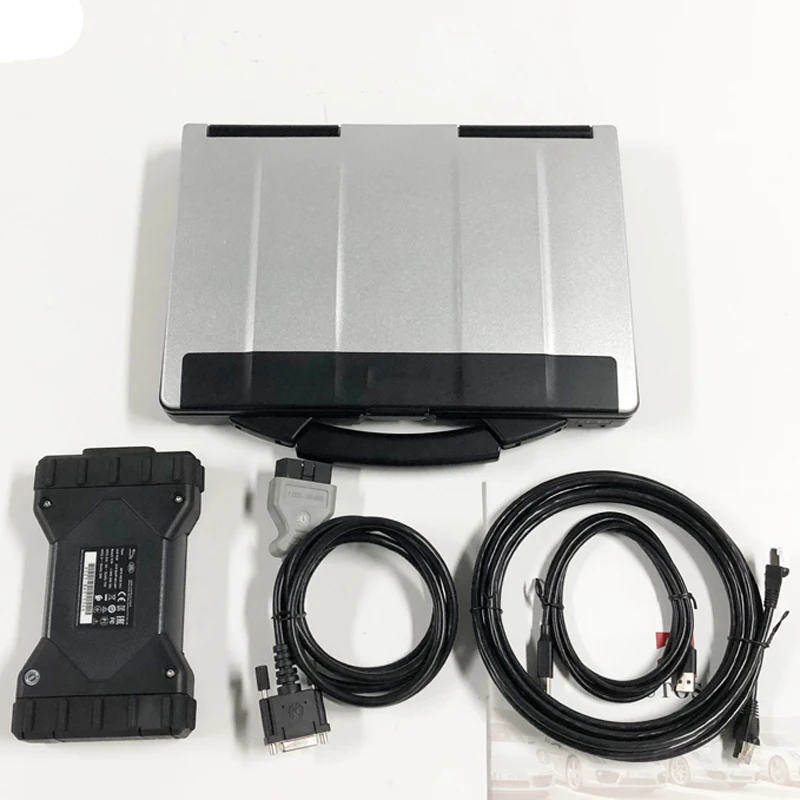

Option: with laptop CF53/FZ-G1 (Secondhand/used in good condition)

How to Installation and Use JLR SDD Software?

Download Software

1. Obtain the installation package of the JLR SDD V164 version, which usually contains the following folders:
   • Driver
   • SDD Patch
   • SDD_164.00.001_FULL

Install SDD Software

1. Open the SDD_164.00.001_FULL folder and run the installer.
2. Select the installation language and accept the license agreement.
3. Read the firewall compatibility tips, select a target drive, and start the installation.
4. During the installation process, if Adobe Reader expires, the system will prompt you to update it.
5. After the installation is complete, restart your computer to finalize the setup.

Install Patches

1. Unzip the SDD Patch folder and find the following files:
   • SDD.Offline.exe
   • SDD.Offline.Fix.2020.7.14.exe
   • SDD.Online.exe
2. Run JLR.SDD.Offline.exe to generate a user ID and password.
3. If the communication device status is abnormal, run SDD.Offline.Fix.2020.7.14.exe to resolve issues.

JLR Diagnostic Software Usage Steps

Connect Devices

1. Connect the JLR VCI device (such as Mongoose or VXDIAG) to the computer using a USB cable.

Start the Software

1. Open the JLR SDD software and log in to your account.

Diagnose Vehicle

1. Select the "Vehicle Diagnosis" function on the main interface.
2. Enter the vehicle's VIN (Vehicle Identification Number) and click the "Diagnosis" button.
3. The software will automatically scan all modules and display fault codes and diagnostic results.

Perform Programming (if Required)

1. Select the "Vehicle Programming" function and follow the prompts to program or update the ECU.

Save and Analyze Data

1. The software can record sensor data and control unit outputs for subsequent analysis.

Conclusion

The JLR Diagnostic Tool is an indispensable resource for anyone working with Jaguar and Land Rover vehicles from 2005 to 2023. With its advanced features, comprehensive vehicle coverage, and support for the latest software, it ensures that both professionals and enthusiasts have the necessary tools to diagnose and maintain their vehicles effectively.

If you're serious about auto diagnostics for JLR models, investing in the JLR Diagnostic Tool is a decision you won't regret. Stay ahead of any potential issues and optimize your vehicle's performance today!
