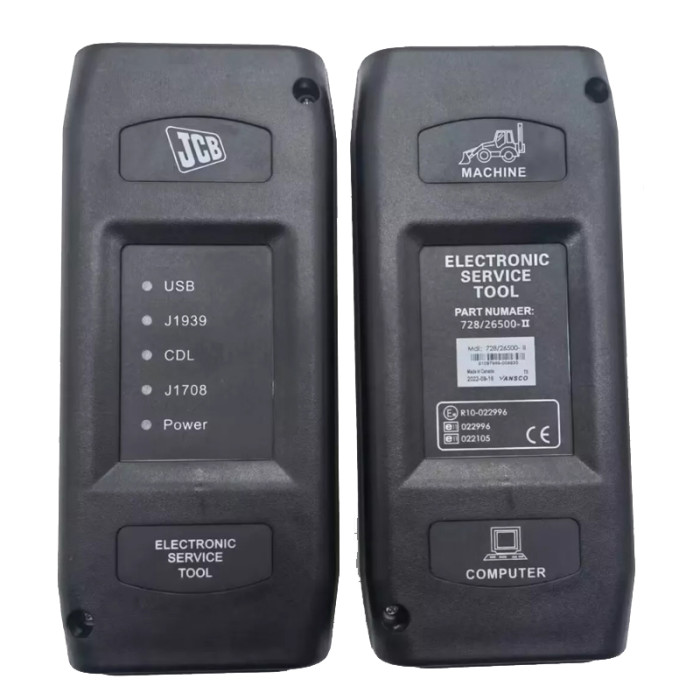

JCB Diagnostic Tool Electronic Service Master 4 J1708 for Heavy Duty Truck Excavator

In the world of heavy machinery and vehicles, ensuring operational efficiency and minimal downtime is paramount. Enter the JCB Diagnostic Tool, specifically designed for fast and effective fault finding and maintenance checks across a range of JCB machinery. Known also as the JCB Service Master, this truck diagnostic tool offers a gateway application that connects users to numerous Vehicle Support Applications, all through a single, easy-to-use interface.

Key Features of the JCB Diagnostic Tool

Comprehensive Fault Diagnosis

The JCB Diagnostic Tool is not just a diagnostic device; it’s an essential companion for machinery technicians and operators. Here are some of its outstanding features:

• Fault Code Reading: The OBD2 tool can read and rank fault codes based on their severity, allowing users to prioritize repairs effectively.
• ECM Calibration and Parameterization: Adjusting engine control parameters and programming blocks is straightforward with this tool.
• Service Interval Management: Helps in scheduling and conducting dropping service intervals to maintain machine performance.
• Multi-Language Support: Available in multiple languages, including English, German, Spanish, French, Italian, and Portuguese, catering to a global audience.

Compatibility and Connectivity

The JCB Diagnostic Tool is built for versatility and reliability:

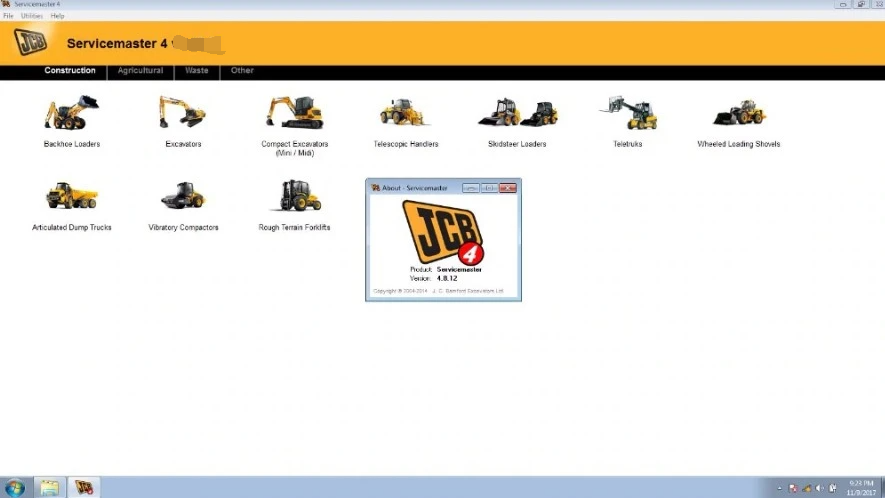

• Software Compatibility: It works seamlessly with JCB Service Master 4 software, incorporated with the latest updates for efficient diagnostics.
• OBD II Compliance: Fully compatible with CAN protocol in OBD II systems, ensuring a broad range of diagnostic capabilities across various models.
• Detailed Instructions: Comes with comprehensive manuals for the repair and diagnostics of JCB engines, ensuring users have all the necessary information at their fingertips.

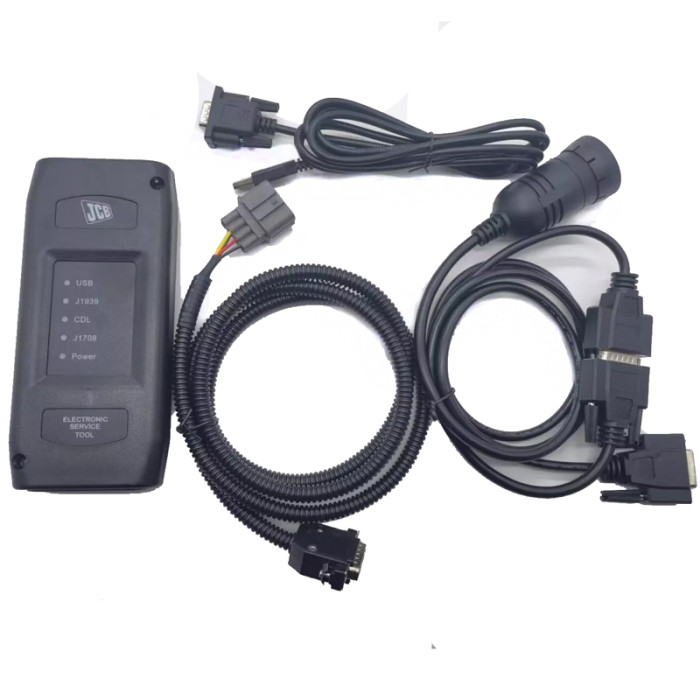

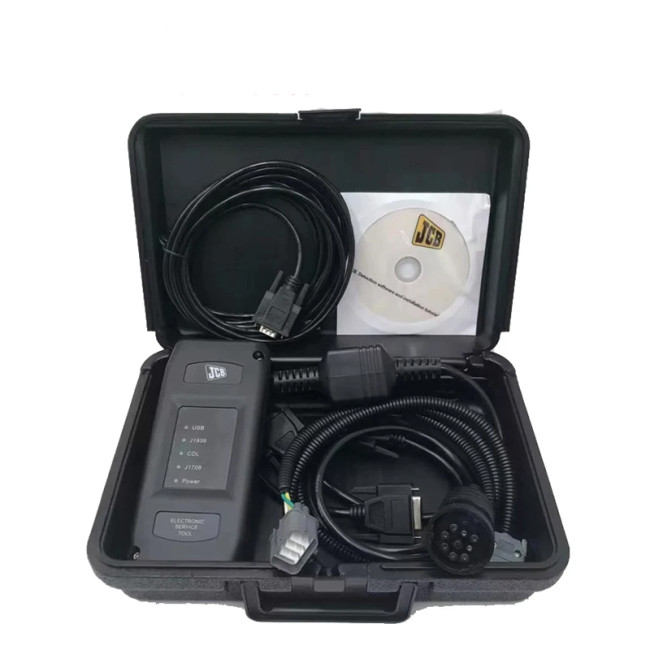

Included Accessories

The JCB Service Master Diagnostic Tool package comes equipped with all necessary components for effective operation:

1. Data Link Adapter: Ensures accurate communications between the diagnostic tool and the vehicle.
2. USB Cable: Facilitates data transfer between the tool and your computer.
3. 9-pin Deutsch Adapter: For connecting to a variety of vehicles.
4. 6-pin Cable: Ensures compatibility with several JCB models.
5. JCB Service Master Diagnostic Software CD: Contains the essential software for diagnostics.

Supported Models and Engines

Agricultural Models

The JCB Diagnostic Tool covers a wide range of agricultural models, including:

• Fastrac Tractors: Series ranging from 2000-3000 through to 8000 Series.
• Telescopic Handlers: Including models like the 525-60 Compact Loadall.
• Wheeled Loading Shovels: For both large and compact models.
• Telemasters: Such as TM180/220 and TM310.

Construction Models

1. Backhoe Loaders: Versatile machines equipped with both a front loader and a backhoe, ideal for digging and material handling on construction sites.

2. AMS/DECU Machines: Including Tracked models (JS/JZ/JZ70) and Wheeled models, designed for enhanced performance and efficiency in various applications.

3. Compact Excavators (Mini/Midi): Models ranging from 801-8065, 8080-8085, and 65R1-86C1, known for their agility and effectiveness in tight spaces.

4. Telescopic Handlers: Models including 2007- and 2007+ with Tier 4 compliance, as well as the 525-60 Compact Loadall, suitable for lifting and handling materials at height.

5. Skidsteer Loaders: Including Robot and other models, as well as Teletrucks (Tier 4), these machines are known for their compact size and versatility on the job site.

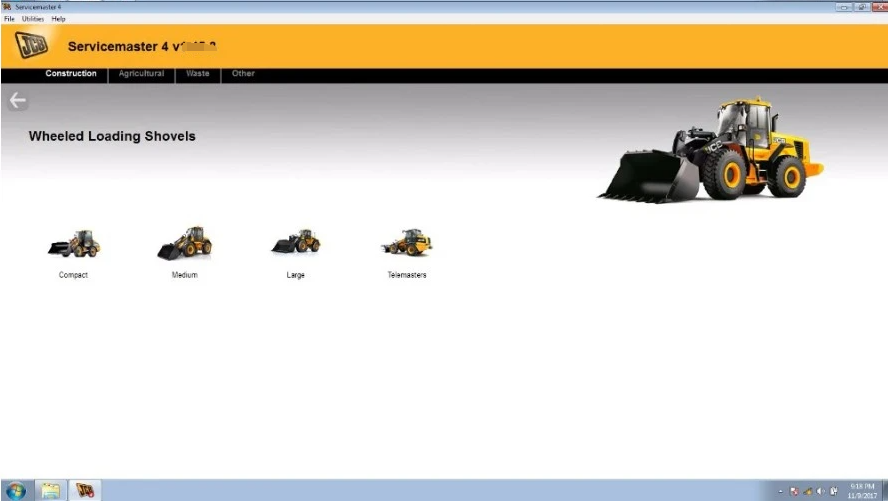

6. Wheeled Loading Shovels: Available in Large, Large 2012+, Compact (Tier 4 CWLS), and Medium (411, 413, 417, 418S Tier 4i) configurations, perfect for various loading and excavating tasks.

7. Telemasters: Models TM180/220, TM310, and TM320, offering exceptional versatility for lifting and material handling in tight spaces.

8. Articulated Dump Trucks: Designed for transporting heavy materials across challenging terrains, these trucks boast robustness and off-road capabilities. Also includes Vibratory Compactors (Tier 3, Interim Tier 4, VMT380/430).

9. Rough Terrain Forklifts: Including Tier 2/3 RTFL and Tier 4 RTFL models, ideal for handling materials in rugged landscapes and construction sites.

10. Teletruks: With Tier 4 compliance, these machines are designed for efficient material handling with an extended reach.

Waste Management Models and Engines

In addition to agricultural and construction vehicles, the JCB Diagnostic Tool supports waste management machinery and engines, including:

• Telescopic Handlers: Models that comply with Tier 3 and Tier 4 regulations.
• Engine Support: Compatible with Dieselmax, Ecomax, and Kohler TCR Engines.

Conclusion

The JCB Diagnostic Tool is your all-in-one solution for efficient fault finding and machine maintenance. Its extensive features, compatibility, and user-friendly interface make it an indispensable tool for technicians working with JCB machinery. With comprehensive support across numerous models and engines, the JCB Diagnostic Tool ensures that operators can maintain peak productivity and reliability.
