High Quality Peugeot Diagnostic Tools PP2000 Full Chips With Software Version DiagBox 9.85

The full chip PP2000 is specifically engineered to diagnose Citroen and Peugeot vehicles from 1995 to the present, delivering powerful capabilities, a user-friendly interface, and extensive vehicle coverage. This tool is designed to facilitate efficient vehicle maintenance and repair, making it a crucial addition to any automotive toolkit.

Lexia pp2000 Full Chip has 7pcs Optocouplers which is the main material andprice different,PCB Full Chip stable function.Normal Chip only has 2.

Latest Software Version: Diagbox 9.85

Up-to-Date Diagnostic Capabilities

The full chip PP2000 Peugeot Diagnostic Tool is equipped with the latest software version, Diagbox 9.85, ensuring that users have access to the most current features and functionalities. While the default software included with the Lexia tool is version V7.57, known for its stability and ease of use, users have the option to upgrade to the latest version for enhanced performance. Whether you are troubleshooting issues or conducting routine maintenance, having the latest tools and software is key to effective diagnostics.

• Software Name: Diagbox V9.85 Win
• Supported Languages: Multi-language
• Operating Systems: Windows 7, 8, 10, 11

Top Reasons to Get Full Chip PP2000 Diagbox V9.85:

1. No Activation Required: Diagbox V9.85 installs directly without activation or the need for a virtual machine, saving you time and money. (Installation is straightforward, and we provide an installation video!)

2. Compatibility: Works with Citroën, DS Automobiles, Peugeot, Opel, and Fengshen vehicles.

3. Functionality: Offers diagnostics, resets, adaptations, and telecoding of modules.

4. Multiple Machine Use: You can install Diagbox V9.85 on as many machines as you like, with no limitation to a single PC.

5. Lexia Compatibility: Compatible with any version of Lexia3 / Lexia XS.

If you have purchased the software, you can download Diagbox V9.85 via the Mega software link.

Key Features of the Full Chip PP2000

Comprehensive Compatibility

The Peugeot Diagnostic Tool full chip PP2000 offers extensive compatibility with a broad range of Citroen and Peugeot models.

Multiple Connection Options

The flexibility of the Peugeot Diagnostic Tool is enhanced by its various connection options.

OBD-II and Manufacturer-Specific Connectors

• OBD-II Connector: The tool interfaces with vehicles through the standard OBD-II connector, typically found near the steering wheel.

• Manufacturer-Specific Connectors: Older models (pre-2001) may require the use of specific connectors, providing versatility when accessing diagnostic information across different vehicle types.

Multi-Language Support

To cater to a global user base, the Peugeot Diagnostic software boasts multi-language support, enhancing accessibility and usability.

Supported Languages

The lexia3 full chip pp2000 supports various languages, including:

English, German, French, Japanese, Russian, Spanish, Portuguese, Swedish, Turkish, Dutch, Polish, Italian, Hungary, Greek, Czech

This feature ensures that a wide array of users can effectively utilize the tool, regardless of their language preference.

Enhanced Diagnostic Functions

The full chip pp2000 Peugeot Car Diagnostic Tool is not just a generic scanner; it provides advanced diagnostic functions comparable to those used by authorized dealerships.

Full Chip PP2000 Key Diagnostic Functions

• Reading and Clearing Fault Codes: Efficiently identify and erase error codes from the vehicle’s systems.

• Auto-Scanning Capabilities: Automatically detect all electronic control units (ECUs) within the vehicle for a comprehensive diagnosis.

• Live Data Monitoring: Obtain real-time data such as engine speed, coolant temperature, and other vital parameters for accurate assessments.

• Actuator Tests: Conduct tests to activate specific vehicle components for troubleshooting purposes.

• Programming Functions: Reset systems and program components after repairs, ensuring all systems function correctly.

Hardware and System Requirements

System Requirements for Optimal Performance

To ensure the full chip pp2000 Diagnostic Tool operates effectively, users must meet specific hardware and system requirements.

Minimum Requirements

• Processor: Intel Celeron/Pentium III 400 MHz

• Memory: 128 MB RAM

• Storage: At least 50 MB of free HDD space

• USB Port: USB 1.1 (USB 2.0 recommended for better performance)

• Operating System: Microsoft Windows 98 SR2, 2000, or XP with the latest service pack installed
• Versions: Lexia 3 V48, PP2000 V25, Diagbox V9.85,  Firmware 921815C

Comprehensive Vehicle Coverage

The full chip PP2000 tool is compatible with a vast range of Peugeot and Citroen models, with specific coverage as follows:

Citroën Models Supported	Peugeot Models Supported
C-Zero, C1, C2, C3, C3 Picasso, DS3, C-Elysée, C4, C4 Cactus, C4 Picasso, DS4, DS5, C5, C6, C8, C-Crosser, C4 Aircross, Nemo, Berlingo, Jumpy, Jumper, AX, Saxo, BX, ZX, Xsara, Xantia, XM, Evasion, C15, Fukang 988, C-Triomphe, C-Quatre	iON, 107, 108, 206/207/207+, 280, 301, Hoggar, 307, 308, RCZ, 407, 408, 508, 607, 807, 1007, 2008, 3008, 4007, 4008, 5008, Bipper, Partner, Expert, 106, 205, 306, 309, 405, 406, 605, 806

Peugeot Diagnostic Tool pp2000 with full chip Installation Tips

Important Installation Guidelines

For optimal functionality, it's crucial to follow specific installation instructions:

1. Software Installation:

• PP2000 and Lexia software must be installed on a 32-bit Windows XP system.

• Diagbox software should be installed on a 32-bit Windows 7 system.

• Do not install Lexia and PP2000 software alongside Diagbox on the same PC, as Diagbox includes both.

1. Antivirus and Firewall Settings:

• Close all antivirus software and firewall settings during installation to prevent software corruption.

1. File Management During Update:

• Before updating, cut the file located at "C:AWRoot\bin\fi\APPDIAG.SYS," and paste it back in the same folder once the update is complete to avoid activation issues.

Diagbox Upgrade Password

To facilitate updates, use the following passwords for different software versions:

• V7.02 - 7.76: scary01

• V7.76 - 7.82: Maitresox01

• V7.82 - 7.83: Very Simple!

(please note: it only can work with Win7 32bit system!)

Peugeot Diagnostic Tool PP2000 Package List

What’s Included in the Package

When purchasing the pp2000 full chip Peugeot diagnosis Tool, you will receive:

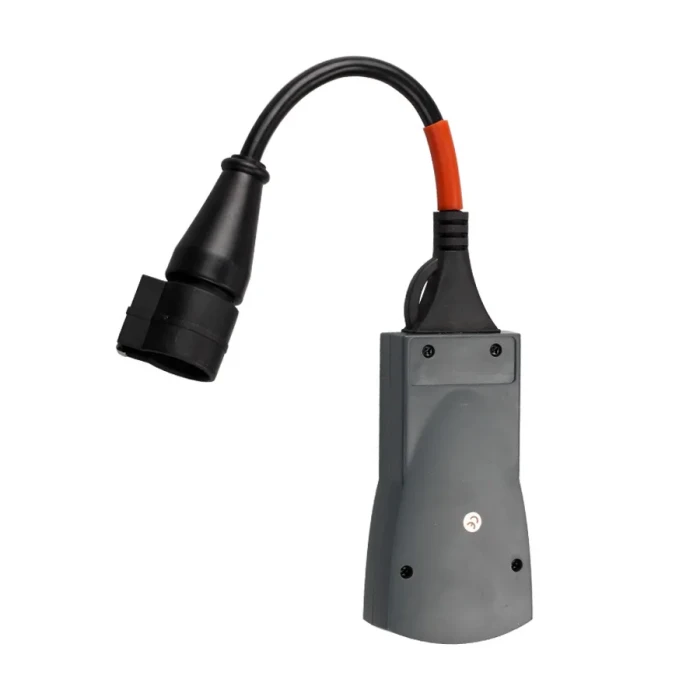

• 1 x Main Unit pp2000

• 1 x OBD2 16-PIN Cable

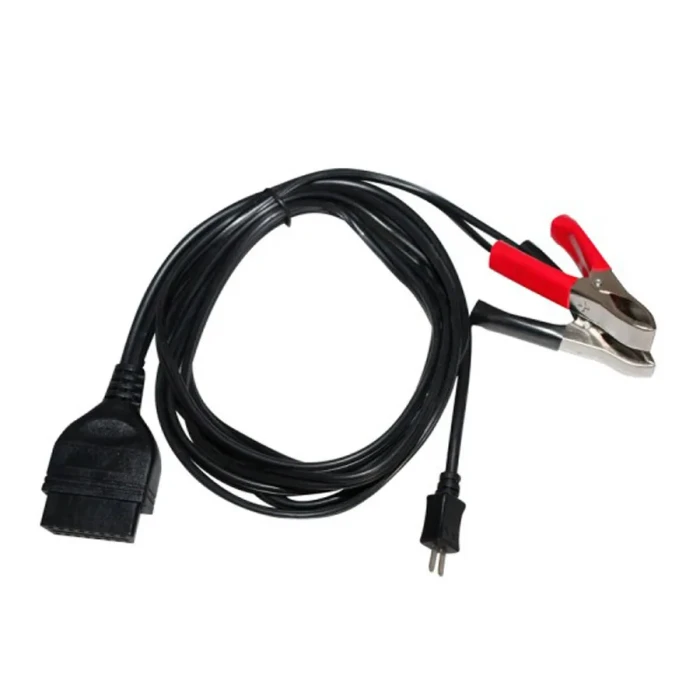

• 1 x OBD2 to Clip Cable

• 1 x Long 9-pin to USB Cable

• 1 x Short 9-pin to USB Cable

• 1 x CD containing necessary software

Conclusion

The lexia3 full chip pp2000 is a vital obd2 diagnostic tool for anyone involved in the maintenance and repair of Citroen and Peugeot vehicles. With the latest Diagbox software, extensive diagnostic capabilities, and wide compatibility across various models, this tool empowers users to perform thorough diagnostics akin to those conducted at authorized dealerships. Whether you are a seasoned mechanic or a DIY enthusiast, the full chip PP2000 ensures you have the necessary tools to keep your vehicle in prime condition.
