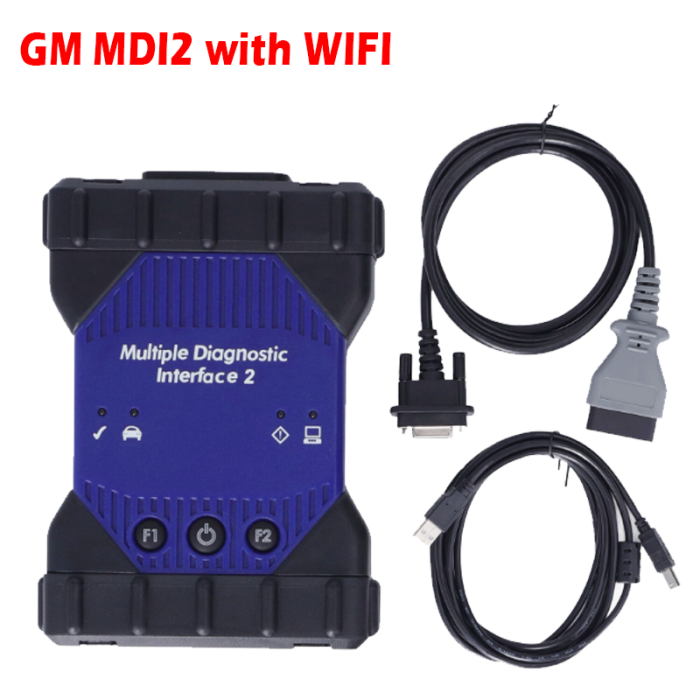

GM MDI 2 WIfI USB GM Multiple Diagnostic Interface MDI 2 Opel Scan Tool

The GM MDI 2 is a obd2 diagnostic tool developed by General Motors, specifically designed for Opel vehicles. This advanced bosch mdi 2 device enables technicians to communicate effectively with a vehicle's Electronic Control Unit (ECU), facilitating diagnostics, programming, and repairs. This article will explore the features, benefits, and functionalities of the GM MDI 2, making it a must-have tool for automotive professionals.

What is GM MDI2?

Overview of GM MDI 2

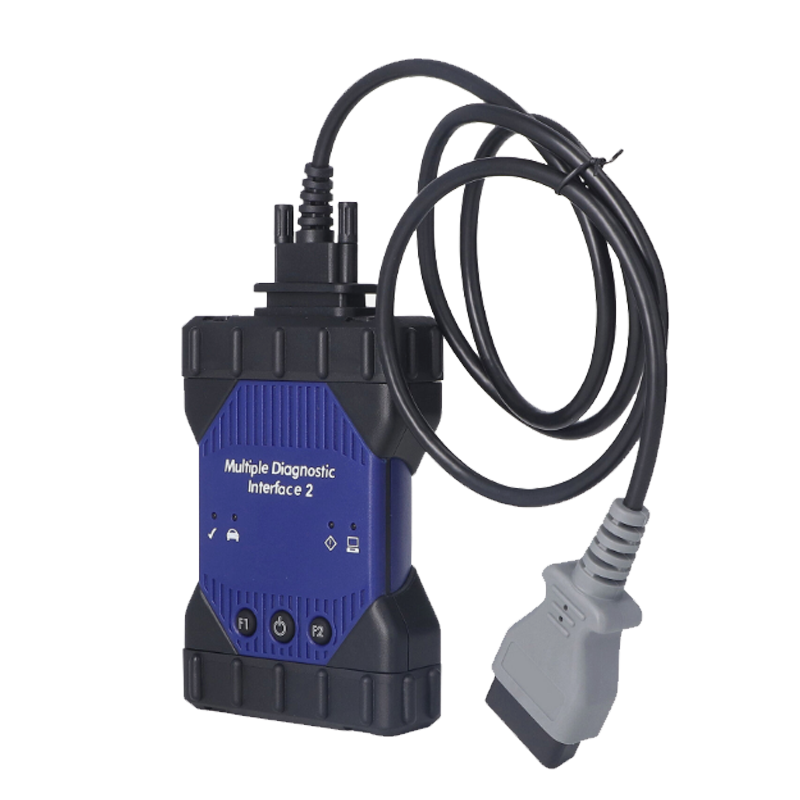

The GM MDI 2 is an upgraded version of the original MDI tool, introduced in 2007. It provides enhanced performance and compatibility with a variety of diagnostic software applications, including GDS2 and Tech2Win. With the ability to read fault codes, monitor real-time data, and conduct various diagnostic tests, this tool serves as an indispensable asset for maintaining and repairing Opel vehicles.

Key Features of GM MDI 2

Automatic Vehicle Recognition: Instantly identify the vehicle model and configuration.

• DTC Reading and Clearing: Access and remove Diagnostic Trouble Codes.
• Live Data Streaming: Monitor real-time data from all main ECUs.
• Data Recording and Playback: Record and reanalyze live data for in-depth diagnostics.
• Software Flashing: Update existing ECU software to address drivability issues.
• ECU Programming: Install and program new ECUs like PCM, ABS, and more.
• Key Programming: Program new keys for enhanced vehicle security.
• Speed Limiter Adjustments: Set or remove speed limiters as required.
• J2534 Pass Thru Compatibility: Access ECUs from other manufacturers for diverse diagnostic needs.

How to Use GM MDI 2 Opel Diagnostic Tool

Installation Requirements

To install the GM MDI 2 software, ensure your PC runs on compatible operating systems such as Windows XP, Windows7, or Windows8. Please note that it is not compatible with Windows10. Additionally, disable your anti-virus software before installation to avoid conflicts.

Connection Setup

To use the GM MDI 2 tool, follow these steps:

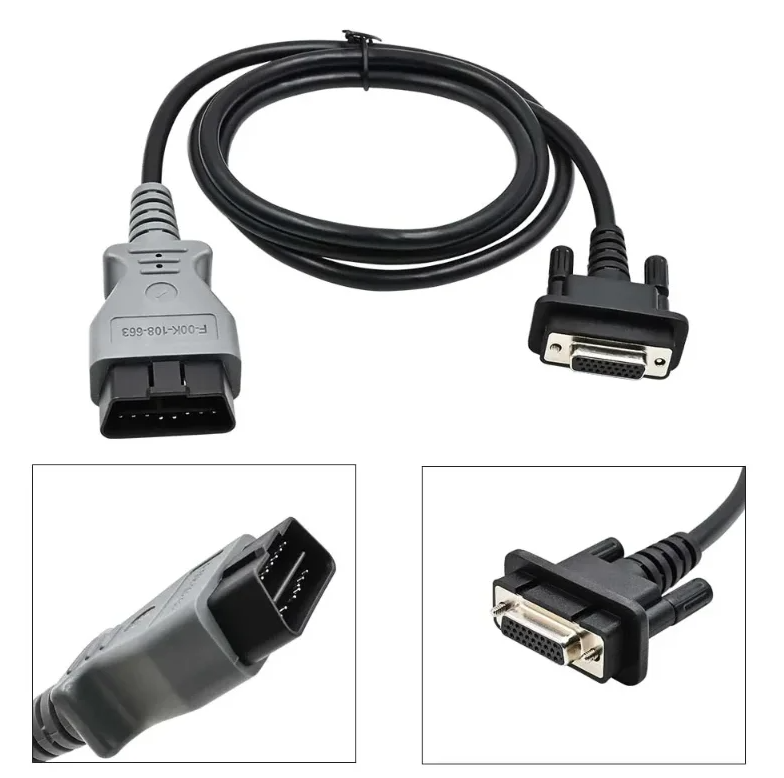

1. Connect the MDI2 to the Vehicle: Use the provided DLC cable to connect the MDI2 to the vehicle's OBD-II port.

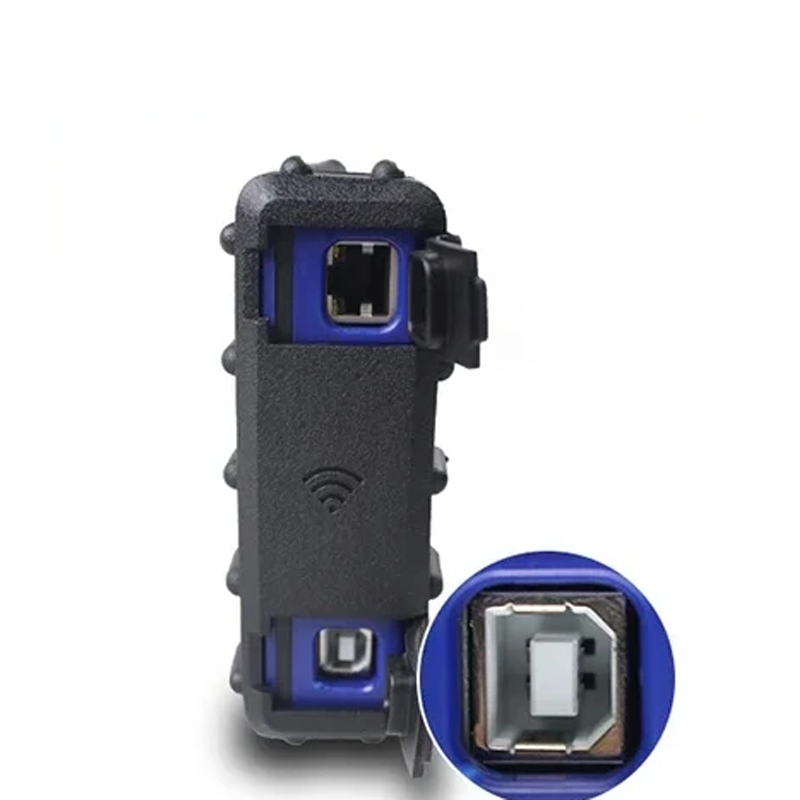

2. Connect to PC: Use either the USB connection or through the dealership network (CAT5) to link the MDI2 to your computer.
3. Launch Diagnostic Software: Open GDS2 or Tech2Win on your PC for data transfer and ECU reprogramming.

Performing Diagnostics

Once connected, you can utilize various features for diagnostics:

• Read and Clear Fault Codes: Detect issues quickly by checking DTCs.
• Monitor Live Data: Analyze real-time sensor readings to assess vehicle performance.
• Reprogram ECUs: Fix drivability issues by updating ECU software.

Benefits of the GM MDI 2 Diagnostic Tool

Enhanced Diagnostic Efficiency

With its robust features, the GM MDI 2 streamlines the diagnostic process, allowing technicians to quickly identify and resolve vehicle issues. This results in reduced vehicle downtime and improved customer satisfaction.

Backward Compatibility

The GM MDI 2 is designed to work with vehicles built since1996, leveraging the J1962 connector. This backward compatibility ensures that technicians can service a wide range of vehicles, enhancing its utility.

Multi-Manufacturer Support

Through the J2534 interface, the GM MDI 2 enables diagnostics and programming for other vehicle manufacturers, providing technicians with the versatility to work across multiple models with one tool.

Conclusion

The GM MDI 2 Opel diagnostic tool is a powerful and versatile device that equips automotive technicians with the necessary capabilities for effective vehicle diagnostics, programming, and troubleshooting. Its advanced features, backward compatibility, and support for multiple diagnostic applications make it an essential tool for anyone in the automotive repair industry.
