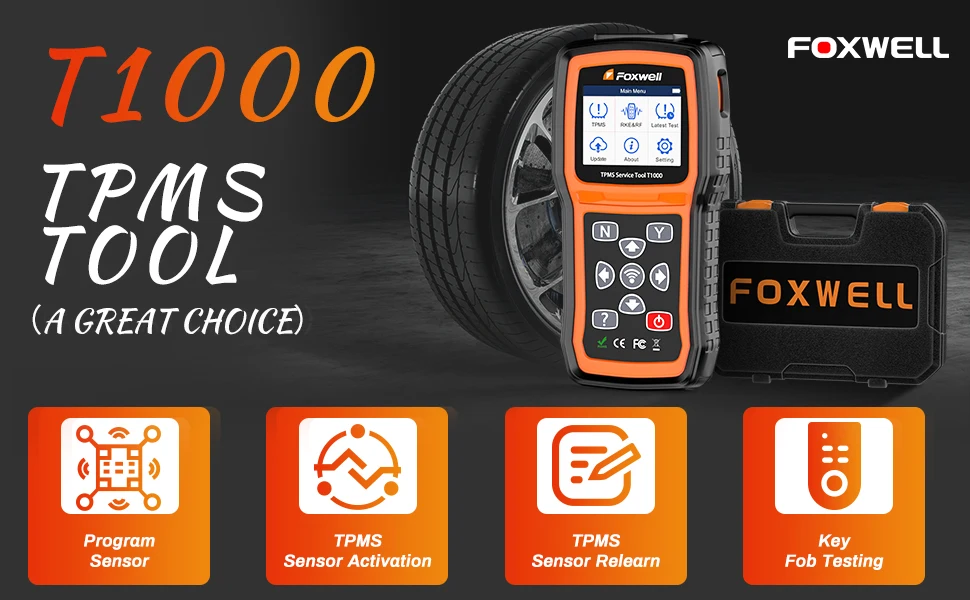

Foxwell T1000 TPMS Service Tool Tire Pressure Monitoring Sensor Programming Relearn Tool

The Foxwell T1000 is an advanced, affordable, and universal TPMS (Tire Pressure Monitoring System) service tool designed to streamline diagnostics, programming, and sensor activation. Whether you're a seasoned technician or a newly recruited professional, this tool makes TPMS-related tasks faster and more efficient.

Key Features of the Foxwell T1000

The Foxwell T1000 TPMS tool is packed with features that make it a must-have tool for any automotive workshop or technician. Below are some of its standout functionalities:

Core Features

• Universal Compatibility: Triggers and decodes 98% of known TPMS sensors, including 2021 and newer models.
• Sensor Programming: Works exclusively with Foxwell T10 sensors, allowing for quick and easy programming.
• Make-Model-Year Selection: Ensures accurate activation and prevents sensor crosstalk.
• Diagnostic Capabilities: Reads sensor ID, tire pressure, temperature, battery level, and frequency to help troubleshoot issues.
• Error Detection: Warns of incorrect sensor installation, duplicate IDs, and other potential issues.
• Key FOB Testing: Tests 315MHz and 433MHz keyless entry systems for proper functionality.
• User-Friendly Design: Features a clear keypad, menu-driven operation, and multilingual support (English, French, Spanish, German, Italian, Portuguese).
• Battery and Charging: Built-in rechargeable Li-polymer battery with easy charging via wall plug or USB.
• Durability: Strong housing and protective rubber boot for withstanding tough workshop conditions.
• Lifetime Updates: Free software updates via USB ensure the tool stays current with the latest advancements.

Reading TPMS Sensor Data

Is the TPMS light on? The Foxwell service tool T1000 helps you quickly identify the issue. It reads sensor data, including:

• Sensor ID
• Tire Pressure
• Tire Temperature
• Sensor Battery Level
• Frequency

With this data, technicians can diagnose problems in seconds, whether it's low tire pressure, a weak sensor battery, or another issue.

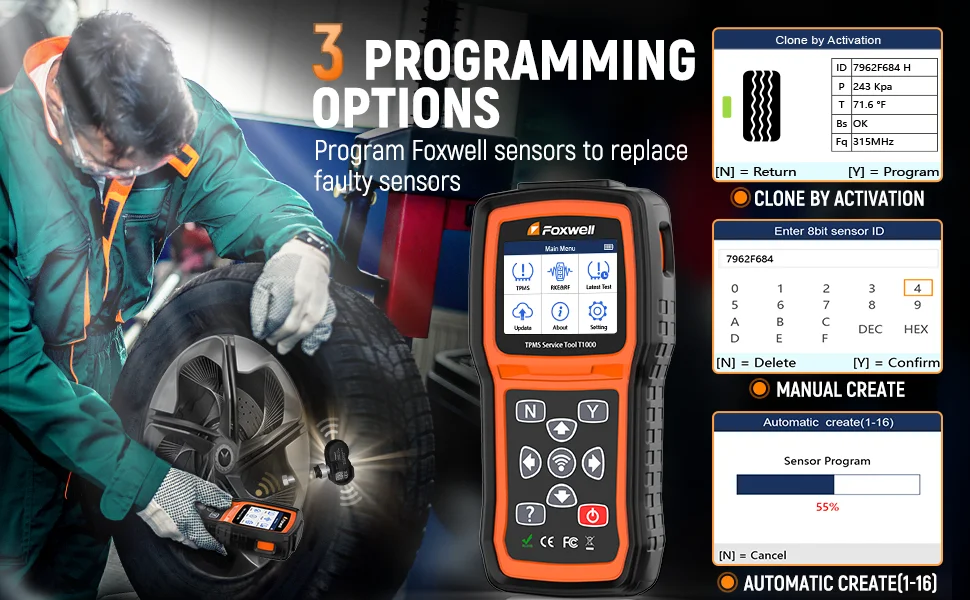

Programming Foxwell T10 TPMS Sensors

The Foxwell T1000 tpms allows for quick and convenient programming of Foxwell T10 sensors. Programming can be done in seconds through three methods:

1. Copy by Activation

This method automatically writes the original sensor data to the new Foxwell T10 sensor after activation.

• Highlight "TPMS" in the main menu and select the vehicle model.
• Choose "Programming" > "Clone by Activation."
• Place the T1000 near the original sensor and press "Activate."
• Place the new Foxwell T10 sensor near the tool (0-20 cm) to begin programming.
• The process is complete when sensor and tire data appear on the screen.

2. Copy by Manual Input

• Select "Programming" > "Manual Create" from the menu.
• Input the sensor ID manually and press "Y" to continue.

3. Auto Create for 1-16 Sensors

• Place 1-16 sensors near the top of the tool.
• The T1000 automatically detects and programs the sensors when they are within 0-20 cm.
• Programming is complete when sensor IDs and PSNs are displayed.

Activating TPMS Sensors

The Foxwell tpms sensor relearn tool T1000 can activate 98% of known OEM and universal TPMS sensors on the market. It supports two activation methods:

• All Wheel Mode: Activate all four sensors at once.
• Single Wheel Mode: Activate one sensor at a time.

This tool also decodes sensor information, including ID, pressure, temperature, battery level, frequency, and OE part number, making it an essential tool for pre-service checks or programming.

Key FOB Testing

The Foxwell T1000 tpms relean tool includes a key fob testing function for 315MHz and 433MHz systems. It provides clear audio and visual feedback to help technicians verify the condition of keyless entry systems.

TPMS Sensor Relearn Methods

The Foxwell T1000 supports three types of TPMS sensor relearn procedures:

1. Self Learning

For vehicles that support auto-relearn, the T1000 provides step-by-step instructions to simplify the process. Some vehicles can complete the relearn process automatically while driving.

2. Indirect Learning

This method is performed inside the vehicle and is used when a tire pressure sensor is not available. The T1000 provides instructions specific to the vehicle for resetting the TPMS light.

3. Static Learning

This method allows technicians to transfer new TPMS sensor IDs without driving the vehicle. Simply trigger the sensors while the vehicle is in learn mode using the T1000.

TPMS Sensor Activation Instructions

1. Highlight "TPMS" in the main menu and press "YES" to start.
2. Select the correct vehicle make, model, and year from the menu.
3. Place the tool near the sensor to ensure activation and decoding.
4. Press "Activate" to test the TPMS sensor. If successful, sensor data will be displayed for 3 seconds.

Multilingual Support

The Foxwell T1000 supports multiple languages, including English, French, Spanish, German, Italian, and Portuguese. If a new language is not available, ensure the tool is updated to the latest software version.

Foxwell T1000 Support More Than 87 brands

USA
for Buick, for Cadillac, for Chevrolet, for Chrysler, for Dodge,
for Ford, for GMC, for Hummer, for HSV, for Jeep, for Lincoln,for Tesla,

Europe
for Abarth, for Alfa Romeo, for Alpina, for Aston Martin, for Audi, for Bentley, for Bluesg, for Bmw, for Bugatti, for Citroen, for Dacia, for Ferrari, for Fiat, for Jaguar, for Lamborghini, for Lanice, for Lotus, for Man, for Maserati, for Maybach, for Mclaren, for Mercedes, for Mini, for Opel, for Peugeot, for Porsche, for Renault, for Retrofit, for Rolls Royce, for Saab, for Seat, for Skoda, for Smart, for Vauxhall, for Volkswagen, for Volvo

Asia
for Acura, for Daewoo,for Honda, for Holden, for Hyundai,for Infiniti, for Isuzu,for KIA, for Lada, for Lexus, for Mahindra, for Mazda,for Mitsubishi,for Nissan,for Scion, for Ssang Yong, for Subaru, for Suzuki, for Toyota

China
For Baic, for Borgward, for BYD, for Changan, for Chery, for CMS, for DFM, for FAW, for Foton, for Geely, for Greatwall, for Haval, for JAC, for Lifan, for Luxgen, for MG, for Qoros, for Zhonghua, for Zotye

Package List

1*T1000 Main Unit
1*USB Mini Cable
1*Magent (send random)
1*Battery Charger
1*User Quicker Guide
1*Warranty Card
1*Blow Molding Case

NOTE:The scanner has a built-in lithium-ion polymer rechargeable battery.

Conclusion

The Foxwell T1000 is an indispensable tool for any technician or workshop dealing with TPMS systems. Its universal compatibility, ease of use, and advanced features make it a cost-effective solution for diagnosing, programming, and relearning TPMS sensors. With lifetime updates and a robust design, the T1000 is a long-term investment for professionals in the automotive industry.

Whether you're troubleshooting TPMS issues, programming sensors, or testing key fobs, the Foxwell T1000 delivers precision, speed, and reliability. Upgrade your toolkit today and take your TPMS service to the next level!
