Doosan UVIM Excavator Diagnostic Tool Forklift Engine fault Scanner detection OBD Interface

In the realm of heavy machinery maintenance, having the right diagnostic tools is crucial for ensuring optimal performance and longevity. The Doosan Diagnostic Tool (DDT) for Excavator Inspection serves as a specialized device designed for comprehensive diagnosis and troubleshooting of Doosan’s electronic fuel injection diesel engines. This article delves into its features, advantages, and essential applications in the field.

What is the Doosan UVIM Diagnostic Tool?

The Doosan uVIM Diagnostic Tool is an advanced diagnostic device tailored for inspecting and diagnosing electronic fuel injection systems in Doosan diesel engines. It is an essential tool for technicians and mechanics working on a variety of Doosan equipment, including excavators, loaders, and forklifts.

Key Features of the Doosan uVIM Diagnostic Tool

The Doosan uVIM Diagnostic Tool boasts a series of robust features, making it a vital asset in any maintenance operation:

Engine Testing Capabilities

• Shut Off Test: This test evaluates the performance capability of an individual cylinder, offering insights into the cylinder's functionality.

• Run Up Test: Similar to the shut-off test, this function assesses the operational capacity of a specific cylinder.

• Compression Test: This test measures the cylinder compression and evaluates the speed of an individual cylinder, providing vital information regarding its condition.

Doosan Diagnostic Tool Supported Functions

The DDT offers a wide array of diagnostic capabilities, including:

• Engine Fault Code Retrieval: Access to fault codes along with descriptions and TSG for quick troubleshooting.

• Service Data Monitoring: Enables data logging for future reference, enhancing diagnostic accuracy.

• Sensor Parameter Displaying: Displays engine and electric sensor parameters, allowing real-time monitoring.

• Data Freeze Frame: Captures engine data snapshots for analysis during fault conditions.

• Routine Tests for Troubleshooting and Performance: Includes testing various components to ensure optimal machine operations.

• EOL - Fuel Variant Coding: Supports coding for engine operation variants based on fuel types.

Supported Equipment Types

The Doosan diagnostic tool supports TIER-3 and TIER-4 compliant machinery, including:

• Forklifts

• Excavators (CN)

• Loaders (SF, MF, EX-MF, LF)

• Toolcat Models

Comprehensive Diagnostic Service System

The Doosan Diagnostic Service System is organized into several components to ensure thorough inspections and maintenance checks:

• Doosan DDT SCR: Specialized in diagnosing SCR systems.

• Doosan DDT DPF: Focused on DPF functionality and cleaning requirements.

• Doosan G2 Scan DCU: Diagnostic capability for the DCU (Data Control Unit).

• Doosan G2 Scan ECU: Comprehensive ECU diagnostics.

• Doosan DMS-5: Monitoring system to ensure all components are functioning correctly.

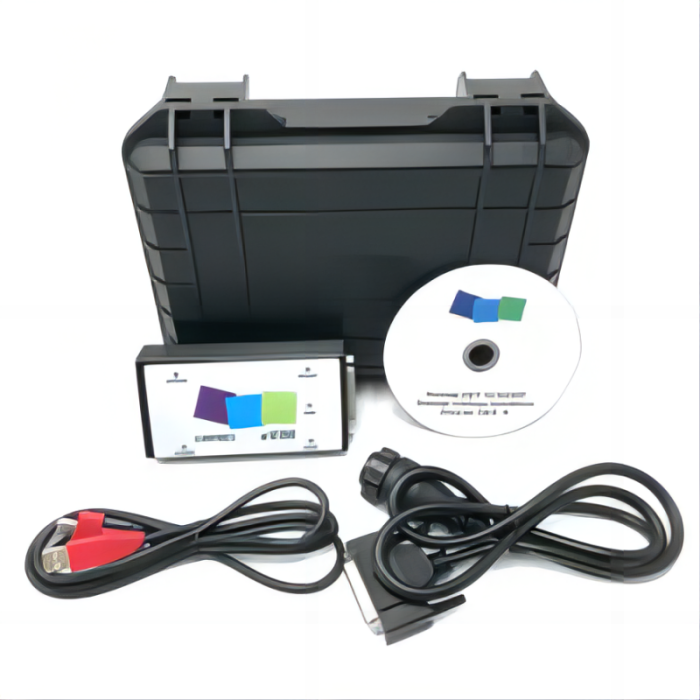

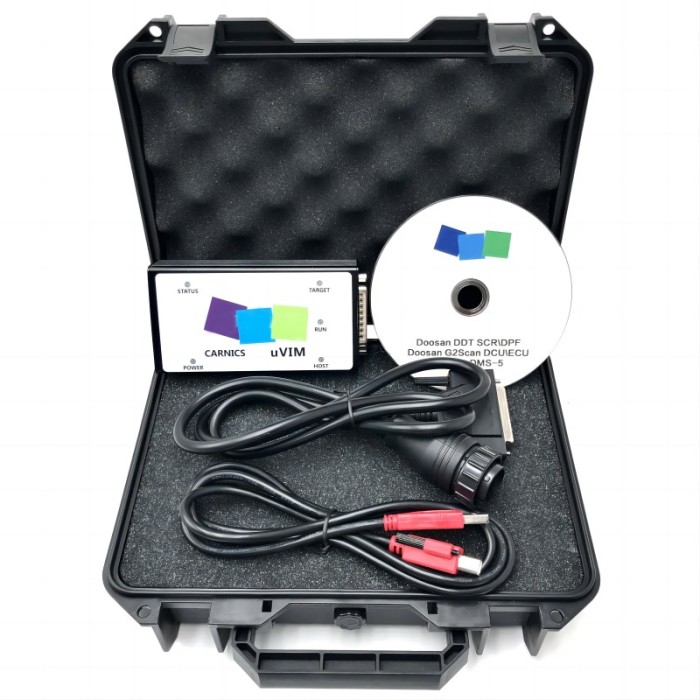

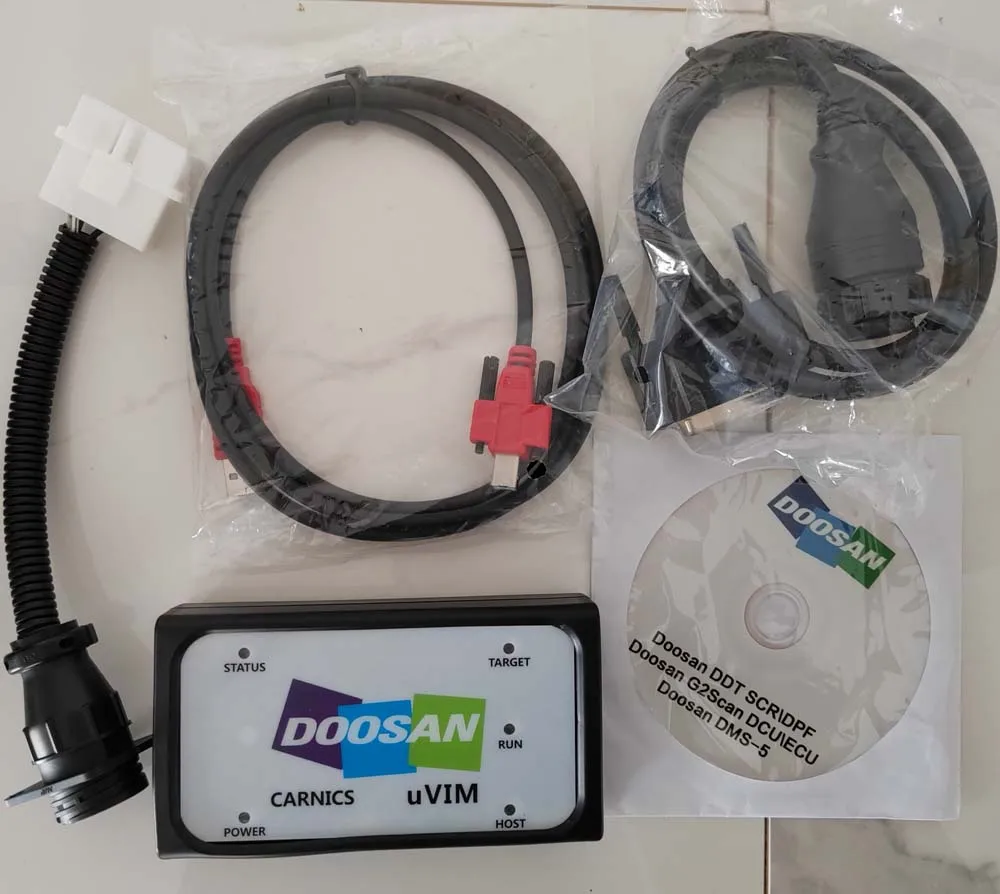

Package List for Doosan Diagnostic Tool

Upon purchasing the Doosan Diagnostic Tool, you receive a comprehensive package, including the following:

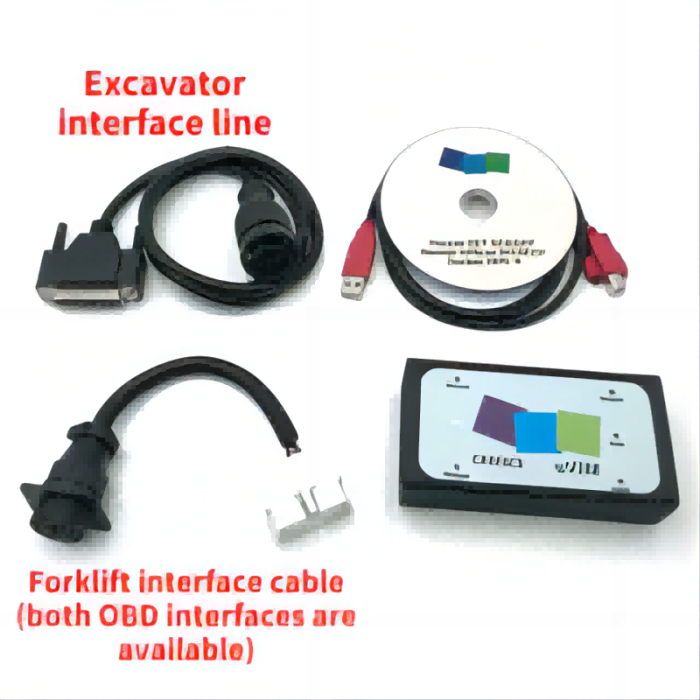

• 1 x UVIM Communication Interface
• 1 x USB Cable
• 1 x 8-pin Cable
• 1 x 14-pin Cable
• 1 x DDT G2 Scan (DCU, ECU)
• 1 x DDT TIER4 (SCR, DPF)
• 1 x Massey Ferguson Engine Analyzer (DCU, ECU)
• 1 x DMS-5 (Monitoring)
• 1 x CF54 Laptop preloaded with Workstation Software

Language Support and System Compatibility

The Doosan Diagnostic kit and software support multiple languages, including Korean, English, Chinese, Russian, Spanish, Portuguese, French, and Dutch, making it accessible for a diverse range of users. It operates on Windows 10 Professional Edition, ensuring stability and reliability during use.

Conclusion

In summary, the Doosan Diagnostic Tool is an essential instrument for anyone working with Doosan machinery. Its advanced functionalities, from precise engine diagnostics to comprehensive support for various machine types, make it an invaluable tool for maintaining efficiency and performance in the field. With its user-friendly interface and extensive language support, the Doosan uVIM Diagnostic Tool stands as a powerful ally for technicians and engineers alike.
