DOIP kit update for SD Connect Compare C4 Diagnosit Tool OBD2 Cable for MB Star C4 device update

Upgrading your Mercedes-Benz SD Connect C4 diagnostic tool with the DOIP (Diagnostic over Internet Protocol) kit is essential for modern car diagnostics. The DOIP 16-pin OBD-II cable enriches your C4 device's capabilities, allowing compatibility with newer vehicle models equipped with DOIP technology. In this guide, we'll walk you through the importance of the C4 DOIP kit and the installation process.

Why Upgrade to C4 DOIP Kit?

Benefits of DOIP Technology

• Enhanced Compatibility: As automotive technology evolves, many new Mercedes-Benz models are equipped with DOIP. Upgrading ensures that your diagnostic tool can communicate effectively with these vehicles.
• Improved Data Transfer: DOIP kit allows for faster data transmission, which is crucial for high-volume vehicle data extraction and diagnostics.
• Future-Proofing Your Equipment: With the continuous advancements in automotive technology, having a DOIP-compatible tool ensures your investment remains relevant.

How to Fit the C4 DOIP Kit

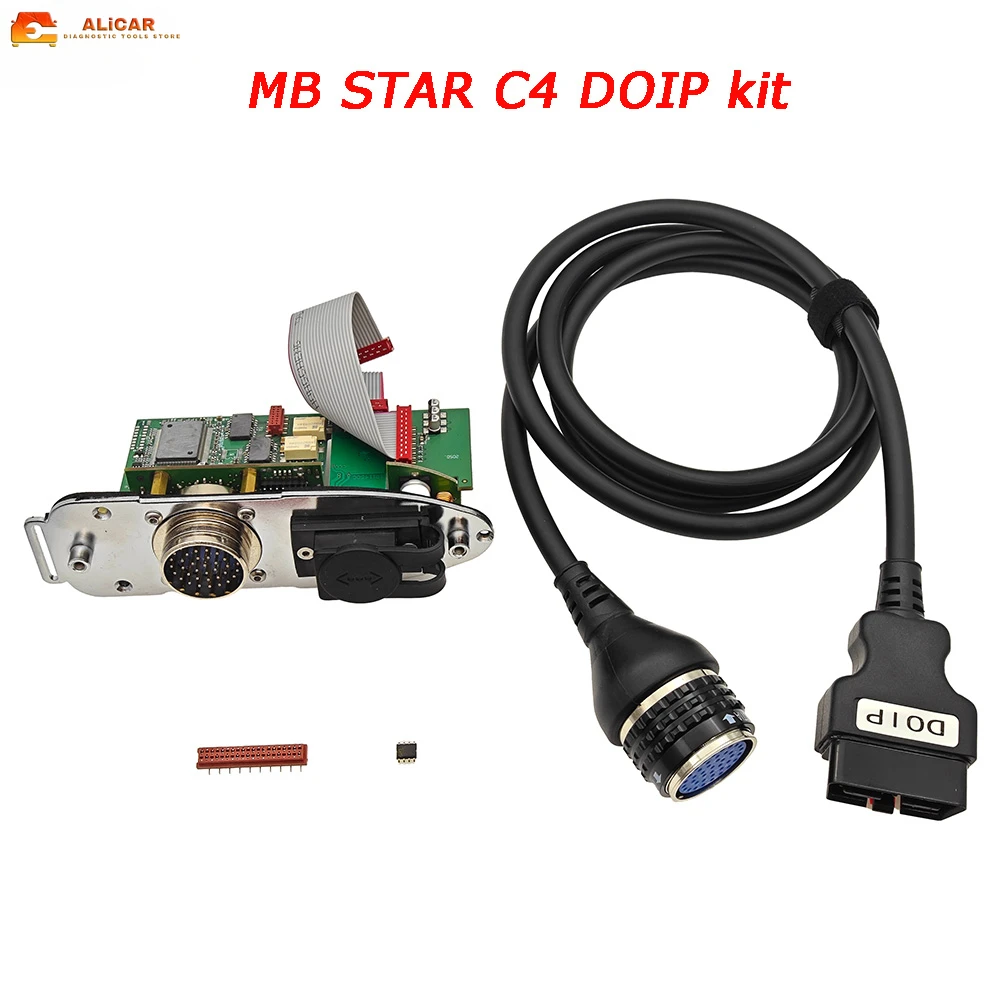

Step 1: Inspect the Kit

Before you begin the installation, take a close look at Pic NO.1. You'll need to ensure that the orientation of the three wires in the socket is correct. It's crucial that none of the wires are reversed; otherwise, the DOIP function will not operate correctly.

Step 2: Soldering the Connections

As you proceed with soldering, refer to Pic NO.2. Pay close attention to the positioning of the red socket's head and body on the board. Incorrect alignment can lead to malfunction. Note the distinct left and right sides; ensure your soldering follows the guidance depicted in the image.

Step 3: Chip Replacement

In Pic NO.3, you will find instructions for replacing the chip. It’s vital to align each pin of the new chip with the corresponding holes that held the old chip. Proper alignment ensures a successful connection and functionality.

Step 4: Software Update

After successfully fitting the components, you need to update your software. Follow the instructions for the 03 option update as shown in the provided images. Completing this step is crucial, as it finalizes the upgrade process.

Important Notes

• Contact Support: If you have any questions or uncertainties before starting the installation, don't hesitate to reach out for assistance.
• Testing Functionality: After the upgrade, ensure to test the diagnostic tool with various models to confirm it operates as expected.

Conclusion

Installing the C4 DOIP kit on your MB Star Connect C4 diagnostic tool significantly enhances your diagnostic capabilities and ensures compatibility with the latest technology in the automotive industry. Follow the steps carefully for a successful upgrade, and enjoy the benefits of modern diagnostic technology.
