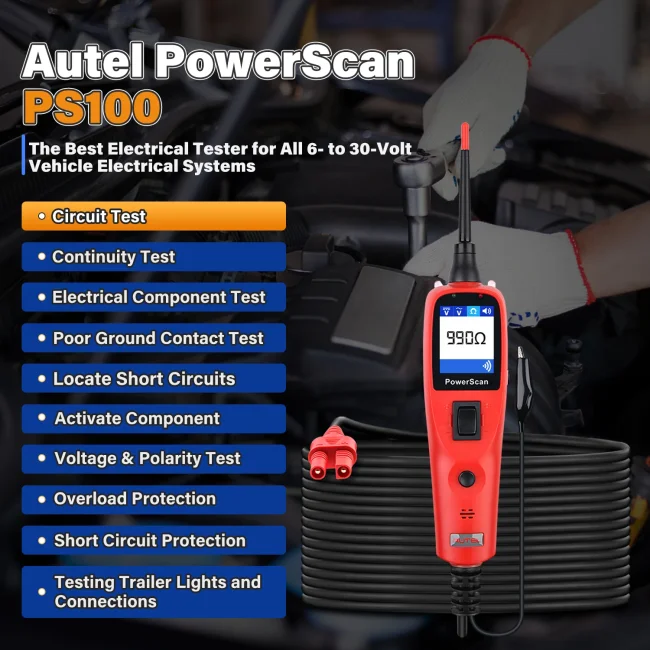

Autel PowerScan PS100 Auto Circuit Tester Diagnostic AVOmeter Test Tool

The Autel PowerScan PS100 is a game-changing tool for automotive technicians. Designed to simplify electrical system diagnostics, this all-in-one power circuit tester is packed with advanced features and intuitive functionality. Whether you're diagnosing a faulty circuit, testing components, or locating shorts, the PS100 is your go-to solution.

What Makes the Autel PowerScan PS100 Stand Out?

Comprehensive Testing Capabilities

The Autel PS100 is equipped to handle every type of electrical system test imaginable. With its cutting-edge technology, you can perform the following tests with ease:

• Voltage & Polarity Tests: Measure DC and AC voltage with precision, including frequency and duty cycle for AC signals.
• Continuity Tests: Quickly identify open or short circuits in switches, relays, and diodes.
• Component Activation: Instantly power up electrical components like cooling fans and relays for functional testing.
• Ground Testing: Identify bad ground contacts and locate shorts efficiently without blowing fuses.
• Signal Circuit Tests: Diagnose complex electrical systems with accuracy.

User-Friendly Design

The PS100 tester is designed with the user in mind, featuring:

• A TFT color display (160x128 dpi) for clear and precise readings.
• Audio Tone Indicators: Navigate menus hands-free with distinct tones for menu options.
• Built-in Flashlight: Work effortlessly in low-light environments.
• Ergonomic Design: Comfortable to hold and operate, even during extended use.

Extra-Long Cables for Enhanced Accessibility

The PS100 circuit comes with a 20ft extension cable, providing unparalleled flexibility to test circuits anywhere in the vehicle. Additionally, the included cigarette lighter adapter ensures you never run out of power while working on your car.

How Does the Autel PowerScan PS100 Work?

Four Modes of Operation

The PS100 autel circuit tester offers four distinct modes of operation, making it versatile for any diagnostic task:

1. DC Voltage Mode

• Measure DC voltage with a resolution of 0.1 volt.
• Ideal for testing battery voltage, alternator output, and more.

2. AC Voltage Mode

• Measure maximum and minimum voltage, frequency, and duty cycle for AC circuits.
• Essential for diagnosing alternators, generators, and other AC-powered components.

3. Resistance Mode

• Test resistance levels between the probe tip and the auxiliary ground lead.
• Perfect for identifying faulty circuits or components.

4. Tone On/Off Mode

• Toggle the audio tone feature with a quick press of the mode button.
• Use the tone feature to navigate menus or test components without looking at the screen.

Technical Specifications

Display:

• TFT color display (160 x 128 dpi)

Operating Temperature:

• 0 to 60°C (32 to 140°F)

External Power:

• 12.0 or 24.0 V power provided via the vehicle battery

Dimensions:

• Length x Width x Height: 26mm (4.96”) x 46.5mm (1.83”) x 35mm (1.38”)

Weight:

• Net Weight (NW): 0.105kg (0.23lb)
• Gross Weight (GW): 0.726 kg (1.6lb)

What’s in the Box?

The Autel PowerScan PS100 comes with everything you need to get started:

• 1 × PowerScan PS100
• 1 × Rugged blow-molded case for protection
• 1 × 20ft. extension cable for extended reach
• 1 × Probe tip for precision testing
• 1 × Battery hookup clips for power supply
• 1 × Cigarette lighter adapter for convenience
• 1 × User's Manual for easy guidance

Why Choose the Autel PowerScan PS100?

The Autel PowerScan PS100 is more than just a circuit tester—it’s a complete diagnostic solution for modern vehicles. Its combination of precision, convenience, and reliability makes it the perfect tool for both professional technicians and DIY enthusiasts.

Whether you're troubleshooting complex electrical issues or performing routine maintenance, the PS100 delivers accurate results every time. With its intuitive interface, extra-long cables, and built-in flashlight, it’s the ultimate addition to your toolkit.

Don’t settle for guesswork—upgrade your diagnostic capabilities with the Autel PowerScan PS100 today!
