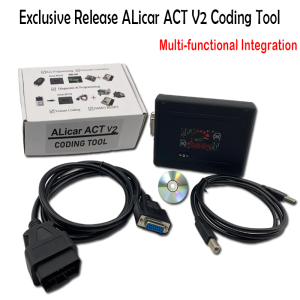

ALicar ACT V2 Car Coding Tool Support Diagnosis Programming Mileagg Crrection For Citroen/DS/FIAT/OPEL/Peugeot/Toyota/Vauxhall

What is ALicar ACT v2 Car Coding Tool?

ALicar ACT v2 is a powerful vehicle programming and coding tool designed to assist automotive repair professionals and enthusiasts in managing and adjusting various vehicle electronic control units (ECUs). Since 2016, many coding and programming operations need to be performed online（like Diagbox Online Programming）, but with ALicar ACT v2 Car coding tool, users can perform offline programming, coding, and special operations for certain vehicles.

Warning and Liability Disclaimer

Using this software may affect and control the connected electronic systems, so users must fully understand the possible consequences before operating. It is recommended to back up old data before performing any programming or coding operations to prevent unintended situations.

If you do not have an online diagbox account, you can contact me to provide diagbox remote programming services. If you know how simple programming, even if no diagbox online account, also can use this powerful tool for coding and programming.

ALicar ACT V2 Vehicle Coding Tool Hardware Requirements

Connection Interfaces and OBD Cable

• Interface Supports CAN:
  • OBD PIN3&PIN8
  • OBD PIN6&PIN14
  • OBD PIN3&PIN11
• Note: If you need to connect PIN1&PIN9, you can try a jumper.

ACT V2 Coding Software Components

Main Software Tools

1. ALicar ACT v2 Coding Tool: Core programming tool (Provide CD Come With 2.3GB Programming Data).
2. SWcheck: Used to determine whether different numbered ULP/CAL can be replaced.
3. Interface Driver: CH341SER.

ACT V2 Coding Tool Supported Vehicle Brands and Models

Multi-Brand Support

ALicar ACT v2 vehicle coding tool supports multiple automotive brands, including:

• Citroen
• DS
• FIAT
• OPEL
• Peugeot
• Toyota
• Vauxhall

Example Vehicle Models

Citroen

• C1; C3III (B618); C3 PICASSO; C3 AIRCROSS; C4 B7; C4 C41; C4 CACTUS; C4 PICASSO SPACETOURER; C4 AIRCROSS; C5 X7; C5X E43C; C5 AIRCROSS; C6; C-CROSSER; BERLINGO(B9); BERLINGO(K9); JUMPY 3; JUMPY K0; SPACETOURER; JUMPPER 3; JUMPER 3 minibus; JUMPER Euro 5/6; C-ELYSEE; NEMO;

DS

• DS4(D41) CROSSBACK; DS7 CROSSBACK; DS9 E-TENSE; DS3 CROSSBACK; DS3; DS4; DS5; DS6.

FIAT

• FIORINO; DUCATO; DUCATO 3 minibus.

OPEL

• CORSA F; GRANDLAND; ASTRA; MOKKA; VIVARO; COMBO LIFE; ZAFIRA; VIVARO LIFE; ROCKS-E; CROSSLAND.

Peugeot

• 108II; 208I; 208II; 308 T9; 308 P5; 408 T93; 508; 508 R8; 508 R83; 2008 I; 2008II P24; 3008 I; 3008 II P84; 4007; 4008 I; 4008 II P84; 5008 I; 5008 II P84; PARTNER K9; LANDTREK; EXPERT K0; BOXER 3; BOXER 3 minibus; BOXER Euro 5; 207+; 308; BIPPER; RIFTER.

Toyota

• PROACE.

Vauxhall

• CORSA F; GRANDLAND; ASTRA; MOKKA; VIVARO; COMBO LIFE; MOVANO; ZAFIRA; VIVARO LIFE; ROCKS-E; CROSSLAND.

ACT V2 Coding Tool Supported Control Modules

ALicar ACT v2 supports various control modules, including:

Body Computer

• VSM-DS_NEW BSI 2021; BSI-UDS_VALEO_CONTINENTAL_DELPHI; BSI-KWP_JOHNSON CONTROL_04EV K0x_(Partner); BSI-KWP_JOHNSON CONTROL_04EV K0x(3008 I); BSI-KWP_SIEMENS_S0x; BSI-KWP_VALEO_P0x; BSI-KWP_VALEO_X0x; BCM1-BCM BEEPER/NEMO/FIORINO; BCM2-BCM BOXER FL/JUMPER FL; BCM3-(minibus)BOXER/JUMPER; BCM4-BCM BOXER Euro 5/6 /JUMPER Euro 5/6; PSF1-ENGINE COMPARTMENT MODULE.

Driver Computer

• ECU-ENGINE CONTROLLER; E-ECU-ELECTRIC CALC; MCU-ELECTRIC ENGINE; BVA-GEARBOX; ESM-GEAR LEVER; COMEL BVA-GEAR SHIFT MODULE; ABS-ABS/ESP SYSTEM; DAE-POWER STEERING; PADDGO-KWP ADDITIVE PUMP; PADDGO-UDS ADDITIVE PUMP; SCR-ADBLUE TANK; DMTC-START STOP.

Multimedia Computer

• IVI_HEAD_UNIT; SMEG/SMEG+ NAVIGATION; NAC-RADIONAVIGATION NAC; RCC-TELEMATICS RCC; RCC_AIO-TELEMATICS RCC_AIO; RCE-TELEMATICS RCE; RADIO-AUTORADIO; LVDS-SCREEN_LVDS; EMF-EMF SCREEN; CD-CD CHANGER; AMP-HIFI-AUDIO AMPLIFIER; MDS/BSRF-AUTONOMOUS TELEMATICS MODULE; BSRF-RADIO ANTENNA.

Information Control

• COMBINE-INDICATOR SET; MATT-MATT DISPLAY; HDC-SWITCHES UNDER THE STEERING WHEEL; VCI-STEERING WHEEL WITH CONTROL; FMUX-SWITCHES-FMUX.

Driving Units

• RADAR-DISTANCE KEEP RADAR; RADAR-REAR LEFT; RADAR-REAR RIGHT; VISIO-MODULE VISIO CAM-360; NIGHT-NIGHT VISION MODULE; CVM-RUNWAY MAINTENANCE CAMERA; AAS-PARKING MODULE; VTH-HEAD UP MODULE.

Comfort Units

• CLIM-AIR CONDITIONING; REAR AIR CONDITIONING-PERFUME; BMCC-ELECTRIC RACK; CORPR-HEADLIGHT CORRECTOR; CDPL-RAIN-LIGHT SENSOR; ESV-WIPER MODULE; SCBD-CHAIR COMFORT; BRNC-HEATING MAT; BCLVR-WINDOW LIFTING PLATE.

Access and Safety Units

• BPGA-POWER MANAGEMENT; BSG-TRAILER MODULE BSG; AVE-ELECTRIC STEERING LOCK; HF-HANDS FREE MODULE; BAAST0ACCESS MODULE HF; PDPC-DOOR MODULE; AIRBG-SENSOR AIRBAG; TNB-TNB CONTROL MODULE; ASR-ASRPLUS; DSG-TIRE PRESSURE; ALARM-ANTI-BURGLARY; SIR-ALARM SIREN.

Overview of ALicar ACT V2 Programming Software Functions

Simple Function Introduction

The software has a simple function introduction, and detailed function usage requires self-learning (these are basic usage methods).

Running Method

1. Before running, ensure you have installed the driver. You can double-click the driver icon on the desktop for installation.
2. Connect the interface and then double-click the software icon on the desktop, patiently waiting for the online verification to complete. The time for online verification is variable, so please be patient (the software is not stuck).

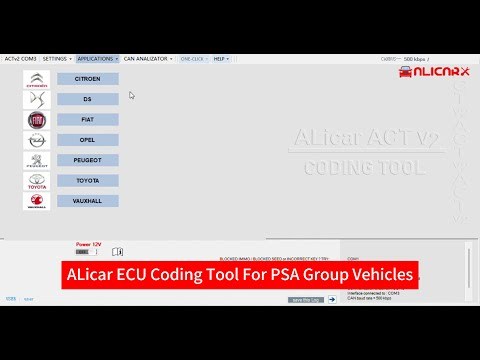

Menu Items

1. Interface Connection Status Bar (if manually setting the serial port, select the correct port number).

2. Settings:

   • The frequency in the basic settings must be set to 16MHz.
   • Choose the CAN rate based on actual conditions;
   • Other settings can remain default.

3. Applications:

   • Includes the following special functions:
     • BSI VIRGIN/INFO
     • ECU VIRGIN/INFO
     • GEARBOX IMMO INFO
     • ELECTRIC ENGINE
     • EMULATOR IMMO
     • AIRBAG CRASHDATA CLEAN
     • COUNTER EDIT
     • SPC560 AIRBAG .bin ENCODING
     • ULP/CAL DECODER
     • TESTER BACK ESP-DAE
     • ECU SIMULATOR FOR DIAGBOX
     • FIND SEEDKEY (for unlocking control units)—may take a long time.

4. CAN Analyzer.

5. One-Click Coding Function:

   • Supports configuration backups from cars;
   • Rearview camera; reset camera 180; reset camera 360; trailer module; grip control; downhill control; sports package; semi-automatic parking.

Help Information

• Control Unit Pinout Diagrams:

  • BSI, CIROCCO PCB, DELPHI unit pinout diagrams (engine ECU, instrument panel, ABS/ESP, transmission, electric power steering; ADML; parking; airbag; NAC/RCC; SMEG; BTA_2; radar; AVE; MCU_ECMP).

• Information and Manuals:

  • Includes: test backup manual; module HAKA 3008II; perfume sprayer; NRC code; camera 360; DS7 CROSS (IVI) seat heating and ventilation, massage functions.

Status Bar

UNLOCK SEED usually does not need checking. Only check and enter the correct unlock code to change the seed key if the control unit unlock fails. If you do not know the correct unlock code, you can use the special function 4.1.3.12 (Find Seed Key) to calculate.

Connecting to Vehicle

Select the appropriate vehicle and control module based on actual conditions. Most module menu options may differ, but nearly all modules have the following functions:

1. Software version information;
2. DTC read and delete;
3. Configuration backup;
4. Offline configuration;
5. Offline calibration upload (cal flash);
6. Offline flash upload (ulp flash).

Important Notes

1. Calibration and flash uploads must use the correct CAL or ULP files. If the CAL or ULP number does not match the vehicle, use swcheck.exe to confirm.
2. When performing calibration and flash uploads, you must follow the prompts of the ACTv2 software and patiently wait during file loading and processing; do not click related buttons until processing is complete.

Example BSI Programming Special Functions

• VIN menu items:
  • VIN read and change (when BSI is in Virgin state);
  • Write PIN (BSI Virgin state);
  • Check PIN stored in BSI;
  • Key learning;
  • BSI other functions:
    • Exit economy mode; maintenance reset; accident radar state reset; read PIN (not all BSI modules).

CMM (Engine ECU) Programming Special Functions

• Test bench method: long duration brute force calculation for PIN;
• Check if PIN is stored in CMM;
• Start-stop function disable and re-enable.

BVA_AXN8 Programming Special Functions

• Status IMMO; PIN writing (Virgin state);
• Test bench method: long duration brute force calculation for PIN; NAC/RCC special functions (options may vary).

NAC/RCC Programming Special Functions

• ELOYS Inergy pump reset.

In addition, the automotive coding tool also supports:

1.Auto Key Programming
2.Odometer Correction
3.Diagnostic & Programming
4.Variant Coding
5.IMMO Reset

Conclusion

ALicar ACT v2 is a comprehensive car coding tool, suitable for professional automotive technicians and enthusiasts. By supporting multiple vehicle models and control modules, users can efficiently manage and maintain vehicle electronic systems, ensuring the normal operation and safety of the vehicle.
