ALicar A501 OBD Car HUD Head Up Display Trip Computer Intelligent Tire Monitoring

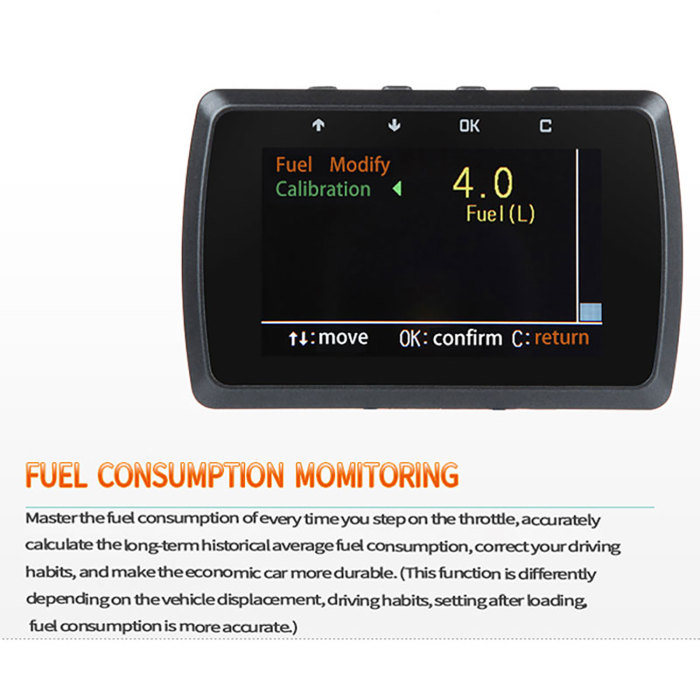

The ALicar A501 OBD car HUD has many functions such as vehicle condition self-checking, fault alarm, clearing fault codes, fuel consumption detection, and car battery detection. It can monitor various conditions of the car in real time, help you understand the running status of the vehicle, discover potential problems in time, and ensure driving safety. In addition, we also provide 63 font colors to choose from to meet your personalized needs.

A501 OBD Car HUD  descriptions

ALicar A501 On-board multifunction display terminal ,also known as Car trip computer, is a  multifunctional , comprehensive,customer-oriented car information display terminal. With the car trip computer system, the users not only can know most of the car information, but also and setup the inner functions of their cars to make it more personalized and humanized.

A car trip computer is not only a car information display system, but also a powerful fault detection device. The car users can find whether the car has a detect or not through the car trip computer. The system can show the fault information in details so that the car user can remove the hidden trouble for their cars, especially, it will protect the interests for the car user when the car is in the warranty time

ALicar A501 OBD Car HUD Features

1. Widely used in the fields of cars, trucks and new energy vehicles, providing a full range of on-board testing services.
2. Simple operation and convenient for car owners to use.
3.Dual-channel satellite receiving module
4. Powerful functions and excellent performance, providing the best protection for your vehicle
5. Car battery detection: Quickly detect the condition of the car battery to ensure battery safety.
6.63 font colors available: Provides a variety of color options to meet the personalized needs of different car owners.
7. Vibrate to wake up and start with the car

A501 OBD Car HUD Trip Computer function display

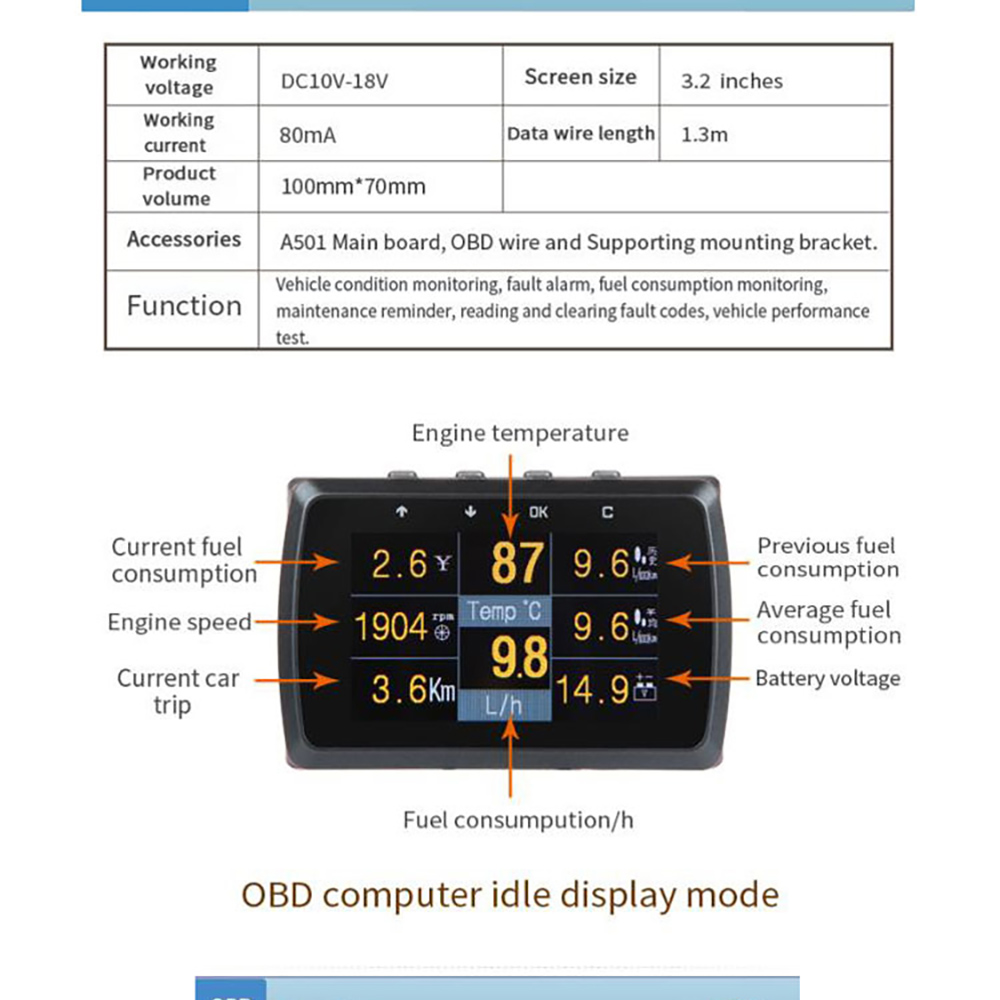

Displayed pictures at an idling state

The idle mode is an interface displayed in the key-on or idle state. The customer can configure the delayed contents.

Displayed pictures in a driving state

When the vehicle start driving, the system will present the following four interface,【cruise mode】,【race mode】interfaces. Use 【↑】,【↓】to switch the interfaces.

Data specifications in the race mode

The screen shows three data options and displays the values such as the current engine speed, driving speed, engine water temperature etc., at the same time.

Alarm prompt function

The multiple azimuth alarm prompt functions of the car trip computer can assure safe use of the vehicle, when the vehicle is in use, the car trip computer  offer safety information with different grades.

Speeding driving alarm

Set the maximum speed alarm for safety driving of the vehicle according to actual individual situation. When your vehicle speed reaches or exceeds the set maximum speed, the car trip computer gives out a tick sound to send a speeding warning, and the vehicle speed displayed number appears red at the same time to prompt the driver that attention should be paid to control the driving speed.

Driver fatigue alarm

Before a long drive, set “driver fatigue alarm “prompts to guarantee that in a certain interval the system reminds the driver to stop fatigue driving.

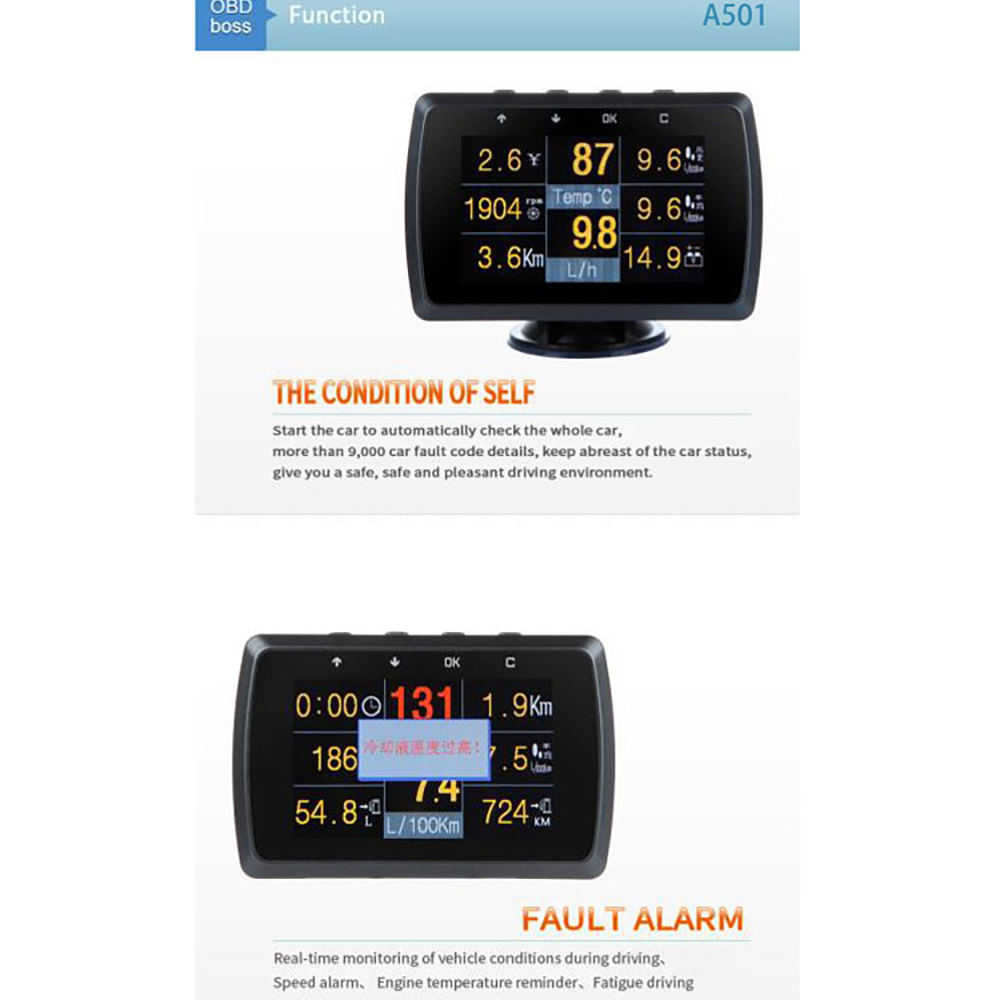

Car malfunction alarm

Each time the key is turned on the car trip computer will check the electronic circuit of the engine.by itself Prompt timely when a malfunction is found. View the fault information of the car by using the button. to assure safety driving of each time.

Connections between a car trip computer and a vehicle

1. Secure the base bracket into an appropriate place on the bridge.
2. Connect the car trip computer with the host support, adjust the angle and position to assure easy viewing.

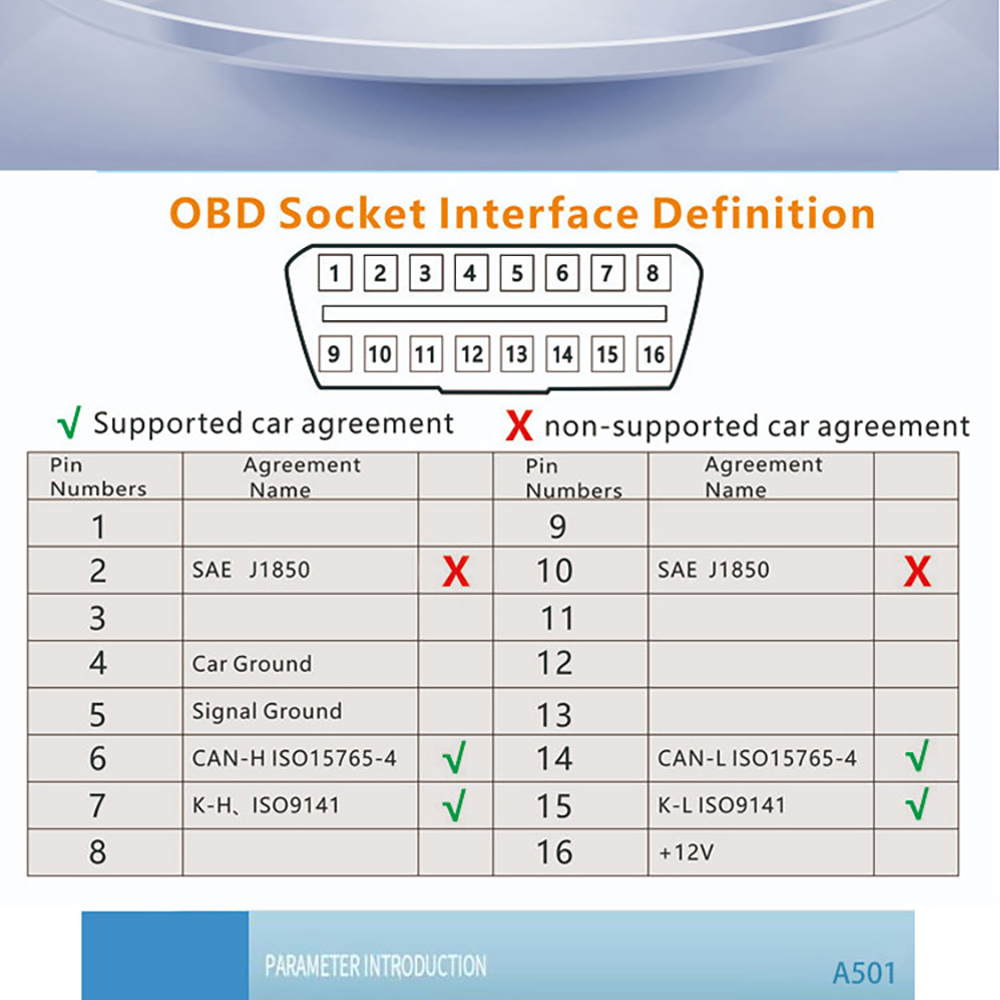

3. Connect the diagnostic data line, car trip computer's  host and  vehicle's OBD16 diagnostic port in a safe and reliable way.
Note:  The diagnostic data line is 1.3 m long and the customers can determine the installation and routing of the car trip computer according to its length.
Precautions for installing the bracket:
The car dashboard shall keep clean, if the car instrument wax is used, the double sided tape can not stick, so in this case, please clean the dashboard with a hot towel and then carry out the installation.  When installation, things will go more smoothly if  the dashboard is heated by air.

A501 OBD Car Head Up Display Restore factory settings

When the power switch is turned on and the screen displays, press OK button once immediately, and the restore factory settings menu will display; or, go to the instrument menu, select the restore factory settings for operation.

After restoring the factory settings, reset all of data, set the data to restore to the default factory setting state.
After the initialization settings of the car trip computer are done, the system will restart.
The system is busy with getting vehicle data, after the vehicle connection is successful, information such as engine displacement, fuel tank size need to be reconfigured.

A501 Car HUD Trip Compuer Parameters

Product model:A501
Data line :1.3m
operating  current:80mA
operating  current:10v-18v  DC
Standby current:<15 mA
Overall dimension:70mm×100mm
HUD  button:Support
Mounting mode:3Mglue bracket mounting Suction  disc  bracket
Host weight:68g
Package weight:68g
Application areas: cars, trucks, new energy vehicles

A501 OBD Intelligent Tire Monitoring Computer accessories

1×Host,
1×data line,
1×bracket,
1×reflective film,
1×quick installation operating manual(instructions)
